Installation
instructions

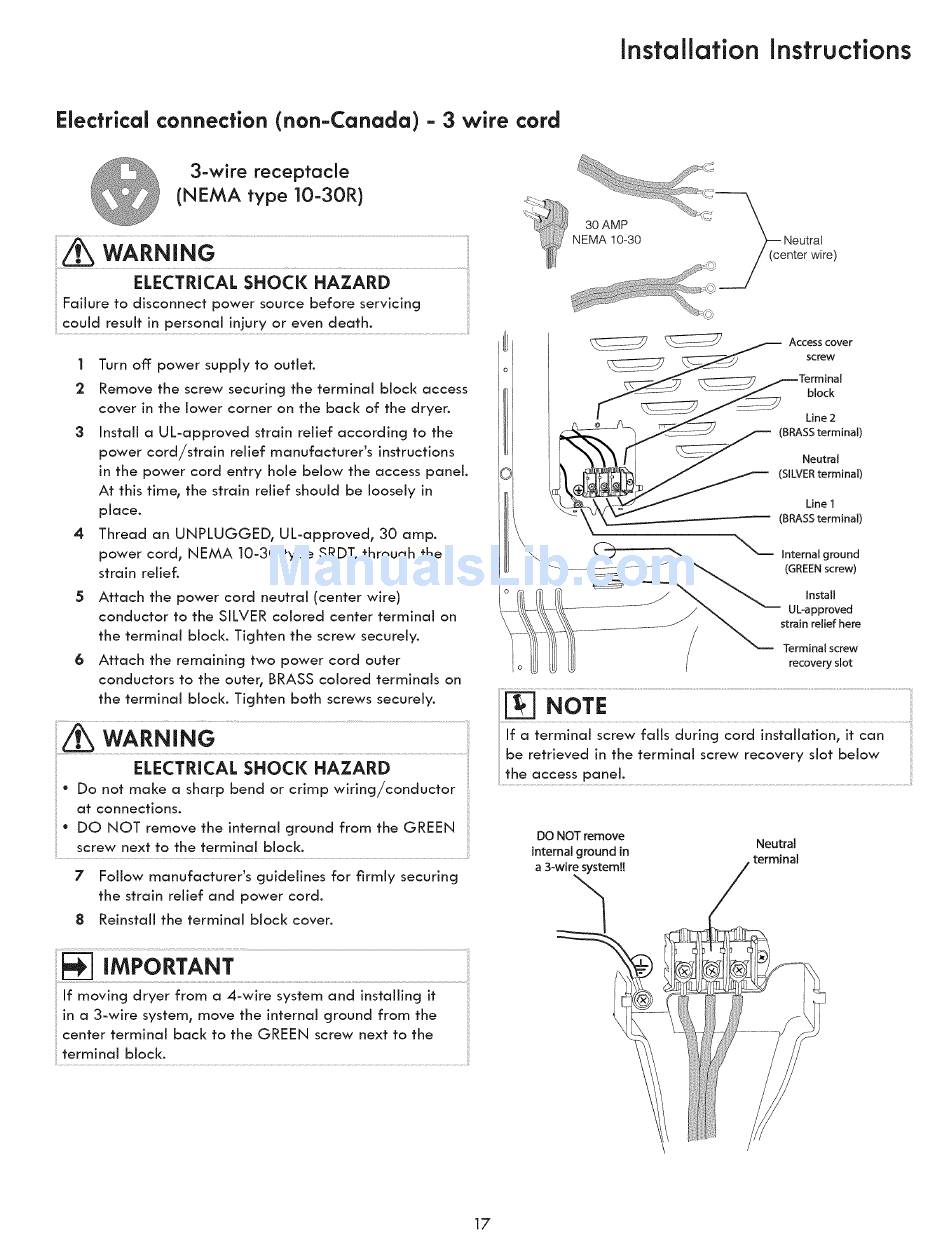

Electrical connection (non-Canada) - 3 wire cord
3-wire
receptacle
(NEMA
type 10-30R)
wA,,,
.....................................................................
ELECTe CAL
SHOa HAZARD
....
Failure to disconnect p owersourcebeforeservicing
could result in personal
injury or even death.
1
Turn off power supply to outlet.
2
Remove the screw securing the terminal
block access
cover in the lower corner on the back of the dryer.
3
Install a UL-approved
strain relief according
to the
power cord/strain
relief manufacturer's
instructions
in the power cord entry hole below the access panel.
At this time, the strain relief should be loosely in
place.
4
Thread an UNPLUGGED,
UL-approved,
30 amp.
power cord, NEMA 10-30 type SRDT, through
the
strain relief.
,5
Attach
the power
cord
neutral
(center
wire)
conductor
to the SILVER
colored
center
terminal
on
the terminal
block.
Tighten
the screw
securely.
6
Attach
the remaining
two
power
cord
outer
conductors
to the outer,
BRASS colored
terminals
on
the terminal
block.
Tighten
both
screws
securely.
,,
ELECT" CAL
SH6ci HAZARD
* Do not make a sharp bend or crimp
wiring/conductor
at connections.
* DO NOT remove the internal ground from the GREEN
screw next to the terminal
block.
7
Follow manufacturer's
guidelines
for firmly securing
the strain relief and power cord.
8
Reinstall
the terminal
block
cover.
iMPORTANT
If moving dryer from a 4-wire
system and installing it
in a 3-wire system, move the internal ground from the
center terminal
back to the GREEN screw next to the
terminal block.
_
_
Access cover
_zj/
screw
___S
Tblm icrk 1
Line 2
__---_-
_
(BRASS terminal)
_
Line1
.....
(BRASS t erminal)
_
Internal ground
(GREEN screw)
Terminal screw
recovery slot
....
NOTE.......
If a terminal
screw falls during cord installation,
it can
be retrieved
in the terminal
screw recovery slot below
the access panel.
DO NOT remove
Neutral
internal ground in
terminal
a 3-wire system!!
17
