iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALIFIED iNSTALLER.
iMPORTANT:
SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S
USE.
READ AND SAVE THESE iNSTRUCTiONS
FOR FUTURE REFERENCE.
if the information in this manual
is not followed exactly, a fire
or explosion may result causing property damage,
personal injury or death.
FOR YOUR SAFETY:
Do not store or use gasoline
or other
Nammable
vapors
and
liquids
in the vicinity
of this or any
other
appliance.
WHAT TO DO iF YOU SMELL GAS:
*
Do not try to light any appliance.
*
Do not touch any electrical switch; do not use any phone in your building.
*
immediately
call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
*
if you cannot reach your gas supplier, call the fire department.
installation and service must be performed
by a qualified
installer, service agency or the gas supplier.
Appliances
Installed
in the
state of Massachusetts:
This Appliance
can only
be installed in the state
of Massachusetts
by a
Massachusetts
licensed
plumber
or gas fitter.
This appliance
must be
installed with a three (3)
foot / 36 in. long flexible
gas connector. A "T"
handle type manual gas
valve must be installed in
the gas supply line to this
appliance.
30" Min. *
(76.2
cm)

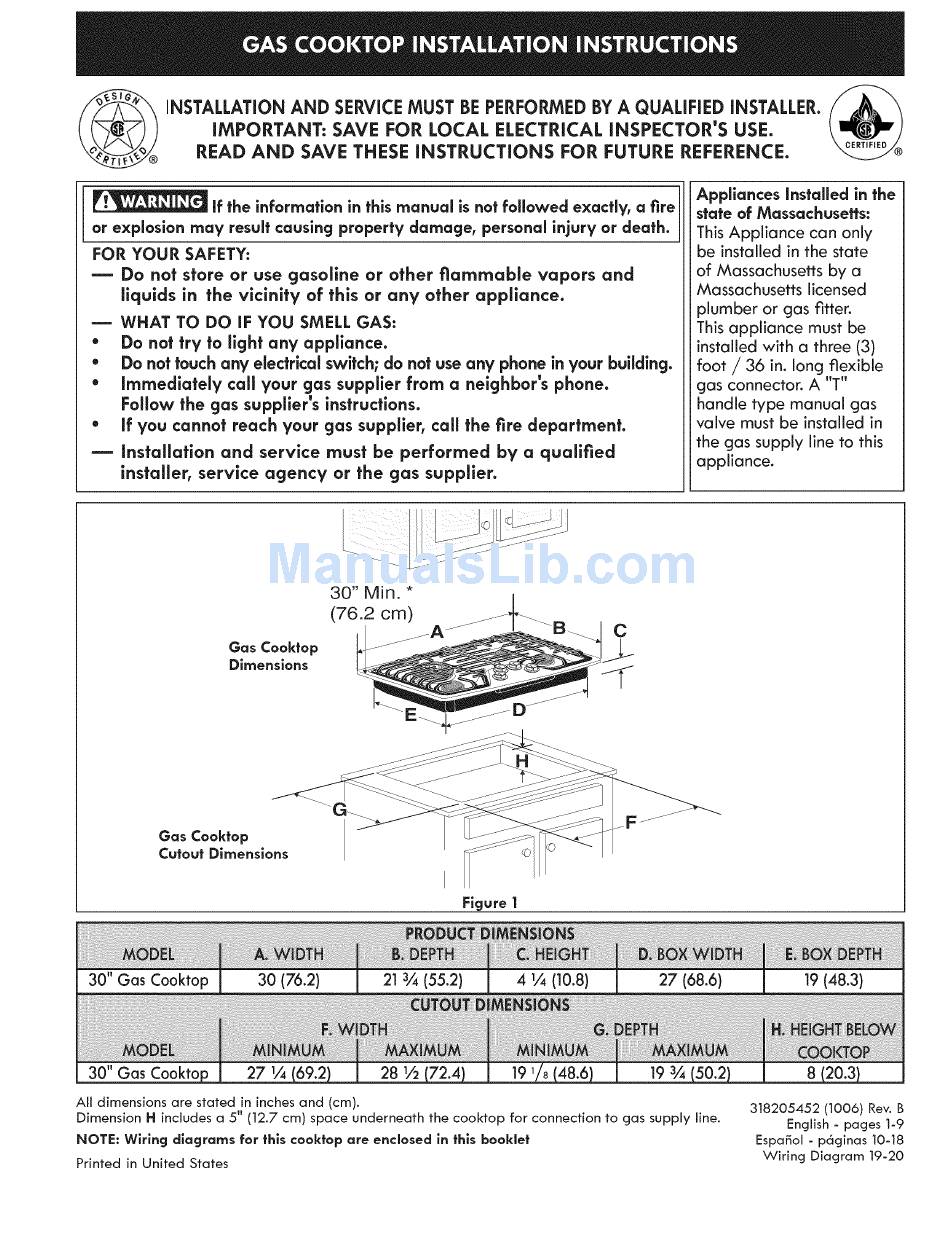

Gas Cooktop
Cutout Dimensions
Figure I
30" Gas Cookto
27 1,A
28 1/2
19 3A
All dimensions are stated in inches and (cm).
Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas supply line.
NOTE:
Wiring
diagrams
for this cooktop
are enclosed
in this booklet
Printed
in United
States
318205452
(1006) Rev. B
English - pages 1-9
Espa_ol
- p6ginas
10-18
Wiring
Diagram
19-20
