Page 1
HP recommends ® Windows Vista Business Volume mute button with LED indicator 15. Hard drive / optical drive activity / HP 3D DriveGuard LED Volume scroll zone with up/down LED indicators 16. Battery charging LED Kensington Lock slot 17. Power/standby LED RJ-11/modem port 18.
Page 2
RJ-45/Ethernet port 10. Power/standby LED HDMI port 11. Battery charging LED eSATA port 12. Hard drive / optical drive activity / HP 3D DriveGuard LED 1394a port 13. Integrated stereo speakers Media Card Reader 14. Business Card slot Integrated Smart Card Reader 15.
Page 3
HP Performance Tuning Framework for optimal configuration, compatibility and performance Flexible wireless connectivity options: Integrated HP un2400 EV-DO/HSDPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology Integrated 802.11 a/b/g/draft-n wireless LAN module Bluetooth® DA - 13093 North America — Version 12 — September 18, 2009...
Page 4
Up to 8 GB of 800 MHz DDR2 SDRAM supported, dual channel memory support Up to 320 GB 7200 rpm or 250 GB 5400 rpm SMART SATA II user-removable hard drive with HP 3D DriveGuard protection Integrated Intel Gigabit Network Connection (10/100/1000 NIC) Enhanced dual pointing devices (touchpad with scroll zone and pointstick) * Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use.

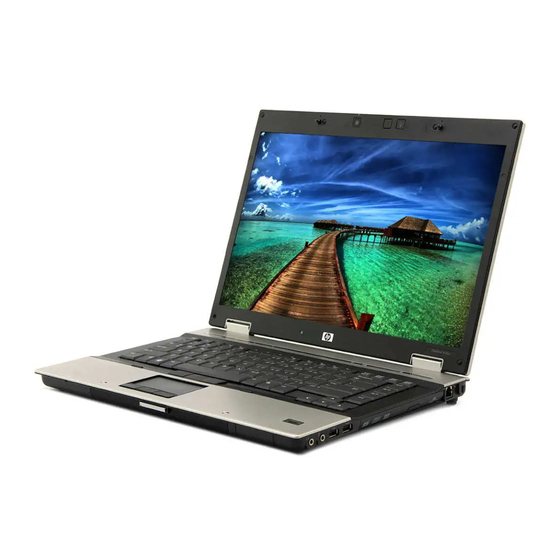

QuickSpecs HP EliteBook 8530w Mobile Workstation Standard Features Processors Intel Core 2 Extreme Processor X9100 (3.06 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9800 (2.93 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9550 (2.66 GHz, 6 MB L2 cache, 1066 MHz...
Page 6
QuickSpecs HP EliteBook 8530w Mobile Workstation Standard Features Intel Centrino 2 with vPro Intel Centrino 2 with vPro technology is a selectable feature that is available on units configured with an Intel WiFi Link 5300. It provides advances in remote manageability, security, energy efficient performance, technology capable and wireless connectivity.
Page 7
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Page 8
19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.
Page 9
QuickSpecs HP EliteBook 8530w Mobile Workstation Standard Features Pointing device Enhanced dual pointing devices: Touchpad with scroll zone, three pick buttons Pointstick, three pick buttons Expansion card slots ExpressCard/54 slot Supports ExpressCard/54 and ExpressCard/34 Integrated Smart Card Compatible with ISO 7816 compliant Smart Cards...
Page 10
QuickSpecs HP EliteBook 8530w Mobile Workstation Standard Features USB 2.0 Four Docking connector Secondary battery connector LED status indicators Fifteen Audio/Visual High Definition Audio support w/24-bit DAC Integrated stereo speakers Integrated dual-microphone array Touch-sensitive controls for volume up, volume down, and mute...
Page 11
QuickSpecs HP EliteBook 8530w Mobile Workstation Standard Features Additional software HP SoftPaq Download Manager HP Client Manager Software available from the web HP Client Management Solutions Java Card Security for HP ProtectTools * 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to receive updates.
Page 12
HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
Page 13
Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries. Battery...
Page 14
HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
QuickSpecs HP EliteBook 8530w Mobile Workstation Standard Features 8530w Processor Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB) FY594AW#ABA Intel Centrino 2 with vPro Enabled technology NOTE: Components may Operating System Genuine Windows Vista Business 32 with Office Ready...
Page 16
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 17
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 18
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 19
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 20
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 21
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 22
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 23
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5300 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
Page 24
HP Primary SATA 120 GB 7200 rpm Hard Drive AH920AA HP Primary SATA 250 GB 5400 rpm Hard Drive AK072AA HP Upgrade Bay SATA 250 GB 5400 rpm Hard Drive AK868AA HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive AK869AA...
Page 25
HP USB Optical Travel Mouse RH304AA * Requires HP Docking Station, HP Advanced Docking Station, HP 2008 Docking Station or HP 2008 Advanced Docking Station. Availability may vary by region. DA - 13093 North America — Version 12 — September 18, 2009...
Page 26
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
QuickSpecs HP EliteBook 8530w Mobile Workstation Storage Upgrade Bay Drive Support Quantity Supported Drive Bay Blu-ray R/RE DVD+/--RW SuperMulti Upgrade Bay DL Drive DVD+/-RW SuperMulti DL LightScribe Upgrade Bay Drive DVD-ROM Drive Upgrade Bay 250 GB 5400 rpm SMART Upgrade Bay...
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications System Unit Dimensions (HxWxD) 1.1 in (at front) x 14.0 in x 10.4 in 28.2 mm (at front) x 355 mm x 263.5 mm Weight Starting from 6.3 lb (2.86 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Starting weight includes 8-cell battery, hard drive, 1 GB memory, 802.11 wireless communications module, Bluetooth, and...
Page 29
HP EliteBook 8530w Mobile Workstation Technical Specifications UKRSERTCOMPUTER * Configurations of the HP EliteBook 8530w that are ENERGY STAR qualified are identified as HP EliteBook 8530w ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
Page 30
System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Fuel Gauge When pressed, LEDs light indicating level of charge remaining on battery...
Page 31
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications Displays 15.4-inch WUXGA, anti- Dimensions (W x H) 13.0 x 8.1 in (33.1 x 20.7 cm) glare Diagonal Size 15.4 in (39.1 cm) Surface Treatment Anti-glare Contrast Ratio 300:1 (typical) Refresh Rate...
Page 32
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lbs (115 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 33
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications 160 GB 7200 rpm SATA Drive Weight 0.25 lb (115 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 34
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications 160 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 35
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications 80 GB 2.5-inch SATA Solid Weight 0.19 lbs (86 g) State Drive Capacity 80 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 2.6 Performance Maximum Sequential...
Page 36
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <175 ms CD (typical) LightScribe Drive <230 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X DVD Up to 10,800 KB/s...
Page 37
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications Interface Gen 1 SATA Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW.
Page 38
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications Audio Output Quality Frequency Response 20 Hz – 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor –110 dB Play/Record Sampling 8 kHZ – 48kHz Rate(s) 16, 20 or 24-bit...
Page 39
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications HP un2400 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), 850MHz (UTRA FDD Band V)
Page 41
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications * The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications 802.11 b – Typical 1200 feet – Outdoor Open Area (@1 Mbps) 300 feet – Indoor, Office environment 802.11 g – Typical 1200 feet – Outdoor Open Area (@1 Mbps) 300 feet – Indoor, Office environment...
Page 43
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications Data Rates and 3 Mbps data rate; throughput up to 2.17 Mbps Throughput Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric...
Page 44
QuickSpecs HP EliteBook 8530w Mobile Workstation Technical Specifications Personal Area Networking Profile (PAN)* Human Interface Device Profile (HID)* FAX Profile (FAX) Basic Imaging Profile (BIP) Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP) * indicates the profile is also supported by Microsoft Windows XP SP2...
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. Additional This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. information: This product is in compliance with California Proposition 65 (State of California;...
Page 46
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html):...
Page 47
HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
