Summary of Contents for Samson S-direct

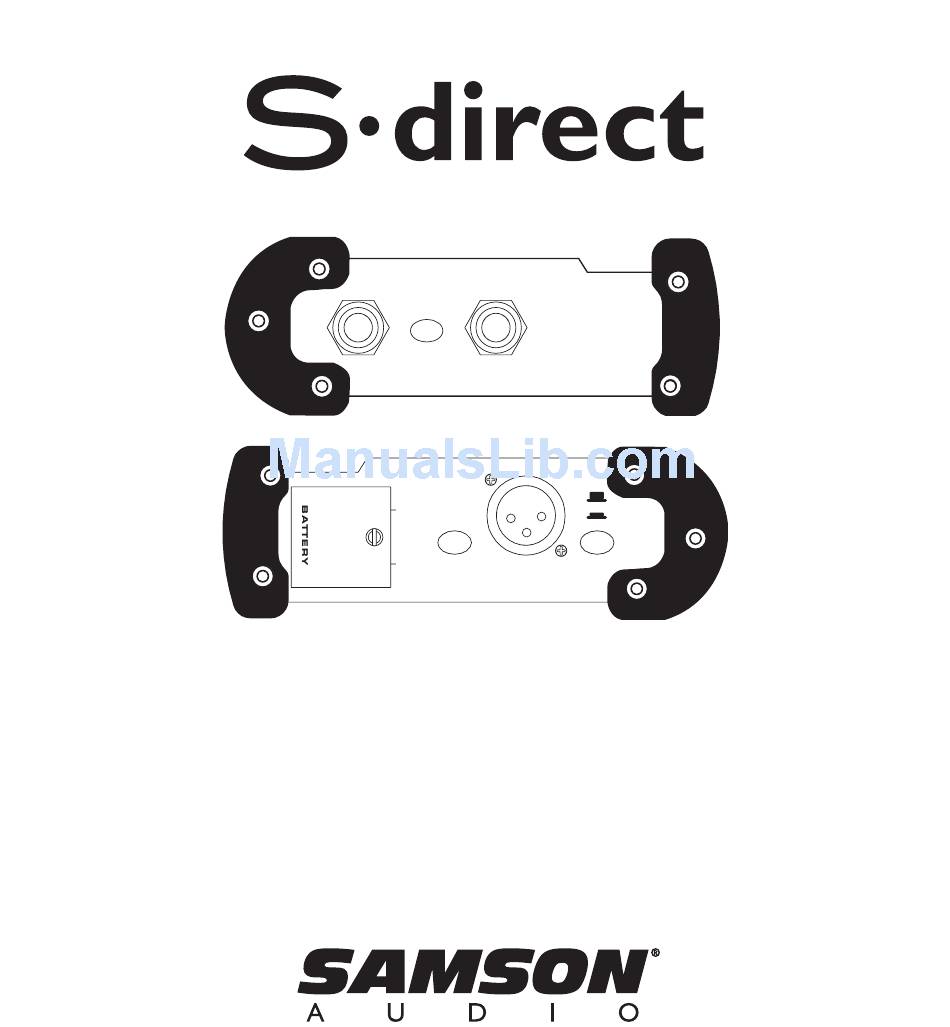

- Page 1 DESIGNED AND ENGINEERED IN THE UNITED STATES BY SAMSON TECHNOLOGIES INPUT OUTPUT/LINK LEVEL GTR/SPK SD100 www.samsontech.com PIN 1 GND PIN 2 HOT PIN 3 COLD PHANTOM GND LIFT BATTERY BALANCED OUTPUT MADE IN CHINA Direct Insertion Box...
-
Page 2: Table Of Contents
Operating the S direct Direct insertion of an instrument into a PA system High power signals Converting the output of unbalanced devices Specifications Copyright 2002, Samson Technologies Corp. Printed April 2002 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031... -
Page 3: Front And Rear Panel Layout

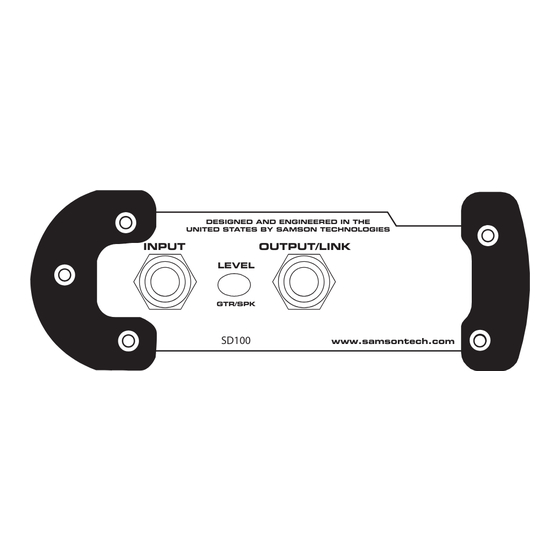

S direct Front and Rear Panel Layout DESIGNED AND ENGINEERED IN THE UNITED STATES BY SAMSON TECHNOLOGIES INPUT OUTPUT/LINK LEVEL GTR/SPK SD100 www.samsontech.com PIN 1 GND PIN 2 HOT PIN 3 COLD PHANTOM GND LIFT BATTERY BALANCED OUTPUT MADE IN CHINA GROUND LIFT - When engaged, the INPUT - 1/4”... -
Page 4: Operating The S Direct
Operating the S direct A direct box, or DI box, provides the facility for the direct insertion of an audio signal into a mixer or recorder. The S direct offers a variety of DI solutions for live sound and recording applications. You can connect all kinds of audio signals like guitars, keyboards, outboard signal processors and even the high-powered speaker output from an amplifier. -
Page 5: High Power Signals
Balanced Output and clicks be sure (opposite panel) to mute (or turn SIGNAL FLOW down the volume control) of your Input DESIGNED AND ENGINEERED IN THE UNITED STATES BY SAMSON TECHNOLOGIES INPUT OUTPUT/LINK mixerʼs output LEVEL GTR/SPK while connecting SD100 www.samsontech.com... -
Page 6: Converting The Output Of Unbalanced Devices
(opposite panel) appear to be the same as Input the previous, however in this example, the S direct DESIGNED AND ENGINEERED IN THE UNITED STATES BY SAMSON TECHNOLOGIES Amp Speaker INPUT OUTPUT/LINK is tapping the sound of the LEVEL Output... -
Page 7: Specifications
S direct Specifications Frequency Response 5-35 kHz, -3 dB Noise Level (22-22kHz, Input Shorted) -104 dBu THD + N (10 Hz -22 kHz) 0.013% typ. @ 1 VRMS,1 kHz. Input Impedance (GTR) > 1 Meg. Ohm (SPK) 10 k Ohm Max. - Page 8 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com...
