INSTALLATION A NDSERVICE MUSTBE PERFORMED BYA QUALIFIED INSTALLER.
IMPORTANT: S AVE FORLOCAL ELECTRICAL INSPECTOR'S U SE.
READ ANDSAVE THESE INSTRUCTIONS F ORFUTURE REFERENCE.
The electrical requirements for this oven are 115-120 volts AC, 15 amps or larger.
IMPORTANT-PLEASE READ AND FOLLOW
.
Before beginning,
please read these instructions
completely
and carefully
.
Be sure to DISCONNECT
THE PLUG of the microwave
oven from the electrical
outlet
before
installing
the built
in trim
kit
Remove the turntable
from the oven cavity
.
Because the kit includes
metal parts, caution
should
be used in handling
and installation
to avoid the possibility
of injury
.
Do not remove
permanently
affixed
labels, warnings,
or plates from the product
This may void the warranty
.
Please observe all local and national
codes and ordinances
• The installer
should leave these
instructions
with the consumer
who should retain
for local inspector's
use and for
future
reference.

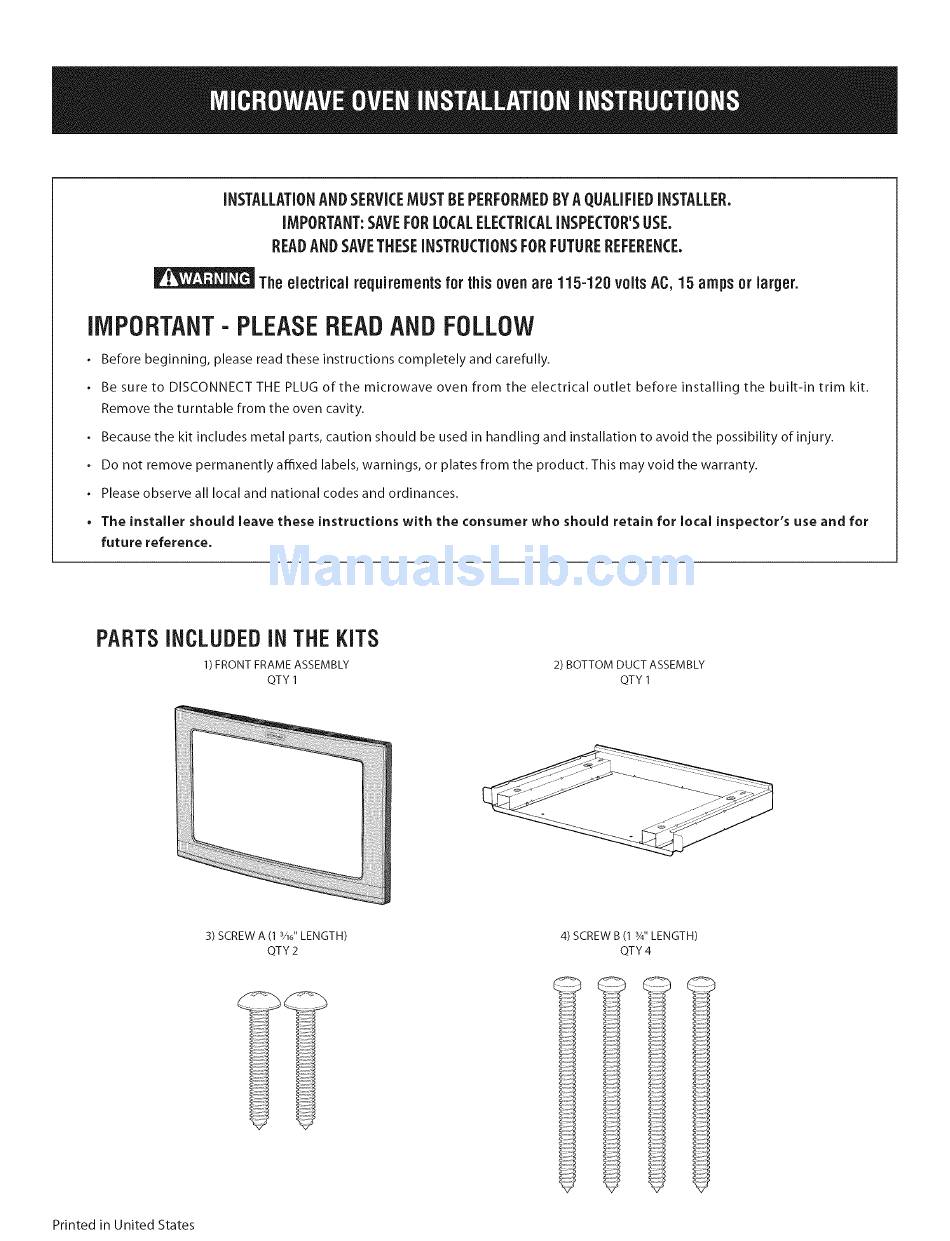

PARTSINCLUDED IN THEKITS

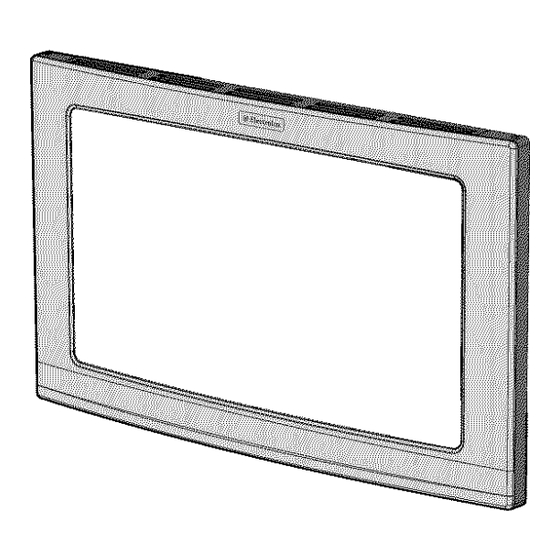

1) FRONT FRAMEASSEMBLY
QTY1
2) BOTTOM DUCT ASSEMBLY
QTY 1
Printed in United States
3) SCREW A (1 3A_"LENGTH)
QTY 2
4) SCREW B (1 3/4"LENGTH)
QTY 4
