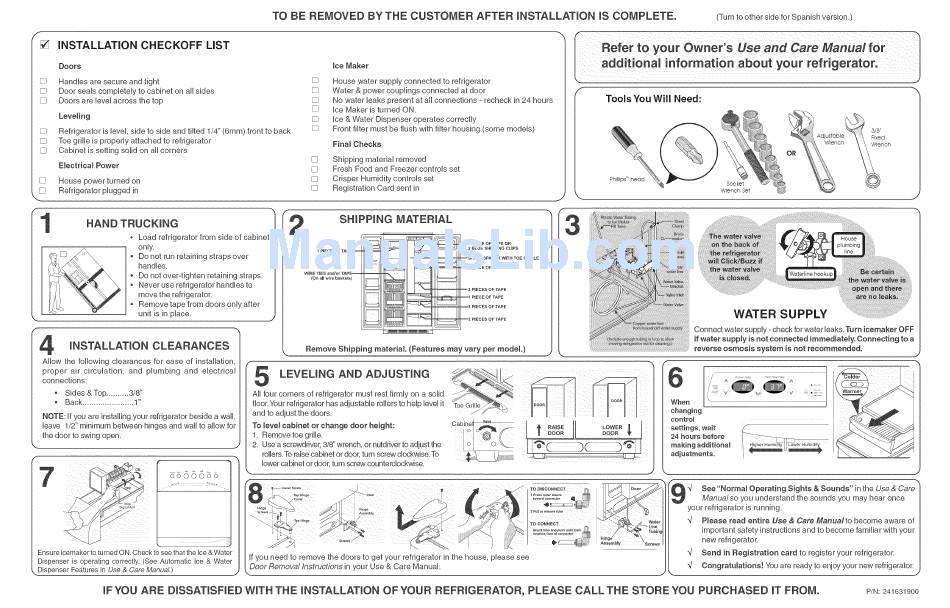

TO BE REMOVED BY THE CUSTOMER AFTER iNSTALLATiON IS COMPLETE.
Turn to other side for Spanish version,)
f
[] iNSTALLATiON CHECKOFF LiST
Doors
[] Handles are secure and tight
[] Door seals completely to cabinet on all sides
[] Doors are level across the top
Leveling
[] Refrigerator is level, side to side and tilted 1/4" (6mm) front to back
[] Toe grille is properly attached to refrigerator
[] Cabinet is setting solid on all corners
[]
[]
ElectricaJ Power
House power turned on
ice Maker
[] House water supply connected to refrigerator
[] Water & power couplings connected at door
[] No water leaks present at all connections =recheck in 24 hours
[] ice Maker is turned ON,
[] ice & Water Dispenser operates correctly
[] Front filter must be flush with filter housing (some models)
FinaJ Checks
[] Shipping material removed
[] Fresh Food and Freezer controls set
[] Crisper Humidity controls set
[] Registration Card sent in
SHiPPiNG MATERIAL
HAND TRUCKING
° Load refrigerator from side of cabinet
only,
* Do not run retaining straps over
handles,
* Do not over4ighten retaining straps,
o Never use refrigerator handles to
move the refrigerator,
Remove tape from doors only after
unit is in place,
iNSTALLATiON CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
* Sides &Top .......... 3/8"
* Back ....................... 1"
NOTE: if you are installing your refrigerator beside a wall,
leave 1/2" minimum between hinges and wall to allow for
the door to swing open,
! PIECE OF TAPE --
WINE TreES and/or TAPE-
(On _ll wire baskets)
Ensureicemakerto turned ON. Checkto see that the ice & Water
Dispenser is operating correcdy. (See Automatic ice & Water
, Dispenser Featuresin Use & Care Manual.) 1
=1 !1_ --
--t PIECE OF TAPE OR
2 BLUE SHIPPING CLIPS
--SHELF SPACER WroTH TOE GRILLE
--1 PIECE OF TAPE
--3 PIECES OF TAPE
PIECE OF TAPE
PIECES OF "rAPE
--3 PIECES OF "rAPE
.. Remove Shipping material (Features may vary per model.)
f
LEVEUNG AND ADJUSTING
All four corners of refrigerator must rest firmly on a solid
floor, Your refrigerator has adjustable rollers to help level it
and to adjust the doors,
To teveJ cabinet or change door height:
1, Remove toe grille,
2, Use a screwdriver, 3/8" wrench, or nutdriver to adjust the
rollers,To raise cabinet or door, turn screw clockwise, To
lower cabinet or door, turn screw counterclockwise,
Cab'ir_etr _°_*
Tools You Will Need:
Tu @ ;
..... ;;co
WATER SUPPLY
Connect water supply =check for water leaks, Turn icemaker OFF
if water supply is not connected immediateJy. Connecting to a
reverse osmosis system is not recommended.
J
When
changing
controm
settings, wait
24 hours before
making additional
adjustments.
TO CONNECT
if you need to remove the doors to get your refrigerator in the house, please see
Door Rerr}ova/INstructioNs in your Use & Care Manual,
Assembly
J
x' See"Norma_ Operating Sights & Sounds" in the Use & Care
Manualso you understand the sounds you may hear once
your refrigerator is running.
_ Ptease read entire Use & Care ManuMto become aware of
important safety instructions and to become familiar with your
new refrigerator.
x_ Send in Registration card to register your refrigerator.
x_ Congratulations! You are ready to enjoy your new refrigerator.
_FYOU ARE D_SSAT_SF_ED W_TH THE _NSTALLAT_ON OFYOUR REFRIGERATOR, PLEASE CALLTHE STORE YOU PURCHASED _T FRO_. P/N: 2 41631900
