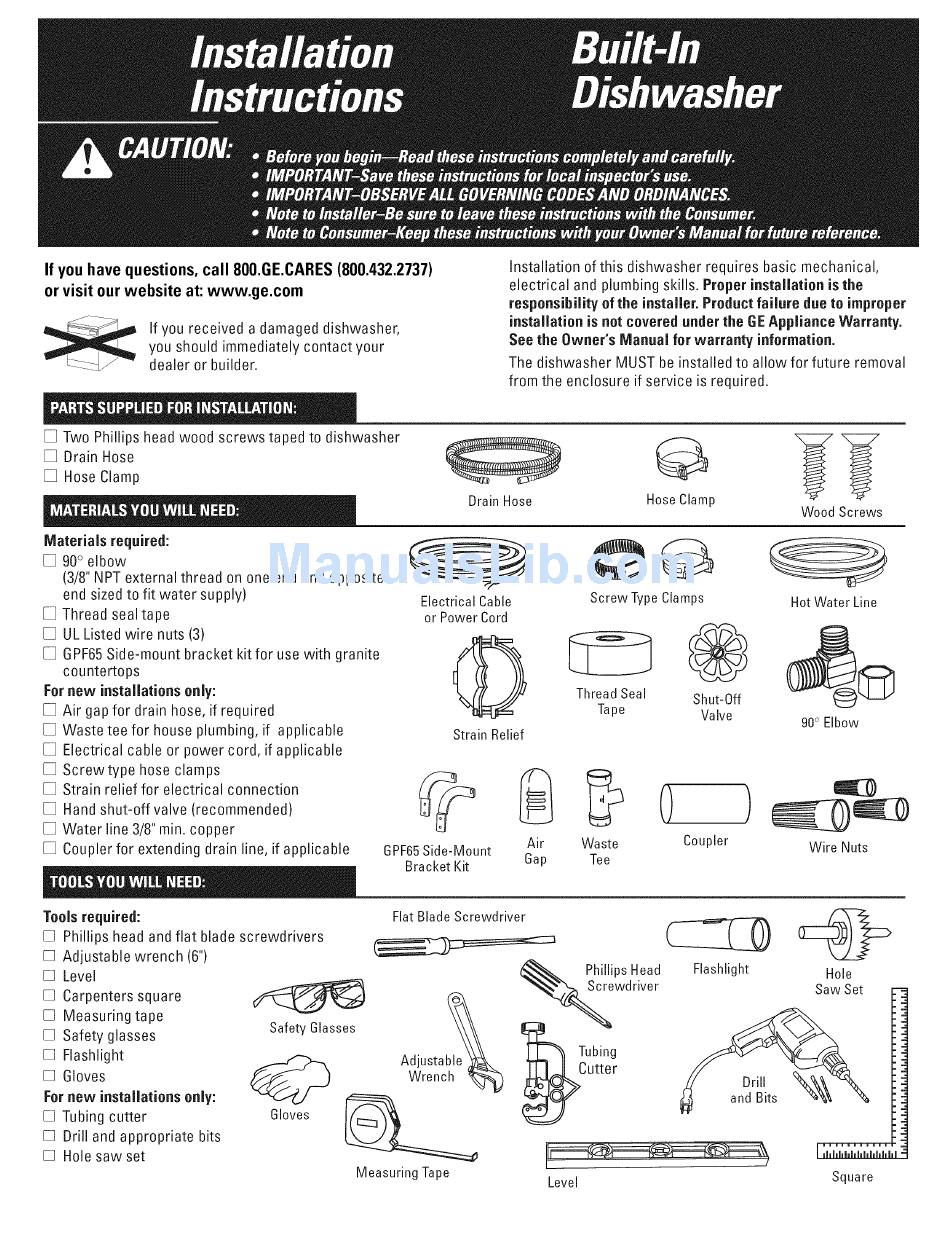

Installation of this dishwasher requires basic mechanical,
electrical and plumbing skills. Proper installation is the
responsibilityof the installer. Productfailure due to improper
installation is not coveredunder the GEAppliance Warranty.
See the Owner's Manual for warranty information.
The dishwasher MUST be installed to allow for future removal
from the enclosure if service is required.
[] Two Phillips head wood screws taped to dishwasher
[] Drain Hose
[] Hose Clamp
WoodScrews
Materials required:
[] 90° elbow
(3/8"NPT external thread on one end and opposite
end sized to fit water supply)
[] Thread seal tape
[] UL Listed wire nuts (3)
[] GPF65Side-mount bracket kit for use with granite
DrainHose
HoseClamp
Electrical
Cable
Screw Type Clamps
or PowerCord
Thread
Sea_
Tape
countertops
Fornew installationsonly:
[] Air gap for drain hose, if required
[] Waste tee for house plumbing, if applicable
[] Electrical cable or power cord, if applicable
[] Screwtype hose clamps
[] Strain relief for electrical connection
[] Hand shut-off valve (recommended)
[] Water line 3/8" min. copper
[] Coupler for extending drain line, if applicable
Strain Relief
Shut-Off
Valve
Hot Water Line
90° Elbow
GPF65 Side-Mount
Air
Waste
Coupler
Wire Nuts
BracketKit
Gap
Tee
Tools required:
[] Phillips head and fiat blade screwdrivers
[] Adjustable wrench (6"}
[] Level
[] Carpenters square
[] Measuring tape
[] Safety glasses
[] Flashlight
[] Gloves
Fornew installationsonly:
[] Tubing cutter
[] Drill and appropriate bits
[] Hole saw set
Safety Glasses
Gloves
Flat Blade Screwdriver
_
{__:::>
ScrePhillips
Head
Flashlight
Hole
wdfiver
Saw Set
Measuring Tape
Level
Square
