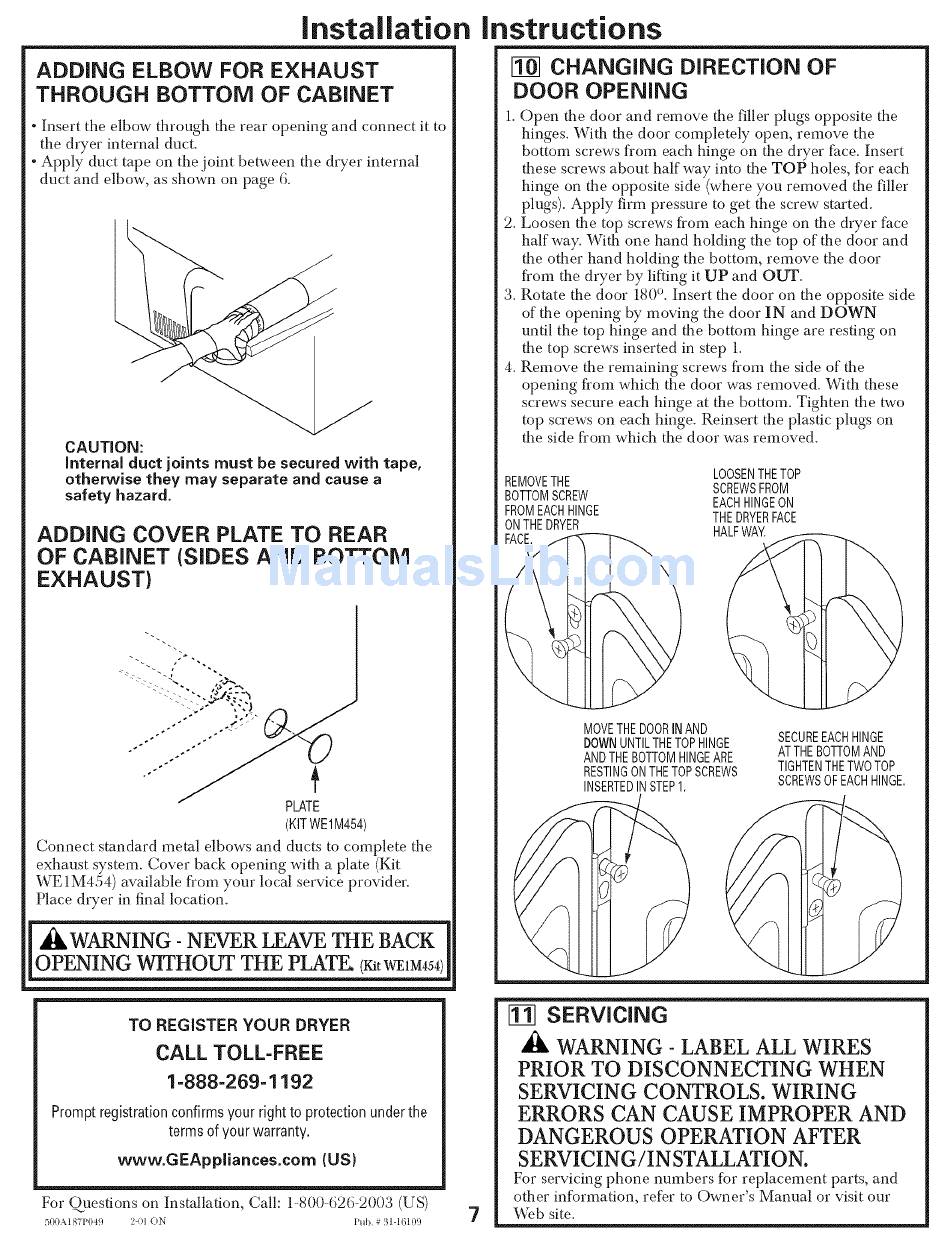

installation
ADDING
ELBOW FOR EXHAUST
THROUGH
BOTTOM
OF CABINET
• Insert the elbow through the rear opening and connect it to
the dryer internal duct.
• Apply duct tape on the joint between the dryer internal
duct and elbow, as shown on page 6.
CAUTION:
internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING
COVER PLATE TO REAR
OF CABINET (SIDES AND BOTTOM
EXHAUST)
-
.÷-
..
.-
.÷
÷÷
..
PLATE
(KIT WE1 M454)
Connect standard
metal elbows and ducts to complete the
exhaust system. Cover back opening with a plate (Kit
WE 1M454) available from your local service provider.
Place dryer in final location.
I
_WARNING
- NEVER I£AVE THE BACK
OPENING
WITHOUT
THE PLATE, (Kit WE1M454)
TO REGISTER YOUR DRYER
CALL TOLL-FREE
1-888-269-1192
Prompt registrationconfirms your right to protectionunder the
terms of your warranty.
www.GEAppliances.com
(US}
For Questions
on Installation,
Call: 1-800-626-2003
(US)
500 _187P0_!)
201ON
lhll) # 31-1 (i] 0!)
instructions
[_] CHANGING
DIRECTION
OF
DOOR OPENING
1. Open the door and remove the flier plugs opposite
the
hinges. With the door completely
open, remove the
bottom screws from each hinge on the dryer face. Insert
these screws about halfway into the TOP holes, for each
hinge on the opposite side (where you removed
the filler
plugs). Apply firm pressure to get the screw started.
2. Loosen the top screws from each hinge on the dryer face
half way. ¼rith one hand holding the top of the door and
the other hand holding the bottom, remove the door
from the dryer by lifting it UP and OUT.
3. Rotate the door 180° . Insert the door on the opposite side
of the opening by moving the door IN and DOWN
until the top hinge and the bottom hinge are resting on
the top screws inserted in step 1.
4. Remove the remaining
screws from the side of the
opening from which the door was removed. With these
screws secure each hinge at the bottom. Tighten the two
top screws on each hinge. Reinsert the plastic plugs on
the side from which the door was removed.
LOOSEN T HE TOP
REMOVE THE
SCREWS F ROM
BOTTOM SCREW
EACH HINGE ON
FROM EACH HINGE
THE DRYER F ACE
ONTHEDRYER
HALF WAY
MOVE THE DOOR IN AND
DOWN UNTIL THE TOPHINGE
ANDTHE BOTTOM HINGE ARE
RESTING O NTHE TOPSCREWS
INSERTED IN STEP 1.
SECURE EACH HINGE
ATTHEBOTTOM AND
TIGHTEN T HE TWO TOP
SCREWS OFEACH HINGE.
7
[]
SERVICING
,_, WARNING-
LABEL ALL WIRES
PRIOR TO DISCONNECTING WHEN
SERVICING CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND
DANGEROUS OPERATION AFTER
SERVICING/IN STALLATION.
For servicing phone numbers for replacement
parts, and
other information,
refer to Owner's Manual or visit our
_reb site.
