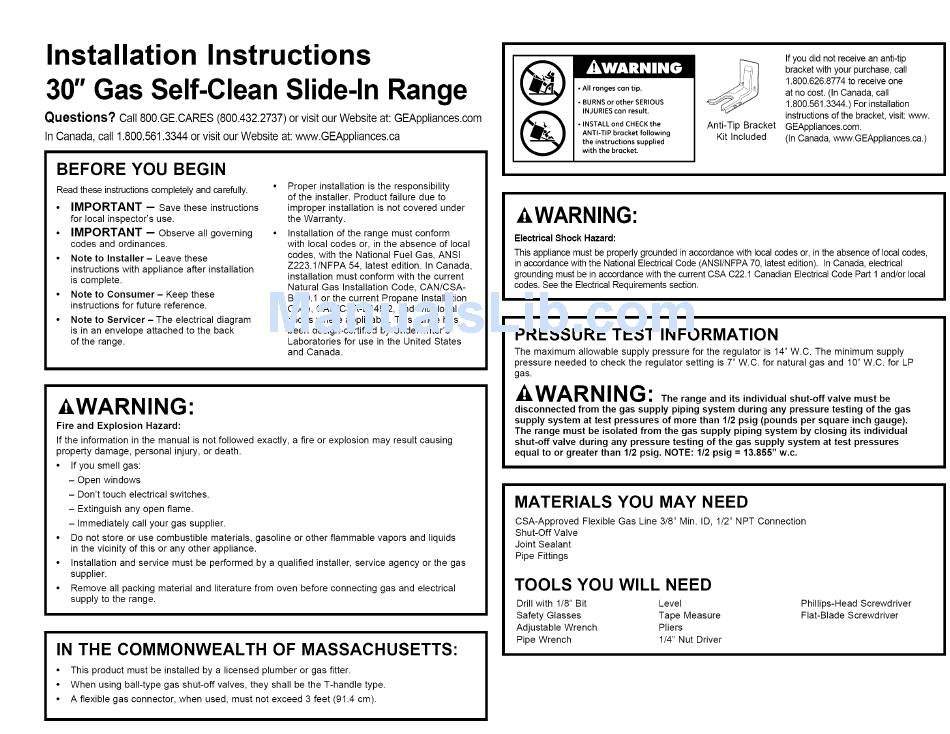

30" Gas Self-Clean Slide-In Range
Questions?
Call 800.GE.CARES(800.432.2737)or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344or visit our Website at: www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
-- Save these instructions
for local inspector's
use.
IMPORTANT
-- Observe all governing
codes and ordinances.
Note to Installer-
Leave these
instructions with appliance after installation
is complete.
Note to Consumer-
Keep these
instructions for future reference.
Note to Servicer-
The electrical diagram
is in an envelope attached to the back
of the range.
Proper installation
is the responsibility
of the installer. Product failure due to
improper installation is not covered under
the Warranty.
Installation
of the range must conform
with local codes or, in the absence of local
codes, with the National Fuel Gas, ANSI
Z223.1/NFPA
54, latest edition. In Canada,
installation must conform with the current
Natural Gas Installation Code, CAN/CSA-
B149.1 or the current Propane Installation
Code, CAN/CSA-B149.2,
and with local
codes where applicable.
This range has
been design-certified
by Underwriter's
Laboratories
for use in the United States
and Canada.
-, WARNING:
Fire and Explosion
Hazard:
If the information
in the manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury, or death.
If you smell gas:
- Open windows
- Don't touch electrical switches.
- Extinguish any open flame.
- Immediately call your gas supplier.
Do not store or use combustible
materials, gasoline or other flammable
vapors and liquids
in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
Remove all packing material and literature from oven before connecting gas and electrical
supply to the range.
IN THE COMMONWEALTH
OF MASSACHUSETTS:
This product must be installed by a licensed plumber or gas fitter.
When using ball-type gas shut-off valves, they shall be the T-handle type.
A flexible gas connector, when used, must not exceed 3 feet (91.4 cm).
• All ranges can tip.
• BURNS or other SERIOUS
INJURIES can result,
• INSTALL and CHECK the
ANTI-TIP bracket
following
the instructions
supplied
with the bracket.
Anti-Tip Bracket
Kit Included
If you did not receive an anti-tip
bracket with your purchase, call
1.800.626.8774 to receive one
at no cost. (In Canada, call
1.800.561.3344.) For installation
instructions of the bracket, visit: www.
GEAppliances.com.
(In Canada, www.GEAppliances.ca.)
AWARNING:
Electrical Shock Hazard:
This appliance must be properly grounded in accordance with local codes or, in the absence of local codes,
in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada, electrical
grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local
codes. See the Electrical Requirements section.
PRESSURE
TEST INFORMATION
The maximum allowable supply pressure for the regulator is 14" W.C. The minimum supply
pressure needed to check the regulator setting is 7" W.C. for natural gas and 10" W.C. for LP
gas.
--a,
WARNING:
T.e range and its individual
shut-off
valve must be
disconnected
from the gas supply
piping system during
any pressure
testing
of the gas
supply system
at test pressures
of more than 1/2 psig (pounds
per square inch gauge).
The range must be isolated from the gas supply
piping system by closing
its individual
shut-off
valve during
any pressure
testing
of the gas supply
system at test pressures
equal to or greater than 1/2 psig. NOTE: 1/2 psig = 13.855" w.c.
MATERIALS
YOU MAY NEED
CSA-Approved
Flexible Gas Line 3/8" Min. ID, 1/2" NPT Connection
Shut-Off Valve
Joint Sealant
Pipe Fittings
TOOLS YOU WILL NEED
Drill with 1/8" Bit
Level
Safety Glasses
Tape Measure
Adjustable Wrench
Pliers
Pipe Wrench
1/4" Nut Driver
Phillips-Head
Screwdriver
Flat-Blade Screwdriver
