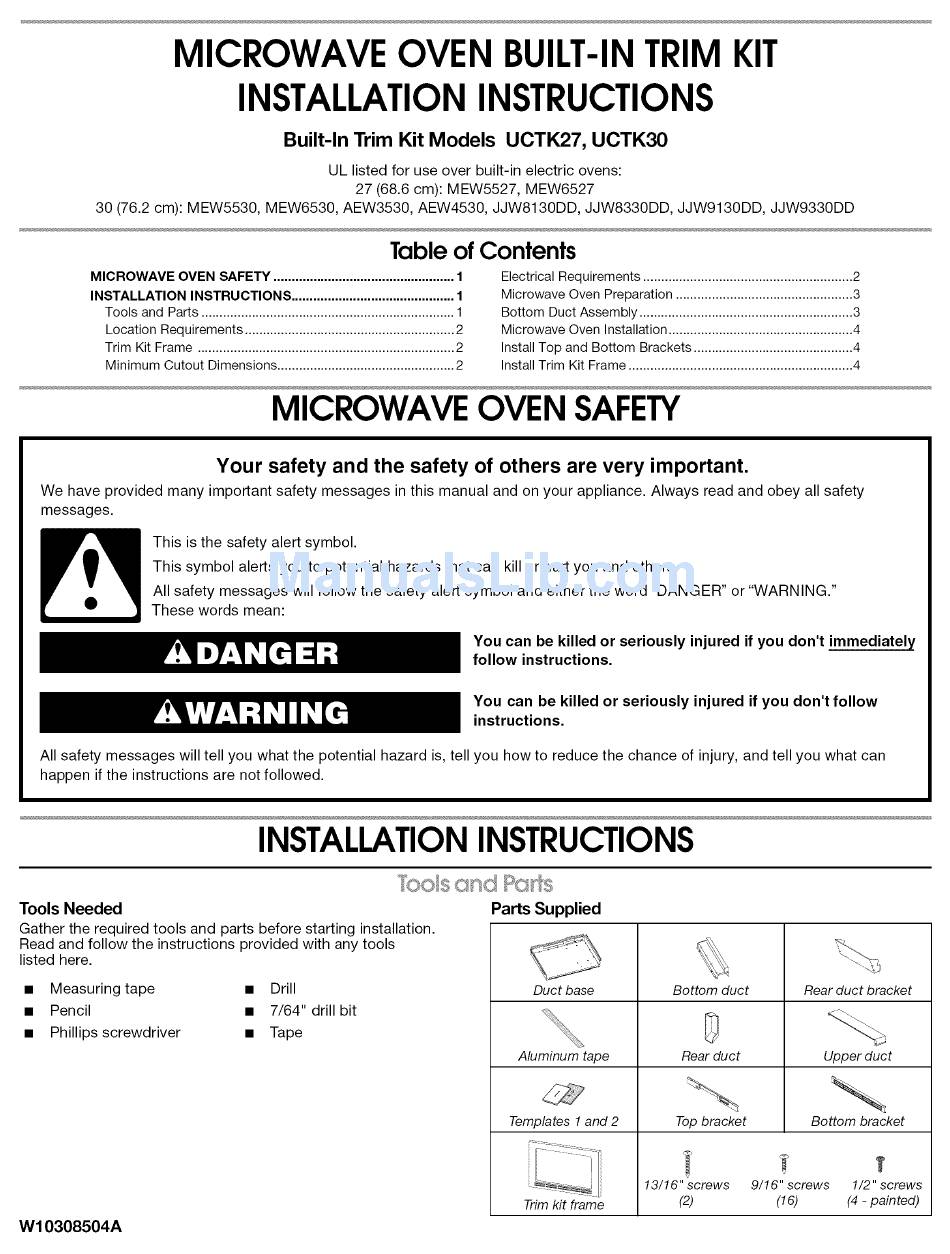

MICROWAVE OVEN BUILT-INTRIM KIT
INSTALLATION INSTRUCTIONS
Built-In Trim Kit Models
UCTK27, UCTK30
UL listed for use over built-in electric ovens:
27 (68.6 cm): MEW5527, MEW6527
30 (76.2 cm): MEW5530, MEW6530, AEW3530, AEW4530, JJW8130DD, JJW8330DD, JJW9130DD, JJW9330DD
Table of Contents
MICROWAVE
OVEN SAFETY ..................................................
1
INSTALLATION
INSTRUCTIONS
.............................................
1
Tools and Parts ......................................................................
1
Location Requirements ..........................................................
2
Trim Kit Frame .......................................................................
2
Minimum Cutout Dimensions .................................................
2
Electrical Requirements ..........................................................
2
Microwave Oven Preparation .................................................
3
Bottom Duct Assembly ...........................................................
3
Microwave Oven Installation ...................................................
4
Install Top and Bottom Brackets ............................................
4
Install Trim Kit Frame ..............................................................
4
MICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
INSTALLATIONINSTRUCTIONS
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools
listed here.
•
Measuring tape
•
Drill
•
Pencil
•
7/64" drill bit
•
Phillips screwdriver
•
Tape
c _s' _'_S
Parts Supplied
Duct base
Aluminum
tape
Templates 1 and 2
Trim kit frame
Bottom duct
8
Rearduct
Topbracket
),
13/16" screws
(2)
Rear duct bracket
Upper duct
Bottom bracket
_
T
9/16"
screws
1/2" screws
(16)
(4 - painted)
W10308504A
Advertisement
Related Manuals for Jenn-Air UCTK27
Summary of Contents for Jenn-Air UCTK27
- Page 1 MICROWAVE OVEN BUILT-INTRIM KIT INSTALLATION INSTRUCTIONS Built-In Trim Kit Models UCTK27, UCTK30 UL listed for use over built-in electric ovens: 27 (68.6 cm): MEW5527, MEW6527 30 (76.2 cm): MEW5530, MEW6530, AEW3530, AEW4530, JJW8130DD, JJW8330DD, JJW9130DD, JJW9330DD Table of Contents MICROWAVE OVEN SAFETY ..........
- Page 2 NOTES: Locc@on 'eme • Height, width and depth measurements have _+1/16" (2 mm) tolerance. The microwave oven may be installed over a built-in oven. If • 3" (7.6 cm) minimum dimension is from lower oven cutout installing over a built-in oven, make sure there is a minimum of 3" ceiling to microwave oven cutout floor.
- Page 3 6. Place rear duct on back of microwave oven, as shown, and secure with existing screw removed in Step 5. BoSom ©uct Ass®mUy 1. Attach bottom duct to duct base. A. Duct base B. Bottom duct A. Existing screw B. Rear duct 2.
- Page 4 Install the 3/16" screw, and leave 1/8" (3.2 mm) to 3/16" NOTE: If Template 2 is missing or unusable, measure straight (4.7 mm) protruding from the cutout floor. up from upper end holes on bottom bracket, and mark the new holes at 121%s'' (32.9 cm) and 1521/32 '' (39.8 cm). Make sure the bottom bracket end holes and the new holes on each side are plumb.
