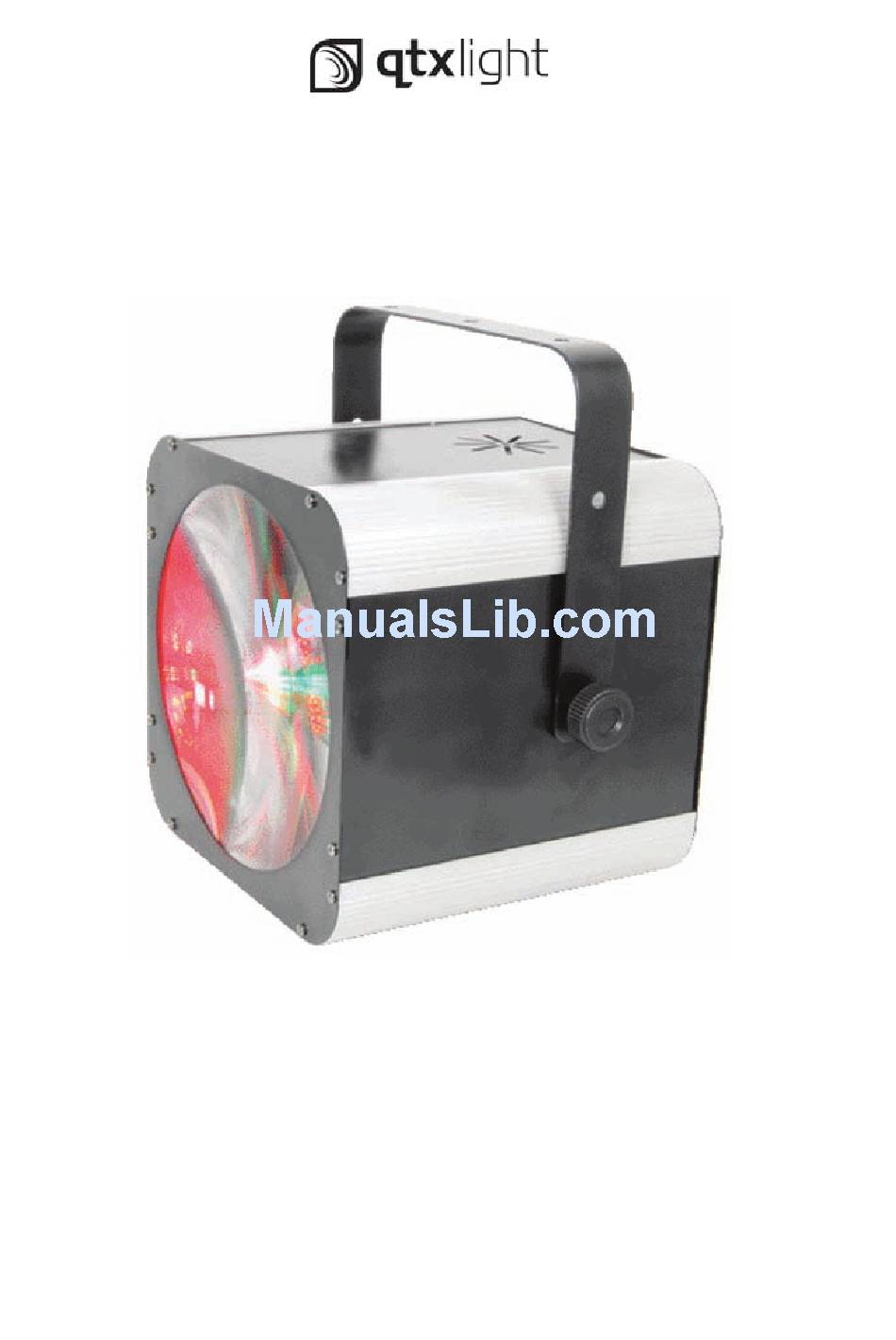

- Page 1 USER MANUAL ATLANTIS 151.554UK...
- Page 2 General Introduction : Thank you for choosing the QTX Light Atlantis. This product meets the requirement of the European guidelines (CE). The Atlantis is designed to produce light effects for use in light show systems in bars, clubs, schools, on stages etc.
- Page 3 User manual – ATLANTIS 151.554UK Caution! To prevent Mortal Electrical Risk and Long Life Operation : For your safety, please kindly pay attention to all of the warnings listed below: Always plug in the power plug last and disconnect from the mains, when the device is not in use or ...
- Page 4 User manual – ATLANTIS 151.554UK General Maintenance : To maintain optimum performance and minimize wear, fixtures should be cleaned frequently. Usage and environment are contributing factors in determining frequency. As a general rule, fixtures should be cleaned at least twice a month. Dust build-up reduces light output performance and can cause overheating.
- Page 5 IEC Power Output (ONLY AVAILABLE ON MKII VERSION) Operating instructions: The Atlantis has 4 operating modes. It can operate automatically, sound activated, master/slave or DMX. The mode can be selected by the dipswitches on the back side of the unit.
- Page 6 User manual – ATLANTIS 151.554UK Master / Slave mode: Set DIP switch 10 & 9 to ON. The master unit will control now all the slave units. Select on the master device the program mode Automatic / Sound active mode this device then works as master device and controls all other slave devices (switch 1 on) which are to be connected to the master device via a 2 core screened cable.
- Page 7 User manual – ATLANTIS 151.554UK 15. Disposal : Please disposal of the unserviceable device according to the current statutory requirements. Technical specification : 230Vac 50Hz LED : 5mm LED Voltage : 280 Red, 63 Green, 126 Blue Fuse : LED Type :...
