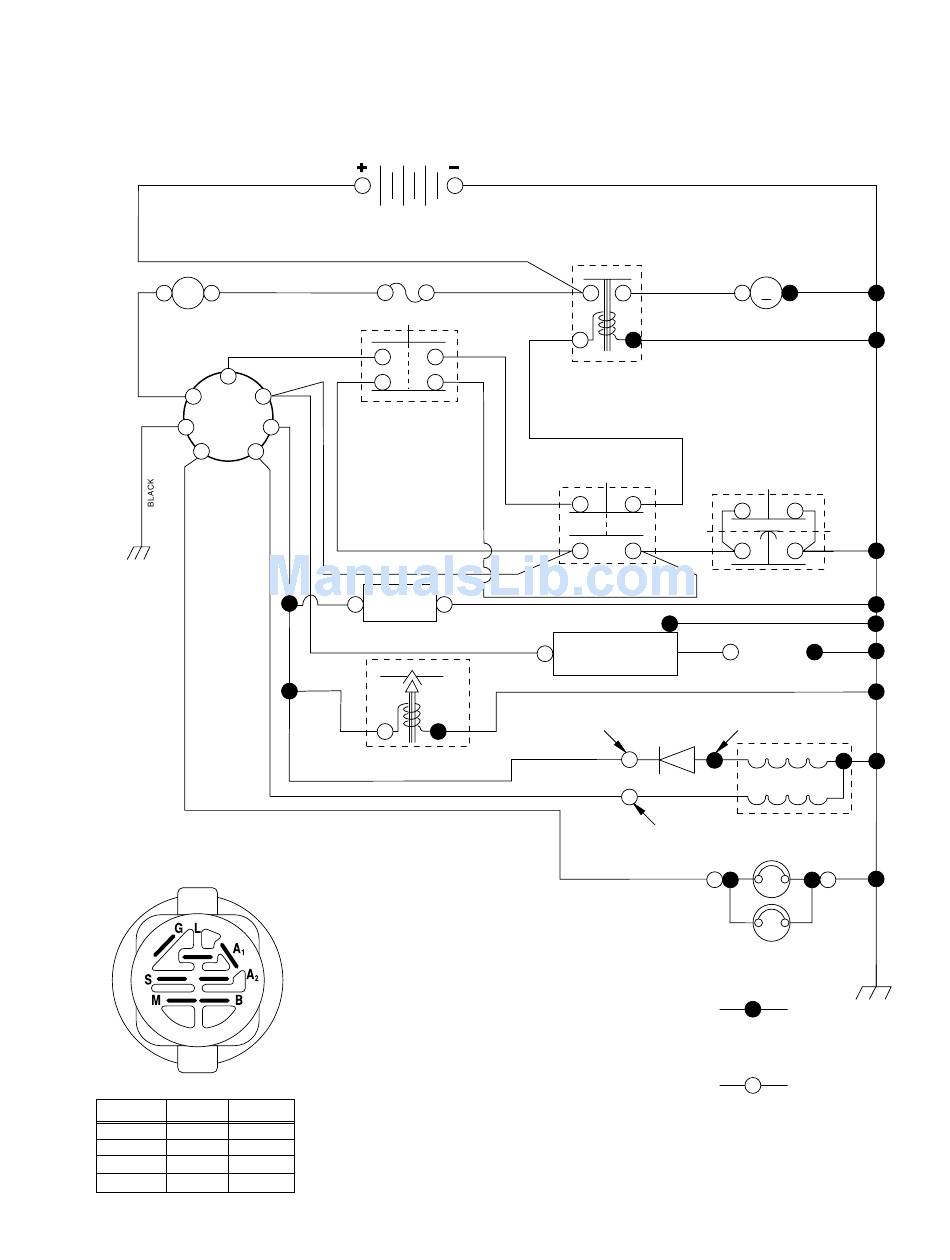

SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
IGNITION SWITCH
POSITION CIRCUIT
OFF M+G+A1
RUN/LIGHT B+A1
RUN B+A1
START B + S + A1
TRACTOR - - MODEL NUMBER PO14542B
RED
BATTERY
RED
WHITE
S
B
M
CLUTCH / BRAKE
(PEDAL UP)
A1
L
A2
HOUR
METER
(OPTIONAL)
BLUE
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
"MAKE"
NONE
WIRING INSULATED CLIPS
A2+L
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
NONE
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
NONE
PROPERLY SECURE YOUR WIRING.
FUSE
WHITE
BLACK
BLACK
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK
FUEL
LINE
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ORANGE
NOTE
27
BLACK
RED
STARTER
SOLENOID
WHITE
SEAT SWITCH
(NOT OCCUPIED)
BLACK
GROUNDING
CONNECTOR
SPARK
IGNITION
UNIT
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
ALTERNATOR
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
BROWN
HEADLIGHTS
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
M
BLACK
BLACK
PLUG
GAP
BLACK
