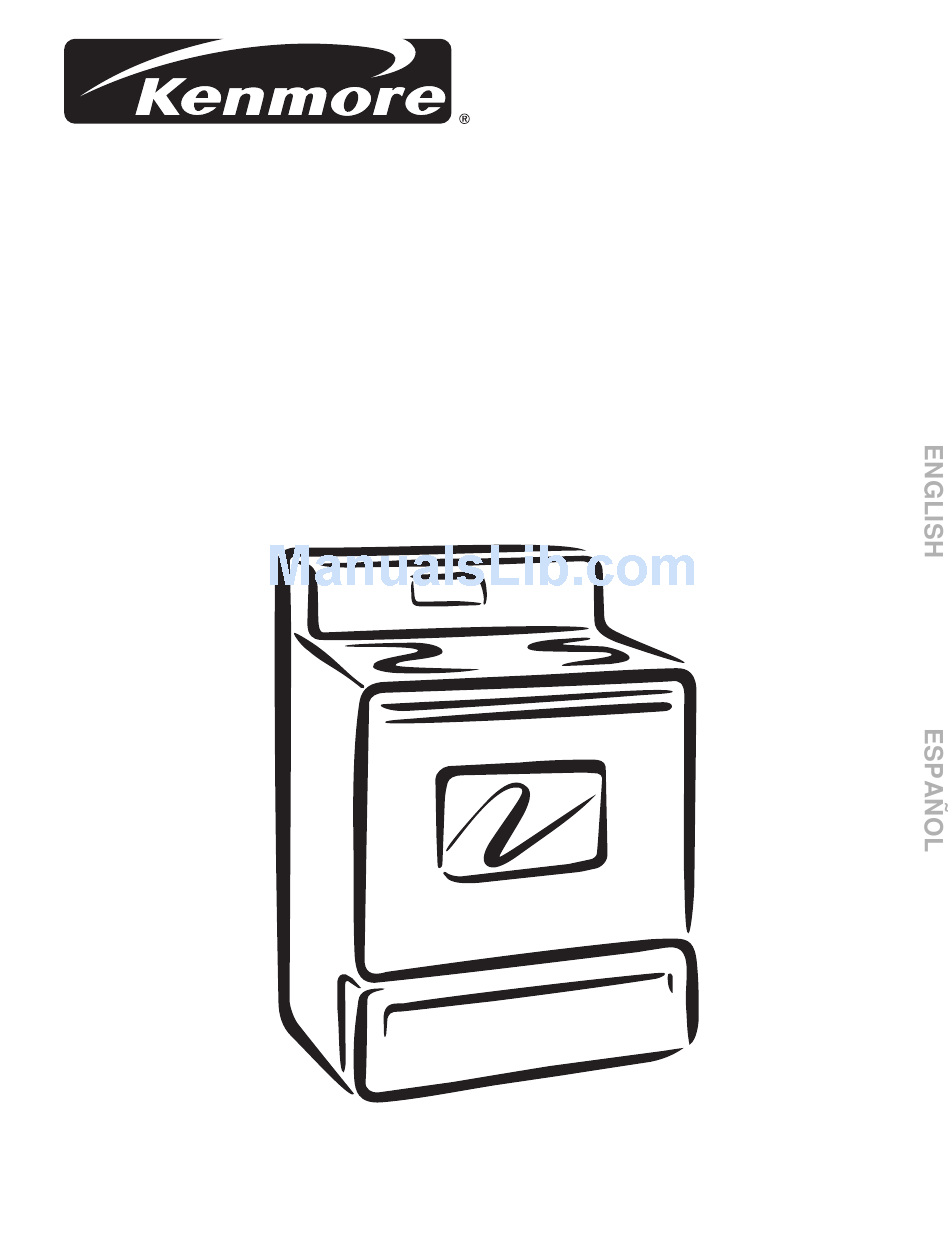

- Page 1 Electric Range Use & Care Guide Estufa eléctrica Guía para el Uso y Cuidado Models, Modelos 790.9611 , 9612 , 9613 = color number, número de color www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. p/n 316417229...
-
Page 2: Table Of Contents
Sears Service ............Back Page Español ................ 29-56 Kenmore Appliance Warranty One Year Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for free repair. If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase. -
Page 3: Important Safety Instructions
Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage. - Page 4 Important Safety Instructions IMPORTANT INSTRUCTIONS FOR USING YOUR IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN COOKTOP • Use Care When Opening Oven Door or Warmer Drawer (if • Know which knob controls each surface heating unit. Place a equipped)—Stand to the side of the range when opening the door pan of food on the unit before turning it on, and turn the unit off of a hot oven.
-
Page 5: Protection Agreements
Lo felicitamos por haber hecho una compra inteligente. Su ® Kenmore product is designed and manufactured for years nuevo producto Kenmore ® fue diseñado y fabricado para of dependable operation. But like all products, it may require ofrecer muchos años de servicio confiable. Sin embargo, preventive maintenance or repair from time to time. -
Page 6: Range Features
Range Features Your Electric Range Features Include: 1. Electronic Oven Control with Kitchen Timer. 2. Simmer Select Element Control (some models) or Single Radiant Element Control (some models) or Single Radiant Power Boil Control (some models). 3. Single Radiant Element Control. 4. -
Page 7: Before Setting Oven Controls
Before Setting Oven Controls Oven Vent Location The oven vent is located under the left side of the control panel (See Fig. 1). When the oven is on, warm air passes through the vent. This venting is necessary for proper air circulation in the oven and good baking results. - Page 8 Before Setting Oven Controls (cont’d) About the Ceramic Glass Cooktop The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop.
-
Page 9: Setting Surface Controls
Setting Surface Controls To Operate Single Radiant Surface Elements (all models) To Operate a Single Radiant Element: 1. Place correctly sized cookware on the radiant surface element. 2. Push in and turn the surface control knob in either direction to the desired setting (See Fig. -
Page 10: Setting Surface Controls
Setting Surface Controls (cont’d) To Operate Dual Radiant Surface Element (some models) The right front control knob offers flexibilty for different sized cookware with the Dual Radiant surface element. The inner element alone can be used for smaller or both the inner and outer in combination for larger cookware. To operate the Dual Radiant surface element push in the control knob and turn counterclockwise to operate the small inner coil or turn clockwise to operate both the inner and outer portions of the element together (See Fig 1). -
Page 11: Surface Cooking
Surface Cooking Using Power Element (some models) The “Power Element” feature uses a higher wattage surface radiant element which can bring food items to boil much quicker. The left front radiant element will be clearly marked if this feature is available on your range (See Fig. 1). If equipped with the “Power Element”... -
Page 12: Oven Control Functions
Oven Control Functions READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below. COOK TIME UP and DOWN ARROW PADS— Used along BAKE PAD—Used PAD—... -
Page 13: Setting Oven Controls
Setting Oven Controls Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00". - Page 14 Setting Oven Controls (cont’d) To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: 1. Press . "— — —" appears in the display. 2.
- Page 15 Setting Oven Controls (cont’d) To Set the Timed Bake and Delay Start Features COOK TIME and DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start).
- Page 16 Setting Oven Controls (cont’d) To Set for Broiling: 1. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. 2. Press . " — — "will appear in display. 3.
-
Page 17: Setting Warmer Drawer Controls
Setting Oven Controls (cont’d) To Operate the Oven Light The interior oven light will automatically turn ON when the oven door is opened. Press the Oven Light Switch located on the upper left control panel to turn the interior oven light ON and OFF whenever the oven door is closed. - Page 18 Setting Warmer Drawer Controls (cont’d) To Set the Warmer (Warm & Ready™) Drawer Thermostat Warmer Drawer Recommended Control (some models) Food Settings Table The thermostat control is used to select the temperature of the warmer drawer. Food Item Setting It is located on the control panel (See Fig. 3 on previous page). To set the thermostat, push in and turn the knob to the desired setting.
-
Page 19: Select Self Cleaning
Self-Cleaning During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range. - Page 20 Self-Cleaning (cont’d) Starting the Select Self-Clean Cycle or a Delayed Start Self-Clean Cycle For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle.
-
Page 21: General Care & Cleaning
General Care & Cleaning Cleaning Table Surfaces How to Clean Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth. Painted and Plastic Control Knobs, For general cleaning, use hot, soapy water and a cloth. For more difficult soils and Body Parts, and Decorative Trim built-up grease, apply a liquid detergent directly onto the soil. -
Page 22: Cooktop Cleaning And Maintenance
General Care & Cleaning (cont’d) Cooktop Cleaning and Maintenance Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop. Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). - Page 23 General Care & Cleaning Cleaning Recommendations for Ceramic Glass Cooktops (cont’d) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. •...
-
Page 24: Adjusting Your Oven Temperature
General Care & Cleaning Changing the Oven Light The oven light automatically turns ON when the door is opened. The oven light may also be manually operated by pressing the Oven Light switch located on the upper left control panel. The oven light bulb is located at the rear of the oven and is covered with a glass shield held by a wire holder. -
Page 25: Before You Make A Service Call
Before You Call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION Range is not level. - Page 26 Before You Call Solutions to Common Problems Oven light does not work. Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide. Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under Setting Oven Controls. Make sure oven door is opened to broil stop position.
- Page 27 Notes...
