NETGEAR N300 Installation Manual

Installation Guide

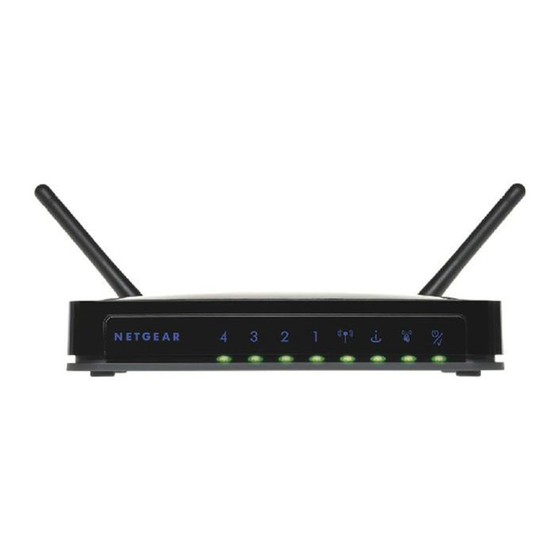

N300 Wireless Router
with External Antennas
Package Contents:
N300 Wireless Router with External Antennas
Power adapter
Ethernet cable
Step 1:
Unplug the power
to turn off your modem.
DSL
or Cable
Internet
Modem
Step 4:
Connect the power adapter to the
router, then plug it into an outlet.
Wait until the Wireless LED turns
solid green.
If none of the LEDs turn on, make sure
the router is connected to a working outlet.
Step 2:
Connect one end of the blue
Ethernet cable to your modem,
and the other end to the Internet port
on your router.
N300 Wireless Router
with External Antennas
Step 5:
Connect your computer
to the router.
Use another Ethernet cable to establish
a wired connection as shown in this diagram.
Optionally, connect wirelessly by using the
preset wireless security settings
located on the bottom label.
Step 3:
Plug in, then turn on your modem.
Wait approximately 2 minutes
until your modem turns on.
If your modem has a battery backup,
first remove and reinsert the battery
before connecting your
modem to power.
Laptop or Desktop
Computer
(not included)
Step 6:
Open a browser.
If the Web page does not display,
close and re-open the browser
and enter http://routerlogin.net
in the address bar, or check the
"Troubleshooting" section in
the User Guide.
