Setup Guide for the Polycom
Console Interconnect Cable

Connecting Optional Auxiliary Audio Components

1 - 12
®
SoundStation IP 7000 Phone When Operating with a NEC UNIVERGE

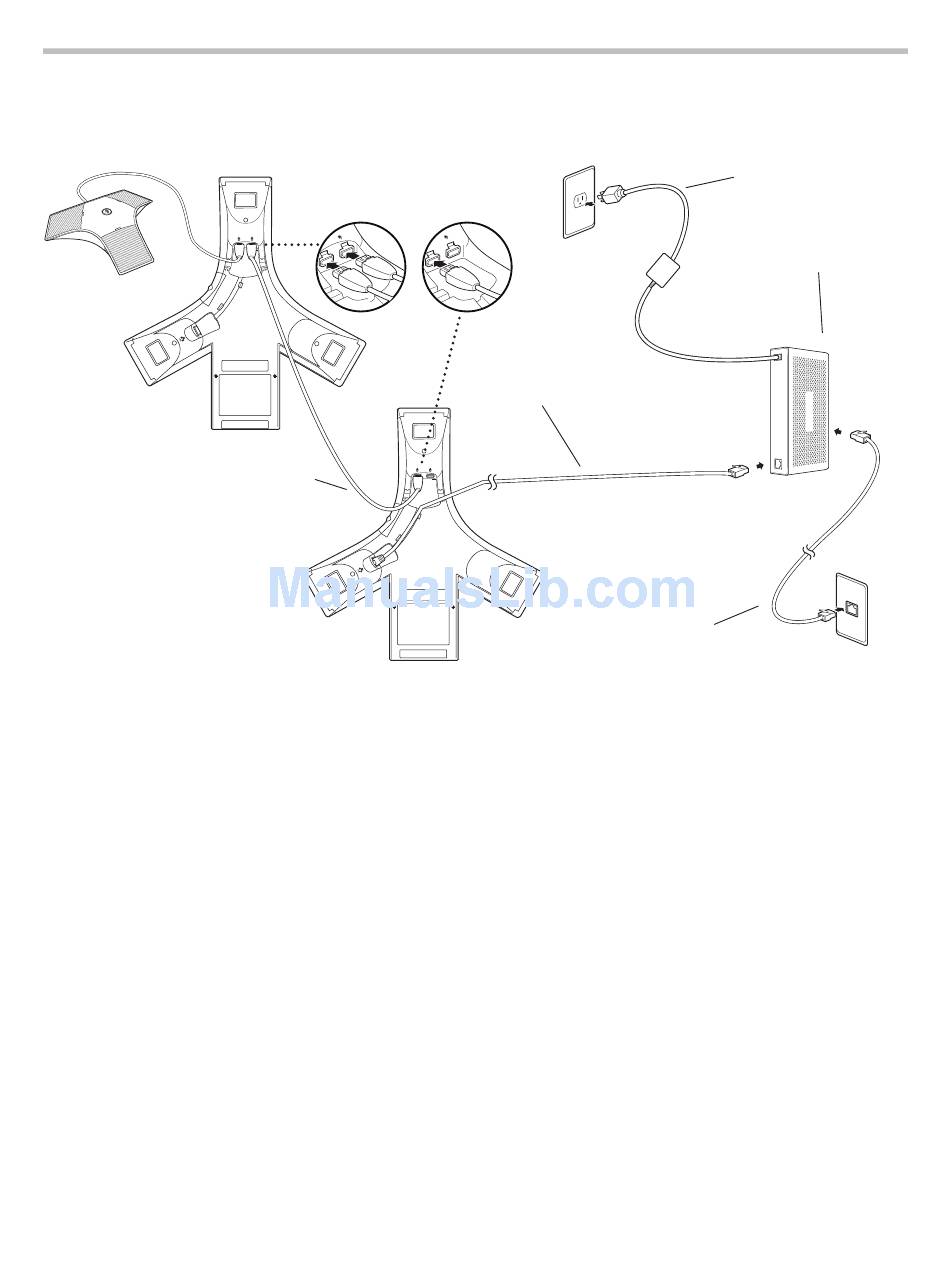

The following figure shows a two-phone setup with one Polycom HDX
Microphone Array (the maximum number you can attach for this setup).
You can connect various auxiliary audio components, such as wireless (lapel)
microphones, speakers, and recording devices and computers (to record
phone calls) to your phone. You can also connect your conference phone to
audio from a mobile phone or a computer calling application. You connect
audio components to one of the following connectors:
• 2.5mm audio connector on your conference phone—to hear audio from
mobile phones and computer calling applications.
To connect a mobile phone to your conference phone, you require the
optional Mobile Phone Cable. To connect a computer calling application
to your conference phone, you require the optional Computer Calling Kit
(containing a Computer Calling Cable).
• Audio connectors and ports on the Multi-Interface Module—to connect
wireless (lapel) microphones, speakers, and recording devices and
computers (to record phone calls).
To connect audio components to the Multi-Interface Module, see your
system administrator.
®
12-foot
Network Cable (10-pin)
25-foot
Network Cable
Switch
Power Adapter
Multi-Interface
Module
