DePnitiveTechmlogy®
The Leader in High-Performance Loudspeakers®
StudioMonitor
350-450
AudioMdeo Magnetically Shielded Loudspeakers
Ownerls Manual
Congratulations
Congratulations on your purchase of a Definitive Technology
StudioMonitor AudioNideo Loudspeaker System. These superb
loudspeakers utilize state-of-the-art components (cast-basket
homopolymer-coned
bas~-midrange
drivers, moving coil fer-
rofluid-cooled pure aluminum dome high frequency radiator,
long excursion pressure coupled subwoofer, uniphase crossover
netwdrks, etc.), a non-resonant monocoque cabinet, low diffrac-
tion construction and complete magnetic shielding, in order to
achieve the most lifelike sound possible in your listening room
for many years to come.
The Definitive Technology StudioMonitors are compact high
definition loudspeaker systems designed for use in audio/video
systems of the highest quality. Because of their compact size,
wide range, high power handling and natural articulate clarity,
they are ideal for use as a left main, right main, and center speak-
er (which may be stand, shelf, wall or in-cabinet mounted) in
conjunction with all surround sound decoding systems, including
Dolby Pro Logic*, Dolby Digital AC-3*, DTS*, Dolby Digital
EX*, as well as all 6.1 and 7.1 systems. In addition, the
StudioMonitors are ideal for use as rear or side surround'speakers
in all surround sound decoding systems or as audiophile quality
main speakers in a high quality stereo system.
*Registered Trademark
Advertisement
Table of Contents
Related Manuals for Definitive Technology StudioMonitor 350
Summary of Contents for Definitive Technology StudioMonitor 350

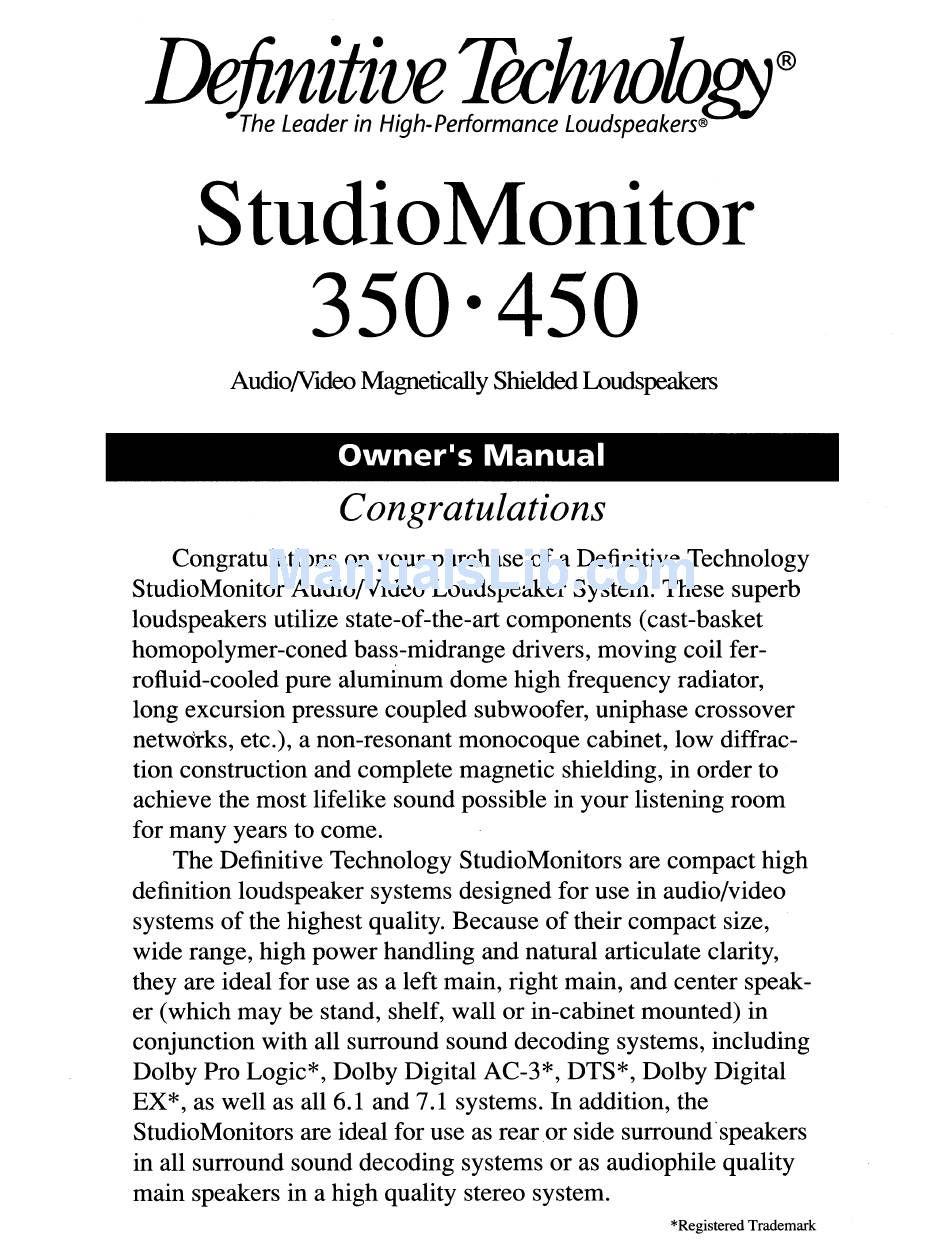

- Page 1 The Leader in High-Performance Loudspeakers® StudioMonitor 350-450 AudioMdeo Magnetically Shielded Loudspeakers Ownerls Manual Congratulations Congratulations on your purchase of a Definitive Technology StudioMonitor AudioNideo Loudspeaker System. These superb loudspeakers utilize state-of-the-art components (cast-basket bas~-midrange homopolymer-coned drivers, moving coil fer- rofluid-cooled pure aluminum dome high frequency radiator, long excursion pressure coupled subwoofer, uniphase crossover netwdrks, etc.), a non-resonant monocoque cabinet, low diffrac-...
- Page 2 Unpacking Your StudioMonitors Please Inspect For Shipping Damage Each loudspeaker leaves our plant in perfect condition. Any visible or concealed damage most likely occurred in handling after it left our plant and should be reported at once to your Definitive dealer or the delivery company that delivered your loudspeaker.
- Page 3 The StudioMonitors are mirror imaged (serial numbers have either an A or a B) with the side mounted, pressure coupled subwoofers located so they may be set up with both woofers facing in (toward each other) or both woofers facing out (away from each other). (Feel the side of the speakers to determine which side the woofer is on.) Facing the woofers in or out will vary the sound somewhat and which way is best will vary with your room.
- Page 4 Using Your StudioMonitors with a Separate Subwoofer If you use a subwoofer, we strongly suggest using a Definitive PowerField SuperCube, PowerField or ProSub in order to achieve the highest level ofsound quality possible. With Dolby Digital Receivers and Decoders Most systems using the StudioMonitors with a subwoofer will be Dolby Digital Systems.
- Page 5 Setting Bass and Treble Controls on Your Receiver or Amplifier Normally we recommend that you set the Bass and Treble controls on flat or 0 dB. This will give you the most linear and natural sound. Also, if your amplifier or receiver has a graphic equalizer, we recom- mend that you leave it flat.
- Page 6 Technical Assistance It is our pleasure to offer assistance if you have any questions regarding your StudioMonitors or their set-up. Please contact your nearest Definitive Technology dealer or contact us directly at 410-363-7148 or www.definitivetech.com. Service Service and warranty work on your Definitive loudspeakers will normally be performed by the Definitive Technology dealer from whom you have purchased your loudspeakers.
- Page 7 StudioMonitors Preliminary Specifications StudioMonitor 350 "W "H Dimensions 15/ 16 "/16"D 11/16 Frequency Response 26 Hz-30 kHz Compatible with 4-8 ohms. Set amp on 4 if Nominal Impedance you have a choice. cast-basket polymer coned bass/mid Driver Complement range driver. I" pure aluminum dome tweeter.
- Page 8 If, upon examina- tion at the Factory or a Definitive Technology Franchised Dealer, it is determined that the unit was defective in materials or workmanship at any time during this Warranty period, Definitive Technology or the Definitive Technology Franchised Dealer will, at its option, repair or replace this Product at no additional charge, except as set forth below.
- Page 9 No Internet access? Call Definitive Technology Customer Service M-F 9:30 AM - 6:30 PM US Eastern Standard Time at (410) 363-7148, and we'll help you with the simple registration process. Or you can send us a letter to Definitive Warranty Registration at the address below with your narne, address, phone number, serial number(s) of the product(s) and a photocopy of your sales receipt or upload a scan as part of the on-line registration process.
