Grizzly T10113 Instruction Manual

To reduce the risk of serious injury when
using this blade guard:
1. RIVING KNIfE. Before using this blade
guard, your table saw Must have the riv-
ing knife properly installed.
2. BLADE GUARD hEIGhT. always properly
adjust the blade guard height so that the
guard wheels rest on the table and the
guard will not interfere with the workpiece
as it passes underneath.
3. TABLE SAW OWNER'S MANUAL. read
and understand the table saw owner's
manual and always follow all safety pre-
cautions and instructions for your table saw
during operation.
4. DUST COLLECTION SySTEM. always
use a dust collection system with this blade
guard that is adequate for your operation.
5. ADJUSTMENTS, MAINTENANCE, OR
SERVICE. always disconnect the table
saw from power before you perform any
adjustments, maintenance, or service to
this blade guard or your table saw.
6. TABLE SAW ATTAChMENT. always make
sure the blade guard assembly is firmly
attached to the table saw so that the blade
guard will not move away from its correct
and safe position during operation.
WARNING: NO pORTION Of ThIS MANUAL MAy BE REpRODUCED IN ANy ShApE
OR fORM WIThOUT ThE WRITTEN AppROVAL Of GRIzzLy INDUSTRIAL, INC.
Copyright © NoVEMBEr, 2008 By grizzly iNdustrial, iNC.
#ts11340 priNtEd iN taiWaN
MODEL T10113
UNIVERSAL OVERARM

BLADE GUARD

INSTRUCTIONS

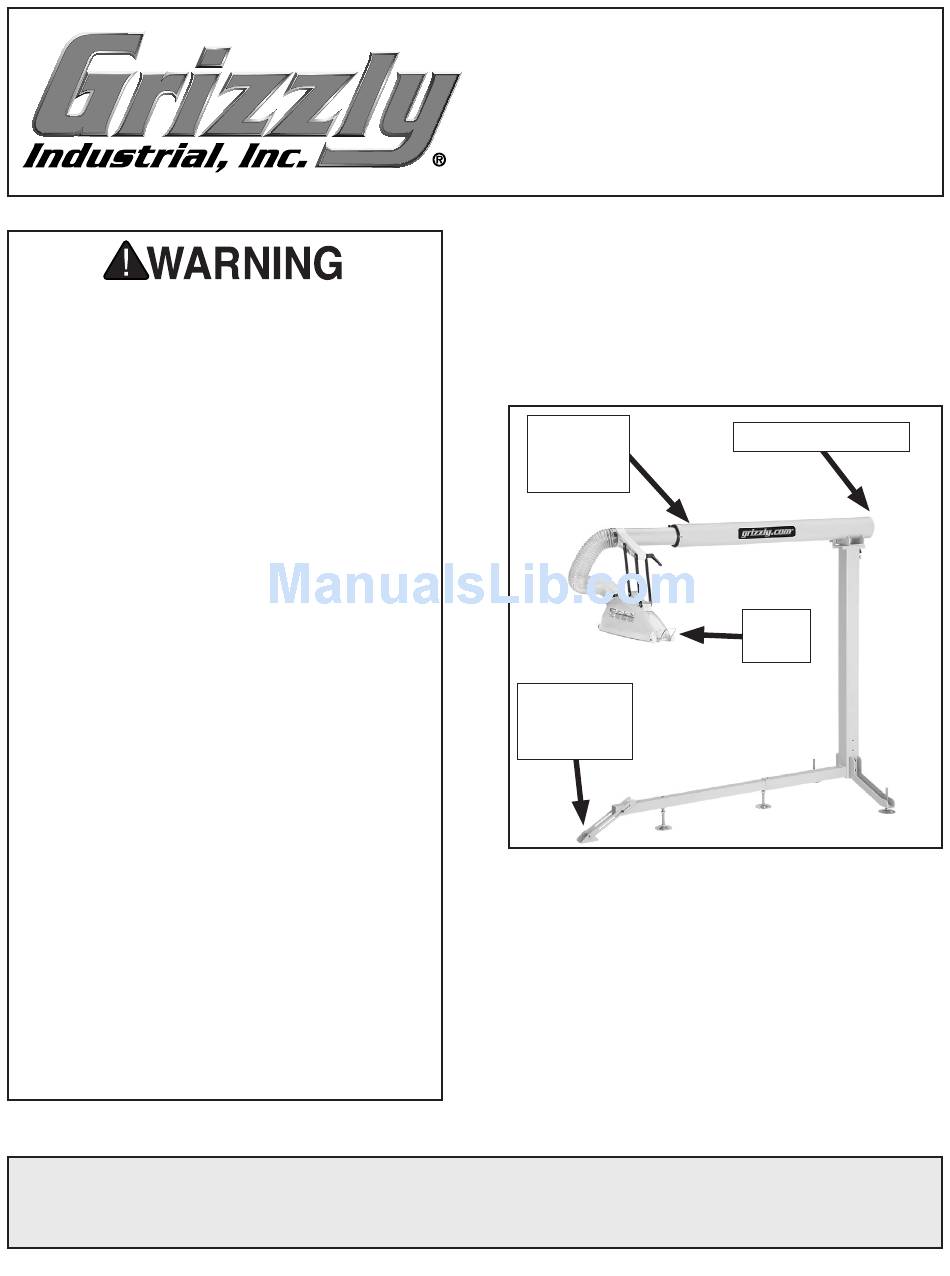

Introduction
the Model t10113 universal overarm Blade
guard is designed to fit most table saws with a
stable adjustable base and a 3" dust collection
boom that can rotate 90° and extend from 39" to
68" over the saw blade.
dust
Collection
Boom
table saw
Connection
Bracket
figure 1. Model t10113 identification.
Inventory
after removing the contents of the shipping
package, lay them out and refer to the parts
Breakdown and listing on page 3 to inventory the
components.
If you need help with your new Universal Overarm
Blade Guard, call our Tech Support at: (570) 546-
9663.
4" dust hose here
Blade
guard
