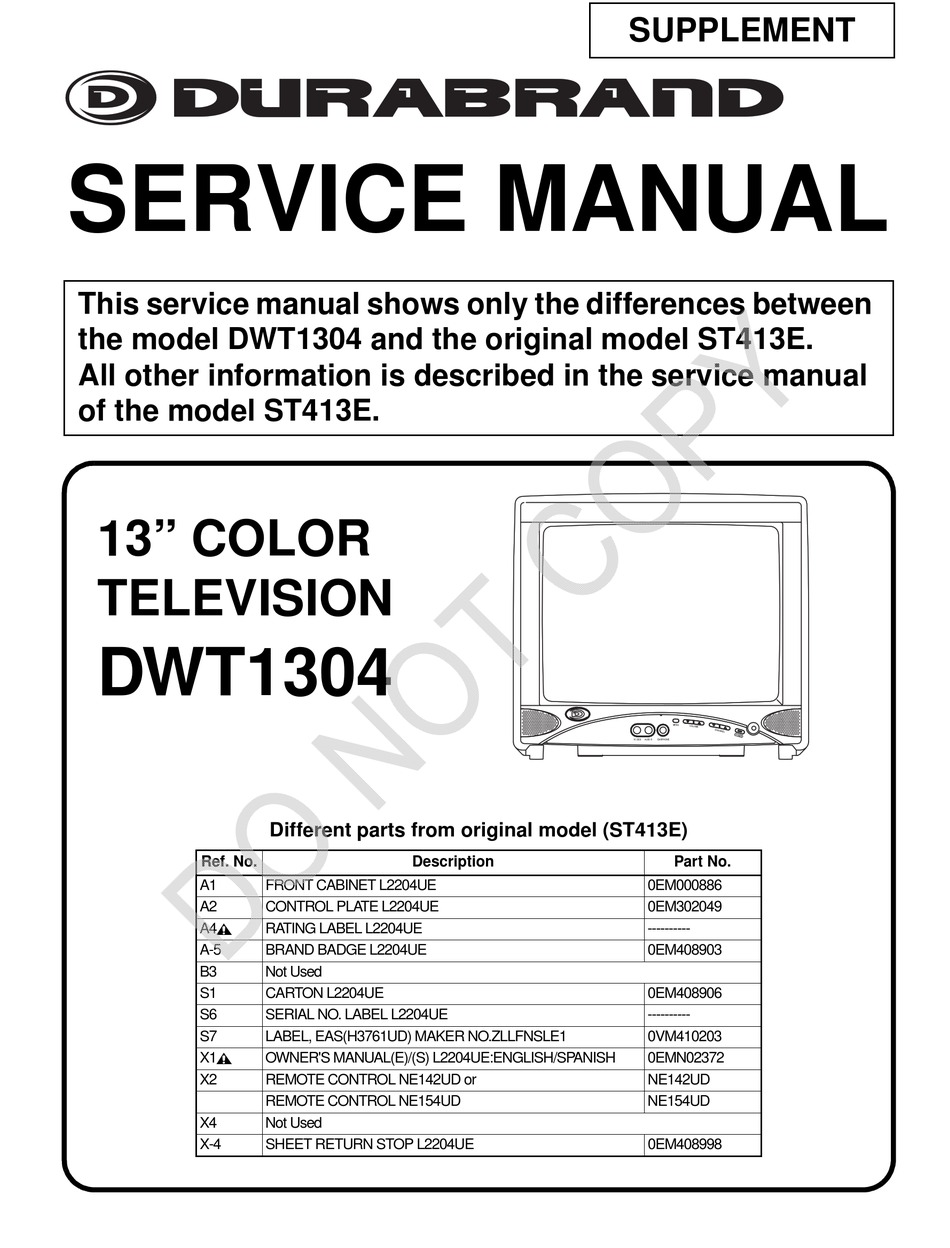

SERVICE MANUAL

This service manual shows only the differences between
the model DWT1304 and the original model ST413E.
All other information is described in the service manual
of the model ST413E.
13" COLOR
TELEVISION
DWT1304
Ref. No.
A1
A2
A4
#
A-5
B3
S1
S6
S7
X1
#
X2
X4
X-4
Different parts from original model (ST413E)
Description
FRONT CABINET L2204UE
CONTROL PLATE L2204UE
RATING LABEL L2204UE
BRAND BADGE L2204UE
Not Used
CARTON L2204UE
SERIAL NO. LABEL L2204UE
LABEL, EAS(H3761UD) MAKER NO.ZLLFNSLE1
OWNER'S MANUAL(E)/(S) L2204UE:ENGLISH/SPANISH
REMOTE CONTROL NE142UD or
REMOTE CONTROL NE154UD
Not Used
SHEET RETURN STOP L2204UE
SUPPLEMENT
Part No.
0EM000886
0EM302049
----------
0EM408903
0EM408906
----------
0VM410203
0EMN02372
NE142UD
NE154UD
0EM408998
