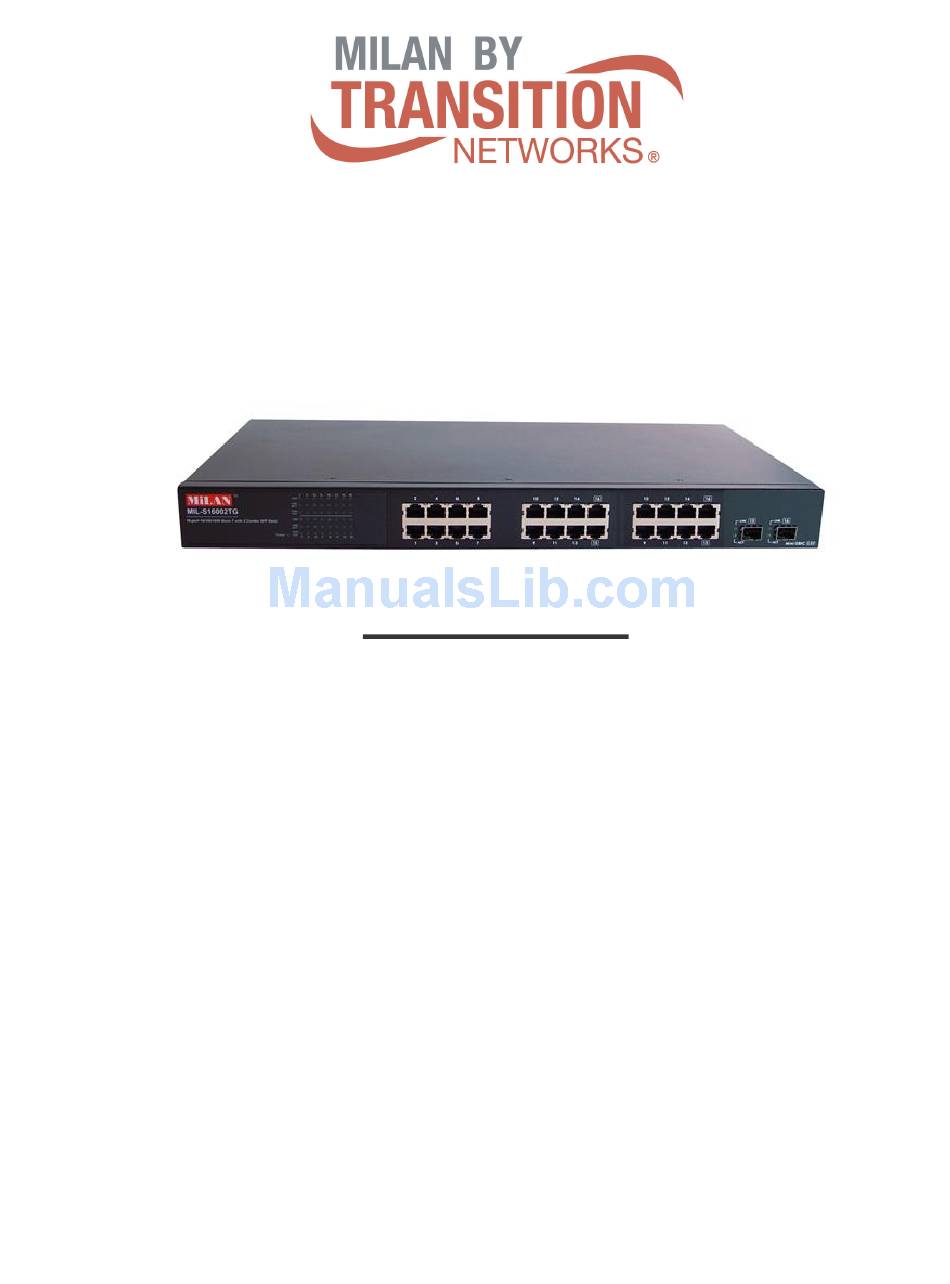

Page 1: User Guide

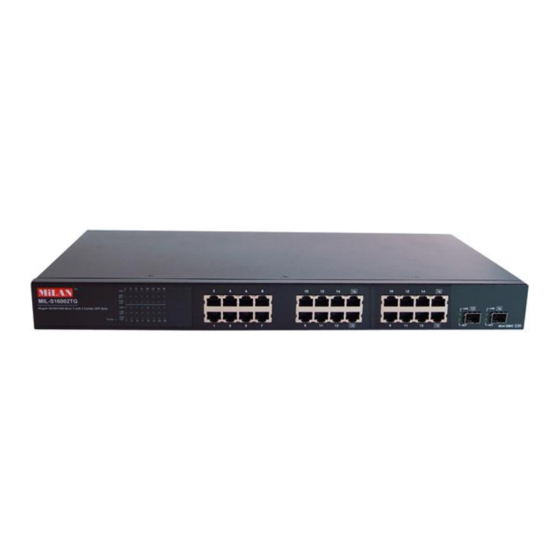

MIL-S24T2GPA 16 or 24-port 10/100/1000BASE- T 2 Combo SFP Slots Unmanaged Switch User Guide Rev.A 09-MAY2006... - Page 2 In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Table Of Contents
Content 1. Introduction............1 Features ......................1 Package Contents..................2 2. Hardware Description .......... 3 Front Panel ....................3 Rear Panel ....................4 LED Indicators ....................4 Combo SFP Slots LED................5 3. Installation ............6 4. Network Application ..........7 5. Troubleshooting ..........8 6. Technical Specification........9... -
Page 4: Introduction
1. Introduction The 16 or 24-port 10/100/1000BASE-T plus 2 combo SFP Slots Switch is an ideal solution for solving traffic block at the core of the network. It offers 16 or 24 x auto-negotiating 10/100/1000Base-T Gigabit Ethernet ports that can significantly improve your network backbone performance. -
Page 5: Package Contents
One DC fan for good ventilation and to increase system heat sink performance 19 inch Rack mount design Package Contents The 16 or 24-port 10/100/1000BASE-T plus 2 Combo SFP Slots Switch Power Cord Four Rubber Feet User Manual The 16 or 24-port 10/100/1000BASE-T plus 2 Combo SFP Slots Switch Power Cord User Guide Rubber Feet... -
Page 6: Hardware Description
2. Hardware Description This Section describes the hardware of the 16 or 24-port 10/100/1000BASE-T plus 2 Combo SFP Slots Switch. The physical dimensions of the 16 or 24-port 10/100/1000BASE-T plus 2 Combo SFP Slots Switch is: 440 x 161 x 44 mm (W x D x H) Front Panel The Front Panel of the 16 or 24-port 10/100/1000BASE-T plus 2 Combo SFP Slots Switch consists of 16 or 24 x auto-negotiation 10/100/1000Mbps Ethernet RJ-45 connectors... -
Page 7: Rear Panel
The LED Indicators gives a real-time indication of system operating statuses. There are 3 LED-indicators (1000, LNK/ACT, FDX/COL) for each Gigabit port and one Power LED for unit. The following table provides descriptions of LEDs status and their meaning. Figure 2-3.LED Indicators example of MIL-S24T2GPA Status Description... -
Page 8: Combo Sfp Slots Led
Blinking The port is receiving or transmitting data. No device attached. Table 2-1. The Descriptions of LED Indicators Combo SFP Slots LED 2 Combo SFP Slots ports have two LED indicators – LNK and ACT. The following table provides descriptions of LEDs status and their meaning. Figure 2-4. -
Page 9: Installation
3. Installation This section shows the installation procedures of the switch. Set the Switch on a sufficiently large flat space with a power outlet nearby. The surface where you put your Switch should be clean, smooth, level, and sturdy. Make sure there is enough clearance around the Switch to allow attachment of cables, power cord and air circulation. -
Page 10: Network Application
4. Network Application You can use the 16 or 24-port 10/100/1000BASE-T plus 2 Combo SFP Slots Switch to connect servers, switches, workstation, and PCs to each other by connecting these devices directly to the Switch. The Switch automatically learns node address, which are subsequently used to filter and forward all traffic based on the destination address. -
Page 11: Troubleshooting
5. Troubleshooting The Switch can be easily monitored through panel indicators to assist in identifying problems. This section describes common problems you may encounter and where you can find possible solutions. Diagnosing LED Indicator If Link indicator does not light up after connection, you may check whether network interface (e.g., a network adapter card on the attached device), network cable, or switch port is defective or not. -
Page 12: Technical Specification
6. Technical Specification The following table provides the technical specification of the 16 or 24-port 10/100/1000BASE-T plus 2 Combo SFP Slots Switch. IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE802.3z Gigabit fiber IEEE802.3ab 1000Base-T Protocol CSMA/CD Technology Store-and-Forward switching architecture 14880 Packets per Second for 10Mbps Transfer Rate 148800 Packets per second for 100Mbps 1488000 Packets per second for 1000Mbps... - Page 13 Consumption Operation 0C to 45C (32F to 113F) Temperature Operation 10% to 90% (Non-condensing) Humidity Dimension 440mm(W) x 161mm(D) x 44mm (H) EMI & Safety FCC Class A, CE, UL, CE/EN60950 6475 City West Pkwy Eden Prairie, MN 55344 Tel.: +1.952.941.7600 techsupport@transition.com...
