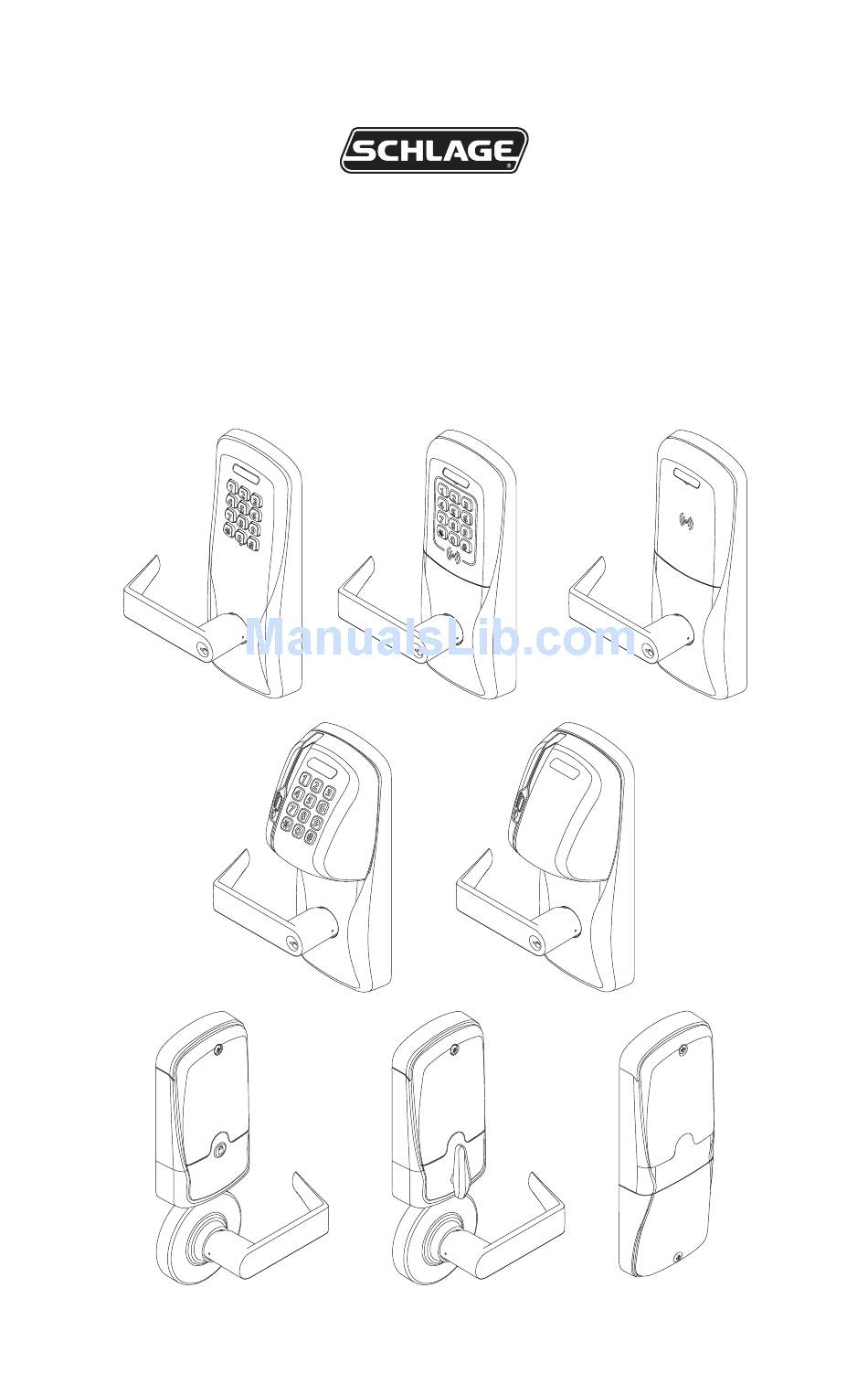

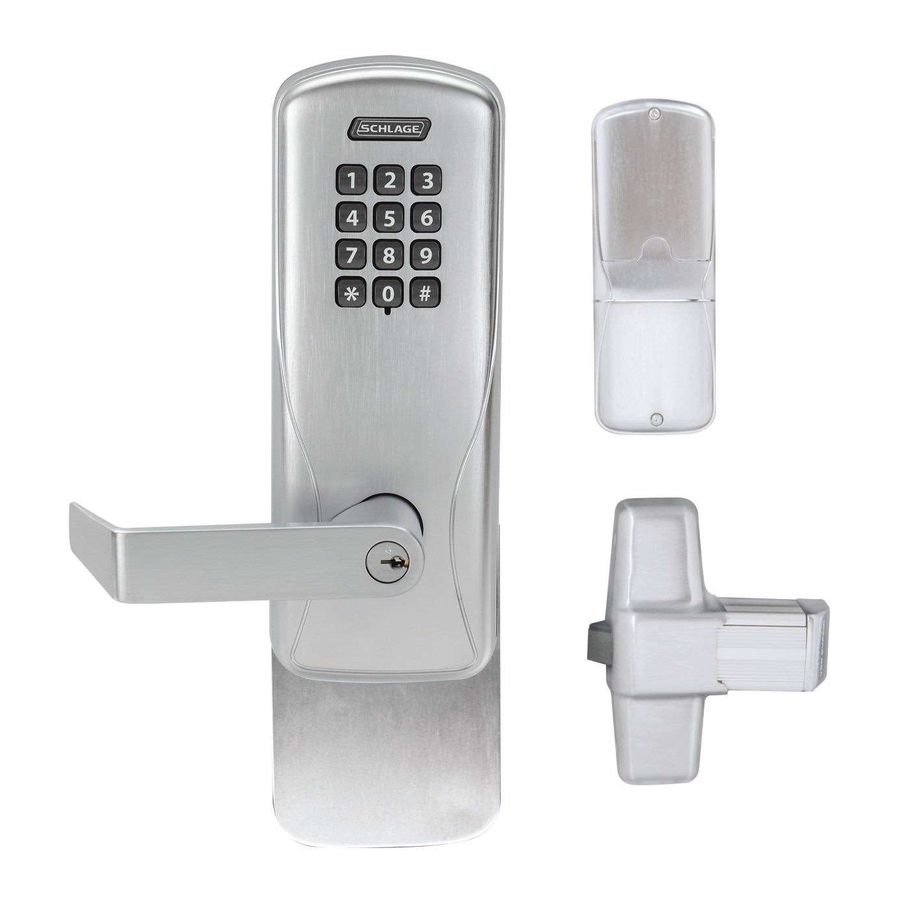

OFFLINE LOCK USER GUIDE
INSTRUCTIONS FOR CO-SERIES OFFLINE LOCKS
Para el idioma español, navegue hacia www.schlage.com/support.
Pour la portion française, veuillez consulter le site www.schlage.com/support.

Advertisement

Table of Contents
loading

Related Manuals for Schlage CO-200

Summary of Contents for Schlage CO-200

  • Page 1 P516-271 CO-200 OFFLINE LOCK USER GUIDE INSTRUCTIONS FOR CO-SERIES OFFLINE LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.

  • Page 2: Table Of Contents

    CO-200 Offl ine Lock User Guide CONTENTS Overview ............................3 Getting Started ..........................4 Schlage Utility Software (SUS) ...................... 4 Construction Access Mode ......................5 Create the Master Construction Credential - Locks with Card Readers ........5 Add Construction Access Mode User Credentials - Locks with Card Readers ......5 Cancel Construction Access Mode ...................

  • Page 3: Overview

    • Inside lever always allows egress. • The lock maintains an audit trail of events in the normal operating mode. • The lock is confi gured using the Schlage Utility Software (SUS). See Schlage Utility Software (SUS) on page 4 for more information.

  • Page 4: Getting Started

    The Schlage Utility Software is used for programming and setup only. The Schlage Utility Software (SUS) is used to confi gure locks. The SUS confi gures lock functions that cannot be confi gured with manual programming, and is used to transfer data fi les between the access control software and locks.

  • Page 5: Construction Access Mode

    PIN of 13579 and “ # ”, which can be used for installation, testing and construction access. To test, enter 13579 and “# ”. The Schlage button will blink and the lock will unlock. The default PIN is automatically deleted when a new programming credential is created, construction credentials are...

  • Page 6: Manual Lock Programming

    CO-200 Offl ine Lock User Guide MANUAL LOCK PROGRAMMING Left LED Right LED TIPS The Schlage button has two different LEDs, one on the left and one on the right. All locks have a default programming code of 97531 and “...

  • Page 7: Manual Programming Commands

    Schlage button, three left and nine right at the same time. The right LED on the Schlage button will blink green to indicate an incorrect entry. To interpret blink patterns, refer to Error Codes on page 9.
  • Page 8 CO-200 Offl ine Lock User Guide Wait For Function Press/Present Confi rmation Programming Card [Programming Code] Wait for Add Freeze to stop flashing Credential New [PIN] between each New Card (for PIN only) step. add another credential to finish Programming Card...

  • Page 9: Error Codes

    1 Other lights may show before the fi nal confi rmation. Wait for fi nal confi rmation before continuing to the next step. ERROR CODES All error codes are indicated on the Schlage button by a solid red LED and a blinking green LED. The number of green blinks indicates the error code.

  • Page 10: Test Lock Operation

    Test in Factory Default Mode 1. For locks with a keypad, press any number key. The lock will beep and the Schlage button will blink red. 2. The Schlage button will blink red twice when a credential is presented and the lock is in factory default mode, and has no access programming.

  • Page 11: Reset To Factory Defaults

    Level 1 factory default reset will not reset confi gurations and settings in the reader. 1. Press and hold the Schlage button. Wait for the lock to beep twice and two green blinks of the Schlage button, indicating confi rmation.

  • Page 12: Batteries

    MD locks). Be careful not to pinch the battery wires when installing the battery cover. For coin cell battery installation or replacement, refer to instructions at www.schlage.com/support. CAUTION! Danger of explosion if batteries are incorrectly replaced! Replace only with the same or equivalent type.

  • Page 13: Led Reference

    CO-200 Offl ine Lock User Guide LED REFERENCE Most LED indicators are confi gured with the SUS. See SUS User Guide for more information. Schlage Button Condition Lights Access denied 2 red blinks Access denied, user outside time zone 4 red blinks...

  • Page 14: Troubleshooting

    “MAG Card Track selection”. Card Credential Readers Refer to the installation instructions that is “Track2”. The magnetic came with the CO-200 lock, or the SUS User swipe card data may be Guide for details on the above mentioned on Track1 or Track3.
  • Page 15 CO-200 Offl ine Lock User Guide Problem Possible Cause Solution The LEDs and beeper The reader is not the If the reader was replaced, check that indicate a replaced original reader matched the new reader is an identical type to the and/or incompatible with the lock at the factory.

  • Page 16: Fcc Statements

    FCC STATEMENTS Ingersoll Rand Agency Statements Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifi...
