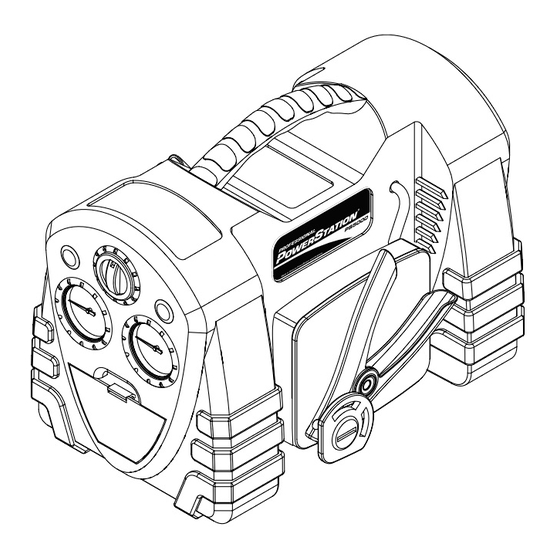

- Page 1 USER MANUAL © Copyright 2006, PowerStation, LLC All rights reserved MODEL: PS5000M...
-
Page 2: Table Of Contents
11–12 Inflating a tire or object Inflating other objects Operating AC appliances 12-14 Operating DC appliances 14-15 Replacement Parts Notes NOTICE: If you experience any problems with the PS5000M, please DO NOT return the unit to the place of purchase. Please call PowerStation’s Technical support staff toll free at 1-800-837-5994. -
Page 3: Warning Information
WARNING technician complete any service work. Fire Hazard. Never allow the jumpstart’s red and black cable clamps to touch each other or a common metal conductor. WARNING Such contact could cause damage to the unit and/or create a sparking/explosion hazard. Fire Hazard. Connect red clamp to the positive (+) battery terminal. The black clamp should be attached to the engine block of stalled vehicle. Do not connect black clamp to the WARNING negative (-) battery terminal. Doing so could cause damage to the unit and/or create a sparking/explosion hazard. Fire Hazard. Do not try to jumpstart a battery for more than six seconds. Before repeating the jump starting cycle, allow the WARNING unit to cool for three minutes. Risk of fire, explosion, or burns. The jumpstarting cable connection has enough energy to cause a spark, create an explosion hazard or cause burns if a metal object contacts both WARNING terminals. Do not turn on the jumpstarting function without having cables properly attached to the vehicle’s battery. PS5000M Owners Manual Page 030907... - Page 4 Risk of personal injury or damage to equipment: Do not exceed recommended air pressure of object being inflated. WARNING Do not exceed a pressure of 140 PSI. Caution: Contains a sealed lead acid battery. Keep dry. Do not drop. Do not charge battery if frozen. See owners guide CAUTION for proper charging procedures. Dispose of battery according to local regulations. Warning: The output of the inverter is non-sinusoidal. WARNING Do not use the inverter with the following equipment: - Small battery-operated products such as rechargeable flashlights, some rechargeable shavers, and night-lights that are plugged directly into an AC receptacle to recharge. - Certain battery chargers for battery packs used in powered-hand tools. These chargers will have warning labels stating that dangerous voltages are present at the charger’s battery terminals. If you are uncertain that non-sinusoidal power will cause damage to an item, check with the item’s manufacturer before using with the AC inverter. PS5000M Owners Manual Page 030907...
- Page 5 WARNING INFORMATION continued To avoid possible damage and/or a shortening of the unit’s working life, protect the unit from direct sunlight, direct heat, CAUTION and/or moisture. The jumpstart function is designed to be used only on vehicles CAUTION or boats with 12V electrical systems. This unit is not designed to be used in the place CAUTION of a vehicle battery. This unit is not designed to be used as a battery charger. CAUTION Never attempt to jumpstart a frozen battery. Gradually warm the frozen battery to a minimum of 40°F (4°C) CAUTION before jumpstarting. PS5000M Owners Manual Page 030907...
-
Page 6: Introduction
FEATURES High current EHP battery provides 1,000 Amps peak power, 400 Amps ❯ starting power. Starts cars, trucks, recreational vehicles, and boats without the need ❯ of a host vehicle or an AC power source. 110V AC outlet powers various appliances anywhere. ❯ 2-12V DC power outlets provide power for appliances designed to plug into ❯ a vehicle or boat 12V cigarette lighter socket. Solid-state, integrated charger allows for re-charging of the PS5000M ❯ battery from any 120V AC power source. The PS5000M integrated charger automatically stops charging when the battery has acquired a full charge and keeps your PS5000M battery in peak condition. Sealed, maintenance-free heavy duty battery is safe to use, transport, ❯ and store. 46" Heavy-duty, 6 gauge industrial grade welding cables carry more ❯ amperage for maximum starting power. Battery gauge for quick assessment of PS5000M battery state of charge. ❯ High-impact molded case provides durability and convenient transport. ❯ Integrated light for roadside repairs or emergency situations. ❯ 140 PSI air compressor and air inlet adaptors can address a wide range ❯ of inflation needs. Pressure gauge displays actual air pressure in PSI. ❯ PS5000M Owners Manual Page 030907... -
Page 7: Getting To Know Your Ps5000M
GETTING TO KNOW YOUR PS5000M Figure 1 A. Jumper cable ON/OFF switch B. Battery test switch C. Voltmeter D. Air compressor ON/OFF switch E. Air compressor gauge Cables reversed indicator G. Battery charging indicator CABLES REVERSED BATTERY FULL CHARGING CHARGE H. Full charge indicator Air compressor accessory and hose storage CABLES REVERSED BATTERY FULL CHARGING CHARGE Figure 2 J. Integrated work lamp... - Page 8 GETTING TO KNOW YOUR PS5000M continued WARNING Always wear eye protection when using your 140 PSI compressor unit. Always follow vehicle / tire manufacturer’s recommendation for proper inflation. DO NOT OVER-INFLATE. When inflating tires, always lock the air hose connector over the inflation valve before moving the “ON/OFF”...
-
Page 9: Operation
Charging the PS5000M before initial use Your PS5000M will need to be charged until the Green Full Charge LED illuminates before initial use. The initial charge could take up to 72 hours. Do not use the PS5000M as a power source while recharging. CAUTION Use the following step-by step guide to recharging your unit. Standard Recharging of the PS5000M We recommend leaving the AC charger connected to a 120V AC outlet when the PS5000M is not in use to obtain maximum battery life. To recharge the PowerStation internal battery using AC power: 1. Ensure that all elements of the unit are off and that nothing is connected to the 12V DC outlet. 2. Plug the AC charger cable into a standard wall AC outlet. 3. Plug the AC charger cable into the AC charger access point on the unit. At this time the red “Battery Charging” indicator will illuminate. 4. Allow unit to charge until the red “Battery Charging” indicator turns off and the green “Full Charge” indicator is illuminated. Note: The PS5000M can stay connected to a 120V power source and will charge automatically. -
Page 10: Dc Recharging Of The Ps5000M
To Recharge using a 12V DC power source: (Do not exceed 2 hours) Note: Only use the DC charging option when an AC power source is not available. 1. Insert the DC charging cord into the cigarette lighter receptacle on the boat or vehicle. 2. Insert the other end of the DC charging cord into either one of the 12V DC power outlets on the side of the unit. Note: The jumpstart on/off switch can be left in the off position. It is possible to over charge the battery when re-charging using the DC outlet. Over charging the battery can cause permanent CAUTION damage and decrease battery performance. Only charge using DC supply if a 120V AC outlet is not available. Figure 4 V. 12V DC to DC cable O. 12V DC outlet W. Location of cooling vents PS5000M Owners Manual Page 030907... -
Page 11: Use Of The Ps5000M
Fire Hazard. Never allow the jumpstart’s red and black cable clamps to touch each other or a common metal conductor. WARNING Such contact could cause damage to the unit and/or create a sparking/explosion hazard. Fire Hazard. Connect red clamp to the positive (+) battery terminal. The black clamp should be attached to the engine block or other non-moving metal part of stalled vehicle. Do not WARNING connect black clamp to the negative (-) battery terminal. Doing so could cause damage to the unit and/or create a sparking/ explosion hazard. Fire Hazard. Do not try to jumpstart a battery for more than six seconds. Allow the unit to cool for three minutes after each six WARNING second jumpstart. Risk of Fire, explosion, or burns. The jumpstarting cable connection has enough energy to cause a spark, create an explosion hazard, or cause burns if a metal object contacts WARNING both terminals. Keep the jumpstart switch in the OFF position, except when executing the jump start procedure. Do not turn on the jumpstarting function without having cables securely attached. PS5000M Owners Manual Page 030907... -
Page 12: Using The Jumpstart
OFF position. The reverse polarity warning function does not protect the PS5000M or your vehicle from damage if the cables are not correctly connected and the jumper cables power switch is in the ON position. If the red CAUTION “cables reversed”... -
Page 13: Using The Integrated Work Lamp
To use the integrated work lamp, simply press the work lamp power button located directly above the work lamp (see Figure 2 on page 5 for location J). Using the compressor The air compressor in the PS5000M is designed as a convenient portable inflation device. After ten minutes of continuous use, turn off the compressor and allow it to cool for ten minutes. Continue use, if necessary, following this ten minutes on / ten minutes off cycle (see Figure 1 on page 5 for location I). Allowing the compressor to run in excess of 10 minutes can result in permanent damage to the compressor, jump start unit, property or personal injury. Make sure the compressor WARNING ventilation slots are free of debris and air can circulate around the compressor motor while in use. Inflating a tire or object using the compressor 1. Secure the inflator nozzle to the valve stem using the thumb latch. 2. Switch on the compressor via the switch on the front of the PS5000M (see Figure 1 on page 5 for location D). 3. Check the pressure gauge on the front of the PS5000M, once desired psi is reached remove the valve connector by releasing the thumb latch. 4. Turn off compressor via the switch on the front of the PS5000M . PS5000M Owners Manual Page 030907... -
Page 14: Inflating Other Objects
Note: If the maximum pressure of the item being inflated is not known, then allow the compressor to run only until the desired fullness is reached. Overinflating an item could result in damage to the PS5000M or the item being inflated. Never leave the compressor running unattended. - Page 15 Portable stereo/ CD player Laptop Computer Table lamp 13" Color TV 3/8" Drill 190 Typical 110V AC appliances used with portable power units. Note: Operating times assume a completely charged PS5000M battery. Actual operating times may vary according to appliance specifications, level of use, outside temperature, and other environmental variables. Some appliances are considered high surge appliances. All wattage ratings are averages. Products such as televisions and devices with motors consume power on a varying basis, often consuming a larger wattage when first turned on or when operated in certain modes. Please be aware that the PS5000M is rated at 320 watts of continuous power with a surge capacity of 800 watts. Some appliances rated under this threshold may actually consume more than 320 Watts, thereby triggering the safety overload shutdown circuit.
-
Page 16: Operating Dc Appliances
Notes: The 12V DC outlet is always on. No other switches need to be on to use this outlet. The combined load should not exceed 15 Amps. Outlet will switch off automatically if overloaded. PS5000M Owners Manual Page 030907... - Page 17 USE OF THE PS5000M continued Notes: The PS5000M will NOT automatically turn off power to the DC outlet. Continuing to use 12V DC appliances after the battery has been depleted can permanently damage the unit. Do not operate 12V DC appliances while charging your PS5000M. Doing so may damage the unit and/or your DC appliance.
-
Page 18: Replacement Parts
RSPS205 Inflation accessories Only parts identified by part number are available for purchase. If you experience any problems with the PS5000M, please DO NOT return the unit to the place of purchase. Please call PowerStation’s Technical support staff between the hours of 8:30 AM to 5:30 PM Eastern Standard Time toll free at 1-800-837-5994. -
Page 19: Notes
NOTES PS5000M Owners Manual Page 030907... - Page 20 PowerStation, LLC PO Box 4556 • Greenville, SC 29608 030907...
