Technical Manual
JBL VT4882DP-AN/CN/DA
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 Ohms, each transducer
• DP3 Internal Amplification Output
(at normal load):
3400W Peak, 1700W Continuous
• DP3 LF Output
2-Channel Class-I Output at norminal
Section:
load: 118V peak
• Frequency Response: 32 Hz – 110 Hz (±3 dB)
• Frequency Range:
28 Hz – 120 kHz (-10 dB)
• Max. Peak Output:
133 dB SPL, 1m
• Signal Processing:
DSP based, resident in Input Module
• AC Power Operating Auto Select 90-132VAC/216-264VAC,
Range:
50/60 Hz
• AC Line Voltage:
50/60 Hz, Auto-Detect: 120V / 240V
(-15%, +10%)
• AC Input Connector: Neutrik PowerCon
• AC Power Loop:
Neutrik PowerCon
• AC Current
6A per system at 120V, 3A per
Requirement:
System at 240V
PACKAGE
Carton
354739-001
VT4882DP-ACC
Dolly Assembly
353245-001
Soft Cover
JBL VT4888-AF
360778-001
Carton
Tube (2)
350484-001
360883-001
Filler (2)
Insert (2)
350486-001
360823-001
Owner's Manual
Carton
350485-001
360824-001
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

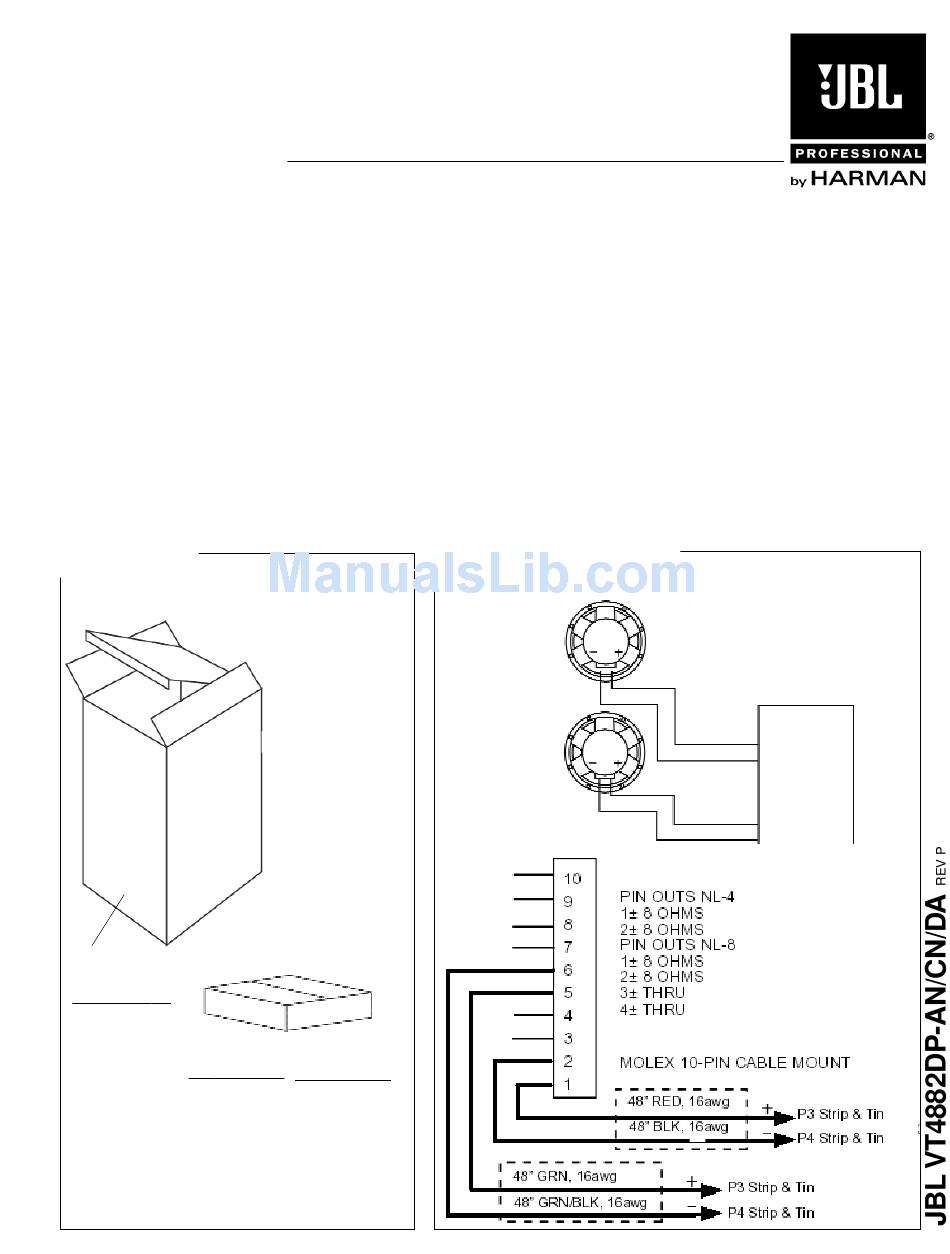

WIRING DIAGRAM
Warranty 59660
Operators Guide
dbx Module
360850-002
Filller (2)
354740-001
Microfoam Pkg (8)
49790P
Sheets
Protective Jackets
(2) Drive Pack
360849-001
Power Cord
Assembly
355040-002
Pack, Edison /
Shurcko
CD,Network DrivePack
361908-003
JBL VT4888-SF
Carton
350706-001
Filler (2)
350713-001
Owner's Manual
350485-001
SYSTEM COMPONENTS:
• Cabinet:
• Grille:
• Low Frequency
Transducer:
• DC Resistance:
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 70.mV Input, 20 Hz to 200 Hz
B. L.F. Aural Sweep Test:
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions:
• Net Weight:
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Driver (2)
Low Freq
2266H
(353418-001X)
Cone Repl
C8R2266
Enclosure Assembly C4882
353238-001
(2) x 2266H (15 in) dia., 381 mm (3 in)
Dual Coil, Differential Drive, Direct
Cooled
4.8 ohms x 2
10.0V Input, 10 Hz to 300 Hz
1013 mm x 457 mm x 1011 mm D
(39.9 in. x 18 in. x 39.8 in. D)
154 lbs. (69.9 kg.)
Input Cup
Assembly
352817-001
Wire Harness
Schematic
355079-001
08-12
