Summary of Contents for Turtle Beach Ear Force PX51

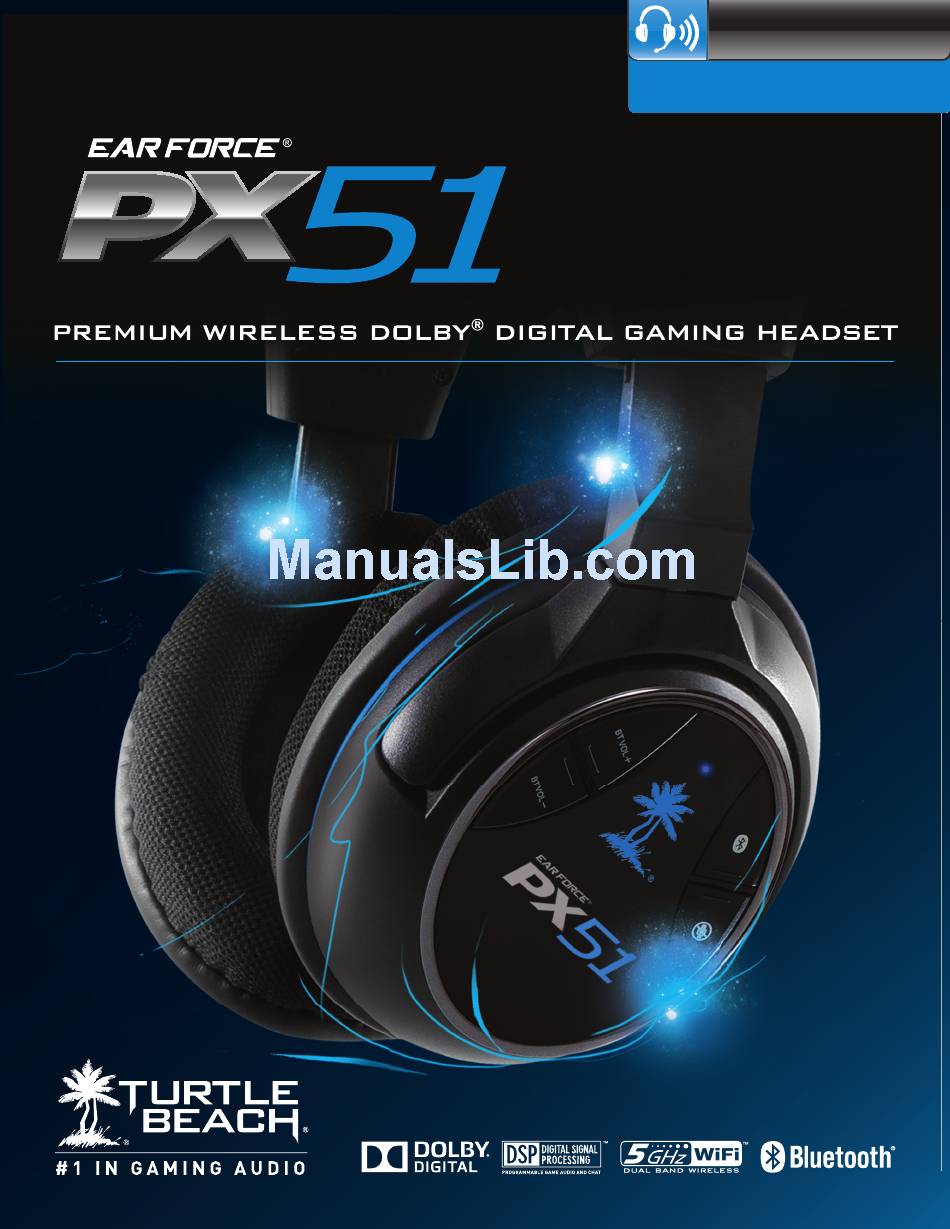

- Page 1 WIRELESS For: PS3™ I Xbox 360® I Mobile User Guide...
- Page 2 Congratulations on your purchase of the Ear Force PX51 from Turtle Beach. You now have in your possession a premium product that will bring your gaming experience to a whole new level, heightening your senses, sharpening your refl exes and enhancing your communications. Welcome to excellence! DOWNLOAD GAME OPTIMIZED PRESETS HTTP://WWW.TURTLEBEACH.COM/PRESETS...
-
Page 3: Table Of Contents
Table of Contents Package Contents Feature/Function Map (Location of controls/inputs) Setting Up (Connections etc.) Pairing Instructions Using your PX51 Headset on on PS3™ Using your PX51 Headset on Xbox 360 ® Surround Sound Settings Bluetooth Settings ® Phone Settings Recharging Presets and Modes Presets/Specifications Mobile Device Cable... -
Page 4: Package Contents
® | PS3 ™ Presets Reference Download new presets or customize your own with the Tango software from TurtleBeach.com Headset Charging Cable Turtle Beach Sticker Presets Reference Xbox Talkback Cable Mobile Device Cable Câble casque Charge Câble Périphénique Mobile Câble casque Charge Vignette Turtle Beach référence Presets... -
Page 5: Feature/Function Map (Location Of Controls/Inputs)
Feature/Function Map (Location of controls/inputs) Headset 1. Main 2. Power/Pair 3. Game Presets 4. Chat/Mic. Presets 5. Programmable Control (Mic. Monitor by default) 6. Xbox Talkback Cable Jack 7. Game Volume Control Left Earcup 8. Bluetooth Volume Control + 9. Bluetooth Volume Control - 10. - Page 6 Feature/Function Map (Location of controls/inputs) RF Transmitter DIGITAL LINE IN LINE IN VOLUME DC 5V 1. Power/Pairing LED and Button 6. DIGITAL IN/OUT Jacks 2. Digital Input LED 7. LINE IN (Left/Right) Jacks 3. Dolby Digital LED 8. LINE IN VOLUME Control 4.
-
Page 7: Setting Up (Connections Etc.)
Setting Up (Connections etc.) RF Transmitter Set Up 1. Connect optical cable (DIGITAL IN)* and transmitter power cable (included) to game console. 2. Insert Microphone Boom. 3. Power headset ON. - Press and hold Power button until LED turns solid. - Listen for voice prompt, “Powering on”. -
Page 8: Pairing Instructions
3. Press and hold Power button on the headset until the Power LED flashes rapidly. Release. 4. Once your Turtle Beach PX51 headset has been paired successfully, the headset’s Power LED will blink once per second and the transmitter Power/Pairing LED will light solid. A voice prompt will announce, “Headset paired.”... - Page 9 Using your PX51 Headset on PS3™ PS3 Bluetooth Confi guration Your Turtle Beach PX51 headset is designed to work with PS3 game consoles. In order to get ideal functionality from your headset, follow the directions below. 12/14 12:15 PM Register to manage Bluetooth® devices such as headsets, keyboards and mouse devices.
- Page 10 Using your PX51 Headset on PS3™ PS3 Output Settings 12/14 12:15 PM Audio Output Settings Select the connector on the TV or AV amplifier (receiver). Audio Output Settings Sets to output audio through multiple connectors simultaneously. Audio output to connectors that are not selected in [Audio Output Settings] is downscaled to 2 Ch.
-
Page 11: Using Your Px51 Headset On Xbox 360
Using your PX51 Headset on Xbox 360 ® Xbox Configuration Voice Digital Output Voice Volume Current Setting Digital Stereo Dolby Digital Game Volume Dolby Digital 5.1 Choose the digital output type for your system. Dolby Digital 5.1 with WM A Pr o This setting only applies Mute Kinect to optical digital and HDMI... -
Page 12: Surround Sound Settings
Surround Sound Settings Surround Sound Set Up Turtle Beach PX51 headsets have a surround sound feature bringing additional realism to your gaming experience. 1. Press SURROUND ON/OFF to turn ON the surround sound function. 2. Press the SURROUND ANGLES button on the transmitter to scroll through six (6) different presets. -
Page 13: Bluetooth ® Settings
Dual Bluetooth Pairing The Turtle Beach PX51 headset can pair with two Bluetooth devices at once. This feature allows for on-line chat with other gamers and the ability to switch to phone calls instantly. After your PX51 headset is paired with one device (PS3 or XBA, sold separately), follow the instructions below for dual Bluetooth pairing. -
Page 14: Phone Settings
Phone Settings When your PX51 headset is paired with your cell phone, you can make and receive calls. It can also be used with voice dialing if your phone has a voice dialing function: Making Calls 1. To make voice-dialed calls, press and hold the BT MFB button for two (2) seconds until you hear a tone. Release the button and the voice recognition function on your phone will be activated. -
Page 15: Recharging
Recharging Headset Recharging Turtle Beach PX51 headsets feature a rechargeable battery enabling continuous gaming for up to 15 hours. When the headset battery charge is low, a tone will sound every ten (10) seconds. The headset can be charged without interrupting game-play using the included Headset Charging Cable. -
Page 16: Presets And Modes
Presets and Modes Tune your PX51 headset with modes for music, movies and games. It also features several built-in presets for chat or voice effects. Game Mode Multi-channel immersion while optimizing for competitive play. Choose from the following Game Presets: Main: Incorporates Dolby surround sound processing for an immersive audio experience. - Page 17 4. Tap the Mode Button to switch to your Main Game and Chat Presets simultaneously. 5. Hold the Mode Button for 1 second to toggle between Game, Movie, and Music mode. - Movie and Music mode: Use Turtle Beach customized tuning to enhance your listening experience. Game and Chat / Mic...
-
Page 18: Presets/Specifications
Presets/Specifications Custom Presets Plug your PX51 headset into your computer to load custom presets available on our website: www.TurtleBeach.com/presets. Refer to the “Advanced Sound Editor” available on our website for detailed instructions. Specifications - Audio Connection: Digital Optical - Headset Power: Rechargeable Battery - Transmitter Power: USB - Headset Connection: 2.4/5 GHz - Dual-Band Wifi Wireless... -
Page 19: Mobile Device Cable
Mobile Device Cable This cable allows you to listen to stereo audio using any standard headphone jack. Connect your headset’s Xbox 360 Input Jack to the 3.5mm jack on your audio device (MP3 player, smart phone, tablet, or computer) using the Mobile Device Cable This mode can be used when: 1. -
Page 20: Regulatory Compliance
FORCE PX51 RX & TX Models and violate FCC regulations. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Please contact Turtle Beach for a list of approved 2.4 GHz and 5.0 GHz antennas. - Page 21 POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, SWITZERLAND, UNITED KINGDOM. The EAR FORCE PX51 RX & TX devices communicate with each other to provide wireless local area networking (WLAN) capabilities. Additionally, the EAR FORCE PX51 RX device has a BT radio transceiver for communicating with users over the internet connection provided in the host platform.
-
Page 22: Declaration Of Conformity
Declaration of Conformity Marking by this symbol: indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: Safety: EN 60950-1: 2006 + A11 (GS License) Also Licensed for Standards: IEC 60950-1:2005, (CB Scheme Report/Certificate), UL60950-1 (NRTL License), CSA22.2, 60950-1 (SCC License) Additional licenses issued for specific countries available on request. -
Page 23: European Community Declaration Of Conformity
European Community Declaration of Conformity български С това, nortel обявява, че този модел на радио на Product A, е със съгласие с Bulgaria съществените изисквания и други важни условия на директива 1999/5 на европейски съюз Czech Èesky Norteltímto prohlašuje, že tento Product A, je ve shodì se základními požadavky a dalšími Republic pøíslušnými ustanoveními smìrnice 1999/5/ES. -
Page 24: Warranty
WARRANTY SERVICE: In the USA and CANADA Warranty Service is provided by our Turtle Beach USA offices and in all other Countries it is provided by our local International Distributors when available. Refurbished/Recertified products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each vendor’s policy. - Page 25 Copyright © 2013 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. Turtle Beach, the Turtle Beach Logo, Voyetra, Ear Force, and Engineered for Gaming are either trademarks or registered trademarks of VTB, Inc. Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft Corporation. Playstation is a registered trademark and PS3 is a trademark of Sony Computer Entertainment, Inc.
