5.2 X34 4-Way Mono

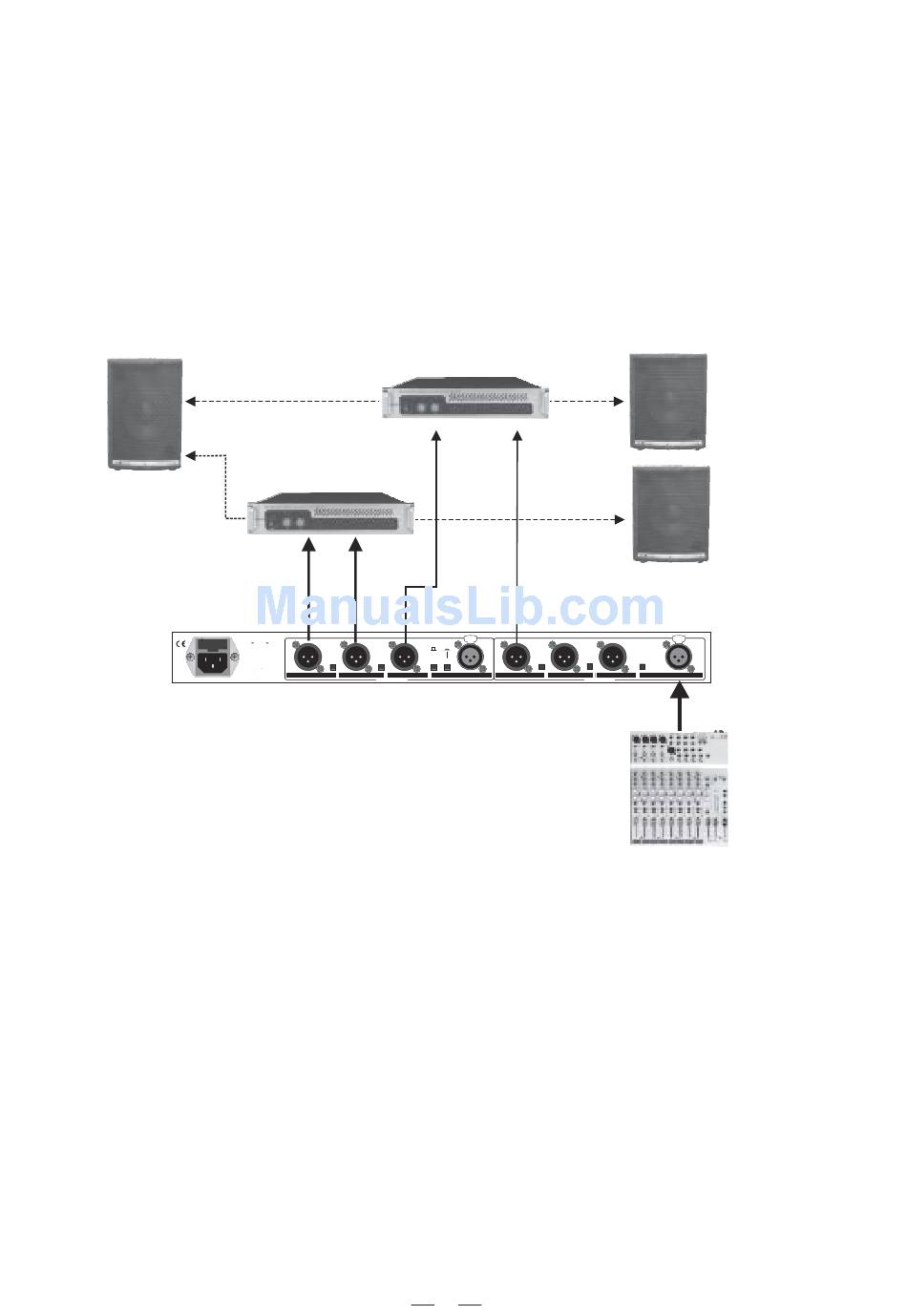

To get such a typical application, configure your system and connect the wires in the following proper steps:
1. Press the mode switch to enter into the 4-way mono mode.
2. Apply the mono program source from the Mixer to the Input Connector of Channel 1.
3. Output the Sub frequencies signal to the power amplifier.
4. Output the Low frequencies signal to the power amplifier.
5. Output the Mid frequencies signal to the power amplifier.
6. Output the High frequencies signal to the power amplifier.
7. Power up the X34 first, then the power amplifier to run the system. While powered off, please ensure the power
amplifier is turned off first, then the X34.
HIGH
MID
A101
110-120V AC INPUT
95-120V /210-240V 60-50Hz
Rated Power Consumption 10W
220-240V
FUSE:
210-240V: T100mAL 250VAC
95-120V: 200mA 250VAC
HIGH
REPLACE FUSE WITH CORRECT
PHASE
TYPE ONLY
Apparaten skall anslutas till
jordat uttag nar den ansluts
till ett natverk
3WAY- STEREO HIGH OUT 2 / (MID OUT) MID OUT 2 / (LOW OUT)
/ (4 WAY- MONO)
PUSH
STEREO MONO
NEW TIDE
MID CD
3 HIGH
BOOST 2 1
PHASE MODE PHASE
LOW OUT 2 / (SUB OUT) INPUT 2 / (NOT USED) HIGH OUT 1 / (HIGH OUT) MID OUT 1 (NOT USED)
CHANNEL 2
9
SUB
LOW
PUSH
NEW TIDE
MID CD
3
2 1
PHASE BOOST
LOW OUT 1 / (NOT USED) INPUT 1 / (INPUT)
CHANNEL 1
MIXER
