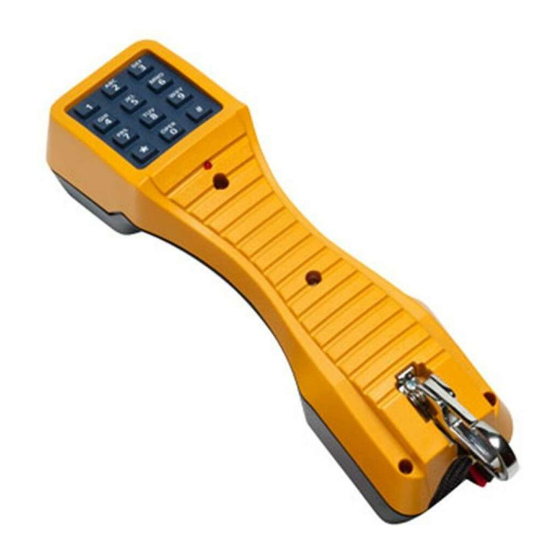

Portable Test Telephone
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
TS

Users Guide

19

Advertisement

Table of Contents
loading

Related Manuals for Fluke TS 19

Summary of Contents for Fluke TS 19

  • Page 1: Users Guide

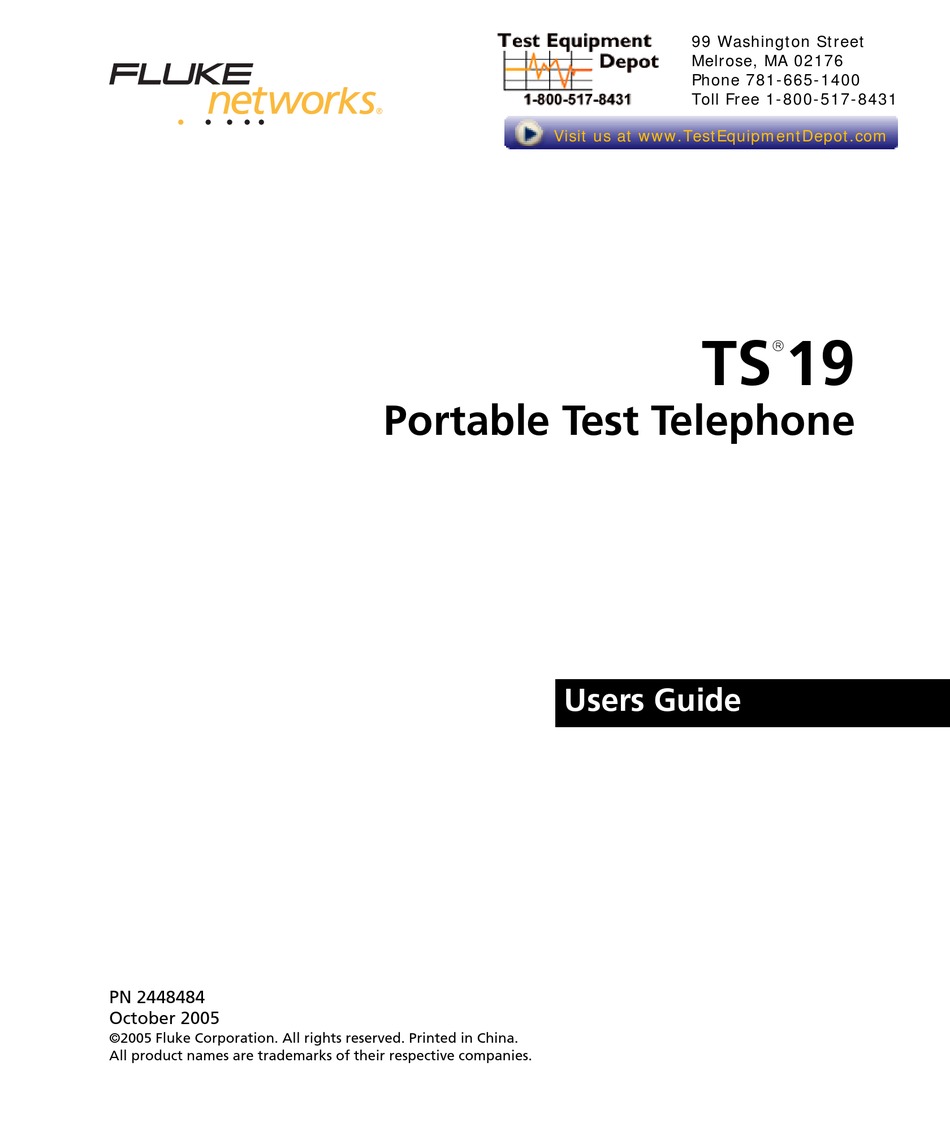

    Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com  Portable Test Telephone Users Guide PN 2448484 October 2005 ©2005 Fluke Corporation. All rights reserved. Printed in China. All product names are trademarks of their respective companies.
  • Page 2 Networks warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke Networks does not warrant that software will be error free or operate without interruption.

  • Page 3: Table Of Contents

    Warning: Risk of personal injury. See the manual for details. Contacting Fluke Networks ....1 Caution: Risk of damage or destruction to Safety Information ......1 equipment or software.

  • Page 4: Physical Characteristics

    TS19 Portable Test Telephone Users Guide Warning The case is designed to give rugged service and withstand the rough handling and shocks Good safety practices prohibit the normally associated with craft tools. connection of the TS19 and similar test sets to 117 volts AC commercial electrical power;...

  • Page 5: Keypad Controls And Indicators

    Keypad Controls and Indicators Cords HI Z/RING/TALK Switch: This three-position slide switch is labeled as HI Z for high impedance See Figure 4. monitoring, RING for ringer and low impedance monitoring, and TALK for talk. The TS19 comes with either a standard cord or an •...

  • Page 6: Operation

    TS19 Portable Test Telephone Users Guide Ground Start Cord: This cord consists of two Move the HI Z/RING/TALK switch to TALK and conductors with alligator clips. In addition, the red verify that dial tone is received (when finished). (ring) conductor has a banana jack attached. This Enter the desired number to be called on the jack is located six inches below the Portable Test keypad.

  • Page 7: Maintenance

    Maintenance Belt Clip Replacement To locate a short circuit: Open one side of the telephone line and place the test set in the loop — one The ordering number for the replacement belt clip is lead to each side of the opened line. On the CO side of P3218249.

  • Page 8: Specifications

    TS19 Portable Test Telephone Users Guide Specifications Electrical Loop Limit 2.4 kΩ maximum at 48 VDC (nominal 15 mA minimum loop current) 150 Ω typical at 80 mA current DC Resistance (Talk Mode) Low impedance (Ring position) 600 Ω at 1 KHz typical AC Impedance (Monitor Mode) High impedance (HI Z position) 100 kΩ...
