Summary of Contents for LENCO STB-100

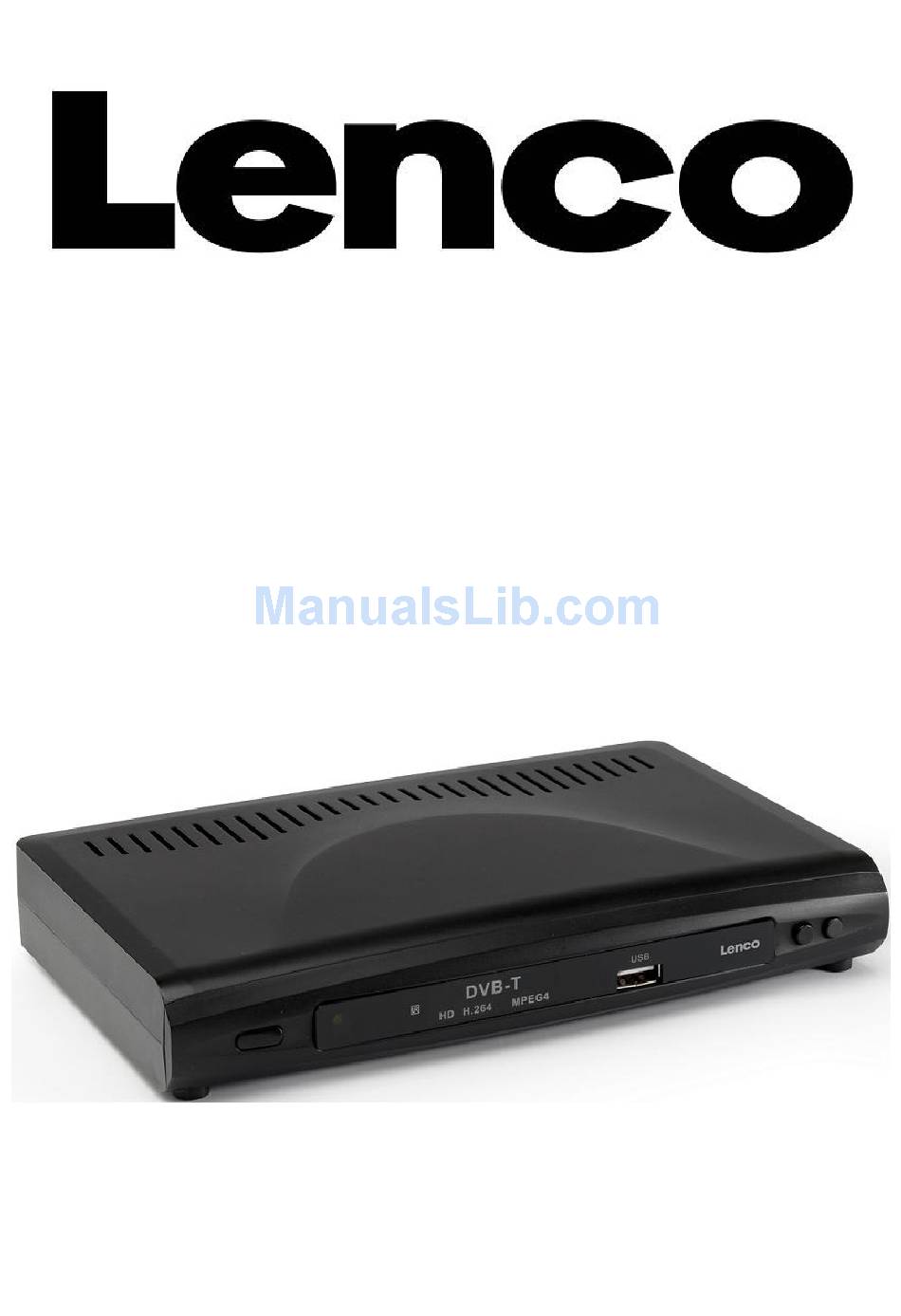

- Page 1 STB-100 Set top box with HD DVB-T User’s Manual For information and support, www.lenco.eu...
-
Page 2: Table Of Contents
Table of Content 1. Main Features ……………………………..……………………………………..4 2. REMOTE CONTROLLER ……………………………………………………...6 3. Welcome Page ………………………………………………………..……..8 Installation Gudie ………………………………………………………………8 Program …………………………………………………………………….……8 Program Edit ……………………………………………………..……9 5 .1 .1 Mo v e … … … . …………………………………………..……… 9 5.1.2 Skip ……………………………………………………………..…….9 5.1.3 Lock ……………………………………………………………..……..9 5.1.4 Delete... - Page 3 SAFETY PRECAUTION CAUTION: The lightning flash with Warning: The exclamation point arrowhead symbol, within To reduce the risk of within an equilateral an equilateral triangle, is electric shock, don't open triangle is intended to intended to alert the user the cabinet. Refer alert the user to important to "dangerous voltage"...
- Page 4 Locating: Slots and openings in the cabinet are provided for ventilation to protect it from overheating. Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa, or other similar surface, nor should it be placed over a radiator or heat register.
-
Page 5: Main Features
Preface Congratulations on your purchase of the set top box, Before operation, please read this manual thoroughly and keep it well for future reference. This manual will help you keep abreast with many of the exciting features . This manual contains important safe measurements and correct operational information, so please read all the information carefully before use in order to avoid any damage, 1. -
Page 6: Front Panel
FRONT PANEL 1. POWER ON/OFF 2. USB JACK 3, Scart cable ,CHANNEL DOWN/CHANNWL UP REAR PANEL 1. RF SIGNAL INPUT 2.,RF SIGNAL OUTPUT 3. COAXIAL JACK 4. TV/ SCART 5. VCR SCART 6. HDMI 7. DC JACK - 5 -... -
Page 7: Remote Controller
How to connect Please connect TV set and set top box through HDMI cable or Scart cable , in our rear panel there are 2 Scart connectors and 1 HDMI connector . Please insert one side of the power adapter into the to DC Jack and the other side into the AC outlet. - Page 8 button function button function turn on/off the power fav. my favorite file device display info mute mute on/off INFO information 0-9 channel number picture number enter the main setting information at menu setup menu TV menu Press to change EXIT exit function AUDIO audio, and choose...
-
Page 9: Welcome Page
3. Welcome Page When turning the power on for the first time, the welcome page will be shown as below: 4. Installation Gudie (1) Press [CH+/CH-] key to move highlight. (2) Press [VOL+/VOL-] key to select the item (3) Move highlight to [Channel Search] and press [OK] key to begin the auto scan. -
Page 10: Skip Mo V E
(3) Press the color key to execute the corresponding functions in “ALL TV”. 5.1.1 Move (1) Press [CH+/CH-] key to move the highlight and press [RED] key to make a mark. There will be a “moving mark” in the right side of the selected channel as above. -
Page 11: Favorite
make a favorite mark in the left side of the selected Favorite group. (3) Move the highlight to [Disable] to press [OK] key to cancel the existing favorite mark. (4) After marking, pressing [Exit] key to go back to “ALL TV”; there will be a favorite mark beside the marked channel. -
Page 12: Channel Search
Press [VOL-/VOL+] key to select “ Picture “program Aspect Ratio Press [VOL-/VOL+] key to change option item and press [ OK] key to confirm the selection. Resolution Press [VOL-/VOL+] key to change option item and press [ OK] key to confirm the selection. TV Format Press [VOL-/VOL+] key to change option item and press [ OK] key to confirm the selection... -
Page 13: Time
“Antenna Power” ON/OFF (a) If you can scan channel by adjusting “Frequency Channel” number and press [OK] key to start scanning (b)If you scan channel by Frequency(MHz), “Frequency” and “Bandwidth” are available to adjust. When you complete your modification, and press [OK] key, then it will begin to scan. (5) Press [Exit] key to exit the scanning. -
Page 14: System
OSD Language Press [VOL-/VOL+] key to choose the language Subtitle Language Press [VOL-/VOL+] key to choose TV subtitle Language Audio Language Press [VOL-/VOL+] key to choose audio language Digital Audio Press [VOL-/VOL+] key to choose digital audio output PCM/RAM (3) Press [Exit] key to exit the Opito 10. -
Page 15: Usb
11. USB USB menu will be disabled when the USB device is unplugged. Media Player List will not be saved after unplugging USB and/or going to standby and power off. NOTE: The USB memory stick should be plug in the unit directly. USB extension cable should not be used to avoid failing of data transferring and interference caused. -
Page 16: Photo Configure
Press [EXIT] key to return up Floder 11.2 Photo configure Press [CH-/CH+] key to move the cursor and Press [OK] enter the “Photo configure” Press [CH-/CH+] and [VOL-/VOL+] key to adjust optional item of “Slide Time” ,”Slide Mode” ”Aspect Ratio” 11.3 Movie configure Press [CH-/CH+] key to move the cursor and Press [OK] enter the “Movie configure”... -
Page 17: Upgrade By Usb
there are two methods to update firmware, as following: Select to update the firmware via a USB stick 1) Copy the new firmware to the root directory of a USB stick, and connect it to the USB HOST port of the player then press ENTER to confirm 2) Input password “666666”... -
Page 18: Specifications
15.Specifications Multimedia playback Playback in different video and audio format USB2.0 host Connector HDMI1.2 and Scart connector direct recording schedule recording HD DTV Specification Input Frequency Range VHF:174 ～ 2 30MHz ； UHF:470 ～ 8 62MHz ； Input Impedance Active Ant Power 5VDC @ 400mA MAX,Overload Protection Input Signal Level . -
Page 19: Troubleshooting
16. Troubleshooting If you encounter problems when using this unit, check the following points before requesting service. Problem Solution Please: Confirm that you have an appropriate power source Check if all connections between wall outlet and No Power power supply, and power supply and the player are correct.
