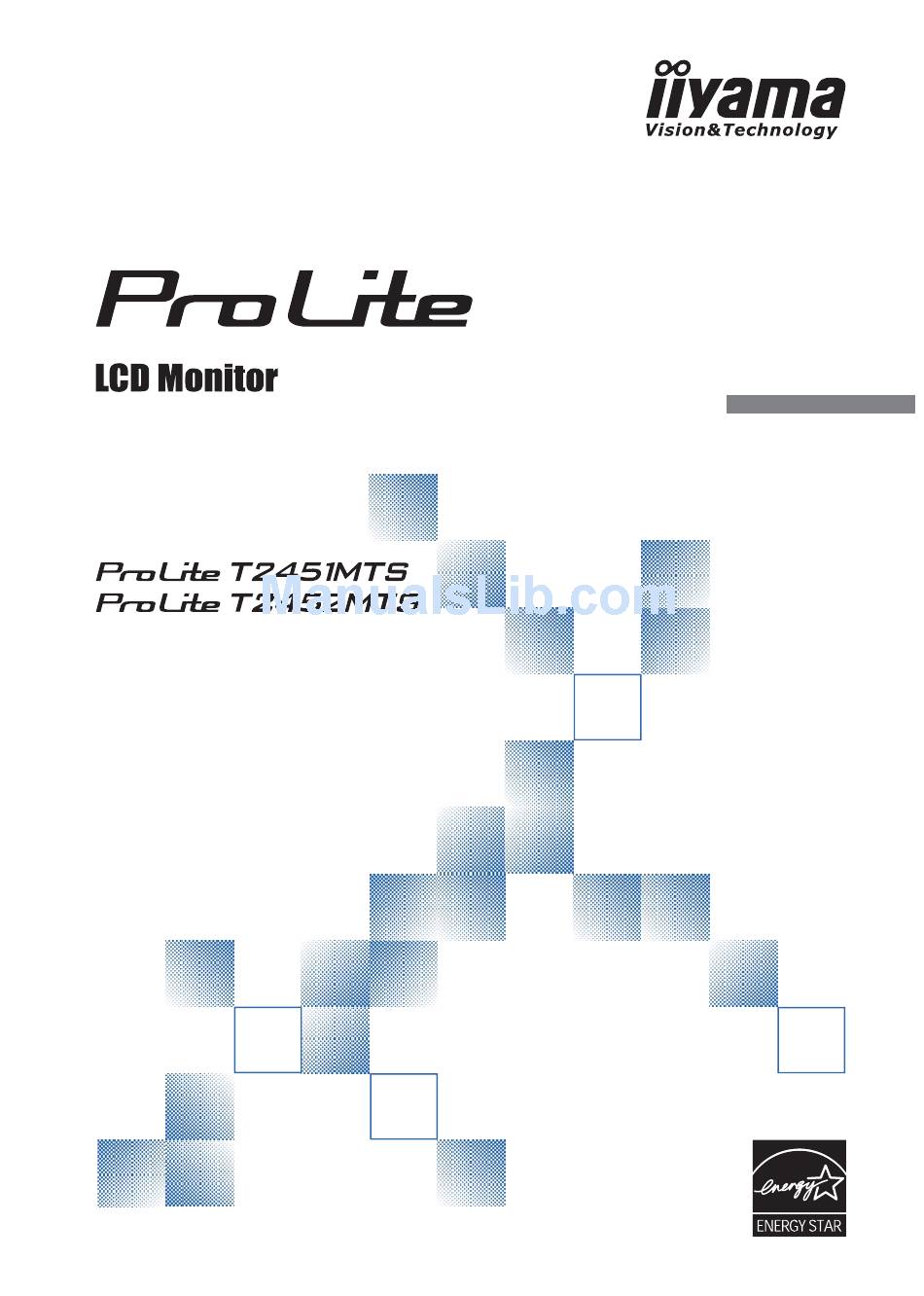

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS ..............1 SPECIAL NOTES ON LCD MONITORS ........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ........4 FEATURES ..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 CONTROLS AND CONNECTORS ..........5 CONNECTING YOUR MONITOR ..........6 COMPUTER SETTING ..............7 ADJUSTING THE VIEWING ANGLE ..........7... -
Page 5: For Your Safety
STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Power Indicator Blue: Normal operation NOTE Orange: Power Management Select / Input select Button ( Scroll up / X-Res Technology Button ( Scroll down / i-Style Color Button ( Menu Button ( Touch Pen Speakers Headphone Connector (EARPHONE) -
Page 10: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 11: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 23: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of 5° the monitor. 37° When changing the monitors angle, ensure the cabinet is secure when moving the stand thus avoiding any accidents. -
Page 12: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 23. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS. -
Page 13: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Auto Image Adjust * Adjust H. / V. Position, Clock and Phase automatically. Direct * For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 16 for SCREEN ADJUSTMENTS. -
Page 14: Picture Adjust
Picture Adjust Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Typical Contrast Ratio Adv. Contrast * Increased Contrast Ratio Normal Brightness of back-light is reduced. ECO Mode * Brightness of back-light is reduced more than 1. - Page 15 Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. Input Select HDMI1 Select the HDMI1 input. HDMI2 Select the HDMI2 input. Search for an available input source and select Auto automatically.
-
Page 16: Color Adjust
Color Adjust Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Reddish white Warm Greenish white Too weak User Color Green Too strong Blue Return to a state set by color adjustment except i-Style Color. For general windows environment and monitor Standard default setting. -
Page 17: Manual Image Adjust
Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Too narrow Clock * Too wide Too left H. Position Too right H./V. Position * Too low V. Position Too high Phase * To correct fl ickering text or lines Adjust the picture quality at resolutions of less 1920 x 1080. -
Page 18: Setup Menu
5 / 15 / 30 / 60 seconds The background of OSD is mode transparent. OSD Background Retune the background of OSD. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on. - Page 19 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 10 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2.
-
Page 20: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www. iiyama.com). - Page 21 C Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 22 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
-
Page 23: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 24: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 25: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 21... -
Page 26: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Touch Technology Optical Screen Light transmission Communication USB serial transfer system Size Category 24" LCD Panel Panel technology TN Size Diagonal: 23.6" (60cm) Pixel pitch 0.272mm H × 0.272mm V Brightness 300cd/m (Typical) -
Page 27: Dimensions
DIMENSIONS * When the stand is closed. 556.0mm/21.9” 56.0mm/2.2” 523.5mm/20.6” 302.5mm/11.9” 122.5mm/4.8” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 31.500MHz 640 × 480 37.500kHz 75.000Hz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 40.000MHz 37.879kHz 60.317Hz...
