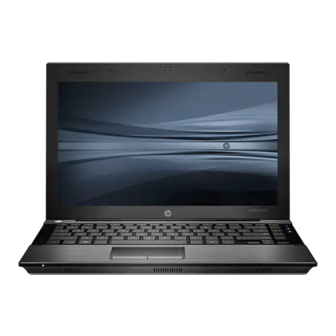

HP ProBook 5310m Specification

Notebook pc
Hide thumbs Also See for ProBook 5310m:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, User Manual
QuickSpecs
Overview
1. WLAN and WWAN antennas (select models)
2. Dual-microphone array
3. Integrated 2 MP webcam
4. Wireless on/off button
5. QuickLook button
6. QuickWeb button
7. Stereo speakers
8. Touchpad with scroll zone
1. Secure Digital (SD) slot
2. Combo stereo headphone/mic jack
DA - 13394 Worldwide — Version 7 — February 17, 2010
HP ProBook 5310m Notebook PC
9.
Touchpad buttons
10. Hard drive activity / HP 3D DriveGuard LED
11. RJ-45/Ethernet port
12. DisplayPort
13. USB 2.0 Port (powered)
14. Power connector
15. Battery charging LED
3. (2) USB 2.0 Ports
4. Kensington Lock slot
Page 1

Advertisement

loading

Related Manuals for HP ProBook 5310m

Summary of Contents for HP ProBook 5310m

  • Page 1 HP ProBook 5310m Notebook PC Overview 1. WLAN and WWAN antennas (select models) Touchpad buttons 2. Dual-microphone array 10. Hard drive activity / HP 3D DriveGuard LED 3. Integrated 2 MP webcam 11. RJ-45/Ethernet port 4. Wireless on/off button 12. DisplayPort 5.
  • Page 2 Enhanced security features including HP ProtectTools, HP SpareKey, and HP Disk Sanitizer HP QuickLook 3 for instant access to email, calendar, and contact information; HP QuickWeb for convenient internet access DA - 13394 Worldwide — Version 7 — February 17, 2010...

  • Page 3: Standard Features

    QuickSpecs HP ProBook 5310m Notebook PC Standard Features Processors Intel Core 2 Duo Processor SP9300 (2.26 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor SP9400 (2.40 GHz, 6 MB L2 cache, 1066 MHz FSB) Intel Celeron Processor SU2300 (1.20 GHz, 1 MB L2 cache, 800 MHz FSB) * Intel's numbering is not a measurement of higher performance.
  • Page 4 * All memory modules operate at the maximum system supported speed of 1066 MHz. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. Availability of 4 GB of memory requires a Windows 64-bit operating system or Linux.
  • Page 5 19 mm x 19 mm key pitch (center-to-center spacing), 2.0 mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys.
  • Page 6 Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions 16-bit true color (camera sensors output YCrCb format among others) Software Preinstalled software HP Recovery Manager (available with Vista only) HP Assistant with Windows Vista or HP ProtectTools Security Manager...
  • Page 7 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge Technology does not apply to 9 cell primary batteries. Battery...
  • Page 8 (depending on model). HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
  • Page 9 QuickSpecs HP ProBook 5310m Notebook PC Options Memory HP 1 GB (DDR3 1333 MHz)* SODIMM AT911AA HP 2 GB (DDR3 1333 MHz)* SODIMM AT912AA HP 4 GB (DDR3 1333 MHz)* SODIMM AT913AA * All memory modules operate at the maximum system supported speed of 1066 MHz.
  • Page 10 QuickSpecs HP ProBook 5310m Notebook PC Options Security HP/Kensington MicroSaver Security Lock PC766A HP Privacy Filter AU649AA Input/Output Devices HP USB Keyboard & Mouse Bundle RC465AA#xxx HP USB/PS2 Optical 2-Button Scroll Mouse DC369A HP USB Optical Travel Mouse RH304AA HP Mobile USB 2.0 Speakers...
  • Page 11 Upgrades NOTE: Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. Availability of 4 GB of memory requires a Windows 64-bit operating system or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.

  • Page 12: Internal Storage Device

    QuickSpecs HP ProBook 5310m Notebook PC Storage Internal Storage Device Hard Drives (2.5-inch SMART SATA II) Quantity Supported Drive Bay 160 GB 7200 rpm Dedicated hard drive bay 250 GB 7200 rpm Dedicated hard drive bay 320 GB 7200 rpm Dedicated hard drive bay Solid State (2.5-inch)

  • Page 13: Technical Specifications

    QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 0.93 in x 12.9 in x 8.7 in 23.5 mm x 328 mm x 221 mm Weight Starting from 3.79 lb (1.72 kg) NOTE: Starting weight includes 4-cell battery, hard drive, 1 GB memory. Weight varies by configuration and components.
  • Page 14 * EPEAT registered where applicable/supported. See epeat.net for registration status by country. EPEAT status listed above applies to U.S. For accessibility information on HP products, please visit: http://www.hp.com/accessibility. HP 65W Smart AC Adapter Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) Weight 0.62 lb (280 g)
  • Page 15 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Displays 13.3-inch LED HD (1366 x Dimensions (W x H) 11.53 x 6.49 in (29.3 x 16.5 cm) 768) Diagonal Size 13.3 in (33.8 cm) anti-glare Surface Treatment Anti-glare Contrast Ratio 300:1 (typical)
  • Page 16 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications 128 GB Weight 80.1 Grams 2.5-inch SATA Solid State Capacity 128 GB Drive Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface SATA Performance Maximum Sequential Maximum Sequential Write Read...
  • Page 17 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications 250 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 18 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Hardware Implementation IDT HD Audio Full Duplex Integrated Dual- Microphone Array Combo stereo Device Used Operation headphone/mic jack Stereo Headphone Headphone works. Integrated microphone works. External PC Microphone External microphone does not work.
  • Page 19 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Integrated Marvell Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 10/100/1000 NIC 1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE 802.3...

  • Page 20: Configuration Utilities

    QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Antenna Type Dual high efficiency 5 band antennae with spatial diversity, mounted in the display enclosure Form Factor PCI-Express MiniCard, USB 2.0 interface Weight 11.5 g Dimensions (Length x 2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)

  • Page 21: Configuration Utility

    QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points Output Power (for CCK) 15 dBm Output Power (for OFDM; 15 dBm power varies by data rate) Power Consumption Transmit: 2.3 Watts (average, with one spatial streams)
  • Page 22 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Intel Centrino Wireless-N Wireless LAN Standards IEEE 802.11b IEEE 802.11g 1000 IEEE 802.11n* * In countries where 802.11n is not allowed, this capability is not enabled. Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows...
  • Page 23 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Operating Voltage 3.3V +/- 9% Temperature Operating 32° to 176° F (0° to 80° C) Non-operating –40° to 176° F (–40° to 80° C) Humidity Operating 10% to 90% (non-condensing) Non-operating 5% to 90% (non-condensing)
  • Page 24 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points...
  • Page 25 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista. Broadcom 4322AGN Wireless LAN Standards IEEE 802.11a IEEE 802.11b...
  • Page 26 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Form Factor PCI-Express Half-MiniCard Weight 0.013 lb (6 g) Dimensions 0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm) Operating Voltage 3.3v +/- 10% Temperature Operating 14° to 149° F (–10° to 65° C) Non-operating –40°...
  • Page 27 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications Power Consumption Peak (Tx) 264 mW Peak (Rx) 231 mW Sleep <1 mW Antenna Internally integrated within module Range Up 33 ft (10 m) Electrical Interface USB 2.0 compliant Microsoft Windows Plug and Play compliant...

  • Page 28: Additional Information

    QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications indicates the profile is supported by Microsoft Windows XP SP2 indicates the profile is part of Windows Vista Environmental Data Eco-Label Certifications This product has received or is in the process of being certified to the following...
  • Page 29 QuickSpecs HP ProBook 5310m Notebook PC Technical Specifications This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
  • Page 30 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
  • Page 31 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
