MO THERBOARD L AYOUT

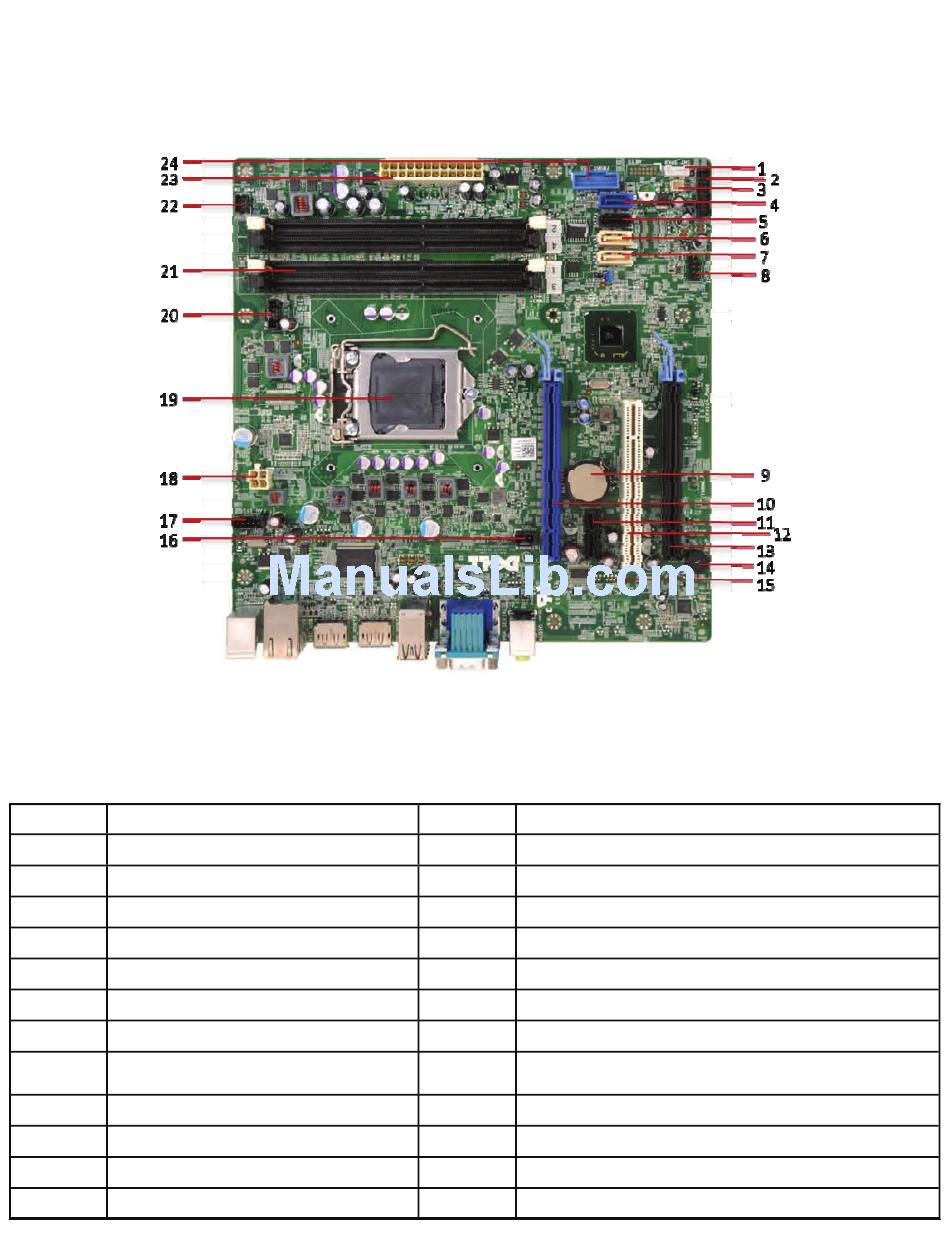

MT System Board Components
Number
1 Internal Speaker Connector (INT_SPKR)
2 Front IO Connector (FRONTPANEL)
3 Thermal Sensor Connector(THRM_2)
4 SATA 0 Connector(SATA0)- SATA III
5 SATA 1 Connector(SATA1)- SATA III
6 SATA 2 Connector(SATA2)- SATA II
7 SATA 3 Connector(SATA3)- SATA II
8 Internal USB Connector (INT_USB)
9 Battery Connector (BATTERY)
10 PCI-e 16x Connector(SLOT1)
11 PCI-e 1x Connector(SLOT2)
12 PCI Connector(SLOT3)
Name Number
13 PCI-e 4x Connector(SLOT4)
14 Buzzer (BEEP)
15 LPC Debug Connector (LPC_DEBUG)
16 Intrusion Switch Connector (INTRUDER)
17 System Fan Connector (FAN_HDD)
18 P2 Power Connector(12V_PWRCONN)
19 Processor Socket (N/A)
20 CPU fan Connector (FAN_CPU)
21 Memory Connectors(DIMM1, DIMM2, DIMM3, DIMM4)
22 Power Switch Connector (PWR_SW)
23 P1 Power Connector (POWER)
24 Front USB3.0 Connector (Front _USB )
Name
