  • Page 1 Grandstream Networks, Inc. GXV3615 Series User Manual...

  • Page 2: Safety Instructions

    Safety Instructions These instructions are intended to assist users with the operation of the GXV3615 and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected.

  • Page 3: Table Of Contents

    GXV3615 Lens Specification ... 8 Minimum Recommended System Requirement... 9 Connect your GXV3615 Series... 9 Configuring the GXV3615 Series via Web Browser ... 10 Access GXV3615 Series Web Configuration Menu ... 10 Connect the Camera to DHCP server..10 Connect to the Camera using Static IP.

  • Page 4: Welcome

    The GXV3615 Series is a next generation IP camera for remote monitoring and surveillance over your LAN or internet. The GXV3615 Series combines best in class IP video technology and SIP protocols for a robust IP surveillance solution. The product features H.264 video streams with up to 30 frames per second in full D1, delivering rich image clarity at rapid transmission rates.

  • Page 5: Package Contents

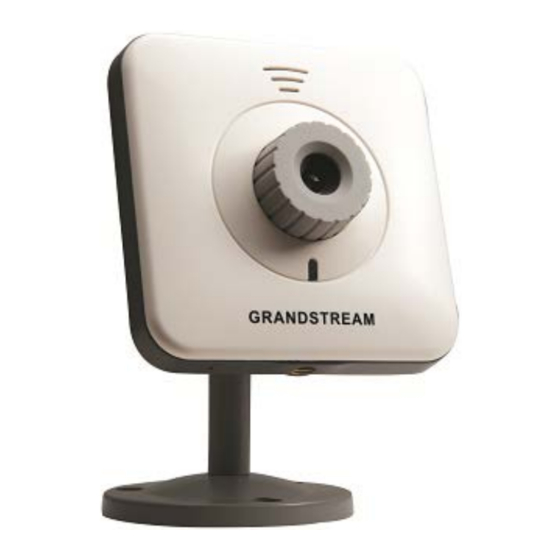

    12V DC power Adapter  Mount Stand  Ethernet Cable  Quick installation guide Product Overview GXV3615 series includes 2 models: GXV3615 and GXV3615W GXV3615 Series Overview Firmware 1.0.4.8 Grandstream Networks, Inc. 11/29/10 GXV3615 IP Camera Series Page 5 of 28...

  • Page 6: Gxv3615 Series Front Panel

    DC 12V – 12V DC power jack; UL Certified. RESET – Press the Reset button for 6 seconds to Mounting Socket – This is used for mounting GXV3615 GXV3615 Series Sample Connection Diagram GXV3615 Series Key Features Firmware 1.0.4.8 Page 6 of 28...
  • Page 7 The table below lists the key features the GXV3615 Series. Features GXV3615 1/4”, CMOS, 680H x 512V pixel resolution, exceptionally low noise Image Sensor levels and low-light sensitivity achieve superior resolution at CCD image quality 1/4”, M12, f=4.50mm, F1.5, FOV=64°...

  • Page 8: Gxv3615 Lens Specification

    Parameters Lens Mount Lens Form at Focal Length Aperture (D/f‟) View Angle Size (Diameter x Length 1 x Length Firmware 1.0.4.8 Grandstream Networks, Inc. 11/29/10 GXV3615 IP Camera Series GXV3615 / GXV3615W 1/4” 4.5 mm 14x12.91mm Page 8 of 28...

  • Page 9: Minimum Recommended System Requirement

    Connect the other end of the RJ-45 cable to your network or PC .  Connect the power supply to the DC 12V power jack on the back of the GXV3615. Using PoE as power supply: (Not applicable on GXV3615W) ...

  • Page 10: Configuring The Gxv3615 Series Via Web Browser

    Configuring the GXV3615 Series via Web Browser The GXV3615‟s embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML pages allow you to configure your IP camera through Microsoft Internet Explorer. ccess GXV3615 Series W Connect the Camera to DHCP server.

  • Page 11: Connect To The Camera Using Static Ip

    If the camera does not get response from DHCP server after 3 minutes, it can be accessed by the default IP 192.168.1.168. 1. Connect your PC to the same network as the GXV3615. 2. Configure the IP address of your PC to: 192.168.1.XXX (1<XXX<255) and configure the subnet mask to 255.255.255.0.

  • Page 12: Gxv3615 Series Home Web Page

    GXV3615 Series Home Web Page Figure1: Home web page of GXV3615 Items on GXV3615 Home Page Motion Detection If the motion detection alarm is triggered, the indicator will red. Click on the indicator to turn off the alarm. Alarm Event If an alarm event is triggered, the indicator will on the indicator to turn off the alarm.

  • Page 13: Gxv3615 Series System Page

    Configures the Save Location for captured images and recorded videos. GXV3615 Series System Page This page allows you to configure the system settings on GXV3615. Current System Time - displays the current date and time (24h clock). Set the System Time...

  • Page 14: Gxv3615 Series Video & Audio Page

    Video Settings Preferred Video Codec – The GXV3615 supports the H.264 video codec. Resolution – The higher the resolution is, the better the video quality is, and higher bandwidth is required. Low ----------------------- High Resolution...

  • Page 15: Gxv3615 Series Networking Page

    – Assign an IP to GXV3615 GXV3615 Series Networking Page GXV3615 supports IP version 4. The IP address can set automatically via DHCP, or a static IP address can be set manually. To make GXV3615work properly, the user needs to set the DNS configuration properly.

  • Page 16: Gxv3615W Wifi Page - This Page Is Only Available For Gxv3615W

    GXV3615 DNS Configuration There are two methods of DNS configuration on the GXV3615: 1. The GXV3615 can obtain the DNS server automatically 2. Users can configure their own preferred DNS server HTTP Port The GXV3615 supports user configured http ports.

  • Page 17: Gxv3615 Series Sip Page

    GXV3615 Series SIP Page The GXV3615 has the ability to receive phone calls and make phone calls when an alarm event is triggered through motion detection or alarm input. server to enable the product to make and receive phone calls.
  • Page 18 Click Save to save all the changes. You need to restart the device to apply all changes. Configure Phone List To make sure the GXV3615 can make phone calls to the number you preferred when alarm is triggered. You need to add number to the phone list.

  • Page 19: Gxv3615 Series Status Page

    GXV3615 Series Status Page System Statistics System Statistics lists hardware and software information, for example, the part number, the software version, about the GXV3615. Hardware Version – This field contains the product‟s hardware information. Part Number – This field contains the product part number information.

  • Page 20: Gxv3615 Series User Management Page

    DDNS Status – This field shows the status of DDNS. Camera Type This section shows the Lens information of GXV3615. The Lens type information contains the brand name, the size of image sensor, the resolution and so on. GXV3615 Series User Management Page All current users will be list in the User List section of this page.

  • Page 21: Gxv3615 Series Smtp Page

    2. Unzip the firmware package and copy the files to the firmware upgrade server directory. Upgrades are supported via TFTP, HTTP and HTTPS. 3. Log in to the Maintenance page of the GXV3615. Select the server type from the dropdown list under the “Upgrade Via” field. “Firmware Server Path” field.

  • Page 22: Gxv3615 Series Ftp Page

    SMTP settings are ready to go. GXV3615 Series FTP Page The FTP server is used to store video files if you configure the GXV3615 to record video and upload it to the FTP server when an alarm event or motion detection is triggered.
  • Page 23 3. Click Save to save the changes. Configure Motion Detection & Alarm Actions An alarm action is what the GXV3615 is going to do when an alarm is triggered during the defined time period – the time schedule. The GXV3615 allows Firmware 1.0.4.8...

  • Page 24: Gxv3615 Series System Log

    Configure Motion Detection Time Schedule This section allows you to configure the time during which the GXV3615 will monitor the motion detection. The GXV3615 not only can monitor your settings but also can take actions when the alarm is triggered.

  • Page 25: Faq

    Once you log into the GXV3501/ 3504 / 3601 / 3615‟s web interface Internet Explorer will indicate that “This website wants to install to following add-on: „GSViewer. cab‟ from Grandstream Networks, Inc.”. Please install this add-on when prompted by IE. 3. How do you manually uninstall the Grandstream video viewer add-on for IE?
  • Page 26 GXV3615 IP Camera Series 6. Why does IE indicate to install Grandstream Video Viewer add-on after a firmware upgrade? The add-on was properly installed before the firmware upgrade process. New firmware will often upgrade the add-on as well. To watch the live video stream, you must install the newest version of the add-on.
  • Page 27 80, then the RTSP port equals the web port +2000. then the RTSP port will be 2088. Firmware 1.0.4.8 Grandstream Networks, Inc. 11/29/10 GXV3615 IP Camera Series This makes For example, if the web port is 88, Page 27 of 28...
  • Page 28 Mobile Intel® 945GM Express Chipset Family Mobile intel® 915GM/GMS, 910GML Express Chipset Family Intel® G45/G43 Express Chipset ATI Technologies, RAGE XL PCI Firmware 1.0.4.8 Grandstream Networks, Inc. 11/29/10 GXV3615 IP Camera Series Test Result Works normally Works normally Works normally Works normally Works normally...
