Supero 6027R-E1R12L User Manual

Super storage system
Hide thumbs
Table of Contents

Advertisement

Quick Links

S
UPER
®
S
S
S
UPER
TORAGE
YSTEM

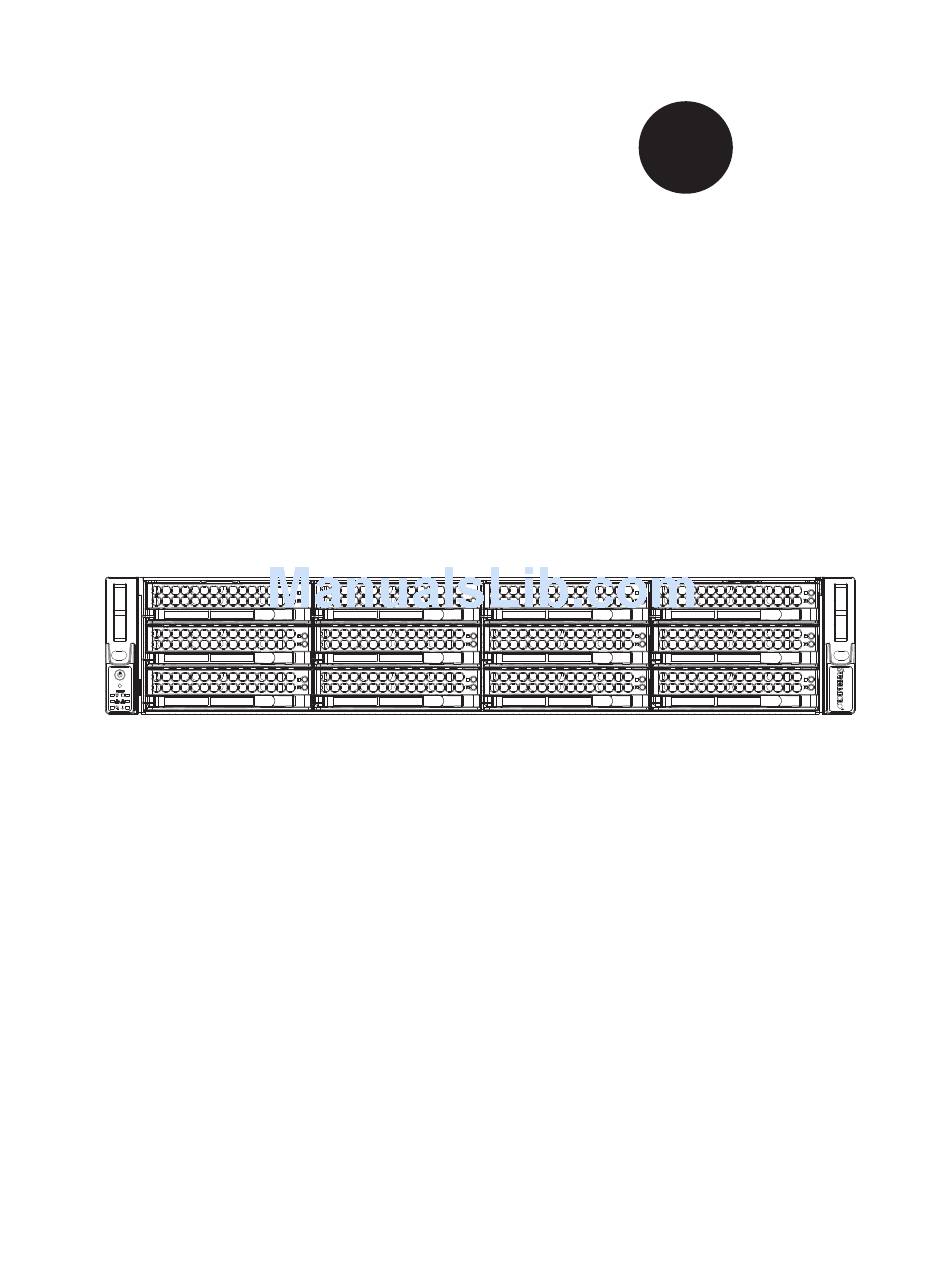

6027R-E1R12L
USER'S MANUAL
1.0b

Advertisement

Table of Contents
loading

Related Manuals for Supero 6027R-E1R12L

Summary of Contents for Supero 6027R-E1R12L

  • Page 1 UPER ® UPER TORAGE YSTEM 6027R-E1R12L USER’S MANUAL 1.0b...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    SC826E16-R920LP chassis. Chapter 2: Server Installation This chapter describes the steps necessary to install the 6027R-E1R12L into a rack and check out the server confi guration prior to powering up the system. If your server was ordered without processor and memory components, this chapter will refer you to the appropriate sections of the manual for their installation.
  • Page 4 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRD-7LN4F-JBOD serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfi...
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ......................1-2 PCI Expansion Slots ..................1-2 Rear I/O Ports ....................1-2 Server Chassis Features ................1-3 System Power ....................
  • Page 7 Table of Contents Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............4-1 Warning Defi nition ................... 4-1 Installation Instructions ..................4-4 Circuit Breaker ....................4-5 Power Disconnection Warning ................ 4-6 Equipment Installation ..................4-8 Restricted Area ....................4-9 Battery Handling ....................
  • Page 8 UPER TORAGE YSTEM 6027R-E1R12L User's Manual SuperDoctor III ....................5-30 5-13 Onboard Battery .................... 5-32 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices .................. 6-1 Precautions ..................... 6-1 Unpacking ....................... 6-1 Control Panel ....................6-2 Accessing the Inside of the Chassis ............... 6-2 System Fans ....................
  • Page 9 Chapter 1 Introduction Overview The 6027R-E1R12L is a high-end storage system comprised of two main subsys- tems: the SC826E16-R920LP 2U/rack mount chassis and the X9DRD-7LN4F-JBOD dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).

  • Page 10: Serverboard Features

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Serverboard Features The 6047R-E1R36L is built around the X9DRD-7LN4F-JBOD, a dual processor serverboard based on the Intel C602J chipset. Below are the main features of the X9DRD-7LN4F-JBOD. (See Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The SC826E16-R920LP is an 2U form factor chassis designed to be used in a storage confi guration. The following is a general outline of the main features of the SC826E16-R920LP chassis. System Power The SC826E16-R920LP features a redundant 920W power supply composed of two separate power modules.
  • Page 12 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Figure 1-1. Intel C602J Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details.
  • Page 13 Chapter 1: Introduction Figure 1-2. X9DRD-7LN4F-JBOD Serverboard Note: The SSG-6027R-E1R12L comes pre-installed with a JBOD expansion port installed in PCI-E slot 1.

  • Page 14: Contacting Supermicro

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com...

  • Page 15: Chapter 2 Server Installation

    Unpacking the System You should inspect the box the 6027R-E1R12L was shipped in and note if it was damaged in any way. If the server itself shows damage you should fi le a damage claim with the carrier who delivered it.

  • Page 16: Rack Precautions

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual • This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display...

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Installing the System into a Rack This section provides information on installing the SC826 chassis into a rack unit with the quick-release rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.
  • Page 19 Chapter 2: Server Installation Figure 2-1: Separating the Rack Rails Separating the Inner and Outer Rails Rail Assembly 1. Locate the rail assembly in the chassis packaging. Extending the Rails 2. Extend the rail assembly by pulling it outward. 3. Press the quick-release tab. 4.

  • Page 20: Outer Rack Rails

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Figure 2-2. Assembling the Outer Rails Outer Rack Rails Outer rails attach to the rack and hold the chassis in place. The outer rails for the SC826 chassis extend between 30 inches and 33 inches.
  • Page 21 Chapter 2: Server Installation Figure 2-3. Installing the Rack Rails Installing the Chassis into a Rack Note: do not pick up the server with the front handles. They are designed to pull the system from a rack only. 1. Extend the outer rails as illustrated above. 2.
  • Page 22 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Notes...

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carri- ers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...

  • Page 24: Control Panel Leds

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Control Panel LEDs The control panel located on the front of the chassis has several LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Drive Carrier Leds

    Chapter 3: System Interface On the 6027R-E1R12L, this LED indicates hard drive activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Drive Carrier LEDs Each drive carrier has two LEDs: •...
  • Page 26 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Notes...

  • Page 27: Chapter 4 Standardized Warning Statements For Ac Systems

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 28 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 30: Installation Instructions

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电 流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電 流不大於250V,20A。...

  • Page 32: Power Disconnection Warning

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A. Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi...

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...

  • Page 40: Comply With Local And National Electrical Codes

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 42: Hot Swap Fan Warning

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 43 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 44: Power Cable And Ac Adapter

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi...
  • Page 45 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi...
  • Page 46 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference. Remember to completely close the chassis when you have fi...

  • Page 48: Unpacking

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid electrical static dis- charge. When unpacking the board, make sure the person handling it is static protected. Connecting Cables Several cables need to be connected to the serverboard. These include the data cables for the peripherals and control panel and the power cables.

  • Page 49: Rear I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Control Panel Header Pins Ground x (Key) x (Key) Power On LED 3.3V HDD LED ID/UID/SW/3.3V Stby NIC1 Link LED NIC1 Activity LED NIC2 Link LED NIC2 Activity LED OH/Fan Fail LED Red + (Blue Cathode Power Fail LED 3.3V Ground...

  • Page 50: Installing The Processor And Heatsink

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Installing the Processor and Heatsink Caution: When handling the processor package, avoid placing direct pressure on the label area of the fan. Notes: • Always connect the power cord last and always remove it before adding, re- moving or changing any hardware components.
  • Page 51 Chapter 5: Advanced Serverboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate fi...
  • Page 52 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Warning: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU.

  • Page 53: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Serverboard's and the Heatsink Bracket underneath.

  • Page 54: Removing The Heatsink

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket.

  • Page 55: Installing Memory

    Chapter 5: Advanced Serverboard Setup Installing Memory Caution: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X9DRD-7LN4F-JBOD has 16 DIMM slots that can support 512 GB of ECC DDR3 Registered memory (RDIMM) or up to 128 GB of ECC/non-ECC DDR3 Unbuf- fered memory (UDIMM).

  • Page 56: Dimm Module Population Tables

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual DIMM Module Population Tables Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU 1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMMA2 DIMMB2 DIMMC2 DIMMD2 CPU2 DIMME1 DIMMF1 DIMMG1 DIMMH1 DIMME2 DIMM F2 DIMMG2 DIMMH2...
  • Page 57 Chapter 5: Advanced Serverboard Setup Intel E5-2600 Series Processor RDIMM Memory Support Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and Per DIMM DIMM Per Channel (DPC) DIMM 1 Slot Per Channel 2 Slots Per Channel &...
  • Page 58 UPER TORAGE YSTEM 6027R-E1R12L User's Manual 1 CPU, 2 DIMMs 1 CPU, 4 DIMMs 1 CPU, 5-8 DIMMs Populate blue DIMM slots fi rst, then the rest in any order 5-12...
  • Page 59 Chapter 5: Advanced Serverboard Setup 2 CPU, 4 DIMMs 2 CPU, 6 DIMMs 2 CPU, 8 DIMMs 2 CPU, 10-16 DIMMs Populate blue DIMM slots fi rst, then any memory pairs in the remaining slots. For two CPUs and 16 DIMMs, populate all DIMM slots. 5-13...

  • Page 60: Adding Pci Add-On Cards

    TORAGE YSTEM 6027R-E1R12L User's Manual Adding PCI Add-On Cards The 6027R-E1R12L can accommodate up to fi ve low-profi le PCI-E 3.0 x8 expan- sion (add-on) cards. Installing an Add-on Card 1. Begin by removing the shield for the PCI slot you wish to populate.

  • Page 61: Serverboard Details

    Figure 5-4. X9DRD-7LN4F-JBOD Layout Notes Jumpers not indicated are for test purposes only. The SSG-6027R-E1R12L comes pre-installed with a JBOD expansion port installed in PCI-E slot 1. Please note that the PCI slots are enabled when their corresponding processors are installed. "CPU2 Slot 4" indicates that the second CPU must be installed in the CPU2 socket to enable this PCI slot.

  • Page 62: X9Drd-7Ln4F-Jbod Quick Reference

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual X9DRD-7LN4F-JBOD Quick Reference Jumper Description Default Setting JBT1 Clear CMOS See Section 5-9 C1/JI SMB to PCI-E Slots Pins 2-3 (Normal) JPB1 BMC Enable/Disbable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1...
  • Page 63 Chapter 5: Advanced Serverboard Setup Description State LED2 Standby PWR LED Solid Green (Standby Power On) LED3 UID LED Blue: On (Unit Identifi ed) LEDM1 BMC Heartbeat LED Blinking Green (BMC Normal) 5-17...

  • Page 64: Connector Defi Nitions

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions Pin# Defi nition Pin # Defi nition Power Connectors +3.3V +3.3V -12V +3.3V A 24-pin main power supply connec- tor (JPW1) and two 8-pin CPU power...
  • Page 65 Chapter 5: Advanced Serverboard Setup Power Fail LED PWR Fail LED The Power Fail LED connection is Pin Defi nitions (JF1) located on pins 5 and 6 of JF1. Re- Pin# Defi nition fer to the table on the right for pin defi...
  • Page 66 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Power On LED The Power On LED connector is lo- Power LED cated on pins 15 and 16 of JF1 (use Pin Defi nitions (JF1) JLED for a 3-pin connector). This Pin# Defi nition...
  • Page 67 Chapter 5: Advanced Serverboard Setup Ethernet Ports Four Ethernet ports are located on the I/O backplane. A dedicated IPMI LAN port is also included to provide KVM support for IPMI 2.0. These ports ac- cept RJ45 type cables. Please refer to Section 5-11 for LAN LED information.
  • Page 68 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Back Panel USB (USB 0/1/2/3) Pin# Defi nitions Universal Serial Bus (USB) There are four Universal Serial Bus ports (USB0/1/2/3) located on the I/O panel. In addition, there is one Ground Type A port (USB6) and four head-...
  • Page 69 Chapter 5: Advanced Serverboard Setup IPMB IPMB Header Pin Defi nitions A System Management Bus header Pin# Defi nition for IPMI 2.0 is located at IPMB. Con- Data nect the appropriate cable here to Ground use the IPMB I C connection on your Clock system.
  • Page 70 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Unit Identifi er Switch UID Switch The UID Switch is located next to the Pin# Defi nition LAN 2/4 ports on the backplane. The Ground Rear UID LED (LE2) is located next Ground to the UID switch. The control panel...

  • Page 71: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector to choose between optional settings. Pins Jumpers create shorts between two pins to change the function of the con- nector.
  • Page 72 UPER TORAGE YSTEM 6027R-E1R12L User's Manual GLAN Enable GLAN Enable/Disable Jumper Settings JPL1 enables or disables the GLAN Jumper Setting Defi nition ports on the serverboard. See the Pins 1-2 Enabled (default) table on the right for jumper settings. Pins 2-3 Disabled C Bus to PCI-Exp.

  • Page 73: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-10 Onboard Indicators Activity LED Link LED LAN LEDs The Ethernet ports (located beside the Activity LED Link LED VGA port) have two LEDs. On each JLAN1/2 LED port, the yellow LED fl ashes to indi- (Connection Speed Indicator) cate activity while the other LED may LED Color...

  • Page 74: 5-11 Sata Ports

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual 5-11 SATA Ports Serial ATA Ports SATA Port There are six Serial ATA Ports (I- Pin Defi nitions SATA0~I-SATA 5) located on the Pin# Defi nition Pin# Defi nition serverboard, including four SATA2 Ground ports and two SATA3 ports.

  • Page 75: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO fi...

  • Page 76: Super Storages System 6027R-E1R12L User's Manual

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual SuperDoctor III The SuperDoctor® III program is a web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program allows you to monitor the environment and operations of your system.
  • Page 77 Chapter 5: Advanced Serverboard Setup Figure 5-7. SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/soft- ware/SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.

  • Page 78: 5-13 Onboard Battery

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual 5-13 Onboard Battery Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfi ll. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

  • Page 79: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC826E16-R920LP chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 80: Control Panel

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Figure 6-1. Front and Rear Chassis Views Control Panel SATA Drives (8) Power Supplies 5 Low-profi le PCI Slots I/O Ports Optional Drive Bays (2) JBOD Expansion Port Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications.

  • Page 81: System Fans

    Chapter 6: Advanced Chassis Setup Figure 6-2. Removing the Chassis Cover System Fans Three 8-cm hot-swap fans provide the cooling for the system. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.

  • Page 82: Replacing System Fans

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Replacing System Fans 1. If necessary, open the chassis while the power is running to determine which fan requires changing. (Never run the server for an extended period of time with the chassis open.) 2.

  • Page 83: Air Shroud

    Chapter 6: Advanced Chassis Setup Air Shroud Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC826 chassis air shroud does not require screws to set up. Installing the Air Shroud 1. Lay the chassis on a fl at, stable surface and remove the chassis cover. 2.

  • Page 84: Drive Bay Installation/Removal

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Drive Bay Installation/Removal Accessing the Drive Bays You do not need to access the inside of the chassis or remove power to replace or swap SATA drives. Proceed to the next step for instructions.
  • Page 85 Chapter 6: Advanced Chassis Setup Figure 6-5. Removing a Hard Drive Carrier...

  • Page 86: Hard Drive Backplane

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Figure 6-6. Mounting a Drive in a Carrier Use caution when working around the backplane. Do not touch the back- plane with any metal objects and make sure no ribbon cables touch the backplane or obstruct the holes, which aid in proper airfl ow.

  • Page 87: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The 6027R-E1R12L has a 920 watt redundant power supply consisting of two power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V input voltage.
  • Page 88 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Figure 6-7. Removing the Power Supply Release Tab 6-10...

  • Page 89: Attaching A Jbod Expansion Chassis

    Chapter 6: Advanced Chassis Setup Attaching a JBOD Expansion Chassis The SSG-6027R-E1R12L features a single JBOD expansion port. The JBOD at- tachment will vary depending on the specifi c JBOD chassis that is being connected. The JBOD image below is provided for illustrative purposes only; port location and routing specifi...
  • Page 90 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Notes 6-12...

  • Page 91: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X9DRD-7LN4F-JBOD. It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. Starting BIOS Setup Utility To enter the AMI BIOS Setup utility screens, press the <Del>...

  • Page 92: How To Change The Confi Guration Data

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual How To Change the Confi guration Data The confi guration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <Delete>...
  • Page 93 Chapter 7: BIOS The AMI BIOS Main menu displays the following information: System Date/System Time Use this option to change the system time and date. Highlight System Time or System Date using the arrow keys. Enter new values through the keyboard and press <Enter>.

  • Page 94: Advanced Setup Confi Gurations

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Advanced Setup Confi gurations Select the Advanced tab to access the following submenu items. Boot Feature Quiet Boot This feature allows the user to select bootup screen display between POST mes- sages and the OEM logo. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages.
  • Page 95 Chapter 7: BIOS at bootup and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap- tors will not capture Interrupt 19, and the drives attached to these adaptors will not function as bootable devices.
  • Page 96 UPER TORAGE YSTEM 6027R-E1R12L User's Manual • Processor Cores • Intel HT (Hyper-Threading) Technology • Intel VT-x Technology • Intel SMX Technology • L1 Data Cache / L1 Code Cache • L2 Cache • L3 Cache CPU Speed This item displays the speed of the CPU installed in Socket 1/Socket 2.
  • Page 97 Chapter 7: BIOS Execute-Disable Bit (Available if supported by the OS & the CPU) Select Enabled to enable the Execute Disable Bit which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from fl...
  • Page 98 UPER TORAGE YSTEM 6027R-E1R12L User's Manual  CPU Power Management Confi guration This submenu allows the user to confi gure the following CPU Power Manage- ment settings. Power Technology Select Energy Effi ciency to support power-saving mode. Select Custom to cus- tomize system power settings.
  • Page 99 Chapter 7: BIOS Package C-State limit (Available when Power Technology is set to Custom) This feature allows the user to set the limit on the C-State package register. The options are C0, C2, C6, and No Limit. Energy/Performance Bias Use this feature to select an appropriate fan setting to achieve maximum system performance (with maximum cooling) or maximum energy effi...
  • Page 100 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Chipset Confi guration North Bridge This feature allows the user to confi gure the settings for the Intel North Bridge. Integrated IO Confi guration Intel ® VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI Tables.
  • Page 101 Chapter 7: BIOS IIO 2 PCIe Port Bifurcation Control This submenu confi gures the following IO PCIe Port Bifurcation Control settings for IIO 2 PCIe ports to determine how the available PCI-Express lanes to be distributed between the PCI-Exp. Root ports. QPI Confi...
  • Page 102 UPER TORAGE YSTEM 6027R-E1R12L User's Manual  DIMM Information CPU Socket 1 DIMM Information, CPU Socket 2 DIMM Information The status of the memory modules detected by the BIOS will be displayed as detected by the BIOS. Memory Mode When Independent is selected, all DIMMs are available to the operating system.
  • Page 103 Chapter 7: BIOS correctable error, the error is corrected and sent to the requestor (the original source). Memory is updated as well. Select Enabled to use Demand Scrubbing for ECC memory correction. The options are Enabled and Disabled. Data Scrambling Select Enabled to enable data scrambling to ensure data security and integrity.
  • Page 104 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Port 60/64 Emulation Select Enabled to enable I/O port 60h/64h emulation support for the legacy USB keyboard so that it can be fully supported by the operating systems that does not recognize a USB device. The options are Disabled and Enabled.
  • Page 105 Chapter 7: BIOS Port 0~5 Hot Plug Select Enabled to enable hot-plug support for a particular port, which will allow the user to change a hardware component or device without shutting down the system. The options are Enabled and Disabled. Staggered Spin Up Select Enabled to enable Staggered Spin-up support to prevent excessive power consumption caused by multiple HDDs spinning-up simultaneously.
  • Page 106 UPER TORAGE YSTEM 6027R-E1R12L User's Manual SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. Maximum Payload Select Auto to allow the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance.
  • Page 107 Chapter 7: BIOS VGA Priority This feature allows the user to select the graphics adapter to be used as the primary boot device. The options are Onboard, and Offboard. Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unifi ed Extensible Firmware Interface) for network stack support.
  • Page 108 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Change Settings This option specifi es the base I/O port address and the Interrupt Request address of Serial Port 2. Select Disabled to prevent the serial port from accessing any system resources. When this option is set to Disabled, the serial port becomes unavailable.
  • Page 109 Chapter 7: BIOS client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second). Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits.
  • Page 110 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) The submenu allows the user to confi...
  • Page 111 Chapter 7: BIOS Data Bits, Parity, Stop Bits The status of these features is displayed. ACPI Settings Use this feature to confi gure Advanced Confi guration and Power Interface (ACPI) power management settings for your system. ACPI Sleep State Use this feature to select the ACPI State when the system is in sleep mode. Select S1 (CPU_Stop_Clock) to erase all CPU caches and stop executing instructions.
  • Page 112 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Pending Operation Use this item to schedule an operation for the security device. The options are None, Enable Take Ownership, Disable Take Ownership, and TPM Clear. Note: During restart, the computer will reboot in order to execute the pend- ing operation and change the state of the security device.
  • Page 113 Chapter 7: BIOS TPM Support: Trusted Platform support TPM State: Trusted Platform state ME Subsystem This feature displays the following ME Subsystem Confi guration settings. • ME BIOS Interface Version • ME Version iSCSI Confi guration: This item displays iSCSI confi guration information: iSCSI Initiator Name This item displays the name of the iSCSI Initiator, which is a unique name used in the world.
  • Page 114 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Blink LEDs This feature allows the user to specify the duration for LEDs to blink. The range is from 0 ~ 15 seconds. The default setting is 0. PORT CONFIGURATION INFORMATION This section displays the following port information: •...

  • Page 115: Event Logs

    Chapter 7: BIOS Event Logs Select the Event Logs tab to access the following submenu items.  Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 116 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes, Next reset, and Yes, Every reset.

  • Page 117: Ipmi

    Chapter 7: BIOS IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the fol- lowing submenu items. IPMI Firmware Revision This item indicates the IPMI fi rmware revision used in your system. IPMI Status This item indicates the status of the IPMI fi rmware installed in your system. ...
  • Page 118 UPER TORAGE YSTEM 6027R-E1R12L User's Manual When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.

  • Page 119: Boot

    Chapter 7: BIOS Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). Boot This submenu allows the user to confi gure the following boot settings for the system.

  • Page 120: Security

    UPER TORAGE YSTEM 6027R-E1R12L User's Manual Security This menu allows the user to confi gure the following security settings for the system. Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the pass- word when entering setup and on each boot.

  • Page 121: Save & Exit

    Chapter 7: BIOS Save & Exit This submenu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi guration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 122 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, select Yes to load the values previous saved, or select No to keep the changes you've made so far.

  • Page 123: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 124 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Notes...

  • Page 125: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Single or dual Intel® Xeon E5-2600 Series processors Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C602J chipset BIOS 32 Mb AMI® SPI Flash ROM Memory Capacity Sixteen DIMM slots supporting 512 GB of ECC DDR3 Registered memory (RDIMM) or up to 128 GB of ECC/non-ECC DDR3 Unbuffered memory (UDIMM)
  • Page 126 UPER TORAGE YSTEM 6027R-E1R12L User's Manual Weight Gross (Bare Bone): 52 lbs. (23.6 kg.) System Cooling Three 8-cm system cooling fans System Input Requirements AC Input Voltage: 100 - 240V AC auto-range Rated Input Current: 10.7 - 4.2A max Power Supply...
  • Page 127 Appendix B: System Specifi cations Notes...
  • Page 128 UPER TORAGE YSTEM 6027R-E1R12L User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
