Summary of Contents for InFocus RJ12
-

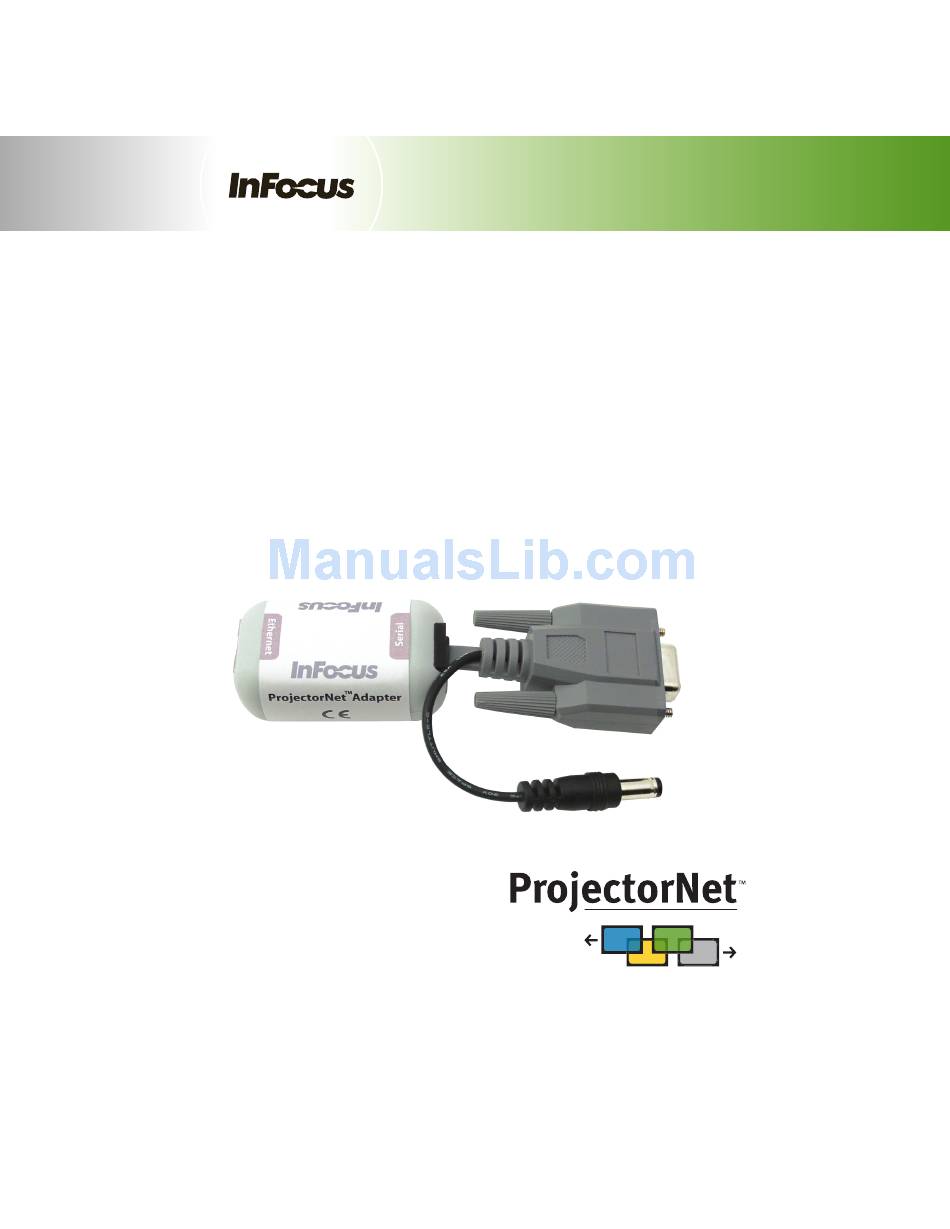

Page 1: Quick Start Guide
ProjectorNet Adapter Quick Start Guide Adapter networking... -
Page 2: Quick Start
The ProjectorNet™ Adapter kit contains the following items: • ProjectorNet™ Serial to Ethernet Adapter • Cable Adapter, ProjectorNet™ Adapter RJ12 to 9-pin Female, with power jack • CD with ProjectorNet™ Adapter, Device Installer, and other user guides InFocus ProjectorNet™ Adapter Quick Start Guide... - Page 3 Click the Start button on the Task Bar and select Run. • Enter your CD drive letter, colon, backslash, Launch.exe (e.g., D:\Launch.exe). Click the README button for important information about the product. InFocus ProjectorNet™ Adapter Quick Start Guide Page 2 of 10...
- Page 4 Otherwise, you will not be able to detect or communicate with any devices on the network. To configure, go to the Control Panel, go to Network and Internet Connections, select the corresponding network adapter, choose Properties, and go to the Advanced tab. InFocus ProjectorNet™ Adapter Quick Start Guide Page 3 of 10...
-
Page 5: Hardware Connections
1.2 Hardware Connections The Cable Adapter has three connectors as shown in the following picture. The 6-pin RJ12 connector plugs into the SERIAL RJ12 jack on the ProjectorNet™ Adapter, the 9-pin Female plugs into the projector RS232 port, and the power cord plugs into the +5VDC on the projector. -
Page 6: Run Device Installer
Select one of the items from the list by clicking it. The item will be highlighted. Click the Assign IP icon . You can also select Assign IP Address from the Device menu or press the F7 key. InFocus ProjectorNet™ Adapter Quick Start Guide Page 5 of 10... - Page 7 In the following example, the new IP address is 172.20.206.106. Press the TAB key to advance to the Subnet mask field. The Subnet mask will be filled in automatically. On a local network, you can leave the Default gateway blank (all zeros). InFocus ProjectorNet™ Adapter Quick Start Guide Page 6 of 10...
- Page 8 Note: If you do not receive “Reply” messages, make sure the unit is properly attached to the network and that the IP address assigned is valid for the particular network segment you are working with. If you are not sure, check with your systems administrator. Click the Close button to finish. InFocus ProjectorNet™ Adapter Quick Start Guide Page 7 of 10...
-
Page 9: Serial Port Configuration
Click the Web Configuration tab. To view the Web-Manager in the current DeviceInstaller window, click the Go button. To open the Web-Manager in a web browser, click the External Browser button. InFocus ProjectorNet™ Adapter Quick Start Guide Page 8 of 10... - Page 10 The web manager opens inside the Device Installer window. You may have to resize the window to see all the fields. Click the Serial Settings button in the column on the left side. The Serial Settings dialog appears. InFocus ProjectorNet™ Adapter Quick Start Guide Page 9 of 10...
- Page 11 Click the Apply Settings button in the column on the left side. A message will be displayed indicating the configuration changes are being saved. The unit is now ready to operate with the new configuration. InFocus ProjectorNet™ Adapter Quick Start Guide Page 10 of 10...
