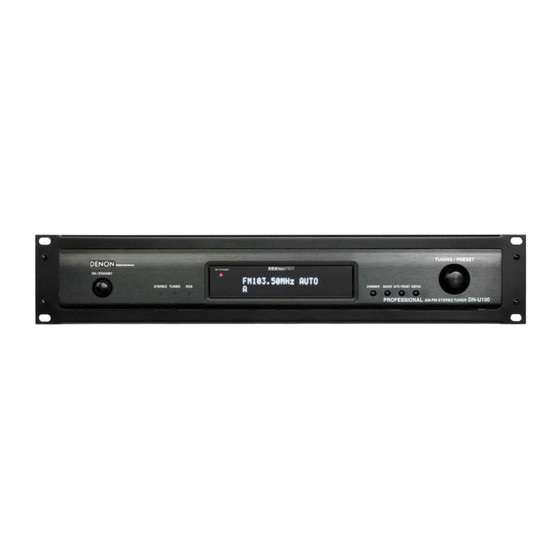

- Page 1 AM-FM STEREO TUNER DN-U100 OPERATING INSTRUCTIONS BEDIENUNGSANLEITUNG MODE D’EMPLOI ISTRUZIONI PER L’USO INSTRUCCIONES DE OPERACION GEBRUIKSAANWIJZING BRUKSANVISNING...
-
Page 2: Safety Precautions
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH ¢SAFETY PRECAUTIONS • DECLARATION OF CONFORMITY We declare under our sole responsibility that this product, to which this declaration relates, is in conformity with the following standards: CAUTION EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3. Following the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC RISK OF ELECTRIC SHOCK Directive. - Page 3 ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA FRONT PANEL PANEL DELANTERO FRONTPANEEL VORDERSEITE PANNEAU AVANT FRONTPANELEN PANNELLO ANTERIORE !1 1 REAR PANEL PANEL TRASERO ACHTERPANEELL RÜCKSEITE PANNEAU ARRIÈRE BAKPANEL PANNELLO POSTERIORE...
- Page 4 ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA ¢NOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA • Do not let foreign objects into the apparatus. •...
- Page 5 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH CAUTION: A NOTE ABOUT RECYCLING: • The ventilation should not be impeded by covering the ventilation openings This product’s packaging materials are recyclable and can be with items, such as newspapers, tablecloths, curtains, etc. reused.
-
Page 6: Table Of Contents
ENGLISH ENGLISH Getting Started Contents Getting Started Operation Accessories Turning the power on ..............8 ...................1 Listening to FM/AM Before using .................1 Cautions on installation FM Auto preset memory ...............8 ............2 Inserting the batteries ...............2 Auto tuning (FM/AM)..............9 Operating range of the remote control unit Manual tuning (FM/AM)..............9 .......3 Part names and functions... -
Page 7: Cautions On Installation
ENGLISH ENGLISH Getting Started Cautions on installation Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors Note is used near a tuner or TV. If this happens, take the following steps: •... -
Page 8: Operating Range Of The Remote Control Unit
ENGLISH ENGLISH Getting Started Operating range of the remote control unit • Point the remote control unit at the remote sensor on the main unit as shown in the diagram. • The remote control unit can be used from a straight distance of approximately 7 meters from the main unit, but this distance will be shorter if there are obstacles in the way or if the remote control unit is not pointed directly at the remote... -
Page 9: Part Names And Functions
RDS search. ( page 11 ~ 14) ON/STANDBY indicator This lights when the DN-U100’s power is in the “on” or “standby” mode. • Whenever the unit is in the STANDBY state, the unit is still connected to AC line voltage. -
Page 10: Remote Control Unit
ENGLISH ENGLISH Getting Started Remote control unit POWER button Press this button to switch from the standby mode to the operating mode. ( page 8, 16) CHANNEL buttons (1 ~ 10) Use these when presenting and recalling stations. Also use these with the SHIFT and MEMORY buttons to use a total of 100 preset channels, A (1 ~ 10), B (1 ~ 10), ... -
Page 11: Connections
ENGLISH ENGLISH Connections Connecting the antenna terminals AM loop antenna (Supplied) Direction of broadcast station FM outdoor antenna 75 Ω/ohms COAXIAL cable FM indoor antenna (Supplied) Use tape or a pin to fasten the tip of the antenna to the wall, a rack, etc. -
Page 12: Cable Indications
ENGLISH ENGLISH Connections Cable indications The hookup diagrams on the subsequent pages assume the use of the following optional connection cables. Audio cable Signal direction Audio signal Analog terminal (Stereo) (To amplifier) L (White) R (Red) Pin-plug cables Connecting the amplifier Amplifier TUNER IN Connecting the power supply cord... -
Page 13: Operation
¢ Setting the power to the “standby” mode ON/STANDBY POWER Press the button. When the power is in the “on” mode, press the • The display lights and the DN-U100 becomes operable. ON/STANDBY POWER button. • The power is set to the “standby” mode. Listening to FM/AM FM auto preset memory •... -
Page 14: Auto Tuning (Fm/Am)
ENGLISH ENGLISH Operation STEREO BAND MENU CHANNEL SHIFT MEMORY BAND AUTO/MANU TUNED TUNING/PRESET PRESET TUNING Auto tuning (FM/AM) Manual tuning (FM/AM) BAND BAND Press the button to select “FM” or Press the button to select “FM” or “AM”. “AM”. AUTO/MANU Press the button to set the manual tuning mode. -
Page 15: Preset Stations (Fm/Am)
ENGLISH ENGLISH Operation ¢ Operations on the remote control unit Preset stations (FM/AM) • Before starting, tune in the station you want to preset. MEMORY Press the button. • The preset mode is set. ¢ Operations on the main unit Select the preset channel number. -
Page 16: Rds (Radio Data System)
ENGLISH ENGLISH Operation MENU DISPLAY TUNING/PRESET ¢ Traffic Programme (TP) RDS (Radio Data System) • TP identifies programmes that carry traffic announcements. • This allows you to easily find out the latest traffic conditions • RDS (works only on the FM band) is a broadcasting service in your area before leaving home. -
Page 17: Rds Search
ENGLISH ENGLISH Operation RDS search Use this function to automatically tune to FM stations that provide the RDS service. MENU Press the button to select menu. TUNING/PRESET Turn the knob to display “RDS”. TUNING/PRESET Press the knob. TUNING/PRESET Turn the knob to display “RDS Search”. -
Page 18: Pty Search
ENGLISH ENGLISH Operation TUNING/PRESET Press the knob to set the MENU PTY search standby mode. TUNING/PRESET Turn the knob clockwise or counterclockwise just one step. TUNING/PRESET • To automatically begin the PTY search operation. PTY search • The RDS indicator flashes. •... -
Page 19: Tp Search
ENGLISH ENGLISH Operation TP search RT (Radio Text) Use this function to find RDS stations broadcasting traffic MENU Press the button to select menu. programme (TP). MENU Press the button to select menu. TUNING/PRESET Turn the knob to display “RDS”. TUNING/PRESET Turn the knob to display... -
Page 20: Switching Rds Information Display
RDS Select the station whose name you want to set. reception information. Example: To register “DENON” as the FM station The display switches as shown below each time the name at preset channel “A2”. DISPLAY button is pressed. -
Page 21: Last Function Memory
2 seconds or by pressing the ON/STANDBY POWER Press the button to MEMORY button. set the power to the “standby” mode, then unplug the DN-U100’s power supply cord from With channel “A2” flashing, press the the power outlet. TUNING/PRESET MEMORY knob or the button. -
Page 22: Troubleshooting
ENGLISH ENGLISH Troubleshooting If a problem should arise, first check the following. 1. Are the connections correct? 2. Have you operated the receiver according to the operating instructions? 3. Are the speakers and other components operating property? If this unit is not operating properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. -
Page 23: Specifications
ENGLISH ENGLISH Specifications ¢ FM tuner section (Note: µV at 75 Ω/ohms, 0 dBf=1 x 10 –15 • Receiving range: 87.5 MHz ~ 108.0 MHz • Antenna terminals: 75 Ω/ohms Unbalanced • Usable sensitivity: 1.0 µV (11.2 dBf) 1.2 µV (IHF) •... - Page 24 PROFESSIONAL BUSINESS COMPANY TOKYO, JAPAN http://www.dm-pro.jp Printed in China 00D 511 4551 000...
