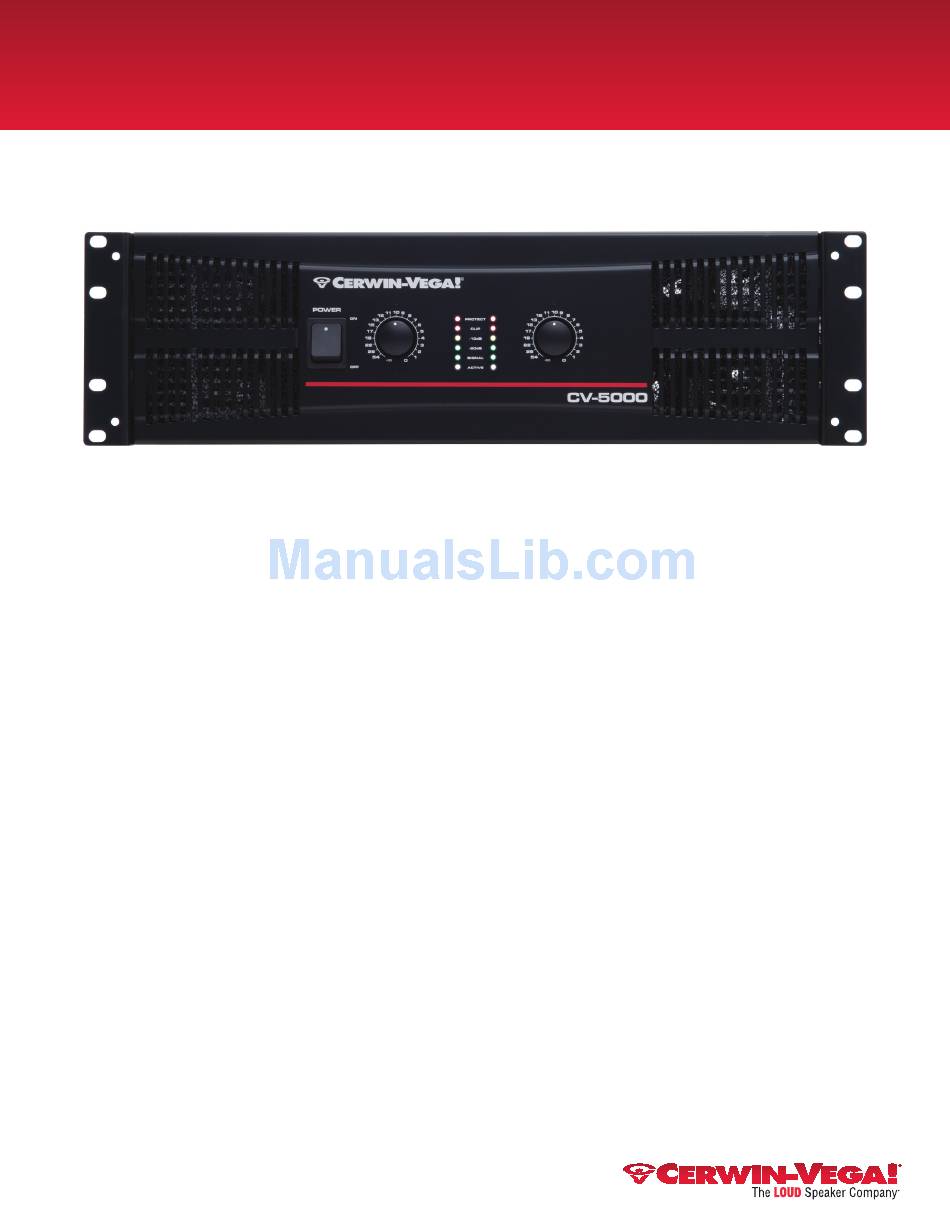

Cerwin-Vega CV-5000 Product Overview

CV-5000
PROFESSIONAL AMPLIFIER WITH 5000 WATTS OF OUTPUT POWER
This field proven amp design is the most muscular yet in the CV Series and is a perfect match for Cerwin-Vega's largest and
loudest Passive Speakers and Folded Horns. A true powerhouse, the CV-5000 is capable of driving the most demanding
speaker applications including Cerwin-Vega's TS-42 Folded Horn Sub. The 3 RU enclosure is compact and feature-laden, with
a design that includes a high-efficiency, variable-speed fan tunnel cooling system, complete LED monitoring of the amplifier's
status and comprehensive protection circuitry that guards vital components.
FEATURES
Controls
• Front: Volume control that features a 21 detent potentiometer
for each channel
• Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)
HPF: On/Off switch for each channel
Limiter: On/Off switch for each channel
Connectors
• Input: Combo jack electronically balanced 1/4" & XLR male for
input link
• Output: 5-way binding post & Speakon
channel
Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active
Protection: Short Circuit, Thermal, Current Limit, DC Offset,
Current Inrush, RF Protection, Turn On / Turn Off Mute
Cooling: Variable speed fan forced cooling
Specifications & appearance subject to change.
USA: P 954.949.9600 • F 954.949.9590
EUROPE: P +32.2.645.05.00 • F +32.2.645.05.05
connector for each
®
PRODUCT OVERVIEW
