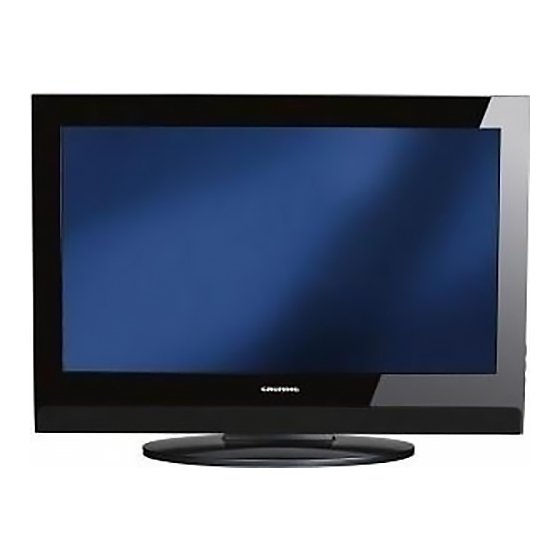

Grundig VISION 7 47-7851 T User Manual

Color television
Hide thumbs Also See for VISION 7 47-7851 T:
Table of Contents

Advertisement

Quick Links

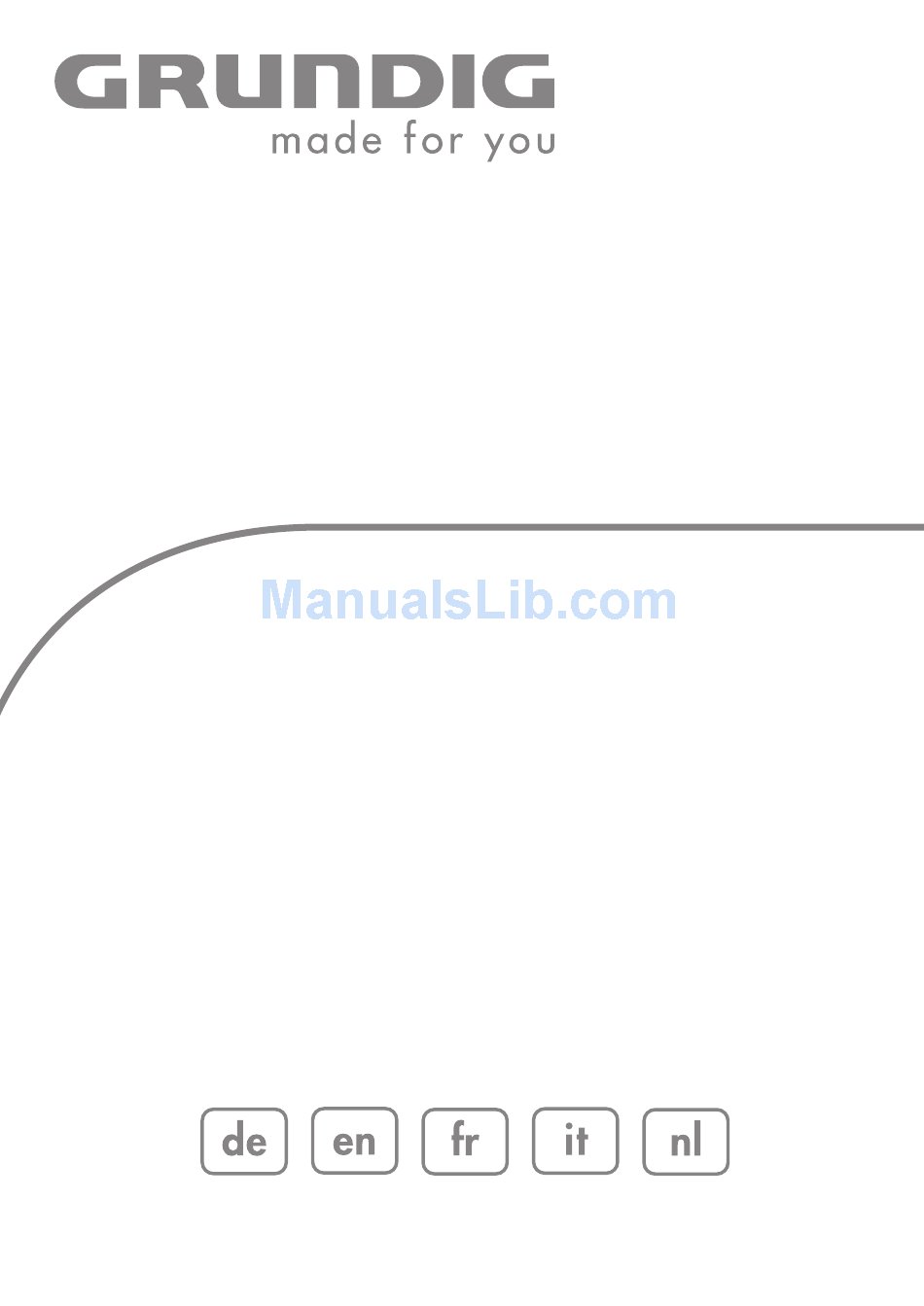

COLOR TELEVISION
VISION 7 47-7851 T

Advertisement

Table of Contents
loading

Related Manuals for Grundig VISION 7 47-7851 T

Summary of Contents for Grundig VISION 7 47-7851 T

  • Page 1 COLOR TELEVISION VISION 7 47-7851 T...

  • Page 2: Table Of Contents

    CONTENTS ------------------------------------------------------------------------------------------------ SET-UP AND SAFETY GENERAL INFORMATION Special features of your television Receiving digital stations What is Common Interface? CONNECTION/PREPARATION Connecting the antenna and the mains cable Inserting batteries in the remote control OVERVIEW Connections on the television Controls on the television The remote control SETTINGS Searching for television stations...
  • Page 3 CONTENTS ------------------------------------------------------------------------------------------------ PC MONITOR MODE Connecting a PC OPERATION WITH COMMON INTERFACE Inserting the Common Interface module Access control for CI module and smart card SPECIAL SETTINGS Tuning digital television stations Tuning analogue television stations Changing stored channels for analogue stations INFORMATION Displaying signal information Dismantling the stand of the unit...

  • Page 4: Set-Up And Safety

    SET-UP AND SAFETY ------------------------------------------------------------ Please note the following information when setting up your television set. This television set is designed to receive and display video and audio signals. Any other use is expressly prohibited. External light falling on the screen impairs picture quality. To assure sufficient ventilation make sure there is enough space around it in the wall unit.
  • Page 5 SET-UP AND SAFETY ------------------------------------------------------------ The screen of your LCD television meets the highest quality standards and has been checked for pixel faults. Despite the great care taken in manufacturing, technological reasons make it impossible to completely discount the possibility that some pixels may be faulty.

  • Page 6: General Information

    GENERAL INFORMATION ---------------------------------------- Special features of your television This television can receive and process all analogue and all unencrypted digital stations. This television set has an integrated digital and analogue receiver. The digital receiver unit converts the signals from digital stations to provide outstanding audio and picture quality.

  • Page 7: Connection/Preparation

    CONNECTION/PREPARATION ---------------------- Connecting the antenna and the mains cable Plug the cable of the rooftop or indoor antenna (passive or active indoor antenna with its own power supply for digital tele- vision stations) into the antenna socket »TUNER« on the tele vision set;...

  • Page 8: Inserting Batteries In The Remote Control

    CONNECTION/PREPARATION ---------------------- Inserting batteries in the remote control Open the battery compartment by removing the lid. Insert the batteries (3 x 1.5 V micro for example R03 or AAA). Observe the polarity (marked on the base of the battery com- partment).

  • Page 9: Overview

    OVERVIEW ---------------------------------------------------------------------------------------------- Connections on the television HDMI3 HDMI socket, audio/video signal input (HDMI). Head phone connection (3.5 mm jack plug). S-VHS Video signal input for S-Video camcorder. VIDEO Video signal input for camcorder. Audio signal input for camcorder. TUNER Antenna socket. USB socket for service applications only.

  • Page 10: Controls On The Television

    OVERVIEW ---------------------------------------------------------------------------------------------- Controls on the television Note: The sensor button » « is always lit. The symbols of the other sensor buttons light up briefly if you brush your hand over the control panel. To operate, briefly tap the respective button symbol. Adjust the volume;...

  • Page 11: The Remote Control

    OVERVIEW ---------------------------------------------------------------------------------------------- The remote control Switches off the television set (stand-by). 1...0 Switches the television on from standby mode Selects channels directly. Opens the pre-selection for AV channels. Then select with » « or » «. Λ Displays information about the remote control. reveals answers in teletext mode.
  • Page 12 You can change this programming: Press and hold down »M« and press three number buttons to enter the code: »1«, »2«, »3« for a GRUNDIG DVD player. »4«, »5«, »6« for a GRUNDIG DVD recorder. »1«, »4«, »7« for a GRUNDIG digital receiver (remote control level 1).

  • Page 13: Settings

    SETTINGS ---------------------------------------------------------------------------------------------------- Searching for television stations The television has an automatic tuning function, which first searches for digital TV channels and then analogue ones. You start the search and can then sort the television stations into your order of preference. There are 1000 presets for digital channels and 99 for analogue channels, to which you can assign TV stations from the antenna or from the cable connection (analogue channels).

  • Page 14: Changing Stored Channels For Digital Stations

    SETTINGS ---------------------------------------------------------------------------------------------------- Changing stored channels for digital stations You can change the order of the channels found as required, delete channels you do not need and block access to certain presets (parental control). Press » « (blue) to switch between »Program Management – All«, »Program Management –...

  • Page 15: Deleting Channels

    SETTINGS ---------------------------------------------------------------------------------------------------- Deleting channels In the »PROGRAM MANAGEMENT« menu, press » «, PROGRAM MANAGEMENT » «, »S« or »P«to select the channel to be deleted and Service Type: DTV Network Λ Program Type CA FAV1 FAV2 FAV3 FAV4 Lock press » «...
  • Page 16 SETTINGS ---------------------------------------------------------------------------------------------------- Creating a list of favourites You can select your favourite channels and save them in up to four lists (FAV1 to FAV4). In the »PROGRAM MANAGEMENT« menu, select the tel- PROGRAM MANAGEMENT evision channel with » «, » «, »S«...

  • Page 17: Picture Settings

    SETTINGS ---------------------------------------------------------------------------------------------------- Picture settings Open the menu with »i«. PICTURE – The »PICTURE« menu is displayed. Brightness Contrast Activate the »PICTURE« menu by pressing »G«. Sharpness Colour Select »Brightness«, »Contrast«, »Sharpness«, »Colour«, »Noise Noise Reduction Reduction« or »Colour Temp.« with » «...

  • Page 18: Audio Settings

    SETTINGS ---------------------------------------------------------------------------------------------------- Audio settings Open the menu with »i«. SOUND – The »PICTURE« menu is displayed. Volume Balance Select the »SOUND« menu with » « or » « and confirm with Λ Sound Type Stereo »G«. Effect Normal Headphones Note: Equalizer Additional operations are explained in the following sections.
  • Page 19 SETTINGS ---------------------------------------------------------------------------------------------------- TruBass and Dialog Clarity The »TruBass« setting gives you an increased bass effect. »Dialog Clarity« recognises dialogue sections in audio recordings and improves dialogue reproduction. The two functions can be found on the second page of the r Off e TruBass »SOUND«...

  • Page 20: Television Operation

    TELEVISION OPERATION ------------------------------------------ Basic functions Switching on and off Press » «, »1…0« or » « or » « to switch on the device from Λ standby mode. Press the » « button to switch the television to standby mode. Selecting channels Use »1…0«...

  • Page 21: Sound Settings

    TELEVISION OPERATION ------------------------------------------ Displaying the time and information You can only open information about television channels in the di- gital television mode. ¥ Display information by pressing » «. Press » « to switch to the next programme, press » «...

  • Page 22: Zap Function

    TELEVISION OPERATION ------------------------------------------ Zap function This function allows you to save the television channel which you are currently watching and switch to other channels (zapping). Select the channel you want to save in the zap memory with »1…0« or » «...

  • Page 23: Changing The Picture Format

    TELEVISION OPERATION ------------------------------------------ Changing the picture format The television automatically switches to the 16:9 format if this format is detected via the Euro-AV socket. Select the picture format with » «. The selected picture format, for example »16:9«, appears on the screen. –...

  • Page 24: Pip Mode

    TELEVISION OPERATION ------------------------------------------ PIP mode PIP (picture in picture) allows you to watch an inset picture from a sec- ond picture source in addition to the current channel. DVD players, video recorders or satellite receivers can be used as video sources. The table shows you which input sources the function can be used with.

  • Page 25: Remote Control Information

    TELEVISION OPERATION ------------------------------------------ Changing the size of the inset picture Press »S« to change the size of the inset picture. Ending the PIP function To hide the inset picture, press »PIP« twice. Quitting the double window To quit the double window, press »PIP«. Remote control information You can view the remote control on the screen and check all the functions for the buttons.

  • Page 26: Teletext Mode

    TELETEXT MODE ---------------------------------------------------------------------------- TOP text or FLOF text mode Press »TXT« to switch to teletext mode. You can directly select teletext pages with »1...0«. To return to page 100, press »i«. Note: At the bottom of the screen, you will see an information line con- sisting of a red, green and, depending on the station, yellow and blue text field.
  • Page 27 TELETEXT MODE ---------------------------------------------------------------------------- Page stop A multiple page may contain several sub-pages, which are auto- matically scrolled by the transmitting station. Stop the sub-pages with »P«. Press »P« to quit the function. Calling up a sub-page directly If the selected teletext page contains further pages, the number of the current sub-page as well as the total number of pages is displayed.

  • Page 28: Convenience Functions

    CONVENIENCE FUNCTIONS ------------------------------ Time settings Open the menu by pressing »i«. FEATURES – The »PICTURE« menu appears. Time Settings Timer Select the »FEATURES« menu with » « or » « and press »G« to Λ Menu Language confirm. Parental Control Menu Transparency Note: Software Update...

  • Page 29: Timer Functions

    CONVENIENCE FUNCTIONS ------------------------------ Timer functions Open the menu by pressing »i«. FEATURES – The »PICTURE« menu appears. Time Settings Timer Select the »FEATURES« menu with » « or » « and press »G« to Λ Menu Language confirm. Parental Control Menu Transparency Select »Timer«...

  • Page 30: Changing The Menu Language

    CONVENIENCE FUNCTIONS ------------------------------ Switch-off timer In the »OFF Time« menu you can enter a time for the television to switch off. After this time has elapsed, the television switches to standby mode. Select »OFF Time« with » « or » «.

  • Page 31: Parental Control

    CONVENIENCE FUNCTIONS ------------------------------ Parental control Open the menu by pressing »i«. FEATURES – The »PICTURE« menu appears. Time Settings Timer Select the »FEATURES« menu with » « or » « and press »G« to Λ Menu Language confirm. Parental Control Menu Transparency Select »Parental Control«...

  • Page 32: Selecting The Transparency Of The Osd

    CONVENIENCE FUNCTIONS ------------------------------ Changing the PIN code You can also enter a personal code instead of the default code »0000«. PARENTAL CONTROL Please take note of your own code. Parental Lock Parental Rating Select »Change PIN« with » « or » «...

  • Page 33: Digital Functions

    CONVENIENCE FUNCTIONS ------------------------------ Digital functions Open the menu by pressing »i«. FEATURES – The »PICTURE« menu appears. Time Settings Timer Select the »FEATURES« menu with » « or » « and press »G« to Λ Menu Language confirm. Parental Control Menu Transparency Select »Digital Features«...

  • Page 34: Using External Devices

    USING EXTERNAL DEVICES ---------------------------------- DVD player, DVD recorder, video recorder or set-top box Note: Which television socket(s) you connect your external devices to depends on the sockets the external device is equipped with and the signals which are available. Note that with many external devices the resolution of the video signal must be adapted to the input sockets on the television (check the external device’s instruction manual).
  • Page 35 USING EXTERNAL DEVICES ---------------------------------- With an analogue video signal (progressive) Video signal: YUV; resolution: standard 576p; HDTV 720p, 1080i, 1080p. Audio signal: stereo, analogue. Channel position »YPbPr«. Connect the »COMPONENT INPUT Y Pb Pr« sockets on the television and the corresponding sockets on the external device using cinch cables (video signal).

  • Page 36: Headphones

    USING EXTERNAL DEVICES ---------------------------------- With an analog TV signal Video signal: FBAS. Audio signal: stereo, analogue. Channel position »CVBS«. Connect the »VIDEO« cinch socket on the television and the corresponding socket on the external device using cinch cables (video signal). Connect the »L R«...

  • Page 37: Decoder Or Satellite Receiver

    USING EXTERNAL DEVICES ---------------------------------- Decoder or satellite receiver In order for the television to receive encoded programs from a privately operated station, a decoder is needed. Connecting a decoder or satellite receiver Decoder Connect the »AV1« socket on the television set and the appro- priate socket on the decoder using a EURO-AV cable.

  • Page 38: Camcorder

    USING EXTERNAL DEVICES ---------------------------------- Camcorder Connecting the camcorder Connect the yellow socket »VIDEO« on the television and the corresponding socket on the camcorder (VHS, Video 8) with a cinch cable (picture signal); connect the »S-VHS« socket (picture signal) on the television and the corresponding socket on the camcorder (S-VHS, Hi 8) with a S-Video cable.

  • Page 39: Pc Monitor Mode

    PC MONITOR MODE ---------------------------------------------------------- Connecting a PC Connect the socket »PC-IN VGA« on the television to the corre- sponding socket on the PC using a VGA cable. Connect the socket »PC AUDIO IN« on the television to the corresponding socket on the PC using a cinch cable (audio signal).

  • Page 40: Operation With Common Interface

    OPERATION WITH COMMON INTERFACE Inserting the Common Interface module Note: Switch off the appliance before inserting the CI module in the »CI« slot. Insert the smart card into the CI module. Insert the CI module with the smart card into the »CI« slot on the television.

  • Page 41: Special Settings

    SPECIAL SETTINGS ------------------------------------------------------------------ Tuning digital television stations This search deletes all television stations included in the channel list! Tuning all digital television stations using the search Open the menu with »i«. SETUP – The »PICTURE« menu appears. Auto tuning Manual tuning Select the »SETUP«...

  • Page 42: Tuning Analogue Television Stations

    SPECIAL SETTINGS ------------------------------------------------------------------ Tuning the digital television stations by entering the channel numbers Open the menu with »i«. – The »PICTURE« menu appears. MANUAL TUNING Select the »SETUP« menu with » « or » « and confirm with » «. Λ...

  • Page 43: Tuning The Analogue Television Channels By Entering The Channel Numbers

    SPECIAL SETTINGS ------------------------------------------------------------------ Tuning the analogue television channels by entering the channel numbers Open the menu with »i«. MANUAL TUNING – The »PICTURE« menu appears. Program no Select the »SETUP« menu with » « or » « and confirm with » «.

  • Page 44: Changing Stored Channels For Analogue Stations

    SPECIAL SETTINGS ------------------------------------------------------------------ Changing stored channels for analogue stations If channels were stored with the automatic channel search during the tuning of the television channels, you can delete them. You can also store stations in a different preset, change or enter the name of a stations as well as skip channels.
  • Page 45 SPECIAL SETTINGS ------------------------------------------------------------------ Locking television channels You can lock channels which are unsuitable for children using your personal PIN code. In the »PROGRAM MANAGEMENT« menu, select the television channel with » «, » «, »S« or »P«. Λ Press » «...
  • Page 46 SPECIAL SETTINGS ------------------------------------------------------------------ Creating a list of favourites You can select your favourite channels and save them in up to four lists (FAV1 to FAV4). In the »PROGRAM MANAGEMENT« menu, select the television – channel with » «, » «, » «...

  • Page 47: Information

    INFORMATION ------------------------------------------------------------------------------ Displaying signal information (only for digital television channels) Open the menu with »i«. – The »PICTURE« menu appears. Select the menu »SETUP« with » « or » « and press »G« to con- Λ firm. Select the menu »Digital Features« with » «...

  • Page 48: Dismantling The Stand Of The Unit

    INFORMATION ------------------------------------------------------------------------------ Dismantling the stand of the unit If you want to attach your television to the wall with a wall bracket, you need to dismantle the stand. Place the television carefully front down on a table on top of a suitable base, such as foam.

  • Page 49: Technical Data

    INFORMATION ------------------------------------------------------------------------------ Technical data Operating voltage: 230V, 50 Hz Power consumption: in operation 260 W in standby < 1 W Sound output: 2 x 20 watts music (2 x 10 sine wave) Reception ranges: Analogue: C01 ... C80, special channels S01 ... S41 Digital: VHF/UHF Bandwidth 7 MHz and 8 MHz COFDM modes: 2k and 8k...

  • Page 50: Troubleshooting

    INFORMATION ------------------------------------------------------------------------------ Troubleshooting If the remedies given below do not work, please consult an autho- rised GRUNDIG dealer. Please bear in mind that malfunctions can also be caused by external devices such as video recorders or satel- lite receivers. Fault...

  • Page 51: Additional Information For Units Sold In The Uk

    INFORMATION ------------------------------------------------------------------------------ Additional Information for units sold in the UK. Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply. The range of multi-system receivers is built to work in most European countries. However, the mains plug and socket system for the UK differs from many European countries.
  • Page 52 Grundig Multimedia B.V. Atrium, Strawinskylaan 3105 • NL-1077 ZX Amsterdam • http://www.grundig.com...
