Summary of Contents for GoVideo DP5030

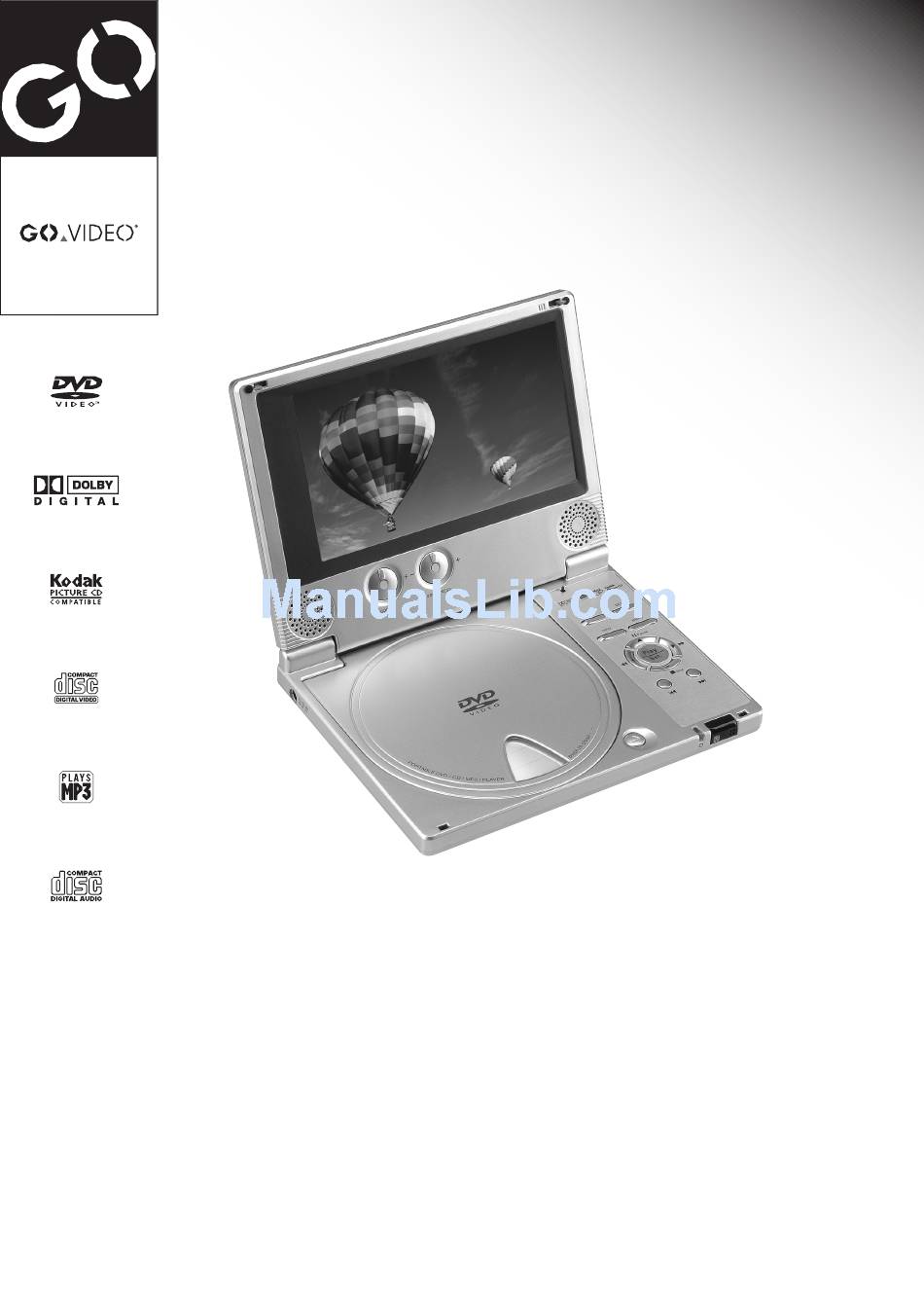

- Page 1 Portable DVD DP5030/DP7030 User's Guide...
-
Page 2: Table Of Contents
Disc Menu ... 13 Playing Picture CDs ... 14 Playing Picture CDs with MP3 Files ... 15 Unpack Accessories Make sure the following items are included with your portable DVD player: • Credit card size Remote Control with 3V Battery •... -
Page 3: Fcc And Safety Information
FCC and Safety Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. -
Page 4: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 Precautions Please read these precautions before operating this unit. Power cord protection To avoid any malfunctions of the unit, and to protect against electric shock, fire or personal injury, please observe the following: • Hold the plug firmly when connecting or disconnecting the AC power cord. •...
-
Page 6: Player Overview
Player Overview Built-in Speakers LCD Screen LCD/Setup/Info/Menu Buttons Battery Pack Play Controls/Arrow Keys Skip Next/Previous Color/Brightness Knobs Power Adapter Input Disc Tray Remote Sensor Power LED Open Disc Tray Volume Coax Out Switch S-Video Phones AV Out AV In Power... -
Page 7: Remote Control Overview
Remote Control Overview Info. LCD (4:3/16:9) Setup Subtitle Title Pause Menu Angle Forward Scan Play/Select Audio Reverse Scan Skip Next Stop Skip Back A-B Repeat Repeat 1/All Mute... -
Page 8: Connections
Charging the Battery • Attach the supplied 7.4V Li-ION battery pack to the back of the portable DVD player as shown. • Plug the supplied AC adapter into a standard power outlet, and then connect it to the DC IN 12V jack on the left side of the player. -
Page 9: Amplifier/Receiver Connections
Connections Amplifier/Receiver Connections COAXIAL IN External Equipment Connections Connecting Camcorders, Video Games, etc. • Connect the supplied audio/video cable (mini- plug to RCA) from the AV IN jack to the Audio/ Video Outputs of your external equipment. • Slide the AV OUT/AV IN switch to the AV IN position. -
Page 10: Dvd Playback
Before You Begin... Connect the portable DVD player to a power outlet and plug in headphones or listen to the built-in speakers. You can also connect the player to external equipment, such as a TV and/or audio system. If you do this, remember to: •... -
Page 11: Forward/Reverse Scan
Press during playback. When you press the button midway through a chapter, the portable DVD player returns to the begining of the chapter. The player then skips a chapter each time you press the Pause Press PAUSE once during playback. -
Page 12: Special Dvd Features
• When you load or remove the disc, the portable DVD player will search for the Audio language selected in the Setup Menu. If your preferred language is not available on the disc, the portable DVD player will playback the disc’s default language. -
Page 13: Angle
• ANGLE will only function on discs where different angles have been recorded. Mute To mute the volume on the portable DVD player. Press MUTE during playback. • To resume normal sound, press MUTE repeatedly until “MUTE OFF” appears on the screen. -
Page 14: Playing Picture Cds
You can play Kodak Picture CDs and JPEG picture CDs on your portable DVD player. Basic Playback Load a Kodak Picture CD or JPEG Picture CD. After a few seconds, the portable DVD player starts a slide show of available images. -
Page 15: Playing Picture Cds With Mp3 Files
Playing Picture CDs with MP3 Files You can display a JPEG picture while playing MP3 tracks. Load a disc containing both MP3 tracks and JPEG pictures. The portable DVD player starts playing a slide show of JPEG pictures automatically. Press STOP when you see the picture you would like to display. The following screen appears. -
Page 16: Audio Cd Playback
Before You Begin... Connect the portable DVD player to a power outlet and plug in headphones or listen to the built-in speakers. You can also connect the player to external equipment, such as a TV and/or audio system. If you do this, remember to: •... -
Page 17: Forward/Reverse Scan
Press during playback. When you press the button midway through a track, the portable DVD player returns to the begining of the track. The player then skips a track each time you press the Pause Press PAUSE once during playback. -
Page 18: Language Setup
Language Setup On Screen Display (OSD) Language You can select among various languages for the player’s on-screen display (OSD). Press SETUP in Stop mode. Press to select “LANGUAGE SETUP”, then press PLAY/SEL. Press to select “OSD”, then press PLAY/SEL. Press to select your preferred language. -
Page 19: Audio Language [Dvd]
Language Setup Audio Language [DVD] You can select your preferred language for DVD audio soundtracks. Press SETUP in Stop mode. Press to select “LANGUAGE SETUP”, then press PLAY/SEL. Press to select “AUDIO”, then press PLAY/SEL. Press to select your preferred language. Press PLAY/SEL. -
Page 20: Screen Setup
Screen Setup TV Type The TV Type feature allows you to set your preferred aspect ratio for DVD movies. Choose from the following: 4:3 PS (Pan & Scan) - Crops widescreen movies to fit a standard television. • • 4:3 LB (Letterbox) - Shows the full width of widescreen movies on a standard television with black bars above and below the picture. -
Page 21: Brightness
Screen Setup Brightness To adjust the brightness of the on-screen image: Rotate the BRIGHTNESS knob as follows: • Clockwise to increase the brightness. • Counterclockwise to decrease the brightness. Color To adjust the color of the on-screen image: Rotate the COLOR knob as follows: •... -
Page 22: Custom Setup
Custom Setup Note: “Custom Setup” only works when no disc is loaded in the portable DVD player. Parental Control [DVD] The Parental Control feature enables you to block playback of movies based on their rating. For example, if you set the rating level to PG-13, the player will block playback of movies rated PG-13, R, NC-17 and X unless the correct password is entered. -
Page 23: Angle Mark [Dvd]
Whether ANGLE MARK is set to ON or OFF, pressing the ANGLE button will always allow selection of multiple angles if they are available. Restore Defaults To reset the portable DVD player to its factory default settings: Press SETUP in Stop mode. Press to select “CUSTOM SETUP”, then press PLAY/SEL. -
Page 24: Audio Setup
Audio Setup Audio Output [DVD] The portable DVD player provides two types of audio output: • 2-channel stereo sound, and • Digital Audio Out Press SETUP in Stop mode. Press to select “AUDIO SETUP”, then press PLAY/SEL. Press to select “OUTPUT”, then press PLAY/SEL. -
Page 25: Troubleshooting
Troubleshooting Before requesting service for the portable DVD player, check the chart below for a possible cause of the problem you are experiencing. Some simple checkups or a minor adjustment on your part may eliminate the problem and restore proper operation. -
Page 26: Disc Handling & Maintenance
Disc Handling & Maintenance Handling Precautions • Hold the disc by the edges so the surface will not be soiled with fingerprints. (A) Fingerprints, dirt and scratches can cause skipping and distortion. • Do not write on the label side with a ball-point pen or other writing utensil. •... -
Page 27: Limited Warranty
This warranty covers internal operating parts and service/labor to repair or replace covered parts in this GoVideo product for 90 days labor, 1 year parts, from the date of purchase, defined as follows: (1) Original Consumer Retail Purchase; (2) First Rental Purchase Agree- ment;...
