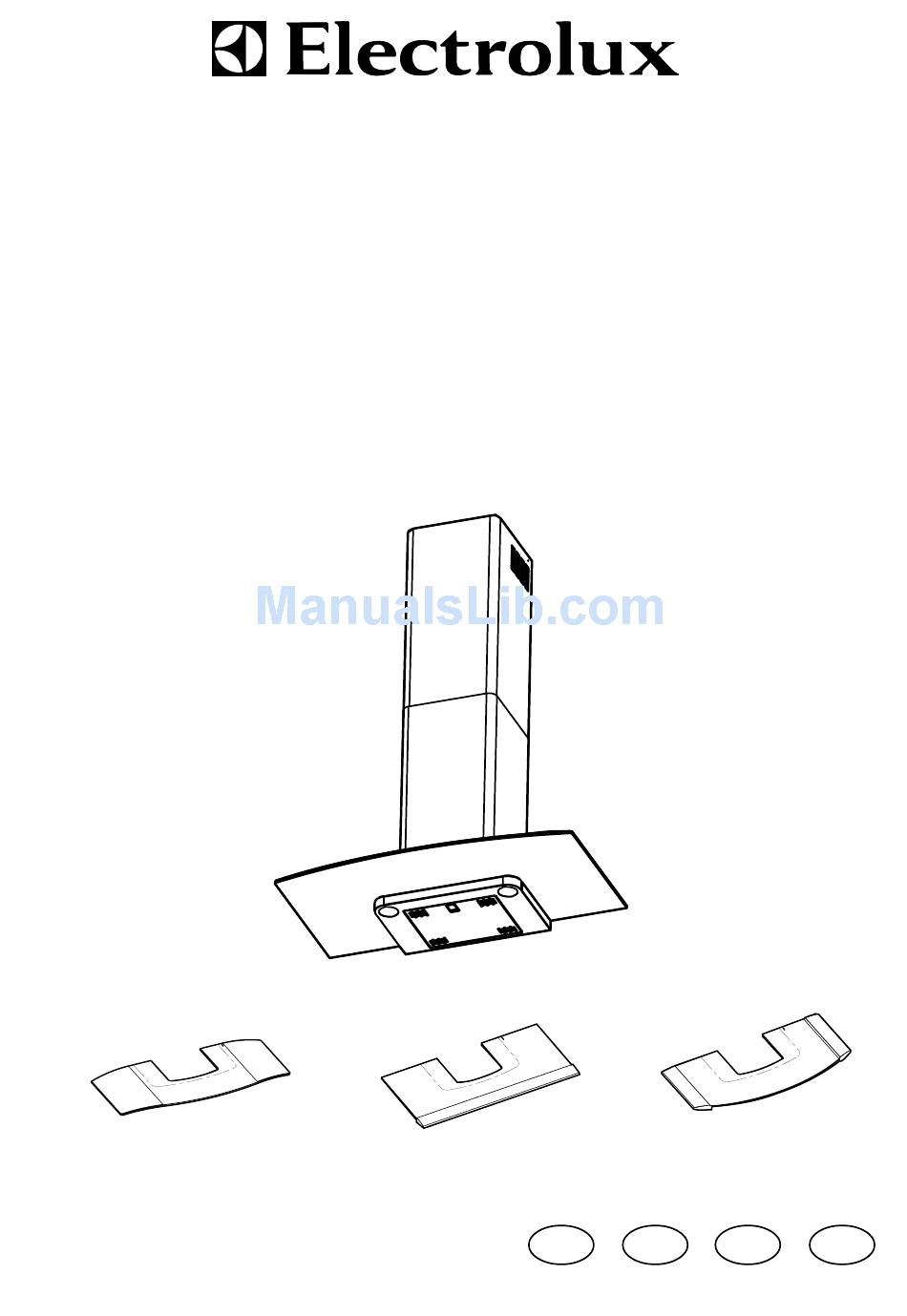

- Page 1 Gebrauchsanweisung , Notice d'utilisation et d'installation EFC 6940 Istruzioni per l'uso , User manual SM 8090 SM 8060 SM 8091 SM 8093 SM 8092 SM 8062...
-
Page 2: Table Of Contents
Contents Safety warnings for the installer for the user Description of the appliance Extractor version Filter Version Control Panel Switching on the hood Switching on the light Control device for grease filter Led signal for grease filter Led signal for charcoal filter Resetting the saturation indicator Correct ventilation Maintenance and care... -
Page 3: Safety Warnings
Safety warnings for the installer is to say a larger hole, could reduce the perfor- mance of the extractor hood. • When used as an extractor unit, the hood must • If the hood is used in its filtering function, it will be fitted with a 150mm diameter hose. -
Page 4: Description Of The Appliance
• The air is filtered through a charcoal filter and returned to the kitchen through the top grill of the outlet pipe. • You will need an original ELECTROLUX KF20 charcoal filter for the filtering function. (See Special Accessories). • Fix the deflector using 4 screws Ø 2,9x6.5 mm. -
Page 5: Control Panel
Control Panel • The hood is fitted with one motor having several speed. Turn the hood on a few minutes before you start cooking, you will then get an under pressure in the kitchen. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared. -
Page 6: Maintenance And Care
Maintenance and care The hood must always be disconnected from the electricity supply before beginning any maintenance work. Cleaning Warning • Warning: always disconnect the hood from the mains power supply before cleaning it. • Failure to observe the instructions on cleaning Never insert pointed objects in the motor’s the unit and changing the filters will cause a fire protective grid. -
Page 7: Charcoal Filter
• The charcoal filter should only be used if you want to use the hood in its filtering function. • To do this you will need an original ELECTROLUX charcoal filter (see special accessories). • Cleaning/replacing the carbon filter Unlike other carbon filters, the LONGLIFE charcoal filter can be cleaned and reactivated. -
Page 8: Technical Specifications
Technical Specifications Dimensions Height 66-112 cm (filter version 78-122) Width 89,8 cm (59,8 with vapour screen SM 8060 or SM 8062) Depth 50 cm Lighting 2 x 20 W Grease filter power absorption 210 W We reserve the right to generate constructive and chromatic modifications as required by technological growth. Special accessories Charcoal filter KF20 942 120 600... -
Page 9: Mounting Accessories Included
Installation Mounting accessories included 1 deflector 1 chimney support 1 reduction flange Ø 125-120 mm 1 support bracket 5 wood-screws 5 x 45 mm 5 wall plugs Ø 8 mm 8 metal screws 2,9 x 6,5 4 metal screws 4 x 20 Wall unit mounting - Fig. - Page 10 Installation Fig. 8...
-
Page 11: Special Accessories/Vapour Screen
Sonderzubehör/Wrasenschirm Accessoires/Séparateur de vapeur Accessori speciali/Mantelli in vetro Special accessories/Vapour screen SM 8090 (A = 90cm)- E-Nr. 942 120 654 SM 8060 (A = 60cm)- E-Nr. 942 120 700 SM 8091 - E-Nr. 942 120 655 SM 8092 (A = 90cm)- E-Nr. 942 120 656 SM 8062 (A = 60cm)- E-Nr. - Page 13 KUNDENDIENST Servicestellen Points de service Servizio dopo vendita Zürich/Mägenwil 1028 Préverenges 6916 Grancia 5506 Mägenwil Le Trési 6 Zona Industriale E Industriestr. 10 9000 St. Gallen 1950 Sion Vonwilstrasse 15 Rue de la Piscine 4127 Birsfelden Hauptstrasse 52 8604 Volketswil Hözliwiesenstrasse 12 6032 Emmen Buholzstrasse 1...
