Connections

REAR A/V CONNECTIONS

You can watch or record from an external source (such as a VCR or cable box) connected to the rear panel
Audio/Video inputs.
Use either S-Video or Video cable
NOTE
Refer to the owner's manual of your external source if necessary.
Turn off the power and unplug your external source and DVD recorder before making connections.

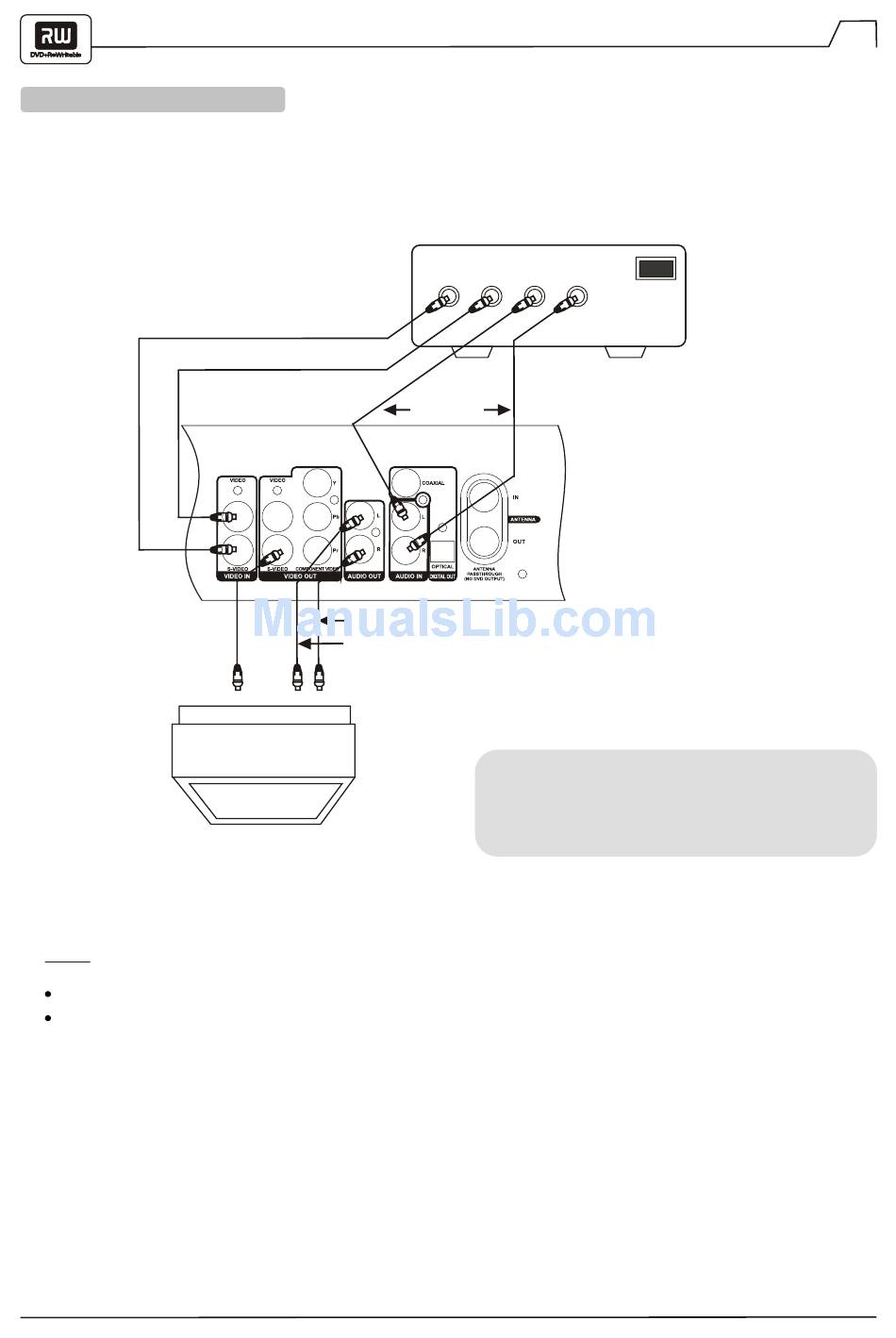

DVD recorder
Audio
Video
cables
cable
(L, R)
Signal output
TV
External Source
S-VIDEO VIDEO AUDIO OUT
OUT OUT LEFT RIGHT
Audio cables
(left, right)
Connect your recorder with an S-Video cable (not
included) if your external Source is equipped with
an S-Video input. Do not connect the yellow video
cable when using an S-Video cable.
