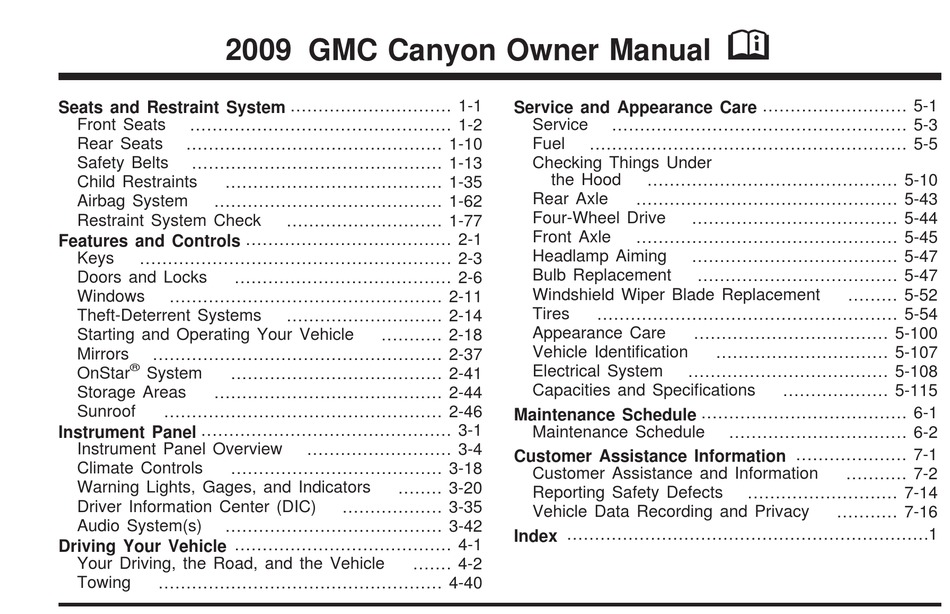

Page 1 2009 GMC Canyon Owner Manual Seats and Restraint System ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-10 Safety Belts ... 1-13 Child Restraints ... 1-35 Airbag System ... 1-62 Restraint System Check ... 1-77 Features and Controls ... 2-1 Keys ...
Page 2: Canadian Owners
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for GMC wherever it appears in this manual. This manual describes features that may or may not be on your speciﬁc vehicle.
Page 3 Safety Warnings and Symbols A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this” or “Do not let this happen.” A box with the word CAUTION is used to tell about things that could hurt you or others if you were to ignore the warning.
Page 4 Vehicle Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a speciﬁc component, control, message, gage, or indicator. : This symbol is shown when you need to see your owner manual for additional instructions or information.
Page 5: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Power Seats ...1-3 Manual Lumbar ...1-3 Power Lumbar ...1-4 Heated Seats ...1-4 Reclining Seatbacks ...1-5 Head Restraints ...1-8 Seatback Latches ...1-9 Rear Seats ...1-10 Rear Seat Operation (Extended Cab) ...1-10 Rear Seat Operation (Crew Cab) ...1-11 Safety Belts ...1-13 Safety Belts: They Are for Everyone ...1-13 How to Wear Safety Belts Properly ...1-18...
Page 6: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 7: Power Seats
Power Seats If the vehicle has power seats, the controls used to operate them are located on the outboard side of the seats. To adjust the seat: • Move the seat forward or rearward by sliding the horizontal control forward or rearward. •...
Page 8: Power Lumbar
Power Lumbar If the vehicle has this feature, the control is located on the outboard side of the seat(s). Press and hold the front of the control until you have the desired lumbar support. To decrease lumbar support, press and hold the rear of the control. Heated Seats If the vehicle has this feature, the controls are...
Page 9: Reclining Seatbacks
Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 10: Power Reclining Seatbacks
To recline the seatback: 1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright position: 1.
Page 11 CAUTION: Sitting in a reclined position when the vehicle is in motion can be dangerous. Even if when buckled up, the safety belts cannot do their job when reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 12: Head Restraints
Head Restraints The front seats may have adjustable head restraints. If the vehicle has rear seats, they may have adjustable head restraints. Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head.
Page 13: Seatback Latches
Seatback Latches The vehicle may have front seatbacks that fold forward for easy access to the rear seats or the storage area behind the seats. To fold the seatback forward, push the lever on the side of the seat rearward and pull the seatback forward.
Page 14: Rear Seats
Rear Seats Rear Seat Operation (Extended Cab) If the vehicle has an extended cab, there may be forward folding seats in the rear area. To fold the rear seat cushion(s) from the stored position to the sitting position, pull the front of the seat cushion down completely.
Page 15: Rear Seat Operation (Crew Cab)
Rear Seat Operation (Crew Cab) The rear seatback(s) in the crew cab can be folded forward. Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.
Page 16 To return the seatback(s) to the upright position: 1. Lift the seatback(s) and push it into place. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
Page 17: Safety Belts: They Are For Everyone
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where a safety belt cannot be worn properly.
Page 18: Why Safety Belts Work
In most states and in all Canadian provinces, the law requires wearing safety belts. Here is why: You never know if you will be in a crash. If you do have a crash, you do not know if it will be a serious one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
Page 19 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop. 1-15...
Page 20 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield... 1-16...
Page 21: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I...
Page 22: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in a crash — even one that is not your fault — you and your passenger(s) can be hurt.
Page 23 Sit up straight and always keep your feet on the ﬂoor in front of you. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt.
Page 24 What is wrong with this? The shoulder belt is too loose. It will not give as much protection this way. 1-20 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 25 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 26 What is wrong with this? The belt is buckled in the wrong buckle. 1-22 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 27 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries.
Page 28 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-24 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 29 What is wrong with this? The belt is behind the body. CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 30 What is wrong with this? The belt is twisted across the body. 1-26 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 31: Lap-Shoulder Belt
Lap-Shoulder Belt All seating positions in the vehicle have a lap-shoulder belt except for the center front passenger position (if equipped), which has a lap belt. See Lap Belt on page 1-33 for more information. The following instructions explain how to wear a lap-shoulder belt properly.
Page 32 5. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. 1-28 To unlatch the belt, push the button on the buckle. The belt should return to its stowed position.
Page 33 Shoulder Belt Height Adjuster The vehicle has a shoulder belt height adjuster for the driver and right front passenger seating position. Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off the shoulder.
Page 34: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Your vehicle may have rear shoulder belt comfort guides for the rear outside positions. Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 35 2. Place the guide over the belt and insert the two 3. Be sure that the belt is not twisted and it lies ﬂat. edges of the belt into the slots of the guide. The elastic cord must be under the belt and the guide on top.
Page 36 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 37: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 38: Safety Belt Extender
To make the belt shorter, pull its free end as shown until the belt is snug. If the belt is not long enough, see Safety Belt Extender on page 1-34. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if necessary.
Page 39: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. The manufacturer’s instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: •...
Page 40 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 41 CAUTION: Never do this. Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt.
Page 42: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 43 CAUTION: Never do this. Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Never put a rear-facing child restraint in the CAUTION: (Continued) CAUTION: (Continued) right front seat. Secure a rear-facing child restraint in a rear seat.
Page 44 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 45: Child Restraint Systems
CAUTION: A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure.
Page 46 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window. 1-42 Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the...
Page 47: Securing The Child Within The Child Restraint
To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system.
Page 48: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint;...
Page 49: Lower Anchors And Tethers For Children (Latch)
CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the frontal airbags if they inﬂate. Never secure a child restraint in the center front seat. Secure a child restraint in a rear seat.
Page 50: Top Tether Anchor
Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 1-46 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 51 Some child restraints that have a top tether are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 52 For crew cab models, there are exposed metal lower anchors for each rear outboard seating position, located where the seatback meets the back of the seat cushion. For extended cab models with rear seats, there are exposed metal lower anchors for each rear seating position, attached to the back wall, near the seat cushion.
Page 53 Extended Cab — Rear Seat The top tether anchors in an extended cab model are located on the center of the back wall behind a removable cover for the rear seating positions. Be sure to use an anchor located nearest to the seating position where the child restraint will be placed.
Page 54: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the child restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Install a LATCH-type child restraint properly using the anchors, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with the child...
Page 55 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Buckle any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed.
Page 56 2.2. Route the top tether according to your child restraint instructions and the following instructions: If the position you are using has a ﬁxed headrest or head restraint and you are using a single tether, route the tether over the head restraint. If the position you are using has an adjustable headrest or head restraint...
Page 57 3. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts. Refer to your child restraint manufacturer instructions and the instructions in this manual.
Page 58 1.3. Attach the lower attachments on the child restraint to the lower anchors (D) in the vehicle. The child restraint instructions will show you how. 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor (C).
Page 59 2. If the child restraint manufacturer’s instructions recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor. Refer to the child restraint instructions and the following steps: 2.1. Pull the seatback forward to access the top tether anchor.
Page 60: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle. If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-45 for how to install your child restraint using LATCH.
Page 61 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 5. If your child restraint has a top tether, attach the top tether to the top tether anchor. See Lower Anchors and Tethers for Children (LATCH) on page 1-45.
Page 62: Securing A Child Restraint In The Center Front Seat Position
Securing a Child Restraint in the Center Front Seat Position CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the frontal airbags if they inﬂate. Never secure a child restraint in the center front seat. Secure a child restraint in a rear seat.
Page 63 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates and the passenger seat is in a forward...
Page 64 Do not secure a child seat in a position without a top tether anchor if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.
Page 65 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. If the vehicle does not have a rear seat and the child restraint manufacturer recommends using a top tether anchor, attach the top tether to the top tether anchor.
Page 66: Airbag System
If the airbag is off, the off indicator in the passenger airbag status indicator will come on and stay on when the vehicle is started. If a child restraint has been installed and on indicator is lit, see “If the On Indicator is Lit for a Child Restraint” under Passenger Sensing System on page 1-70 for more information.
Page 67 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Airbags are designed to work with safety belts, but do not replace them.
Page 68 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 69: Where Are The Airbags
Where Are the Airbags? The driver’s airbag is in the middle of the steering wheel. The right front passenger’s airbag is in the instrument panel on the passenger’s side. 1-65...
Page 70 Driver Side shown, Passenger Side similar If your vehicle has roof-rail airbags for the driver, right front passenger, and second row outboard passengers, they are in the ceiling above the side windows. 1-66 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 71: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? Frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inﬂate if the impact exceeds a predetermined deployment threshold.
Page 72: What Makes An Airbag Inﬂate
Your vehicle may or may not have roof-rail airbags. See Airbag System on page 1-62. Roof-rail airbags are intended to inﬂate in moderate to severe side crashes. Roof-rail airbags will inﬂate if the crash severity is above the system’s designed threshold level. The threshold level can vary with speciﬁc vehicle design.
Page 73: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize the airbags inﬂated. Roof-rail airbags may still be at least partially inﬂated for some time after they deploy. Some components of the airbag module may be hot for several minutes.
Page 74: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 75 According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. We recommend that children be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint;...
Page 76 The passenger sensing system is designed to turn off the right front passenger airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. • The system determines that a small child is present in a child restraint.
Page 77 If the On Indicator is Lit for a Child Restraint If a child restraint has been installed and the on indicator is lit: 1. Turn the vehicle off. 2. Remove the child restraint from the vehicle. 3. Remove any additional items from the seat such as blankets, cushions, seat covers, seat heaters, or seat massagers.
Page 78 If the Off Indicator is Lit for an Adult-Size Occupant If a person of adult-size is sitting in the right front passenger seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. 1-74 If this happens, use the following steps to allow the system to detect that person and enable the right front...
Page 79: Servicing Your Airbag-Equipped Vehicle
If the shoulder portion of the belt is pulled out all the way, the child restraint locking feature will be engaged. This may unintentionally cause the passenger sensing system to turn the airbag off for some adult size occupants. If this happens, let the belt go back all the way and start again.
Page 80: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to or change about the vehicle that could keep the airbags from working properly? Yes. If you add things that change the vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 81: Restraint System Check
Restraint System Check Checking the Restraint Systems Safety Belts Now and then, check the safety belt reminder light, safety belts, buckles, latch plates, retractors, and anchorages are all working properly. Look for any other loose or damaged safety belt system parts that might keep a safety belt system from doing its job.
Page 82: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as...
Page 83: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry (RKE) System ...2-4 Remote Keyless Entry (RKE) System Operation ...2-4 Doors and Locks ...2-6 Door Locks ...2-6 Power Door Locks ...2-7 Programmable Automatic Door Locks ...2-7 Rear Door Security Locks (Crew Cab) ...2-8 Lockout Protection ...2-8 Rear Doors (Extended Cab) ...2-9 Tailgate ...2-9...
Page 84 Section 2 Mirrors ...2-37 Manual Rearview Mirror ...2-37 Automatic Dimming Rearview Mirror ...2-37 Compass ...2-38 Outside Manual Mirrors ...2-39 Outside Power Mirrors ...2-40 Outside Convex Mirror ...2-40 Features and Controls ® OnStar System ...2-41 Storage Areas ...2-44 Glove Box ...2-44 Cupholders ...2-44 Center Console Storage ...2-44 Assist Handles ...2-44...
Page 85: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window.
Page 86: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System If this vehicle has the Remote Keyless Entry (RKE) system, it operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 87 UNLOCK: Press to unlock the driver door and turn on the interior lamps. The parking lamps may ﬂash and the horn may sound. Press UNLOCK again within three seconds and all of the doors unlock. LOCK: Press to lock all the doors. The parking lamps may ﬂash and the horn may sound.
Page 88: Doors And Locks
Battery Replacement Notice: When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter. To replace the battery: 1. Separate the transmitter with a ﬂat, thin object inserted in the slot between the covers of the transmitter housing.
Page 89: Power Door Locks
There are several ways to lock and unlock the vehicle. To lock or unlock the door from the outside, use the key in the driver or front passenger door or press the lock or unlock button on the Remote Keyless Entry (RKE) transmitter.
Page 90: Rear Door Security Locks (Crew Cab)
Rear Door Security Locks (Crew Cab) If the vehicle is a crew cab model, it may have rear door security locks. With this feature, the rear doors are locked so they cannot be opened from the inside. The rear door security lock is located on the inside edge of each rear door below the security...
Page 91: Rear Doors (Extended Cab)
Rear Doors (Extended Cab) To open a rear door, open the front door. Then, use the handle located on the front edge of the rear door panel to open it. The rear doors must be closed before closing the front door. Tailgate CAUTION: It is extremely dangerous to ride on the tailgate,...
Page 92: Removing The Tailgate
Removing the Tailgate To remove the tailgate: 1. With the tailgate fully open, lift up slightly on the entire tailgate assembly. 2. Remove the retaining cables from both sides of the tailgate by pulling the clips away from the bolt heads while pushing the cable bracket forward.
Page 93: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 94: Manual Windows
Manual Windows On a vehicle with manual windows, use the handle on each door to open and close each window. Power Windows CAUTION: Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move.
Page 95: Sliding Rear Window
Express-Down Windows The driver window has an express-down feature that allows the window to be lowered fully without continuously holding the switch. Press the front of the switch past the ﬁrst position to activate the express-down mode. The express-down mode can be canceled at any time by pulling up on the switch.
Page 96: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. This vehicle has theft-deterrent features, however, they do not make it impossible to steal. Content Theft-Deterrent If your vehicle has the Remote Keyless Entry (RKE) system, the vehicle has a content theft-deterrent alarm system.
Page 97: Passlock (U.s. Only)
Testing the Alarm To test the alarm: 1. From inside the vehicle, activate the system by locking the doors with the RKE transmitter. 2. Unlock the door with the manual door lock and open the door. This should set off the alarm. 3.
Page 98: Pass-Key Iii+ Electronic Immobilizer
® PASS-Key III+ Electronic Immobilizer The PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 99 If the engine still does not start with the other key, the vehicle needs service. If the vehicle does start, the ﬁrst key may be faulty. See your dealer/retailer who can service the theft-deterrent system and have a new key made. It is possible for the theft-deterrent system decoder to learn the transponder value of a new or replacement key.
Page 100: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: The vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Keep your speed at 55 mph (88 km/h) or less for the ﬁrst 500 miles (805 km).
Page 101: Retained Accessory Power (Rap)
(A) LOCK/OFF: This position locks the ignition. It also locks the transmission on automatic transmission vehicles. It locks the steering wheel on manual transmission vehicles. The key can on be removed in LOCK/OFF. On vehicles with an automatic transmission, the shift lever must be in P (Park) to turn the ignition switch to LOCK/OFF.
Page 102: Starting The Engine
Starting the Engine Place the transmission in the proper gear. Automatic Transmission Move the shift lever to P (Park) or N (Neutral). The engine will not start in any other position. To restart the vehicle when it is already moving, use N (Neutral) only.
Page 103: Engine Coolant Heater
Notice: Cranking the engine for long periods of time, by returning the key to the START position immediately after cranking has ended, can overheat and damage the cranking motor, and drain the battery. Wait at least 15 seconds between each try, to let the cranking motor cool down.
Page 104: Automatic Transmission Operation
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located in the engine compartment behind the underhood fuse block on the driver side of the vehicle. 3.
Page 105 There are several different positions for the shift lever. P (Park): This position locks the rear wheels. It is the best position to use when you start the engine because the vehicle cannot move easily. CAUTION: It is dangerous to get out of the vehicle if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set.
Page 106 N (Neutral): In this position, the engine does not connect with the wheels. To restart the engine when the vehicle is are already moving, use N (Neutral) only. CAUTION: Shifting into a drive gear while the engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, the vehicle could move very rapidly.
Page 107: Manual Transmission Operation
Manual Transmission Operation This is your shift pattern. Here is how to operate the manual transmission: 1 (First): Press the clutch pedal and shift into 1 (First). Then, slowly let up on the clutch pedal as you slowly press down on the accelerator pedal. You can shift into 1 (First) when you are going less than 20 mph (30 km/h).
Page 108: Four-Wheel Drive
Up-Shift Light This light will show you when to shift to the next higher gear for best fuel economy. When this light comes on, you can shift to the next higher gear if weather, road and traffic conditions permit. For the best fuel economy, accelerate slowly and shift when the light comes on.
Page 109 Notice: If the vehicle has four-wheel drive and the different size spare tire is installed on the vehicle, do not drive in four-wheel drive until you can have your ﬂat tire repaired and/or replaced. You could damage the vehicle, and the repair costs would not be covered by your warranty.
Page 110 Use these buttons to shift into and out of four-wheel drive. You can choose from the following: (Two-Wheel High): This setting is for driving in most street and highway situations. The front axle is not engaged in two-wheel drive. CAUTION: Shifting the transfer case to Neutral can cause the vehicle to roll even if the transmission is in P (Park), or if you have a manual transmission,...
Page 111 Shifting from Two-Wheel High to Four-Wheel High Press and release the Four-Wheel High button. This can be done at any speed, and the front axle will lock automatically. Shifting from Four-Wheel High to Two-Wheel High Press and release the Two-Wheel High button. This can be done at any speed, and the front axle will unlock automatically.
Page 112: Shifting To Neutral
Shifting to Neutral Use N (Neutral) when you plan to tow the vehicle. See Recreational Vehicle Towing on page 4-41 for towing instructions. To shift the transfer case into N (Neutral) do the following: 1. Set the parking brake. 2. Start the vehicle. 3.
Page 113: Parking Brake
Parking Brake The parking brake pedal is located to the left of the brake pedal, near the driver door. To set the parking brake, hold the brake pedal down, then push the parking brake pedal down to its fully-applied position. A chime will activate and the brake warning light, located on the instrument panel, will ﬂash when the parking brake is applied and the vehicle is moving at...
Page 114: Shifting Into Park (Automatic Transmission)
Shifting Into Park (Automatic Transmission) CAUTION: It can be dangerous to get out of the vehicle if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set. The vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 115 Leaving the Vehicle With the Engine Running (Automatic Transmission) CAUTION: It can be dangerous to leave the vehicle with the engine running. The vehicle could move suddenly if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 116: Shifting Out Of Park (Automatic Transmission)
Shifting Out of Park (Automatic Transmission) The vehicle has an automatic transmission shift lock control system. You have to fully apply the brake pedal before you can shift from P (Park) when the ignition is ON/RUN. See Automatic Transmission Operation on page 2-22.
Page 117: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under the vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. Engine Exhaust CAUTION: Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled.
Page 118: Running The Vehicle While Parked
Running the Vehicle While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle.
Page 119: Mirrors
Mirrors Manual Rearview Mirror Hold the inside rearview mirror in the center to move it for a clearer view behind your vehicle. Adjust the mirror to avoid glare from the headlamps behind you. Push the tab forward for daytime use and pull it for nighttime use.
Page 120: Compass
Temperature Display (On/Off): Press or depending on the mirror, press to turn the display on or off. To adjust between Fahrenheit and Celsius: 1. Press and hold for a few seconds. The current unit of measure (F or C) ﬂashes. 2.
Page 121: Outside Manual Mirrors
Compass Variance The mirror is set to zone eight. If you do not live in zone eight or drive out of the area, the compass variance needs to be changed to the appropriate zone. To adjust for compass variance: 1. Find your current location and variance zone number on the following zone map.
Page 122: Outside Power Mirrors
Outside Power Mirrors Vehicles with outside power mirrors have controls on the driver’s door armrest. To adjust the power mirrors: 1. Move the selector switch to the L (left) or R (right) to choose the driver’s or passenger mirror. 2. Press one of the four buttons located on the control pad to move the mirror to the desired direction.
Page 123: Onstar System
® OnStar System OnStar uses several innovative technologies and live advisors to provide a wide range of safety, security, information, and convenience services. If the airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 124 OnStar Services Available with the Safe & Sound Plan • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • Remote Door Unlock/Vehicle Alert •...
Page 125: Onstar Virtual Advisor
OnStar Virtual Advisor OnStar Virtual Advisor is a feature of OnStar Hands-Free Calling that uses minutes to access location-based weather, local traffic reports, and stock quotes. Press the phone button and give a few simple voice commands to browse through the various topics. See the OnStar Owner’s Guide for more information.
Page 126: Storage Areas
Storage Areas Glove Box Lift up on the glove box lever to open it. Cupholders This vehicle may have two cupholders located on the lower part of the front doors as well as two cupholders located at the front end of the console. Vehicles with bench seats may have cupholders attached to the front of the center seat.
Page 127: Rear Storage Area
Rear Storage Area Extended cab models might have storage compartments under the rear seats. To access the storage compartments, lift the cushion on the bottom of the rear seats. This exposes the storage boxes under the seat. To open a storage box, unhook the bottom and lift the two latches on each side of the storage box.
Page 128: Sunroof
Lift the lid from the center area to access the storage box. 2-46 Sunroof The vehicle may have a sunroof. The sunroof control buttons are located on the headliner. (Open/Vent): Press and hold this button to vent, and open the sunroof. Release the button when the desired position is reached.
Page 129 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-8 Windshield Washer ...3-9 Cruise Control ...3-10 Exterior Lamps ...3-12 Headlamps on Reminder ...3-13 Daytime Running Lamps (DRL) ...3-13 Automatic Headlamp System ...3-14...
Page 130 Section 3 Engine Coolant Temperature Gage ...3-29 Tire Pressure Light ...3-29 Malfunction Indicator Lamp ...3-30 Oil Pressure Light ...3-32 Security Light ...3-33 Cruise Control Light ...3-33 Highbeam On Light ...3-33 Fuel Gage ...3-34 Driver Information Center (DIC) ...3-35 DIC Operation and Displays ...3-35 DIC Warnings and Messages ...3-38 Instrument Panel Audio System(s) ...3-42...
Page 131 ✍ NOTES...
Page 132: Instrument Panel Overview
Instrument Panel Overview Manual Transmission shown, Automatic Transmission similar...
Page 133 The main components of the instrument panel are the following: A. Outlet Adjustment on page 3-20. B. Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster on page 3-21. D. Hazard Warning Flashers on page 3-6. E. Passenger Side Airbag. See Airbag System on page 1-62.
Page 134: Hazard Warning Flashers
Hazard Warning Flashers (Hazard Warning Flasher): Press this button located on the instrument panel, to make the front and rear turn signal lamps ﬂash on and off. This warns others that you are having trouble. Press again to turn the ﬂashers off. The turn signals do not work while the hazard warning ﬂashers are on.
Page 135: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: : Turn and Lane Change Signals : Headlamp High/Low-Beam Changer : Windshield Wipers : Windshield Washer : Cruise Control Flash-to-Pass. Information for these features is on the pages following. Turn and Lane-Change Signals An arrow on the instrument panel cluster ﬂashes in the...
Page 136: Headlamp High/Low-Beam Changer
Turn Signal On Chime If a turn signal is left on for more than 3/4 of a mile (1.2 km), a chime will sound at each ﬂash of the turn signal and the message TURN SIGNAL will also appear in the DIC. To turn the chime and message off, move the turn signal lever to the off position.
Page 137: Windshield Washer
Move the band to one of the following positions: (Mist): Move the band to mist, for a single wiping cycle and then release it. The wipers will stop after one wipe. Hold the band in this position for continuous wiping cycles. (Delay): For a delayed wiping cycle.
Page 138: Cruise Control
Cruise Control With cruise control, a speed of about 25 mph (40 km/h) or more can be maintained without keeping your foot on the accelerator. Cruise control does not work at speeds below about 25 mph (40 km/h). Cruise control will not work if the parking brake is set, or if the master cylinder brake ﬂuid level is low.
Page 139: Setting Cruise Control
Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 140: Exterior Lamps
Reducing Speed While Using Cruise Control • Press and hold until the lower speed desired is reached, then release it. • To slow down in very small amounts, brieﬂy press Passing Another Vehicle While Using Cruise Control Use the accelerator pedal to increase the vehicle speed. When you take your foot off the pedal, the vehicle slows down to the cruise control speed you set earlier.
Page 141: Headlamps On Reminder
(Exterior Lamps): Turn the knob, located to the right of this symbol, to choose one of the four exterior lamp positions. (Off): Turns off all exterior lamps including the Daytime Running Lamps (DRL). AUTO: Turns the headlamps on automatically at normal brightness, together with the following: •...
Page 142: Automatic Headlamp System
When the DRL are on, only the parking lamps or reduced intensity low beam headlamps will be on. The taillamps, sidemarkers, and other lamps will not be on. The instrument panel will not be lit up either. When it begins to get dark, the headlamps will automatically switch from DRL to the regular headlamps.
Page 143: Exterior Cargo Lamps
The parking lamps or low-beam headlamps must be on for the fog lamps to work. The fog lamps will go off whenever the high-beam headlamps come on. When the high beams go off, the fog lamps come on again. Some localities have laws that require the headlamps to be on along with the fog lamps.
Page 144: Dome Lamp Override
Dome Lamp Override The dome lamp override button is located below the exterior lamps control. (Dome Lamp Override): Press this button in to make the dome lamps remain off when the doors are open. To return the lamps to automatic operation, press again and return it to the out position.
Page 145: Battery Run-Down Protection
LOW BATTERY. If this message is displayed, it is recommended that the driver reduce the electrical loads as much as possible. See DIC Warnings and Messages on page 3-38. Battery Run-Down Protection This feature shuts off the dome lamp if it is left on for more than 20 minutes when the ignition is in LOCK/OFF.
Page 146: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter The vehicle may have a removable ashtray and cigarette lighter. The ashtray is located in the center console area. The ashtray can be removed for cleaning. When the ashtray is removed, this area can also be used as a cupholder.
Page 147 If the knob is set on “0” (zero), some outside air will still enter the vehicle and will be directed according to the position of the mode knob. Air Delivery Mode Control: Turn the knob clockwise or counterclockwise to change the current airﬂow mode. Select from the following modes: (Vent): Air is directed to the instrument panel outlets.
Page 148: Outlet Adjustment
Outlet Adjustment Use the thumbwheel on the outlets to change the direction of the air ﬂow. Lift up or push down on the thumbwheel located in the center of the outlet to direct the air up or down, or slide the thumbwheel to the left or right to direct the airﬂow from side-to-side.
Page 149: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to show how the vehicle is running. It shows how fast the vehicle is going, about how much fuel has been used, and many other things needed to drive safely and economically. United States automatic transmission 2.9L version shown, Canada, manual transmission, 3.7L and 5.3L similar 3-21...
Page 150: Speedometer And Odometer
Speedometer and Odometer The speedometer shows the speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far the vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). The odometer mileage can be checked without the vehicle running by pressing the trip information stem.
Page 151: Safety Belt Reminders
Safety Belt Reminders Driver Safety Belt Reminder Light When the engine is started, a chime sounds for several seconds to remind the driver to fasten the safety belt, unless the driver safety belt is already buckled. The driver safety belt light comes on and stays on for several seconds, then ﬂashes for several more.
Page 152: Airbag Readiness Light
Airbag Readiness Light The system checks the airbag’s electrical system for possible malfunctions. If the light stays on it indicates there is an electrical problem. The system check includes the airbag sensor, the pretensioners, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 153: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator The vehicle has a passenger sensing system. See Passenger Sensing System on page 1-70 for important safety information. The instrument panel has a passenger airbag status indicator. United States When the vehicle is started, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 154: Charging System Light
Charging System Light This light comes on brieﬂy when the ignition key is turned to START, but the engine is not running, as a check to show it is working. If it does not, have the vehicle serviced by your dealer/retailer.
Page 155: Brake System Warning Light
Brake System Warning Light The vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop the vehicle. For good braking though, both parts need to be working well. If the warning light comes on, there could be a brake problem.
Page 156: Antilock Brake System (Abs) Warning Light
Antilock Brake System (ABS) Warning Light The Antilock Brake System (ABS) light comes on brieﬂy when the engine is started. If it does not, have the vehicle serviced by your dealer/retailer. If the system is working normally the indicator light then goes off. If the ABS light stays on, turn the ignition off.
Page 157: Engine Coolant Temperature Gage
® See StabiliTrak System on page 4-6, Traction Control System (TCS) on page 4-8 and DIC Warnings and Messages on page 3-38 for more information. Engine Coolant Temperature Gage This gage shows the engine coolant temperature. If the gage pointer is near the top of the gage, the engine is too hot.
Page 158: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors operation of the fuel, ignition, and emission control systems. It ensures that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 159 To prevent more serious damage to the vehicle: • Reduce vehicle speed. • Avoid hard accelerations. • Avoid steep uphill grades. • If towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light continues to ﬂash, when it is safe to do so, stop the vehicle.
Page 160: Oil Pressure Light
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on the vehicle. Failure to pass this inspection could prevent getting a vehicle registration. Here are some things to know to help the vehicle pass an inspection: •...
Page 161: Security Light
This light comes on brieﬂy while starting the engine. If it does not, have the vehicle serviced by your dealer/retailer. If the system is working normally the indicator light then goes off. If the light comes on and stays on, it means that oil is not ﬂowing through the engine properly.
Page 162: Fuel Gage
Fuel Gage When the ignition is on, the fuel gage shows how much fuel the vehicle has remaining in the fuel tank. An arrow on the fuel gage indicates the side of the vehicle the fuel door is on. 3-34 Here are four things that some owners ask about.
Page 163: Driver Information Center (Dic)
Driver Information Center (DIC) The Driver Information Center (DIC) displays information such as the trip odometer, personalization features, and warning messages. The DIC display is located on the instrument panel cluster. DIC Operation and Displays The Driver Information Center (DIC) comes on when the ignition is on.
Page 164: Automatic Door Locks
In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule in this manual. See Engine Oil on page 5-15 and Scheduled Maintenance on page 6-4 for more information. Language This feature allows you to choose the language in which the DIC display shows information.
Page 165 Lock 2: On vehicles with an automatic transmission, this mode locks all of the doors when the vehicle is shifted out of P (Park) and unlocks the driver’s door when the vehicle is shifted into P (Park). On vehicles with a manual transmission, this mode locks all of the doors when the vehicle speed is greater than 15 mph (24 km/h) and unlocks the driver’s door when the key is removed from the ignition.
Page 166: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another.
Page 167: Fuel Cap
DOORS This message displays when one or more of the doors is ajar. Check all the doors on your vehicle to make sure they are closed. The message clears from the display after all of the doors are closed. ENG (Engine) HOT This message displays when the engine coolant temperature is hot.
Page 168 This message displays when the oil pressure is low. See Oil Pressure Light on page 3-32 and Engine Oil on page 5-15 for more information. PARK BRK (Brake) This message displays when the parking brake is set. See Parking Brake on page 2-31 and Brake System Warning Light on page 3-27 for more information.
Page 169: Turn Signal
SERVICE CHARG (Charge) SYS (System) This message displays if there is a problem with the battery charging system. Under certain conditions, the battery warning light may also turn on in the instrument panel cluster. See Charging System Light on page 3-26. The battery will not be charging at an optimal rate and the vehicle will lose the ability to enter the fuel economy mode.
Page 170: Audio System(S)
Audio System(s) Determine which radio the vehicle has and read the following pages to become familiar with its features. CAUTION: Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others. Do not give extended attention to entertainment tasks while driving.
Page 171: Setting The Clock
The vehicle has Retained Accessory Power (RAP). With RAP, the audio system can be played even after the ignition is turned off. See Retained Accessory Power (RAP) on page 2-19 for more information. Setting the Clock AM-FM Radio Press and hold HR until the correct hour displays. Press and hold MIN until the correct minute displays.
Page 172: Radio(S)
Radio(s) AM-FM Radio Radio with CD (MP3/WMA) 3-44 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
Page 173: Playing The Radio
Playing the Radio PWR (Power): Press to turn the system on and off. VOL/VOLUME: Turn to increase or to decrease the volume. RCL (Recall) (AM-FM Radio): Press to switch the display between the radio station frequency, band, and the time. When the ignition is off, press to display the time.
Page 174: Finding A Station
Finding a Station AM FM (AM-FM Radio): Press to switch between FM1, FM2, or AM. The selection displays. BAND: Press to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The selection displays. TUNE: Turn to select radio stations. SEEK : Press to go to the previous or to the next station and stay there.
Page 175 4. Press and hold one of the six numbered pushbuttons until the radio beeps once. When that numbered pushbutton is pressed again, the station that was stored, returns. 5. Repeat the steps for each pushbutton. Setting the Tone (Bass/Treble) AUDIO: Push and release until BASS/TREB, or depending on the radio, BASS, MID, or TREB displays.
Page 176: Adjusting The Speakers (Balance/Fade)
Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push and release until BAL (balance) displays. Turn to move the sound toward the right or the left speakers. • For the AM-FM Radio, press and hold the arrows to move the sound toward the right or the left speakers.
Page 177: Rds And Xm
Finding a Program Type (PTY) Station (RDS and XM) To select and ﬁnd a desired PTY perform the following: 1. Press the P-TYPE to activate program type select mode. P-TYPE or TYPE and a PTY displays. 2. Turn the P-TYPE knob again, to select a PTY. 3.
Page 178: Rds Messages
RDS Messages ALERT!: For the Radio with CD, the Alert feature warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! displays. The announcement is heard, even if the volume is low or a CD is playing. If a CD is playing, play stops during the announcement.
Page 179: Radio Messages
Radio Messages CAL ERR or CAL (Calibration Error): The audio system has been calibrated for the vehicle from the factory. If CAL or CAL ERR displays it means that the radio has not been conﬁgured properly for the vehicle and it must be returned to your dealer/retailer for service.
Page 180 Care of Your CDs If playing a CD-R, the sound quality can be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. Handle them carefully. Store CD-R(s) in their original cases or other protective cases and away from direct sunlight and dust.
Page 181 4 FWD (Fast Forward): Press and hold to advance quickly within a track. Press and hold for less than two seconds to advance at six times the normal playing speed. Press and hold for more than two seconds to advance at 17 times the normal playing speed. Release to play the passage.
Page 182: Using An Mp3
CD Messages CHECK CD: If this message displays and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 183 The player is able to read and play a maximum of 253 folders, 50 playlists, 20 sessions, and 949 ﬁles. Long ﬁle names, folder names, or playlist names may use more disc memory space than necessary. To conserve space on the disc, minimize the length of the ﬁle, folder, or playlist names.
Page 184: Playing An Mp3/Wma
Order of Play Tracks are played in the following order: • Play begins from the ﬁrst track in the ﬁrst playlist and continues sequentially through all tracks in each playlist. When the last track of the last playlist has played, play continues from the ﬁrst track of the ﬁrst playlist.
Page 185 If the ignition or radio is turned off with a CD in the player it stays in the player. When the ignition or radio is turned on, the CD starts to play where it stopped, if it was the last selected audio source. As each new track starts to play, the track number displays.
Page 186 SEEK : Press the left SEEK arrow to go to the start of the previous track. Press the right SEEK arrow to go to the start of the next track. Pressing either SEEK arrow for more than two seconds searches the previous or next tracks at two tracks per second.
Page 187: Xm Radio Messages
XM Radio Messages XL (Explicit Language Channels): These channels, or any others, can be blocked at a customer’s request, by calling 1-800-852-XMXM (9696). Updating: The encryption code in the receiver is being updated, and no action is required. This process should take no longer than 30 seconds.
Page 188: Theft-Deterrent Feature
Theft-Deterrent Feature Non-RDS Radios ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it does not operate and LOC displays. ®...
Page 189: Fixed Mast Antenna
XM Satellite Radio Service XM Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out.
Page 190 ✍ NOTES 3-62...
Page 191: Driving Your Vehicle
Section 4 Your Driving, the Road, and the Vehicle ...4-2 Driving for Better Fuel Economy ...4-2 Defensive Driving ...4-2 Drunk Driving ...4-3 Control of a Vehicle ...4-3 Braking ...4-4 Antilock Brake System (ABS) ...4-5 Braking in Emergencies ...4-6 ® StabiliTrak System ...4-6 Traction Control System (TCS) ...4-8 Limited-Slip Rear Axle ...4-9...
Page 192: Your Driving, The Road, And The Vehicle
Your Driving, the Road, and the Vehicle Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. • Avoid fast starts and accelerate smoothly. • Brake gradually and avoid abrupt stops. •...
Page 193: Drunk Driving
Drunk Driving CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Do not drink and drive or ride with a driver who has been drinking.
Page 194: Braking
Braking See Brake System Warning Light on page 3-27. Braking action involves perception time and reaction time. Deciding to push the brake pedal is perception time. Actually doing it is reaction time. Average reaction time is about three-fourths of a second. But that is only an average.
Page 195: Antilock Brake System (Abs)
Antilock Brake System (ABS) This vehicle has the Antilock Brake System (ABS), an advanced electronic braking system that will help prevent a braking skid. When the engine is started and the vehicle begins to drive away, ABS checks itself. A momentary motor or clicking noise might be heard while this test is going on.
Page 196: Brake Assist
Using ABS Do not pump the brakes. Just hold the brake pedal down ﬁrmly and let antilock work. The brakes might vibrate or some noise might be heard, but this is normal. Braking in Emergencies ABS allows the driver to steer and brake at the same time.
Page 197 If there is a problem detected with StabiliTrak, a SERVICE STAB SYS message displays on the Driver Information Center (DIC). See DIC Warnings and Messages on page 3-38 for more information. When this message is displayed, the system is not working. Adjust your driving accordingly.
Page 198: Traction Control System (Tcs)
To turn off TCS and StabiliTrak, press and hold the StabiliTrak/TCS button until the TRAC OFF and STAB SYS OFF messages come on the DIC and the StabiliTrak/TCS light comes on the instrument panel. To turn TCS and StabiliTrak back on, press and release the StabiliTrak/TCS button.
Page 199: Power Steering
The message TRACTION FAULT appears in the Driver Information Center (DIC) when a TCS or Antilock Brake System (ABS) problem has been detected and the vehicle needs service. When this message is on, the system will not limit wheel spin. Adjust your driving accordingly.
Page 200: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 201: Off-Road Recovery
Off-Road Recovery The vehicle’s right wheels can drop off the edge of a road onto the shoulder while driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 202: Off-Road Driving
Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems.
Page 203 Drinking and driving can be very dangerous on any road and this is certainly true for off-road driving. At the very time you need special alertness and driving skills, your reﬂexes, perceptions, and judgment can be affected by even a small amount of alcohol. You could have a serious —...
Page 204 Loading Your Vehicle for Off-Road Driving CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks.
Page 205: Environmental Concerns
Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads, and areas that have been specially set aside for public off-road recreational driving and obey all posted regulations.
Page 206: Scanning The Terrain
Getting Familiar with Off-Road Driving It is a good idea to practice in an area that is safe and close to home before you go into the wilderness. Off-roading requires some new and different skills. Tune your senses to different kinds of signals. Your eyes need to constantly sweep the terrain for unexpected obstacles.
Page 207: Driving On Hills
Surface Obstacles: Unseen or hidden obstacles can be hazardous. A rock, log, hole, rut, or bump can startle you if you are not prepared for them. Often these obstacles are hidden by grass, bushes, snow, or even the rise and fall of the terrain itself. Some things to consider: •...
Page 208: Approaching A Hill
Approaching a Hill When you approach a hill, decide if it is too steep to climb, descend, or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top.
Page 209 • Attach a ﬂag to the vehicle to be more visible to approaching traffic on trails or hills. • Sound the horn as you approach the top of the hill to let opposing traffic know you are there. • Use headlamps even during the day to make the vehicle more visible to oncoming traffic.
Page 210 Things not to do if the vehicle stalls, or is about to stall, when going up a hill: • Never attempt to prevent a stall by shifting into N (Neutral), or pressing the clutch pedal if the vehicle has a manual transmission, to rev-up the engine and regain forward momentum.
Page 211: Driving Downhill
Driving Downhill When off-roading takes you downhill, consider: • How steep is the downhill? Will I be able to maintain vehicle control? • What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? • Are there hidden surface obstacles? Ruts? Logs? Boulders? •...
Page 212: Driving Across An Incline
Driving Across an Incline An off-road trail will probably go across the incline of a hill. To decide whether to try to drive across the incline, consider the following: CAUTION: Driving across an incline that is too steep will make your vehicle roll over. You could be seriously injured or killed.
Page 213: Stalling On An Incline
Stalling on an Incline CAUTION: Getting out on the downhill (low) side of a vehicle stopped across an incline is dangerous. If the vehicle rolls over, you could be crushed or killed. Always get out on the uphill (high) side of the vehicle and stay well clear of the rollover path.
Page 214: Driving In Water
Driving in Water CAUTION: Driving through rushing water can be dangerous. Deep water can sweep your vehicle downstream and you and your passengers could drown. If it is only shallow water, it can still wash away the ground from under your tires, and you could lose traction and roll the vehicle over.
Page 215: Driving At Night
Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
Page 216: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep-standing or ﬂowing water.
Page 217: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 218: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep the vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 219: Winter Driving
Winter Driving Driving on Snow or Ice Drive carefully when there is snow or ice between the tires and the road, creating less traction or grip. Wet ice can occur at about 32°F (0°C) when freezing rain begins to fall, resulting in even less traction. Avoid driving on wet ice or in freezing rain until roads can be treated with salt or sand.
Page 220 Blizzard Conditions Being stuck in snow can be in a serious situation. Stay with the vehicle unless there is help nearby. If possible, use the Roadside Assistance Program on page 7-7. To get help and keep everyone in the vehicle safe: •...
Page 221: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
To save fuel, run the engine for only short periods as needed to warm the vehicle and then shut the engine off and close the window most of the way to save heat. Repeat this until help arrives but only when you feel really uncomfortable from the cold.
Page 222: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out Turn the steering wheel left and right to clear the area around the front wheels. For four-wheel drive vehicles, shift into 4HI. Turn off any traction system. Shift back and forth between R (Reverse) and a forward gear, or with a manual transmission, between 1 (First) or 2 (Second) and R (Reverse), spinning the wheels as little as possible.
Page 223: Loading The Vehicle
Notice: Never use recovery hooks to tow the vehicle. Your vehicle could be damaged and it would not be covered by warranty. For vehicles with recovery hooks at the front of the vehicle, you can use them if you are stuck off-road and need to be pulled to some place where you can continue driving.
Page 224 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door latch post. 4-34 Vehicle’s without a center pillar, like extended cab models, will have the Tire and Loading Information label attached to the driver’s side extended cab...
Page 225 Steps for Determining Correct Load Limit Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 226 Example 1 Item Description Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) x 2 = Available Cargo Weight = 4-36 Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity...
Page 227 Example 3 Item Description Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) x 5 = Available Cargo Weight = Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 228 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 229 CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash. • Put things in the cargo area of your vehicle. Try to spread the weight evenly. • Never stack heavier things, like suitcases, inside the vehicle so that some of them are above the tops of the seats.
Page 230: Truck-Camper Loading Information
Add-On Equipment When you carry removable items, you may need to put a limit on how many people you carry inside your vehicle. Be sure to weigh your vehicle before you buy and install the new equipment. Notice Overloading your vehicle may cause damage.
Page 231: Recreational Vehicle Towing
Recreational Vehicle Towing Recreational vehicle towing means towing the vehicle behind another vehicle – such as behind a motorhome. The two most common types of recreational vehicle towing are known as dinghy towing and dolly towing. Dinghy towing is towing the vehicle with all four wheels on the ground.
Page 232 Four-Wheel Drive Vehicles Use the following procedure to dinghy tow a four-wheel-drive vehicle: 1. Position the vehicle being towed behind the tow vehicle. 2. Put an automatic transmission in P (Park) or a manual transmission in 1 (First). 3. Turn the engine off and ﬁrmly set the parking brake. See Parking Brake on page 2-31.
Page 233: Dolly Towing
Dolly Towing Front Towing (Front Wheels Off the Ground) Two-Wheel-Drive Vehicles Notice: If a two-wheel-drive vehicle is towed with the rear wheels on the ground, the transmission could be damaged. The repairs would not be covered by the vehicle warranty. Never tow the vehicle with the rear wheels on the ground.
Page 234 Four-Wheel-Drive Vehicles Use the following procedure to dolly tow a four-wheel-drive vehicle from the front: 1. Attach the dolly to the tow vehicle following the dolly manufacturer’s instructions. 2. Drive the front wheels onto the dolly. 3. Put an automatic transmission in P (Park) or a manual transmission in 1 (First).
Page 235 Rear Towing (Rear Wheels Off the Ground) Two-Wheel-Drive Vehicles Use the following procedure to dolly tow a two-wheel-drive vehicle from the rear: 1. Attach the dolly to the tow vehicle following the dolly manufacturer’s instructions. 2. Drive the rear wheels onto the dolly. 3.
Page 236 Four-Wheel-Drive Vehicles Use the following procedure to dolly tow a four-wheel-drive vehicle from the rear: 1. Attach the dolly to the tow vehicle following the dolly manufacturer’s instructions. 2. Drive the rear wheels onto the dolly. 3. Firmly set the parking brake. See Parking Brake on page 2-31.
Page 237: Towing A Trailer
Towing a Trailer CAUTION: The driver can lose control when pulling a trailer if the correct equipment is not used or the vehicle is not driven properly. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 238: Pulling A Trailer
Pulling A Trailer Here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure the rig will be legal, not only where you live but also where you will be driving. A good source for this information can be state or provincial police.
Page 239 Use the following chart to determine how much the vehicle can weigh, based upon the vehicle model and options. Vehicle 2WD Regular Cab 2.9L L4 Automatic Transmission 2.9L L4 Manual Transmission 3.7L L5 Automatic Transmission 2WD Extended Cab 2.9L L4 Automatic Transmission 2.9L L4 Manual Transmission 3.7L L5 Automatic Transmission 5.3L V8 Automatic Transmission...
Page 240 Vehicle 4WD Extended Cab 2.9L L4 Automatic Transmission 2.9L L4 Manual Transmission 3.7L L5 Automatic Transmission 5.3L V8 Automatic Transmission 5.3L V8 Automatic Transmission, ZQ8 Sport Suspension 4WD Crew Cab 3.7L L5 Automatic Transmission 5.3L V8 Automatic Transmission *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions.
Page 241: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total gross weight of the vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo carried in it, and the people who will be riding in the vehicle.
Page 242 Consider the following example: A vehicle model base weight is 5,500 lbs (2 495 kg); 2,800 lbs (1 270 kg) at the front axle and 2,700 lbs (1 225 kg) at the rear axle. It has a GVWR of 7,200 lbs (3 266 kg), a RGAWR of 4,000 lbs (1 814 kg) and a GCWR (Gross Combination Weight Rating) of 14,000 lbs (6 350 kg).
Page 243: Safety Chains
It is important that the vehicle does not exceed any of its ratings — GCWR, GVWR, RGAWR, Maximum Trailer Rating or Tongue Weight. The only way to be sure it is not exceeding any of these ratings is to weigh the vehicle and trailer.
Page 244: Driving With A Trailer
Driving with a Trailer CAUTION: When towing a trailer, exhaust gases may collect at the rear of the vehicle and enter if the liftgate, trunk/hatch, or rear-most window is open. Engine exhaust contains carbon monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death.
Page 245: Turn Signals When Towing A Trailer
Passing More passing distance is needed when towing a trailer. Because the rig is longer, it is necessary to go much farther beyond the passed vehicle before returning to the lane. Backing Up Hold the bottom of the steering wheel with one hand. Then, to move the trailer to the left, move that hand to the left.
Page 246: Parking On Hills
When towing at high altitude on steep uphill grades, consider the following: Engine coolant will boil at a lower temperature than at normal altitudes. If the engine is turned off immediately after towing at high altitude on steep uphill grades, the vehicle may show signs similar to engine overheating.
Page 247: Trailer Wiring Harness
Leaving After Parking on a Hill 1. Apply and hold the brake pedal while you: • Start the engine • Shift into a gear • Release the parking brake 2. Let up on the brake pedal. 3. Drive slowly until the trailer is clear of the chocks. 4.
Page 248 ✍ NOTES 4-58...
Page 249: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-4 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of the Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-6 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7...
Page 250 Section 5 Tires ...5-54 Tire Sidewall Labeling ...5-55 Tire Terminology and Deﬁnitions ...5-58 Inﬂation - Tire Pressure ...5-61 High-Speed Operation ...5-62 Tire Pressure Monitor System ...5-63 Tire Pressure Monitor Operation ...5-65 Tire Inspection and Rotation ...5-68 When It Is Time for New Tires ...5-69 Buying New Tires ...5-70 Different Size Tires and Wheels ...5-72 Uniform Tire Quality Grading ...5-72...
Page 251: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks: Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to the vehicle, they can affect vehicle performance and safety, including such things as airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like antilock brakes,...
Page 252: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 253: Adding Equipment To The Outside Of
If doing some of your own service work, use the proper service manual. It tells you much more about how to service the vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-15. This vehicle has an airbag system.
Page 254: Gasoline Speciﬁcations
Gasoline Speciﬁcations At a minimum, gasoline should meet ASTM speciﬁcation D 4814 in the United States or CAN/CGSB-3.5 or 3.511 in Canada. Some gasolines contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). We recommend against the use of gasolines containing MMT. See Additives on page 5-6 for additional information.
Page 255: Fuels In Foreign Countries
Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines might be available in your area. We recommend that you use these gasolines, if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 256: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off the engine when you are refueling.
Page 257 CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if the tank is nearly full, and is more likely in hot weather.
Page 258: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in the vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and the vehicle damaged if this occurs.
Page 259: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located inside the vehicle on the lower left side of the instrument panel. 2. Release the secondary latch on the hood. It is located below the front center of the hood.
Page 260: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.7L engine (2.9L engine similar), you will see the following: 5-12...
Page 261 A. Windshield Washer Fluid. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-35. B. Engine Coolant Recovery Tank. See Engine Coolant on page 5-28. C. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. D. Power Steering Fluid Reservoir (low in engine compartment).
Page 262 When you open the hood on the 5.3L engine, you will see the following: 5-14...
Page 263: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. B. Air Filter Restriction Indicator (If Equipped). See Engine Air Cleaner/Filter on page 5-20. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-35. D.
Page 264: When To Add Engine Oil
When to Add Engine Oil L4 and L6 Engines V8 Engine If the oil is below the cross-hatched area (L), add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-115.
Page 265: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for three things: • GM6094M Use only an oil that meets GM Standard GM6094M. • SAE 5W-30 SAE 5W-30 is best for the vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50.
Page 266: Engine Oil Life System
Cold Temperature Operation If you are in an area of extreme cold, where the temperature falls below −20°F (−29°C), use either an SAE 5W-30 synthetic oil or an SAE 0W-30 engine oil. Both provide easier cold starting for the engine at extremely low temperatures.
Page 267: How To Reset The Engine Oil Life System
If the system is ever reset accidentally, you must change the oil at 3,000 miles (5 000 km) since the last oil change. Remember to reset the oil life system whenever the oil is changed. How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and ﬁlter based on vehicle use.
Page 268: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/ﬁlter is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. 5-20 When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (80 000 km) interval.
Page 269: Automatic Transmission Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 270: Checking The Fluid Level
Get the vehicle warmed up by driving about 15 miles (24 km) when outside temperatures are above 50°F (10°C). If it is colder than 50°F (10°C), drive the vehicle in 3 (Third) until the engine temperature gage moves and then remains steady for 10 minutes. A cold ﬂuid check can be made after the vehicle has been sitting for eight hours or more with the engine off, but this is used only as a reference.
Page 271: How To Add Automatic Transmission Fluid
3. Check both sides of the dipstick, and read the lower level. The ﬂuid level must be in the COLD area, below the cross-hatched area, for a cold check or in the HOT or cross-hatched area for a hot check. Be sure to keep the dipstick pointed down to get an accurate reading.
Page 272: Manual Transmission Fluid
Manual Transmission Fluid When to Check A good time to check the manual transmission ﬂuid is when the engine oil is changed. However, the ﬂuid in the manual transmission does not require changing. How to Check Because this operation can be a little difficult, you may choose to have this done at your GM dealer/retailer service department.
Page 273: Hydraulic Clutch
How to Add Fluid Here is how to add ﬂuid. Refer to the Maintenance Schedule to determine what kind of ﬂuid to use. See Recommended Fluids and Lubricants on page 6-11. 1. Remove the ﬁller plug. 2. Add ﬂuid at the ﬁller plug hole. Add only enough ﬂuid to bring the ﬂuid level up to the bottom of the ﬁller plug hole.
Page 274: Cooling System
When to Check and What to Use Refer to the Maintenance Schedule to determine how often to check the ﬂuid level in the clutch master cylinder reservoir and for the proper ﬂuid. See Recommended Fluids and Lubricants on page 6-11. How to Check and Add Fluid The proper ﬂuid should be added if the level does not reach the bottom of the diaphragm when it is in place in...
Page 275 5.3L Engine A. Coolant Recovery Tank B. Radiator Pressure Cap C. Engine Cooling Fan CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan.
Page 276: Engine Coolant
Engine Coolant The cooling system in the vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in the vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst. The following explains the cooling system and how to check and add coolant when it is low.
Page 277: How To Add Coolant To The Recovery Tank
Checking Coolant The vehicle must be on a level surface when checking the coolant level. The coolant recovery tank cap has this symbol on it. It is located toward the rear of the engine compartment on the passenger side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location.
Page 278: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan. CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly.
Page 279 3. Fill the radiator with the proper DEX-COOL coolant mixture, up to the base of the ﬁller neck. See Engine Coolant on page 5-28 for more information about the proper coolant mixture. 4. Fill the coolant recovery tank to the FULL COLD mark.
Page 280: Engine Overheating
Engine Overheating The vehicle has a coolant temperature gage displayed on the instrument panel to warn if the engine is overheating. See Engine Coolant Temperature Gage on page 3-29. If the engine is too hot, the air conditioning might stop working. This is normal and helps cool the engine.
Page 281: If No Steam Is Coming From The Engine Compartment
If No Steam is Coming from the Engine Compartment If an engine overheat warning is displayed but no steam can be seen or heard, the problem may not be too serious. Sometimes the engine can get a little too hot when the vehicle: •...
Page 282: Power Steering Fluid
Power Steering Fluid The power steering ﬂuid reservoir is located near the front of the engine compartment, behind the radiator. See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 283: Windshield Washer Fluid
Windshield Washer Fluid What to Use When windshield washer ﬂuid is needed, be sure to read the manufacturer’s instructions before use. If operating the vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 284: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down: •...
Page 285: Checking Brake Fluid
Checking Brake Fluid Check brake ﬂuid by looking at the brake ﬂuid reservoir. See Engine Compartment Overview on page 5-12. The ﬂuid level should be above the PP mark. If it is not, have the brake hydraulic system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the PP mark but not over the MAX mark.
Page 286: Brake Adjustment
Brake Wear This vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time the vehicle is moving, except when applying the brake pedal ﬁrmly.
Page 287: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. The vehicle was designed and tested with top-quality brake parts. When parts of the braking system are replaced —...
Page 288: Jump Starting
Jump Starting If the vehicle battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 289 4. Open the hoods and locate the positive (+) and negative (−) terminal locations on the other vehicle. Your vehicle has a remote positive (+) and a remote negative (−) jump starting terminal. See Engine Compartment Overview on page 5-12 for more information on the terminal locations.
Page 290 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
Page 291: Rear Axle
Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 292: Four-Wheel Drive
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. The proper level is from 0 to 3/8 inch (0 mm to 10 mm) below the bottom of the ﬁller plug hole, located on the rear axle.
Page 293: Front Axle
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. A. Drain Plug B. Filler Plug If the level is below the bottom of the ﬁller plug hole, located on the transfer case, you’ll need to add some lubricant.
Page 294: What To Use
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. 5-46 If the level is below the bottom of the ﬁller plug hole, located on the front axle, you may need to add some lubricant.
Page 295: Headlamp Aiming
Headlamp Aiming Headlamp aim has been preset at the factory and should need no further adjustment. However, if your vehicle is damaged in a crash, the headlamp aim may be affected. Aim adjustment to the low-beam headlamps may be necessary if oncoming drivers ﬂash their high-beam headlamps at you (for vertical aim).
Page 296: Headlamps
Headlamps A. Low-Beam Headlamp/Daytime Running Lamps (DRL) B. High-Beam Headlamp To replace one of these bulbs: 1. Open the hood. See Hood Release on page 5-11. 2. Reach in and access the bulb sockets from inside the engine compartment. 5-48 3.
Page 297: Front Turn Signal, Parking And Daytime Running Lamps (Drl)
Front Turn Signal, Parking and Daytime Running Lamps (DRL) To replace one of these bulbs: 1. Open the hood. See Hood Release on page 5-11. 2. Reach in to access either one of the bulb sockets in the engine compartment. 3.
Page 298: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
Taillamps, Turn Signal, Stoplamps and Back-up Lamps A. Stoplamp/Taillamp B. Turn Signal/Taillamp C. Back-up Lamp 5-50 To replace one of these bulbs: 1. Open the tailgate. See Tailgate on page 2-9. 2. Remove the two rear lamp assembly screws near the tailgate latch. 3.
Page 299: License Plate Lamp
License Plate Lamp To replace one of these bulbs: 1. Reach under the rear bumper for the bulb socket. 2. Turn the bulb socket counterclockwise and pull the bulb socket out of the connector. 3. Pull the old bulb straight out from the bulb socket. 4.
Page 300: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Maintenance Replacement Parts on page 6-14.
Page 301 4. To install the new wiper insert, slide the insert (D), notched end last, into the end with two blade claws (A). Slide the insert all the way through the blade claws at the opposite end (B). The plastic caps (C) will be forced off as the insert is fully inserted.
Page 302: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. For additional information refer to the tire manufacturer.
Page 303: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger Vehicle Tire Example (A) Tire Size The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 304 (F) Uniform Tire Quality Grading (UTQG) manufacturers are required to grade tires based on three performance factors: treadwear, traction and temperature resistance. For more information see Uniform Tire Quality Grading on page 5-72. (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load.
Page 305 (E) Tire Inﬂation The temporary use tire or compact spare tire should be inﬂated to 60 psi (420 kPa). For more information on tire pressure and inﬂation see Inﬂation - Tire Pressure on page 5-61. (F) Tire Size A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type and service description.
Page 306: Tire Terminology And Deﬁnitions
(C) Aspect Ratio A two-digit number that indicates the tire height-to-width measurements. For example, if the tire size aspect ratio is 70, as shown in item C of the illustration, it would mean that the tire’s sidewall is 70 percent as high as it is wide.
Page 307 Curb Weight The weight of a motor vehicle with standard and optional equipment including the maximum capacity of fuel, oil, and coolant, but without passengers and cargo. DOT Markings A code molded into the sidewall of a tire signifying that the tire is in compliance with the U.S.
Page 308 Outward Facing Sidewall The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
Page 309: Inﬂation - Tire Pressure
Vehicle Placard A label permanently attached to a vehicle showing the vehicle’s capacity weight and the original equipment tire size and recommended inﬂation pressure. See “Tire and Loading Information Label” under Loading the Vehicle on page 4-33. Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively.
Page 310: High-Speed Operation
When to Check Check your tires once a month or more. Also check the tire pressure of the spare tire. If your vehicle has a compact spare tire, it should be at 60 psi (420 kPa). See Spare Tire on page 5-98 for additional information.
Page 311: Tire Pressure Monitor System
If your vehicle has P235/50R18 size tires, they will require inﬂation pressure adjustment when driving your vehicle at speeds of 100 mph (160 km/h) or higher. Set the cold inﬂation pressure to the maximum inﬂation pressure shown on the tire sidewall, or 35 psi (241 kPa), whichever is lower.
Page 312 Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will ﬂash for approximately one minute and then remain continuously illuminated.
Page 313: Tire Pressure Monitor Operation
Tire Pressure Monitor Operation This vehicle may have a Tire Pressure Monitor System (TPMS). The TPMS is designed to warn the driver when a low tire pressure condition exists. TPMS sensors are mounted onto each tire and wheel assembly on your vehicle, excluding the spare tire.
Page 314: Tpms Malfunction Light And Message
TPMS Malfunction Light and Message The TPMS will not function properly if one or more of the TPMS sensors are missing or inoperable. When the system detects a malfunction, the low tire warning light ﬂashes for about one minute and then stays on for the remainder of the ignition cycle.
Page 315 You have one minute to match the ﬁrst tire/wheel position, and ﬁve minutes overall, to match all four tire/wheel positions. If it takes longer than one minute, to match the ﬁrst tire and wheel, or more than ﬁve minutes to match all four tire and wheel positions, the matching process stops and you need to start over.
Page 316: Tire Inspection And Rotation
Tire Inspection and Rotation We recommend that you regularly inspect your vehicle’s tires, including the spare tire, for signs of wear or damage. See When It Is Time for New Tires on page 5-69 for more information. Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km).
Page 317: When It Is Time For New Tires
Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations on page 5-115. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time.
Page 318: Buying New Tires
You need new tires if any of the following statements are true: • You can see the indicators at three or more places around the tire. • You can see cord or fabric showing through the tire’s rubber. • The tread or sidewall is cracked, cut, or snagged deep enough to show cord or fabric.
Page 319 GM recommends replacing tires in sets of four. This is because uniform tread depth on all tires will help keep your vehicle performing most like it did when the tires were new. Replacing less than a full set of tires can affect the braking and handling performance of your vehicle.
Page 320: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover.
Page 321 While the tires available on General Motors passenger cars and light trucks may vary with respect to these grades, they must also conform to federal safety requirements and additional General Motors Tire Performance Criteria (TPC) standards. Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course.
Page 322: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 323: Used Replacement Wheels
Each new wheel should have the same load-carrying capacity, diameter, width, offset, and be mounted the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts, wheel nuts, or Tire Pressure Monitor System (TPMS) sensors, replace them only with new GM original equipment parts.
Page 324: Tire Chains
Tire Chains CAUTION: If your vehicle has P215/70R16, P235/75R16, P265/70R17, or P235/50R18 size tires, do not use tire chains. They can damage your vehicle because there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts.
Page 325: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 326: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on the hazard warning ﬂashers. See Hazard Warning Flashers on page 3-6. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 327: Removing The Spare Tire And Tools
When the vehicle has a ﬂat tire (B), use the following example as a guide to assist you in the placement of wheel blocks (A). A. Wheel Block B. Flat Tire The following information explains how to use the jack and change a tire.
Page 328 Regular/Extended Cab For regular and extended cab vehicles, the jack and wheel blocks are located under the cover at the center of the vehicle behind the front seats. 1. Turn the wing nut on the cover counterclockwise to remove it. 5-80 A.
Page 329: Crew Cab
Crew Cab For crew cab models, the jack and wheel blocks are located under the driver side rear seat. 1. Reach under the rear seat to access the jack and wheel blocks. 2. Turn the jack knob counterclockwise to lower the jack all the way and release it from the bracket.
Page 330 1. Assemble the wheel wrench (D), the jack handle extensions (A) and the jack handle (C) as shown. 5-82 2. Insert the chiseled end of the jack handle (C) at a slight angle through the hole in the rear bumper and into the funnel-shaped guide.
Page 331: Removing The Flat Tire And Installing The Spare Tire
4. Tilt the retainer when the tire has been lowered, and slide it up the cable so it can be pulled up through the wheel opening. 5. Put the spare tire near the ﬂat tire. Removing the Flat Tire and Installing the Spare Tire Use the following pictures and instructions to remove the ﬂat tire and raise the vehicle.
Page 332 2. Remove the center cap by placing the chisel end of the wheel wrench (E) into one of the slots on the wheel and gently prying the cap out. 5-84 3. Use the wheel wrench to loosen all the wheel nuts by turning it counterclockwise.
Page 333 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle. Front Position 4.
Page 334 Rear Position If the ﬂat tire is on the rear, position the jack under the rear axle and get as close as possible to the shock absorber. 5. Make sure the jack head is positioned so that the rear axle is resting securely between the grooves that are on the jack head.
Page 335 8. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. 9. Install the spare tire. CAUTION: Never use oil or grease on bolts or nuts because the nuts might come loose. The vehicle’s wheel could fall off, causing a crash. 10.
Page 336 Front Position Rear Position 11. Turn the wheel wrench counterclockwise to lower the vehicle. Lower the jack completely. 5-88...
Page 337 CAUTION: Incorrect or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to a crash. If you have to replace them, be sure to get new original equipment wheel nuts. Stop somewhere as soon as you can and have the nuts tightened with a torque wrench to the proper torque speciﬁcation.
Page 338: Secondary Latch System
Secondary Latch System Your vehicle has an underbody-mounted tire hoist assembly that has a secondary latch system. It is designed to stop the spare tire from suddenly falling off your vehicle. For the secondary latch to work, the spare must be installed with the valve stem pointing down. See Storing a Flat or Spare Tire and Tools on page 5-94.
Page 339 2. If the cable end ﬁtting is not visible, proceed to Step 6. If it is visible, ﬁrst try to tighten the cable by turning the wheel wrench clockwise until you hear two clicks or feel it skip twice. You cannot overtighten the cable. 3.
Page 340 8. Attach the jack handle, extension, and wheel wrench to the jack and place it (with the wheel blocks) under the vehicle towards the front of the rear bumper. Position the center lift point of the jack under the wheel. 9.
Page 341 CAUTION: Someone standing too close during the procedure could be injured by the jack. If the spare tire does not slide off the jack completely, make sure no one is behind you or on either side of you as you pull the jack out from the under spare.
Page 342: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.
Page 343 3. Assemble the wheel wrench, the jack handle extensions, and the jack handle as shown. 4. Insert the chiseled end of the jack handle at a slight angle through the hole in the rear bumper and into the funnel-shaped guide. 5.
Page 344 6. When the tire is properly seated to the underbody, continue turning the wheel wrench clockwise until you hear two clicks or feel it skip twice. You cannot overtighten the cable. 7. Make sure the tire is stored securely. Push, pull (A), and then try to turn (B) the tire.
Page 345 3. Lower the jack (A) all the way and insert the jack into the bracket. 4. Raise the jack by turning the handle clockwise to secure the jack within the bracket. 5. Put the cover in position and insert and tighten the wing nut to secure it.
Page 346: Spare Tire
Spare Tire Compact Spare Tire Your vehicle may have a compact spare tire. Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air over time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). Notice: If the vehicle has four-wheel drive and the compact spare tire is installed on the vehicle, do not drive in four-wheel drive until you can have the ﬂat...
Page 347 Full-Size Spare Tire Your vehicle may have a full-size spare tire, which, when new, was fully inﬂated. A spare tire may lose air over time, so check its inﬂation pressure regularly. See Inﬂation - Tire Pressure on page 5-61 and Loading the Vehicle on page 4-33 for information regarding proper tire inﬂation and loading your vehicle.
Page 348: Appearance Care
Appearance Care Interior Cleaning The vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on the upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces. Regular vacuuming is recommended to remove particles from the upholstery.
Page 349: Fabric/Carpet
• Laundry detergents or dishwashing soaps with degreasers can leave residue that streaks and attracts dirt. For liquid cleaners, about 20 drops per gallon (3.78 L) of water is a good guide. Use only mild, neutral-pH soaps. • Too much cleaner that saturates the upholstery. •...
Page 350: Leather
Leather A soft cloth dampened with water can be used to remove dust. If a more thorough cleaning is necessary, a soft cloth dampened with a mild soap solution can be used. Allow the leather to dry naturally. Do not use heat to dry. Never use steam to clean leather.
Page 351: Weatherstrips
Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather frequent application may be required. See Recommended Fluids and Lubricants on page 6-11. Washing Your Vehicle The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often.
Page 352: Finish Care
Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish. Approved cleaning products can be obtained from your dealer/retailer. If the vehicle has a basecoat/clearcoat paint ﬁnish, the clearcoat gives more depth and gloss to the colored basecoat.
Page 353: Aluminum Or Chrome-Plated Wheels And Trim
Aluminum or Chrome-Plated Wheels and Trim The vehicle may have either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 354: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on the vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on the vehicle.
Page 355: Chemical Paint Spotting
At least every spring, ﬂush these materials from the underbody with plain water. Clean any areas where mud and debris can collect. Dirt packed in close areas of the frame should be loosened before being ﬂushed. Your dealer/retailer or an underbody car washing system can do this.
Page 356: Service Parts Identiﬁcation Label
Engine Identiﬁcation The eighth character in the VIN is the engine code. This code helps identify the vehicle’s engine, speciﬁcations, and replacement parts. See “Engine Speciﬁcations” under Capacities and Speciﬁcations on page 5-115 for your vehicle’s engine code. Service Parts Identiﬁcation Label This label is on the inside of the glove box.
Page 357: Windshield Wiper Fuses
Windshield Wiper Fuses The windshield wiper motor is protected by a circuit breaker and a fuse. If the motor overheats due to heavy snow, etc., the wiper will stop until the motor cools. If the overload is caused by some electrical problem, have it ﬁxed.
Page 358 5-110...
Page 359 The trailer brake relay is located on the bottom side of the battery harness. Fuses Oxygen Sensors, Air Injection O2 SNSR Reactor (AIR) Relay Air Conditioning Control Head, Power Seats A/C CMPRSR Air Conditioning Compressor Fuses ABS 1 ABS 2 AUX PWR 1 AUX PWR 2 BCK/UP...
Page 360 Fuses Electronic Throttle Control (ETC) FOG/LAMP Fog Lamps (If Equipped) Front Park/Turn Lamps, Driver and FRT PRK Passenger Side Power Window LAMP Switches Lighting FRT/AXLE Front Axle Actuator FSCM Fuel System Control Module BACKUP LAMP Back Up Lamp HORN Horn HTD/SEAT Heated Seat (If Equipped) Ignition, Clutch Starter Switch,...
Page 361 Fuses Usage TRN/HAZRD Turn/Hazard/Courtesy/Cargo Lamps/Mirrors TRN/HAZRD Rear Turn/Hazard Lights REAR Vehicle Stability Enhancement VSES System Wiper Wiper/Washer Switch Relays Usage A/C CMPRSR Air Conditioning Compressor BEAM SEL Beam Selection Daylight Running Lamps FOG/LAMP Fog Lamps (If Equipped) BK UP LP Back Up Lamp HDLP Headlamps...
Page 362 2.9L and 3.7L 5-114 5.3L Fuses Usage Trailer Park Lamp Communication Interface Module Supplemental Inﬂatable Restraint System, Sensing and Diagnostic Module Trailer Auxiliary Maxi-Fuse...
Page 363: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate conversion capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-11 for more information. Application Air Conditioning Refrigerant R134a Cooling System 2.9L L4 Engine 3.7L L5 Engine 5.3L V8 Engine Engine Oil with Filter 2.9L L4 Engine 3.7L L5 Engine...
Page 364 Application Transmission (Drain and Reﬁll) Automatic Manual – Rear-Wheel Drive Manual – Four-Wheel Drive Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual. Recheck ﬂuid level after ﬁlling. Type 2.9L L4 3.7L L5...
Page 365 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-11...
Page 366: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements the vehicle warranties. See the Warranty and Owner Assistance booklet or your dealer/retailer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 367 Because of all the different ways people use their vehicles, maintenance needs vary. You might need more frequent checks and replacements. So please read the following and note how you drive. If you have any questions on how to keep the vehicle in good condition, see your dealer/retailer.
Page 368: Scheduled Maintenance
The proper replacement parts, ﬂuids, and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-11 and Maintenance Replacement Parts on page 6-14. When the vehicle is serviced, make sure these are used. All parts should be replaced and all necessary repairs done before you or anyone else drives the vehicle.
Page 369 Change engine oil and ﬁlter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-18. An Emission Control Service. Visually check for any leaks or damage. See footnote (g). Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-20.
Page 370: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 371: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect drum brake linings/shoes for wear or cracks. Inspect other brake parts, including drums, wheel cylinders, calipers, parking brake, etc.
Page 372: Engine Oil Level Check
(g) A ﬂuid loss in any vehicle system could indicate a problem. Have the system inspected and repaired and the ﬂuid level checked. Add ﬂuid if needed. (h) Change automatic transmission ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: −...
Page 373: At Least Once A Month
Engine Coolant Level Check Check the engine coolant level and add DEX-COOL coolant mixture if necessary. See Engine Coolant on page 5-28. Windshield Washer Fluid Level Check Check the windshield washer ﬂuid level in the windshield washer ﬂuid reservoir and add the proper ﬂuid if necessary.
Page 374: Ignition Transmission Lock Check
Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before starting this check, be sure there is enough room around the vehicle. It should be parked on a level surface.
Page 375: Recommended Fluids And Lubricants
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular brake, set the parking brake. • To check the parking brake’s holding ability: With the engine running and transmission in N (Neutral), slowly remove foot pressure from the regular brake pedal.
Page 376 Usage Fluid/Lubricant Windshield ® Optikleen Washer Solvent. Washer Chassis Lubricant (GM Part No. U.S. 12377985, Parking Brake in Canada 88901242) or lubricant Cable Guides meeting requirements of NLGI #2, Category LB or GC-LB. GM Power Steering Fluid Power Steering (GM Part No. U.S. 89021184, System in Canada 89021186).
Page 377 Usage Fluid/Lubricant Chassis Lubricant Constant (GM Part No. U.S. 12377985, Velocity in Canada 88901242) or lubricant Universal Joint meeting requirements of NLGI #2, Category LB or GC-LB. Hood Latch Assembly, Lubriplate Lubricant Aerosol Secondary (GM Part No. U.S. 12346293, Latch, Pivots, in Canada 992723) or lubricant Spring Anchor, meeting requirements of NLGI #2,...
Page 378: Maintenance Replacement Parts
Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Engine Oil Filter 2.9L L4 Engine 3.7L L5 Engine 5.3L V8 Engine Spark Plugs 2.9L L4 and 3.7L L5 Engines 5.3L V8 Engine Wiper Blades Driver Side —...
Page 379: Engine Drive Belt Routing
Engine Drive Belt Routing 5.3L Engine 2.9L and 3.7L Engines 6-15...
Page 380: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 381 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 382 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 383: Customer Assistance Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-5 Customer Assistance for Text Telephone (TTY) Users ...7-6 Customer Assistance Offices ...7-6 GM Mobility Reimbursement Program ...7-7 Roadside Assistance Program ...7-7 Scheduling Service Appointments ...7-10 Courtesy Transportation ...7-10 Collision Damage Repair ...7-11 Customer Assistance Information...
Page 384: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to GMC. Normally, any concerns with the sales transaction or the operation of the vehicle will be resolved by the dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 385 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you can ﬁle with the Better Business Bureau (BBB) Auto Line Program to enforce your rights.
Page 386 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps One and Two, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/ Arbitration Program.
Page 387: Online Owner Center
Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. • Access information about your speciﬁc vehicle, including tips and videos and an electronic version of this owner manual.
Page 388: Customer Assistance For Text Telephone (Tty) Users
1-800-263-3830.) Customer Assistance Offices GMC encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail GMC, the letter should be addressed to: United States GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 www.GMC.com...
Page 389: Gm Mobility Reimbursement Program
General Motors of Canada also has a Mobility Program. Call 1-800-GM-DRIVE (463-7483) for details. TTY users call 1-800-263-3830. Roadside Assistance Program For U.S. purchased vehicles, call 1-800-GMC-8782 (1-800-462-8782); (Text telephone (TTY): 1-888-889-2438). For Canadian purchased vehicles, call 1-800-268-6800. Service is available 24 hours a day, 365 days a year.
Page 390: Calling For Assistance
Roadside Assistance is not a part of the New Vehicle Limited Warranty. GMC and General Motors of Canada Limited reserve the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 391: Services Not Included In Roadside Assistance
• Battery Jump Start: Service is provided to jump start a dead battery. • Trip Routing Service: Detailed maps of North America are provided when requested either with the most direct route or the most scenic route. Additional travel information is also available. Allow three weeks for delivery.
Page 392: Scheduling Service Appointments
Scheduling Service Appointments When your vehicle requires warranty service, contact your dealer/retailer and request an appointment. By scheduling a service appointment and advising your service consultant of your transportation needs, your dealer/retailer can help minimize your inconvenience. If your vehicle cannot be scheduled into the service department immediately, keep driving it until it can be scheduled for service, unless, of course, the problem is safety-related.
Page 393: Collision Damage Repair
In addition, for U.S. customers, should you arrange transportation through a friend or relative, limited reimbursement for reasonable fuel expenses may be available. Claim amounts should reﬂect actual costs and be supported by original receipts. See your dealer for information regarding the allowance amounts for reimbursement of fuel or other transportation costs.
Page 394: Repair Facility
Collision Parts Genuine GM Collision parts are new parts made with the same materials and construction methods as the parts with which your vehicle was originally built. Genuine GM Collision parts are your best choice to ensure that your vehicle’s designed appearance, durability, and safety are preserved.
Page 395: If A Crash Occurs
If a Crash Occurs Here is what to do if you are involved in a crash. • Check to make sure that you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured. •...
Page 396: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 397: Reporting Safety Defects To The Canadian Government
Reporting Safety Defects to General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, please notify General Motors. Call 1-800-GMC-8782 (1-800-462-8782), or write: GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, call 1-800-263-3777 (English) or...
Page 398: Vehicle Data Recording And Privacy
Current and Past Model Order Forms Technical Service Bulletins and Manuals are available for current and past model GM vehicles. To request an order form, specify year and model name of the vehicle. ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Eastern Time For Credit Card Orders Only (VISA-MasterCard-Discover), visit Helm, Inc.
Page 399: Event Data Recorders
Event Data Recorders This vehicle has an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
Page 400: Onstar
® OnStar If your vehicle has OnStar and you subscribe to the OnStar services, please refer to the OnStar Terms and Conditions for information on data collection and ® use. See also OnStar System on page 2-41 in this manual for more information. Navigation System If your vehicle has a navigation system, use of the system may result in the storage of destinations,...
Page 401 Accessories and Modiﬁcations ... 5-3 Accessory Power Outlets ... 3-17 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-76 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-108 Air Cleaner/Filter, Engine ... 5-20 Air Conditioning ... 3-18 Airbag Passenger Status Indicator ... 3-25 Readiness Light ...
Page 402 Audio System (cont.) Setting the Clock ... 3-43 Theft-Deterrent Feature ... 3-60 XM™ Satellite Radio Antenna System ... 3-61 Audio System(s) ... 3-44 Automatic Headlamp System ... 3-14 Automatic Transmission Fluid ... 5-21 Operation ... 2-22 Battery ... 5-39 Electric Power Management ... 3-16 Run-Down Protection ...
Page 403 Check Engine Lamp ... 3-30 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ... 5-107 Child Restraints Child Restraint Systems ... 1-41 Infants and Young Children ... 1-38 Lower Anchors and Tethers for Children ... 1-45 Older Children ... 1-35 Securing a Child Restraint in a Rear Seat Position ...
Page 404 Customer Assistance Information (cont.) GM Mobility Reimbursement Program ... 7-7 Reporting Safety Defects to General Motors ... 7-15 Reporting Safety Defects to the Canadian Government ... 7-15 Reporting Safety Defects to the United States Government ... 7-14 Roadside Assistance Program ... 7-7 Service Publications Ordering Information ...
Page 405 Electronic Immobilizer ® PASS-Key III+ ... 2-16 Electronic Immobilizer Operation ® PASS-Key III+ ... 2-16 Engine Air Cleaner/Filter ... 5-20 Check and Service Engine Soon Lamp ... 3-30 Coolant ... 5-28 Coolant Heater ... 2-21 Coolant Temperature Gage ... 3-29 Drive Belt Routing ...
Page 406 Fuel (cont.) Filling a Portable Fuel Container ... 5-10 Filling the Tank ... 5-8 Fuels in Foreign Countries ... 5-7 Gage ... 3-34 Gasoline Octane ... 5-5 Gasoline Speciﬁcations ... 5-6 Fuses Engine Compartment Fuse Block ... 5-109 Fuses and Circuit Breakers ... 5-109 Windshield Wiper ...
Page 407 Horn ... 3-6 How to Wear Safety Belts Properly ... 1-18 Hydraulic Clutch ... 5-25 Ignition Positions ... 2-18 Infants and Young Children, Restraints ... 1-38 Inﬂation - Tire Pressure ... 5-61 Instrument Panel Brightness ... 3-15 Cluster ... 3-21 Overview ...
Page 408 Light (cont.) Security ... 3-33 ® StabiliTrak /Traction Control System (TCS) Warning Light ... 3-28 Tire Pressure ... 3-29 Up-Shift ... 3-26 Lighting Exit ... 3-16 Lights Exterior Lamps ... 3-12 Flash-to-Pass ... 3-8 High/Low Beam Changer ... 3-8 On Reminder ... 3-13 Limited-Slip Rear Axle ...
Page 409 Mirrors Automatic Dimming Rearview ... 2-37 Manual Rearview Mirror ... 2-37 Outside Convex Mirror ... 2-40 Outside Manual Mirrors ... 2-39 Outside Power Mirrors ... 2-40 MP3 ... 3-54 MyGMLink.com ... 7-5 Navigation System, Privacy ... 7-18 New Vehicle Break-In ... 2-18 Odometer ...
Page 410 Passenger Sensing System ... 1-70 Passing ... 4-11 ® PASS-Key III+ Electronic Immobilizer ... 2-16 ® PASS-Key III+ Electronic Immobilizer Operation ... 2-16 ® Passlock ... 2-15 Perchlorate Materials Requirements, California ... 5-4 Pickup Conversion to Chassis Cab ... 4-40 Power Door Locks ...
Page 411 Removing the Flat Tire and Installing the Spare Tire ... 5-83 Removing the Spare Tire and Tools ... 5-79 Replacement Bulbs ... 5-51 Replacement Parts, Maintenance ... 6-14 Reporting Safety Defects Canadian Government ... 7-15 General Motors ... 7-15 United States Government ... 7-14 Restraint System Check Checking the Restraint Systems ...
Page 412 Service (cont.) California Perchlorate Materials Requirements ... 5-4 California Proposition 65 Warning ... 5-4 Doing Your Own Work ... 5-4 Engine Soon Lamp ... 3-30 Publications Ordering Information ... 7-15 Service, Scheduling Appointments ... 7-10 Servicing Your Airbag-Equipped Vehicle ... 1-75 Setting the Clock ...
Page 413 Tires ... 5-54 Aluminum or Chrome-Plated Wheels, Cleaning ... 5-105 Buying New Tires ... 5-70 Chains ... 5-76 Changing a Flat Tire ... 5-78 Cleaning ... 5-106 Different Size ... 5-72 High-Speed Operation ... 5-62 If a Tire Goes Flat ... 5-77 Inﬂation - Tire Pressure ...
Page 414 Vehicle Control ... 4-3 Loading ... 4-33 Parking Your ... 2-34 Running While Parked ... 2-36 Symbols ... iv Vehicle Data Recording and Privacy ... 7-16 Vehicle Identiﬁcation Number (VIN) ... 5-107 Service Parts Identiﬁcation Label ... 5-108 Ventilation Adjustment ... 3-20 Visors ...

GMC 2009 Canyon Owner's Manual

Section 1 Seats and Restraint System

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Your Driving, the Road, and the Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

Rear Axle

Four-Wheel Drive

Front Axle

Bulb Replacement

Headlamp Aiming

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for GMC 2009 Canyon

Summary of Contents for GMC 2009 Canyon
