Summary of Contents for Electrolux DAGL55

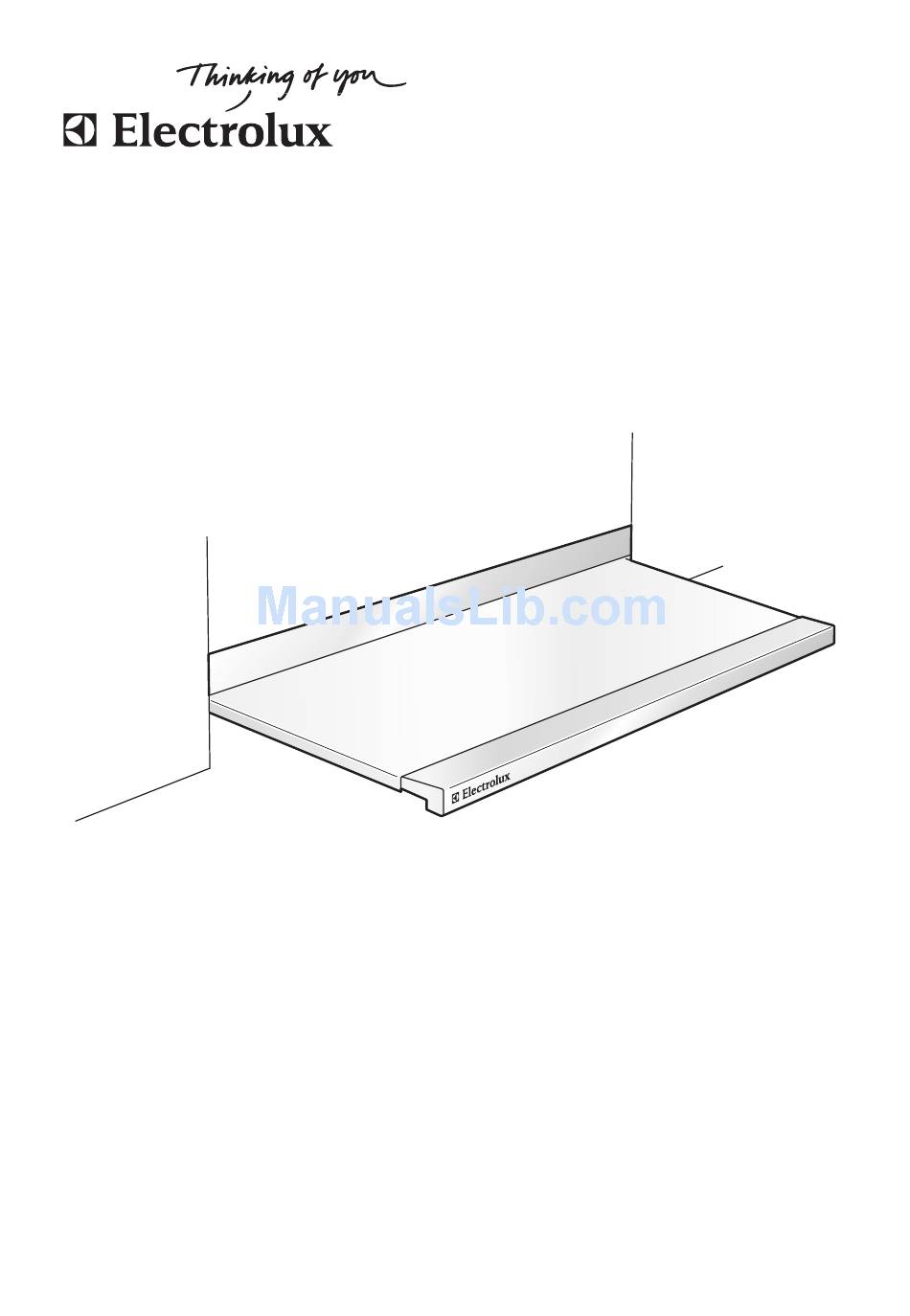

- Page 1 Operating Instructions Extractor Hood DAGL55 56323 03.10 DAGL60...
- Page 2 2 electrolux Dear customer Please read through these operating inst- These operating instructions include hints to ructions carefully. You should pay particular help you correct any faults that may occur; attention to the „Safety Instructions“ section. see the section headed „Remedial measures Please keep these operating instructions in in the event of a fault“.
-
Page 3: Table Of Contents
3 Contents Safety instructions ............4 Electrical safety. -
Page 4: Safety Instructions
4 electrolux Safety instructions The safety of this appliance complies physical, sensory or mental, capabili- with the generally recognised codes ties, or lacking experience and/or lacking of practice and the applicable safety knowledge, unless they are supervised by regulations. Despite that we consider... -
Page 5: Disposal
5 Disposal Packaging materials The packaging materials are eco-friend- ly and recyclable. The plastic compo- nents are labelled, e.g. ‚PE‘, ‚PS‘, etc. Dispose of the packaging materials ac- cording to their labelling in the contai- ners provided for that purpose at local authority waste disposal sites. -
Page 6: Appliance Description
6 electrolux Appliance description Extractor hood equipment Extending hood Light Metal filter Appliance nameplate Special accessories Safety grille DA-SG Set of regeneratable long-life filter, AKF LL45-14, comprised of: Activated carbon filter, AKF LL45-14 Reminder sticker no. 56331 For special installations in open-plan kit-... -
Page 7: Before Using For The First Time
7 Before using for the first time Special accessories Regeneratable activated carbon filter: The activated carbon filter must be regenerated before using the appliance for the first time, as every activated carbon filter absorbs moisture. The moisture must be extracted. -
Page 8: Cleaning And Maintenance
8 electrolux Cleaning and Maintenance Beware! Do not use any abrasive clea- ners, brushes, sponges or scouring powder. External cleaning The external components are to be cleaned with a microfibre cloth. When cleaning the exterior, ensure that the cloth is worked in line with the tex- ture of the stainless steel surface finish (the fine horizontal lines). -
Page 9: Cleaning The Filter Space
9 Reinserting the metal filters 3. Lift up the metal filters at the rear and slot them in place at the front. Cleaning the filter space Clean the filter space with a dry piece of kitchen roll each time the metal filters are cleaned or replaced. - Page 10 10 electrolux Regeneration Moisture and grease particles reduce the absorbent capacity of the activated carbon, so it must be regenerated after 2 months at the latest. 3. Lay the filter cassette flat on the oven shelf in the middle of your oven and heat it up for an hour at 230 °C.
-
Page 11: Replacing The Halogen Bulbs
11 Replacing the halogen bulbs The extractor hood must be discon- nected from the mains supply. (Pull out the plug or switch off the circuit breaker.) Caution! All the bulbs become hot; be careful when replacing them. Please note that energy-saving halo-... -
Page 12: Remedial Action In The Event Of Faults
12 electrolux Remedial action in the event of faults Check whether you can correct any minor faults on the appliance yourself, by means of the following instructions. If this information is of no help in your specific case, please contact After Sales. -
Page 13: Installation Instructions
13 Installation Instructions Safety instructions The risk-free operation of appliances Caution! The minimum safety gap bet- (e.g chimney, gas cooker) and extrac- ween the hob and the extractor hood tor hoods jointly connected to a single must be 50 cm in the case of electric... - Page 14 14 electrolux Installation with herbs and spices cupboard, Use the templates and follow the inst- height 635 mm (5/6), new, and installation ructions on them. with herbs and spices cupboard, height 508 mm (4/6) with door 635 mm (5/6), replace- ment market.
-
Page 15: Electrical Connections / Power Lead
15 Electrical connections / power lead Caution! The electrical connections mains socket must be carried out by an approved in- staller. Beware! The plug must be accessible after installation. A type 12 or type 13 mains socket is to be provided. -
Page 16: Service
16 electrolux Service The well-established Electrolux After Sales service is available to all our customers. Before you call for After Sales The nameplate is located behind the Make sure that the problem is not one of an right-hand filter and on the warranty do- operating error. -
Page 17: After Sales
17 After Sales Service Centres You can order spare parts, accessories and care products online at: 5506 Mägenwil/Zürich www.electrolux.ch Industriestr. 10 Technical advice / Sales 9014 St. Gallen Zürcherstrasse 204 e 8048 Zürich Badenerstrasse 587 4052 Basel Tel. 044 / 405 81 11 Birsstrasse 320 b St.
