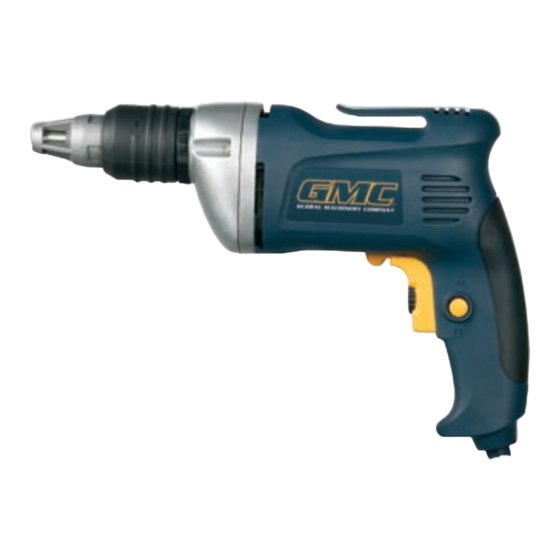

- Page 1 INSTRUCTION MANUAL 710W Drywall Screwgun • Melbourne • Perth • Auckland • Hong Kong • Shanghai • Taipei • New York • Verona • London • Paris DSSCR 050825 ED9 JJ...
-
Page 2: Table Of Contents
Contents Warranty Description of symbols Specifications Safety instructions Additional safety rules for drills Contents of carton Know your product Unpacking Adjusting the driving depths Fitting a 1/4” shank bit Switching on and off Direction of rotation Lock-on button Speed selection Operation Belt clip Cleaning... -
Page 3: Description Of Symbols
Dear Customer If you require any help with your product, whether it is a Warranty claim, spare part or user information, please phone our Help Line for an immediate response. Phone 1300 880 001 in Australia or 0800 445 721 in New Zealand. -
Page 4: Safety Instructions
Safety instructions WARNING. Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Save these instructions Work area Keep work area clean and well lit. -
Page 5: Additional Safety Rules For Drills
Power tool use and care Do not force the power tool. Use the correct power • tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not •... -
Page 6: Contents Of Carton
• Keep the area free of tripping hazards. • Do not let anyone under 18 years operate this tool. • Do not touch the bit after operation. It will be very hot. • Keep your hands away from under the workpiece. Contents of carton The drywall screwdriver is supplied with the following accessories... -
Page 7: Know Your Product
Know your product 1. Nose piece 2. Depth adjustment collar 3. Magnetic hex shank bit holder 4. Hex nut 5. Belt clip 6. Lock-on button 7. Variable speed trigger switch 8. Speed control 9. Forward/reverse switch 10. Bit holder extension... -
Page 8: Unpacking
Unpacking Due to modern mass production techniques, it is unlikely that your GMC Power Tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. -
Page 9: Direction Of Rotation
Direction of rotation The direction of motor rotation is controlled by the forward/ reverse switch (9). 1. The bit rotates in a clockwise direction (viewed from the rear) when the forward/reverse switch is set to the right-hand side of the tool. This is the position required for driving screws and other fasteners. -
Page 10: Cleaning
Cleaning 1. Keep your machine and its cord clean. The outside of the machine can be cleaned using a damp soft cloth with a mild detergent if required. 2. Some maintenance products and solvents may damage the plastic parts; these include products containing benzene, trichloroethylene, chloride and ammonia. - Page 12 Carefully read the entire Instruction Manual Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: •...
