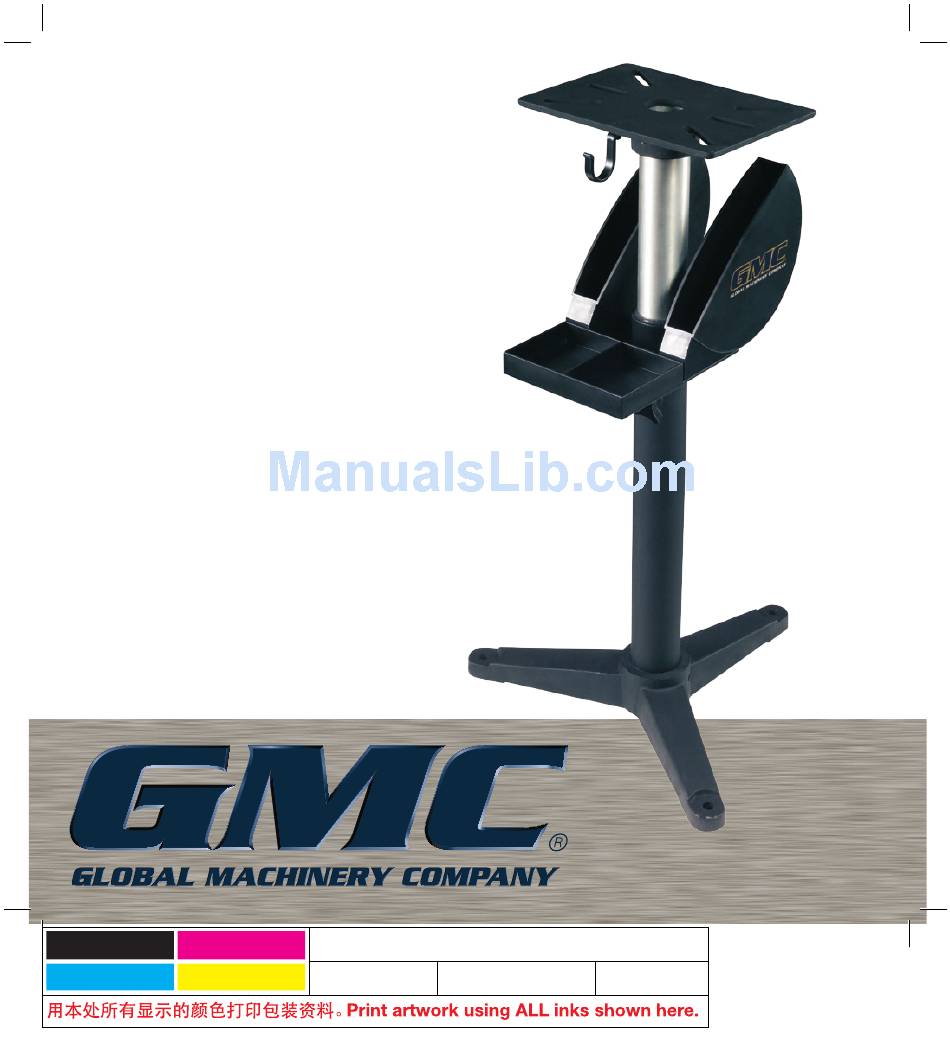

- Page 1 BENCH GRINDER STAND BGSTAND INSTRUCTION MANUAL Black Magenta Code: BGSTAND Cyan Yellow Date: 061114 Edition: 09 Op: DCR...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Specifications General safety rules Additional safety rules for bench grinder stands 5 Additional safety rules for bench grinders Unpacking Assembly Required tools Components Know your product Assembly Adjusting the heigh Cleaning General inspection Troubleshooting Warranty Power Tools... -
Page 3: Introduction
Min. Height: 730mm (73cm) Compatible GMC Bench Grinders: BG612HPL BG834HPL BG200A BG150A NTS2000A BG150VS Weight: 13.0kg General safety rules WARNING. Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 3. Personal safety a. Stay alert, watch what you are doing and use common sense when operating a power tool. not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
-
Page 5: Additional Safety Rules For Bench Grinder Stands
Always wear eye protection and check that the eye shields on the grinder are properly adjusted. • Always turn the grinder off when it is not in use and never leave it unattended without first switching off and removing the power plug. Never leave the grinder until the grinding wheels have come to a complete stop. -
Page 6: Unpacking
Unpacking Due to modern mass production techniques, it is unlikely that your GMC Power Tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. Failure to do so could result in serious personal injury. -
Page 7: Components
2. Fixed support pole 3. Adjustable support pole 4. Accessory storage compartment 5. Wheel storage compartments 6. Bench grinder support plate 7. Pan head tapping screws (x4) 8. Tension handle 9. Hook, pan head screw and flat washer 10. 8mm and 5mm hex keys 11. -
Page 8: Know Your Product
1. Base 2. Fixed support pole 3. Adjustable support pole 4. Accessory storage compartment 5. Wheel storage compartment (x2) 6. Bench grinder support plate 7. Pan head tapping screws (x4) 8. Tension handle 9. Hook 10. 8mm and 5mm hex keys... -
Page 9: Assembly
4 pan head tapping screws to secure the wheel storage compartments in place. 11. Fit the bench grinder support plate onto the top of the adjustable support pole. 12. Secure the bench grinder support plate in position by... -
Page 10: Adjusting The Heigh
Do not fit the grinder or operate the grinder without the base being firmly attached as it will tip over. - Page 12 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
