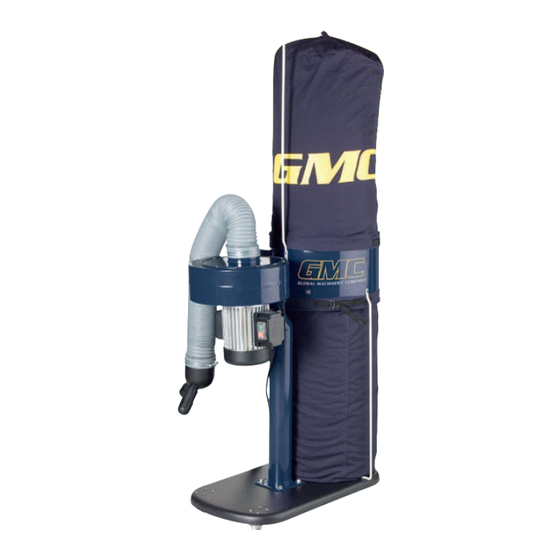

- Page 1 I N S T R U C T I O N M A N UA L 750w Dust Extractor/ Collector • Melbourne • Perth • Auckland • Hong Kong • Shanghai • Taipei • New York • Verona • London • Paris RDC100 080530 RDC100 ED7...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Description of symbols Specifications General safety instructions Additional safety instructions for dust extractors Unpacking Know your product Assembly Operation Maintenance General inspection Repairs Full 2 Years Home Use Warranty Whilst every effort is made to ensure your complete satisfaction with this tool, occasionally, due to the mass manufacturing techniques, a tool may not live up to our required level of performance and you may need the... -
Page 3: Introduction
Dear Customer If you require any help with your product, whether it is a Warranty claim, spare part or user information, please phone our Help Line for an immediate response. Phone 1300 880 001 in Australia or 0800 445 721 in New Zealand. - Page 4 2. Consider the environment in which you are working. Do not use power tools in damp or wet locations. Keep the work area well lit. Do not expose power tools to rain. Do not use power tools in the presence of flammable liquids or gases.
-
Page 5: Unpacking
with grounded objects such as water pipes, radiators, cookers, refrigerators and other metal surfaces.. 20. Use only approved parts. When servicing, use only identical replacement parts. Use an authorised service facility to fit replacement parts. WARNING. The use of an accessory or attachment, other than those recommended in this Instruction Manual, may present a risk of personal injury. -
Page 6: Know Your Product
Know your product 1. Fan housing 2. Anti-vibration bolt (x2) 3. Collector 4. Collector support bracket (x2) 5. Motor 6. Switch box assembly 7. Support pole 8. Base plate 9. Bag 10. Bag support 11. Inlet port 12. Caster (x4) 13. -
Page 7: Assembly
Assembly The Dust Extractor is shipped partly disassembled. Casters 1. Place the base plate upside down and attach the four casters. Support pole 1. Turn the base plate the right way round and attach the support pole. The right-angle plate needs to face the shortest end of the base. -
Page 8: Operation
Operation CAUTION. Do not operate the extractor unless a hose is connected to the inlet port. Switching on and off 1. Connect the plug to the power supply. 2. Depress the ON button. 3. To switch off, depress the OFF button. NOTE. - Page 9 Carefully read the entire Instruction Manual Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: •...
