Summary of Contents for Boss BV7300
-
Page 3: Table Of Contents
Data Disc Play Operation choice for mobile video entertainment. USB Playback Memory Card Play Operation AV IN Operation Setup System Setup Language Setup Audio Setup Digital Setup More About This Player Specifi cation Troubleshooting BV7300 User’s Manual - page 1... -
Page 4: Safety Information
This mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not corre- BV7300 User’s Manual - page 2... -
Page 5: Installation
For details, refer to the following illustrated installation methods. Remove transit screws before installation Before installing the unit, please remove the two transit screws. BV7300 User’s Manual - page 3... - Page 6 Removing the unit Bend open the appropriate tabs behind the dashboard to secure the sleeve in place. 1. Make sure the ignition is turned off, and BV7300 User’s Manual - page 4...
-
Page 7: Using The Detachable Front Panel
(5x5mm) on each side. Note: The outer trim ring, sleeve and the metal strap are not used for method B installation. BV7300 User’s Manual - page 5... -

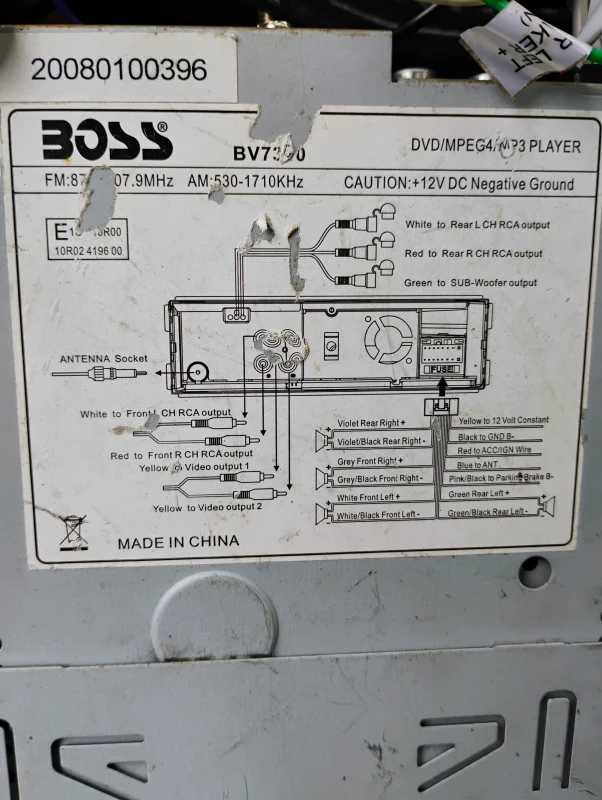

Page 8: Wiring Diagram
Note: In Radio Mode or CD/MP3 Mode images will be displayed on the monitor whether or not the parking brake is engaged. Connecting the Parking Brake line to the parking brake system built in the car BV7300 User’s Manual - page 6... -
Page 9: Operation
2 INTRO (Intro Scan) ST (Stereo/Mono select), 3 RPT (Repeat Mode select) LOC (Local/Distance select) 6 GO TO MENU 5 STOP AS•PS (Automatic Search/Program 4 RDM (Random Playback Mode select) Search) USB Port A/V Input Connector BAND BV7300 User’s Manual - page 7... -
Page 10: Using The Remote Control
30° right of the sensor. * If direct sunlight is falling on the remote sensor, it may interfere with the ability of the remote to communicate with the head unit. * This remote control is a precision device. BV7300 User’s Manual - page 8... -
Page 11: General Operation
To turn off the sound instantly, press the MUTE button. To return it to the prior sound level, press MUTE again. Mode function Press MODE repeatedly to switch between DVD, AV and TUNER modes. BV7300 User’s Manual - page 9... -
Page 12: Radio Operation
However, if a station seems too distant to be received well, try switching to DISTANT mode by pressing and holding ST/LOC (or pressing LOC on the remote control). Press it again to return to LOCAL mode. BV7300 User’s Manual - page 10... -
Page 13: Av Menu Settings
PICTURE MENU SETUP MENU VOLUME FADER BRIGHT TINT SYSTEM BASS CLAS CONTRAST DISP.M TREBLE LOUD COLOR DEFAULT BALANCE SUB.W TIME TIME.M 11 : 0 0 H o u r M i n u t e BV7300 User’s Manual - page 11... - Page 14 Loudness introduces a special low and high frequency emphasis at low listening levels. Sub-woofer: ON/OFF This unit is equipped with a subwoofer output. If you connect this output to a powered suwoofer or amp/subwoofer system, enable the output by selecting ON. BV7300 User’s Manual - page 12...
- Page 15 4:3: Select this when the aspect ratio of your monitor is 4:3. If you view a widescreen picture, black bars will appear to fi ll the left and the right sides of the screen. Default: ON/OFF; Select this to restore to factory settings. BV7300 User’s Manual - page 13...
- Page 16 Time.M: 12 / 24 Use this setting to select 12 hour clock mode or 24 hour clock mode. Clock setting: Use this menu item to set or make changes to the time displayed on the clock. BV7300 User’s Manual - page 14...
-
Page 17: Disc Operation
1) Press RPT button repeatedly to select different repeat modes. Use cursor buttons ( / / / ) and the 2) For different kinds of discs, pressing RPT ENTER button to select item. button has different effects. BV7300 User’s Manual - page 15... - Page 18 Multi-audio language function mode on/off. In random mode, tracks (fi les) For DVD: on the disc will be played in random order. For DVD discs which have multiple language soundtracks, you can press the BV7300 User’s Manual - page 16...
- Page 19 Press ANGLE during playback. The follow- ing information will be shown: This example indicates that you are cur- rently viewing the fi rst of three available camera angles. Press the ANGLE button to select a different angle. BV7300 User’s Manual - page 17...
- Page 20 T-: Remaining time of the current title C: Elapsed playing time of the current chapter C-: Remaining time of the current chapter Audio language or audio channel indication Subtitle language indication View angle indication Mute indication BV7300 User’s Manual - page 18...
-
Page 21: Data Disc Play Operation
MP3 player before you connect it JPG Playback mode to the USB port. Otherwise, the battery may MOVIE Playback mode explode. In JPG playback mode or MOVIE playback mode, press the (STOP) to return to the main menu. BV7300 User’s Manual - page 19... -
Page 22: Memory Card Play Operation
To connect a video device to the auxiliary A/V input, fi rst connect it with the cable provided. Then press the MODE button to turn AV IN mode ON or OFF. BV7300 User’s Manual - page 20... -
Page 23: Setup
PAL TV. When you are playing a widescreen format You can also choose AUTO SELECT, video on a normal (4:3) monitor, the best which will sense the type of monitor at- BV7300 User’s Manual - page 21... -
Page 24: Language Setup
(The factory default password is “0000”) AUDIO LANG: ENGLISH/GERMAN/SPANISH/FRENCH/ 3) Press the / button to select “RATING” PORTUGUESE/ITALIAN/RUSSIAN/POLISH then press the ENTER button. The restric- tion level (parental level) input display SUBTITLE LANG: appears. ENGLISH/GERMAN/SPANISH/FRENCH/ PORTUGUESE/ITALIAN/RUSSIAN/POLISH BV7300 User’s Manual - page 22... -
Page 25: Audio Setup
2). DYNAMIC RANGE: Change among censorship has occurred. FULL, 6/8, 4/8, 2/8, OFF. Unlock Unlock 3). DUAL MONO: Change among STEREO, KID SAFE PG-R MONO L, MONO R, MIX MONO. NC-17 PG 13 ADULT BV7300 User’s Manual - page 23... - Page 26 NOTE: image. To set the “Parental Control” level, please refer to “Parental Control Level” on page 22. BV7300 User’s Manual - page 24...
-
Page 27: Specifi Cation
Number of pixels: 16,777,216 pixels Resolution: 959 X 240 pixels [ RADIO ] FM TUNER Frequency range: 87.5 -107.9 MHz 10.7 MHz Stereo Separation: >25dB AM TUNER Frequency range: 530 - 1710 KHz 450 KHz BV7300 User’s Manual - page 25... - Page 28 TV SYSTEM menu (see page 21). No Color in Picture The disc format is not the same as the TV-set used (PAL/NTSC). Select the proper setting in the TV SYSTEM menu (see page 21). BV7300 User’s Manual - page 26...
- Page 29 Notes...
- Page 30 Notes IB-005803-07-01...
