INSTALLATION
INSTRUCTIONS
Honda Dealer: Please give a copy of this instruction to your customer.

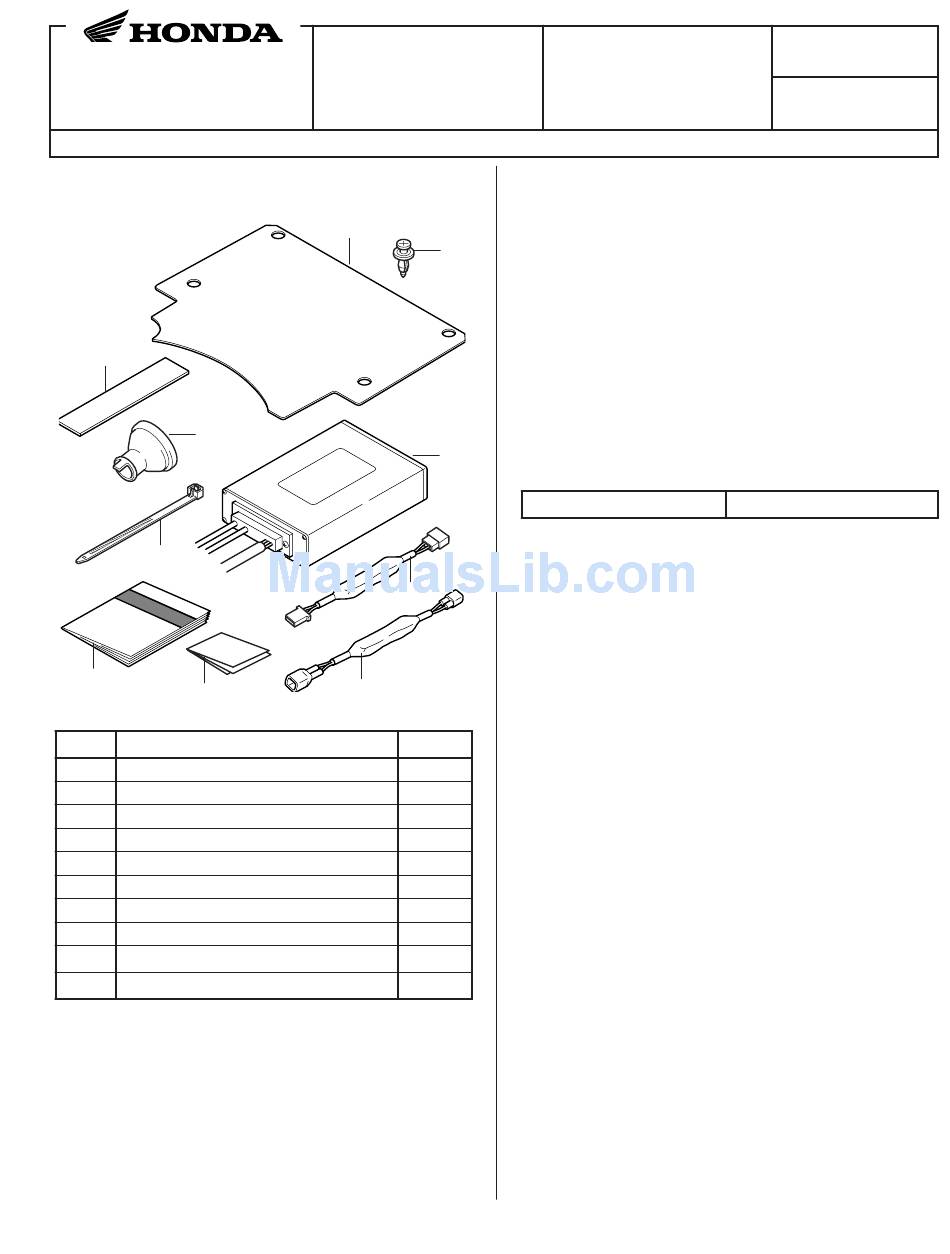

PARTS LIST
(5)
(4)
(10)
(2)
(3)
No.
Description
(1)
CB radio
(2)
Owner's Manual
(3)
FCC Rule Book
(4)
Grommet
(5)
Cushion tape
(6)
Plate
(7)
Rivet
(8)
Capacitor (2P)
(9)
Capacitor (2P waterproof)
(10)
Wire tie
© 2007 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
CB RADIO KIT
P/N 08E95-MCA-102
TOOLS AND SUPPLIES REQUIRED
Phillips ® screwdriver
(6)
Electric drill motor
(7)
Drill bit (7, 10 mm)
Hole saw (28 mm)
Scissors
Wood block
Isopropyl alcohol
Torque wrench
USE AND CARE INFORMATION
The combined weight of the cargo and accessories must
(1)
not exceed the maximum weight capacity of the trunk:
(8)
(9)
Qty
1
1
1
1
4
1
4
2
1
3
08E95-MCA-1002-91
Application
GL1800
CB Radio Kit
Publications No.
Issue Date
February 2007
1.6 lbs (0.7 kg)
1 of 8
Advertisement
Table of Contents
Related Manuals for Honda 08E95-MCA-102
Summary of Contents for Honda 08E95-MCA-102
-
Page 1: Installation Instructions
CB RADIO KIT GL1800 Issue Date P/N 08E95-MCA-102 INSTRUCTIONS February 2007 Honda Dealer: Please give a copy of this instruction to your customer. PARTS LIST TOOLS AND SUPPLIES REQUIRED Phillips ® screwdriver Electric drill motor Drill bit (7, 10 mm) - Page 2 SEAT RIGHT PASSENGER GRIP BOLT LEFT PASSENGER GRIP LEFT SIDE COVER - From '06 model year - METER PANEL RIGHT SIDE COVER 2 of 8 08E95-MCA-1002-91 © 2007 American Honda Motor Co., Inc - All Rights Reserved.
- Page 3 SWITCH PANEL Also remove the SCREW left side. RIGHT COWL TRIM RIGHT MOULDING COWL TRIM Also remove the MOULDING left side. Also remove the left side. 3 of 8 © 2007 American Honda Motor Co., Inc - All Rights Reserved. 08E95-MCA-1002-91...
- Page 4 WASHER SOCKET BOLT Also remove the left side. REAR TRUNK SHELTER Remove. SOCKET BOLTS Also remove the left side. Also remove the left side. 4 of 8 08E95-MCA-1002-91 © 2007 American Honda Motor Co., Inc - All Rights Reserved.
- Page 5 SLIT GROMMET REAR TRUNK 10. Install the plate on the rear trunk if you are installing the CD changer. ELECTRIC DRILL MOTOR (7 mm BIT) 5 of 8 © 2007 American Honda Motor Co., Inc - All Rights Reserved. 08E95-MCA-1002-91...
- Page 6 • This step is for airbag type only. (White)(unused) CLIP Right side RIGHT DUCT 13-PIN CB RADIO HARNESS Left side CONNECTOR Airbag Type (right side) LEFT DUCT CLIP 13-PIN CONNECTOR 6 of 8 08E95-MCA-1002-91 © 2007 American Honda Motor Co., Inc - All Rights Reserved.
- Page 7 Airbag Type (right side) store the capacitor in the harness boot. CAPACITOR (2P) After the connection, store the capacitor in the harness boot. MOTORCYCLE’S 2-PIN CONNECTOR (White) 7 of 8 © 2007 American Honda Motor Co., Inc - All Rights Reserved. 08E95-MCA-1002-91...
- Page 8 18. Reconnect the negative cable to the battery. 19. Reinstall the seat in the reverse order of removal. 8 of 8 08E95-MCA-1002-91 © 2007 American Honda Motor Co., Inc - All Rights Reserved.
