Passenger compartment fuse panel

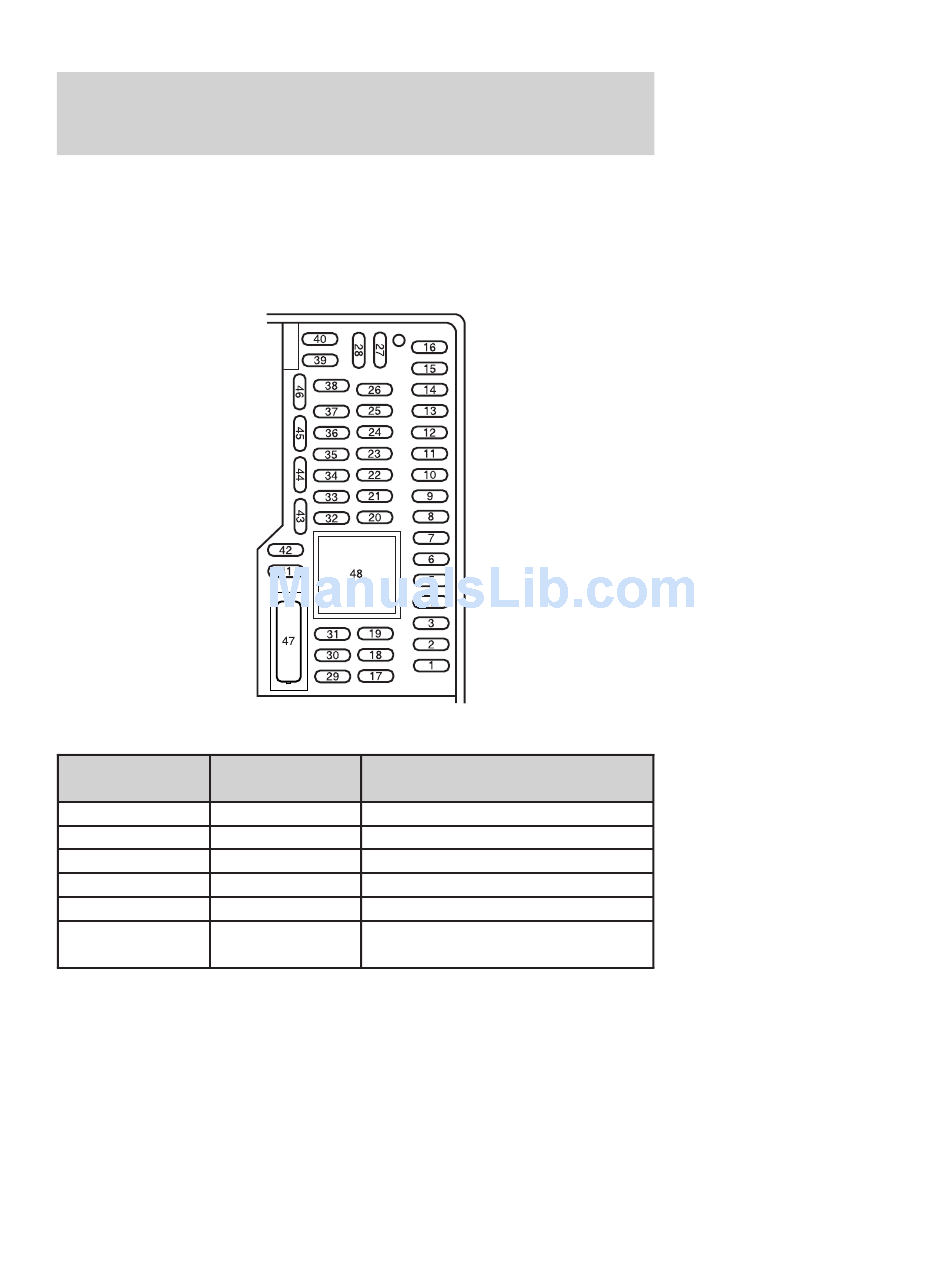

The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the fuse panel cover to gain access to the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows.
Fuse/Relay
Location
1
2
3
4
5
6
188
2009 Focus (foc)
Owners Guide, 1st Printing
USA (fus)
Fuse Amp
Rating
30A
Not used (spare)
15A
Brake Switch CHMSL
15A
Satellite radio
30A
Not used (spare)
10A
Shift Interlock
20A
Right Front Turn lamp/Left Front
Turn lamp, Rear stop/turn lamps
Protected circuits
