- Page 1 Owner’s Manual Body Scanner/Metal Detector IMPORTANT Read and understand instruction booklet before using scanner. Always test scanner for proper operation before each use.
- Page 2 I N T R O D U C T I O N Your Ranger Body Scanner/Metal Detector is ideal for use at airports, industrial sites, government buildings, schools, hospitals, meetings, athletic events, or anywhere you need added security without undue inconvenience to anyone entering the area.
-
Page 3: Table Of Contents
TA B L E O F C O N T E N T S A LOOK AT YOUR RANGER BODY SCANNER ......4 POWERING THE BODY SCANNER/METAL DETECTOR ....6 Installing the Battery ............6 Charging a Nickel-Cadmium Battery .......8 OPERATION .................10 Turning the Body Scanner On and Off ......10 Testing the Body Scanner ..........10... -

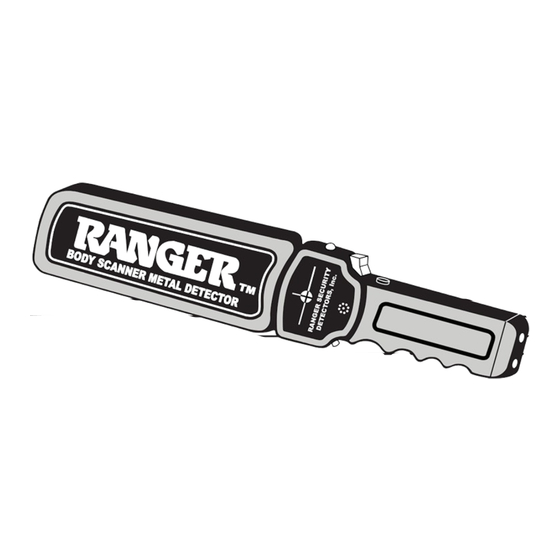

Page 4: A Look At Your Ranger Body Scanner
A LOOK AT YOUR BODY SCANNER Scan Area Sensitivity Adjust Battery Recharger/Earphone Jack... - Page 5 Visual LED Alert Power Switch De-Sense-Button Battery Compartment Cover Audio Alert...
-
Page 6: Powering The Body Scanner/Metal Detector
POWERING THE BODY SCANNER INSTALLING THE BATTERY Your Ranger Body Scanner/Metal Detector requires one 9V battery for power. We recommend using an alkaline battery. You can also use a rechargeable nickel-cadmium battery with a proper AC adapter. Notes: • If you use a rechargeable nickel-cadmium battery, you must charge it before operating the security wand. - Page 7 Follow these steps to install the battery: 1. Use a Phillips screwdriver to remove the two screws that hold the battery compartment cover in place and remove the cover. 2. Carefully disconnect the old battery, if necessary, and remove it from the battery compartment. 3.
-
Page 8: Charging A Nickel-Cadmium Battery
You must charge a rechargeable nickel-cadmium battery before you can use it to power the security wand. To charge it in the security wand, you need an AC adapter. AC adapters are available from Ranger Security. Warning: Do not try to recharge alkaline or other non-rechargeable batteries. - Page 9 1.Set ON/OFF to OFF and install the battery in the Body Scanner. 2.Insert the AC adapter's plug into the Body Scanner's recharger/earphone jack, on the side of the wand. 3.Plug the AC adapter's other end into a standard AC outlet. 4.Charge the battery for 14 to 16 hours.
-
Page 10: Operation
OPERATION TURNING THE BODY SCANNER ON AND OFF ON/OFF is located on the top side of Set ON/OFF to ON to turn the Body Scanner the Security Wand for easy thumb on, or to OFF to turn it off. access. ON/OFF Rocker To conserve battery life, always make sure the... -
Page 11: Body Scanning
BODY SCANNING 1.Ask the person to face you with their arms and legs slightly extended. 2.Using a smooth, even speed, begin the body scan at the upper left shoulder, holding the Body Scanner’s flat surface to the person’s profile, about one inch from their body. 3.Using a smooth, even motion, scan: a.Down the length of one arm b.Back up underneath the arm... -
Page 12: Adjusting The Body Scanner's Sensitivity
The sensitivity control trimpot is located directly infront of the Battery Recharger/ Earphone Jack... -
Page 14: Maintenance
MAINTENANCE Your Ranger Body Scanner/Metal Detector is an example of superior design and craftsmanship. The following suggestions will help you care for the Body Scanner so you can enjoy it for years. • Keep the Body Scanner dry. If it gets wet, wipe it dry immediately. Liquids can contain minerals that can corrode the electronic circuits. -
Page 15: Specifications
SPECIFICATIONS Operating Frequency ............13 kHz. Weight ..................14 oz. Dimensions .........3 x 15¾ x 1⅜ Inches (HWD) Tuning ................Automatic Alert ................. Audio, LED Light Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice... - Page 16 Liability in all events is limited to the purchase price paid. Liability under the aforesaid warranty is limited to replacing or repairing at our option any RANGER Hand-Held Body Scanner returned, shipping cost prepaid, to Ranger Security Detectors, Inc. RANGER SECURITY DETECTORS, Inc.
