Audiovox BT-HP1 Owner's Manual

Bluetooth stereo headset
Hide thumbs
Table of Contents

Advertisement

Quick Links

BT-HP1
OWNERS MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Audiovox BT-HP1

Summary of Contents for Audiovox BT-HP1

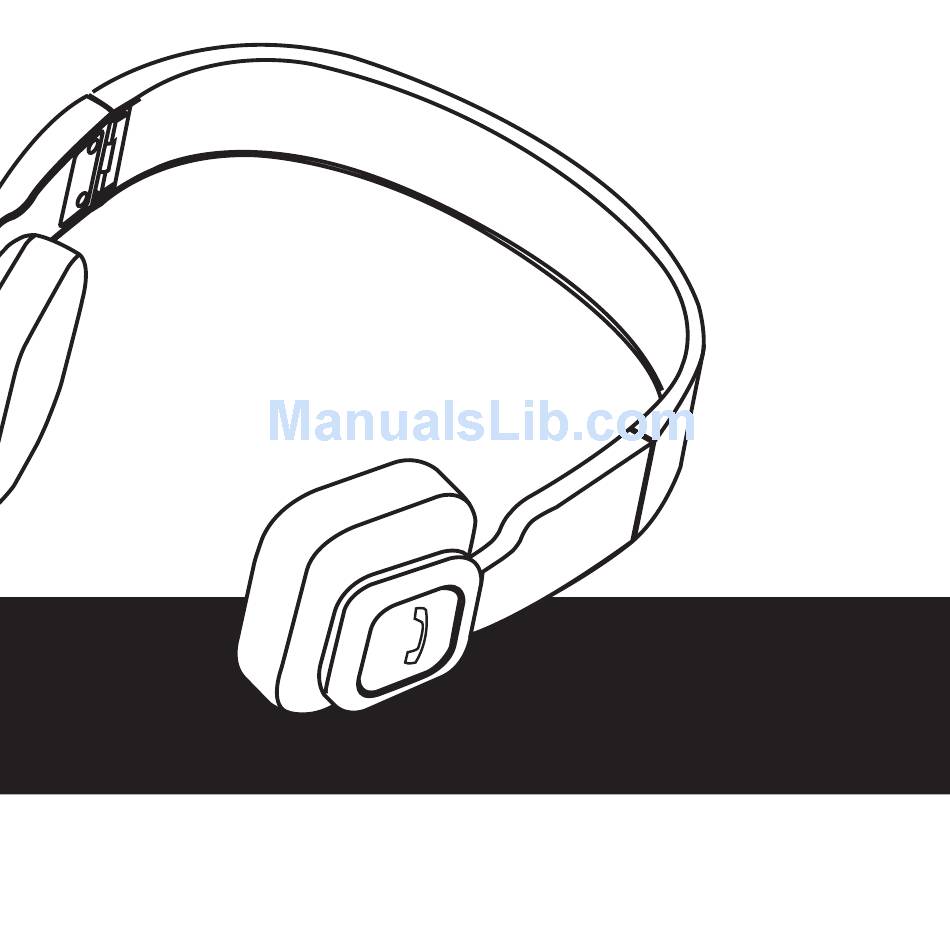

  • Page 1 BT-HP1 OWNERS MANUAL...
  • Page 2 Bluetooth® is a trade mark of Bluetooth Special Interest Group (SIG) In WARNING! Never disassemble or adjust the unit. WARNING! To prevent injury from shock or fire, never expose this unit to moisture or water. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 INTRODUCTION The BT-HP1 is a Bluetooth® stereo headset. The stereo headset is foldable and the retractable design makes the stereo headset is very easy to take with you. The stereo headset supports the following Bluetooth® profiles: HSP —— Headset Profile HFP ——...

  • Page 4: Controls And Indicators

    CONTROLS AND INDICATORS Foldable and retractable headband + button: Volume up ﹤ button: Previous track ﹥ button: Next track Built-in microphone LED indicator Multi-Function Button (MFB): Power on/power off/answer a call/end a call/reject a call/ microphone mute/call transfer/redial last number/voice dial/pause/play Charging jack –...

  • Page 5: Operation

    OPERATION Charging the headset The stereo headset comes with a built-in rechargeable battery. Prior to using the stereo headset it is recommended to charge the battery fully for the first time. The charging time is about three hours. When the stereo headset battery is low, the red LED flashes twice and the headset emits three tones every 20 seconds.
  • Page 6 Turning the stereo headset on and off Function Action LED indicator Power on Press and hold MFB button for Blue LED flashes every second 3 to 5 seconds until blue LED flashes Power off Press and hold MFB button for Red LED flashes once for 1 3 to 5 seconds until red LED second...
  • Page 7 Activate your cell phone’s Bluetooth® function and set your cell phone to search for Bluetooth® devices. Select BT-HP1 from the list of devices shown on the cell phone. If and when prompted enter password or PIN “0000”. If prompted by your cell phone to connect, accept the prompt “Yes” (this will vary among cell phone models).
  • Page 8 Pairing the stereo headset with a Bluetooth® audio device You can connect the stereo headset to a Bluetooth® audio device transmitter to listen to music wirelessly. Perform the following steps to pair the device to the stereo headset: Place the stereo headset and Bluetooth® audio device transmitter approximately three feet apart without physical obstructions such as walls etc.
  • Page 9 Re-connecting with a Bluetooth® device a) Automatic connecting Every time the stereo headset is turned on, it will connect to last connected device automatically. b) Manual connecting When the headset doesn’t connect to a device supporting HFP, press the MFB button twice and the stereo headset will connect to last connected HFP device.
  • Page 10 Stereo Headset Phone Functions Function Action Cancel a call Quickly press the MFB button. Answer a call Quickly press the MFB button. Reject a call Press and hold MFB button for 2 seconds. Release MFB button and a tone is heard. End a call Quickly press the MFB button.
  • Page 11 Stereo Headset Phone Function (Three Way Call) Function Action End current call and answer a new incoming Quickly press the MFB button once. call Keep current call and answer a new incoming Quickly press the MFB button twice. call Call transfer (Pick up another call while on a Quickly press the MFB button twice.
  • Page 12 You have to select “transmit the sound via Bluetooth” in the settings menu and then choose “BT-HP1” as speaker device. The music will then be transmitted to the headset. Please refer to your cell phone’s documentation further information. If you want to remote control previous/next track, pause/play, the stereo headset requires your Bluetooth®...

  • Page 13: Care And Maintenance

    Stereo Headset Status Tones When the stereo headset is connected to a Bluetooth® device the LED will provide the following status indications on the headset. Tone Headset Status Two short tones Entering pairing mode Two tones every 5 seconds Two tones every 5 second during a call indicates the microphone is muted Three tones every 20 seconds Battery charge is low...

  • Page 14: Specifications

    SPECIFICATIONS Bluetooth® specification Bluetooth® V2.1+EDR Bluetooth® profiles HSP, HFP, A2DP and AVRCP Operating distance 30 Feet (10 meters), Class II Operating time Music: Up to 10 hours Talk: Up to 11 hours Standby time 200 hours Charging input DC 5A 130mA Charging time Approximately 3 hours Dimensions...

  • Page 15: 12 Month Limited Warranty

    Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s option) without charge for parts and repair...
  • Page 16 128-9135...
