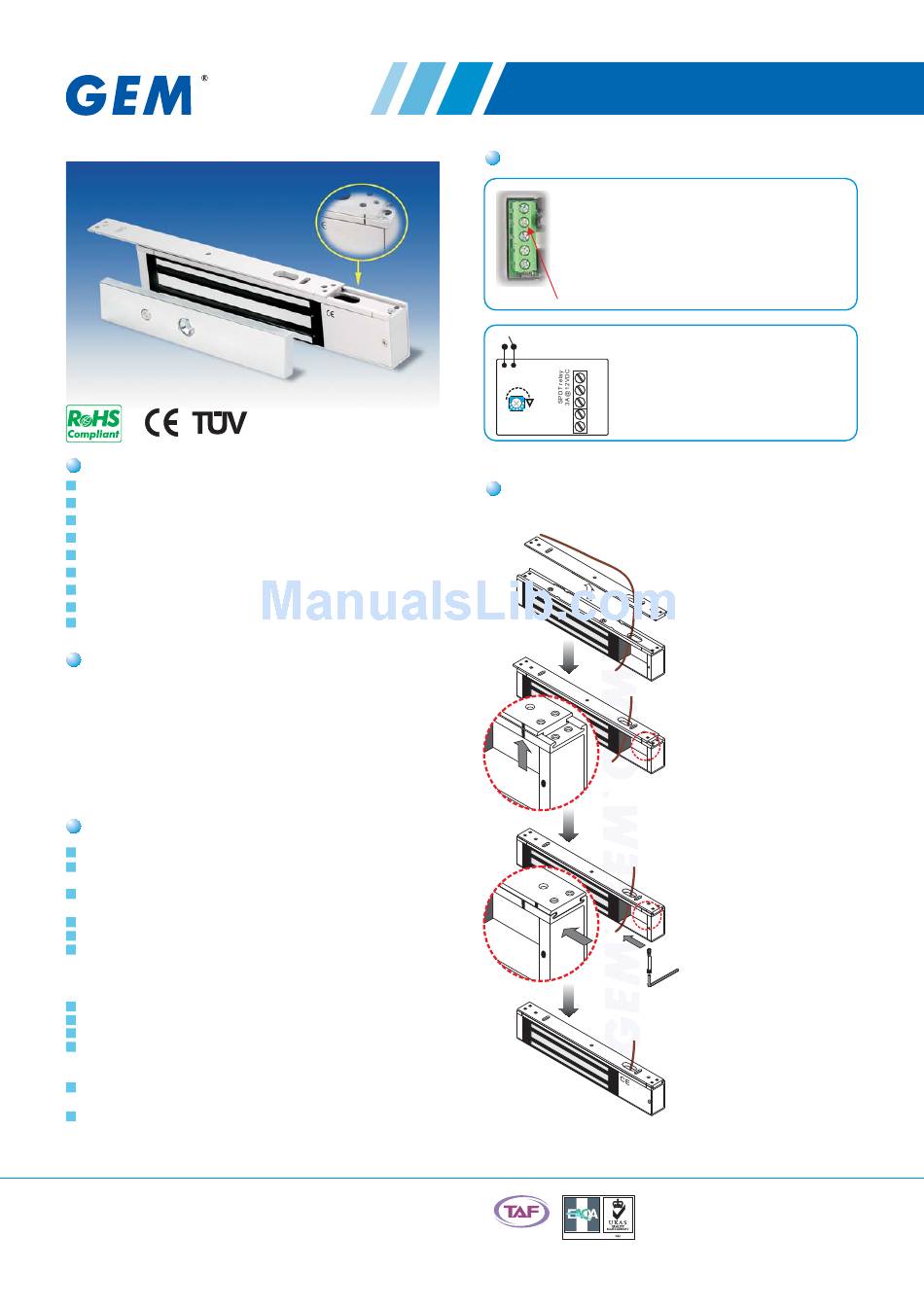

GEM EM-NH600 Specification Sheet

Features
MOV provides spike and surge protection.
Automatic relocking time delay
Magnetic bond sensor monitor output.
Bi-color LED indicates lock/unlock status.
Anodized aluminum housing.
Groove template & housing for easy installation.
Dual voltage 12 or 24 VDC selectable
Anti-Residual magnetism designed.
Complete mounting hardware included.
Statement
The EM-NH600 electromagnet lock is an important mounting
plate design breakthrough. The mounting plate is designed
with a well engineered sliding mechanism that makes
electromagnet considerably easy to clasp the mounting plate
to allow security of use and maximize the ease of installation.
Therefore, even if used for longer periods, the tricky
innovation in its design will prevent the electromagnet of
being falling when the screw are loosening up .

Specifications

Voltage Tolerance: ±15%
Current Draw: 500mA@12Vdc 250mA@24Vdc
( at 20 degree centigrade )
Operating Temperature from -10 to 55 degree
centigrade
Humidity: 0~95% non-condensing.
Holding Force: Up to 600 lbs (272 Kg)
Dimensions:
Magnet:(L) 250, (W) 46, (D) 25 mm
Armature Plate:(L) 185, (W) 38, (D) 12 mm
Mounting Plate:(L) 250, (W) 25, (D) 5 mm
Finishes for magnet and armature plate: Zinc
Epoxy Potting Compound: E87252 (S), UL94V-0
Weight (Approx.): 2.0 Kg
Magnetic bond sensor monitor output (SPDT rated
3A@12V DC), remotely monitors the door lock or
unlock status.
Status LED: Lights GREEN when the door is
unlocked, lights RED when the door is locked.
Automatic relocking time delay: 1~90 seconds.
GIANNI INDUSTRIES, INC.
No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242
TEL: 886-2-2206 9929 FAX: 886-2-2204 6632
E-Mail: info@gianni.com.tw
Website: gianni.tw
Copyright © 2008 Gianni industries, inc. All rights reserved.
DM-CA-EM-NH600 Ver. D Published on 2008.08.18
Patent:
ZL 2006 2 0122522.X
Nr. 20 2006 012 052.1
M308308
GB 06 1 6099.8
06 07229 (France)
( ).
;
EM-NH600
Mini Electromagnetic Lock
Operating Features
EM-NH600M: Bond sensor output & Status LED
Bond sensor is used to indicate the door status as
in a locked or unlocked condition.
visual feedback for user to give the true status of
the lock at any time. Green light indicates the door
is insecure (unlocked) and the Red light is
indicates the door is secure (locked).
Bond sensor monitor output : SPDT rated: 3A@12VDC
Trigger
EM-NH600M-TD: Re-locking time delay
Relocking Time Delay Switch ensures the
N.C.
automatically turns to lock mode after the
Timer Adjust
COM.
door is closed properly and it can be
N.O.
adjusted from 0 to 90 seconds.
Shorten
Power
Input
Special Mounting Plate design
Cable
The products are manufactured under an ISO
9 0 0 1
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
GP001
Status LED
is a
l l l
Fasten the mounting plate on
t h e s i t e t h e n i n s t a l l
e l e c t r o m a g n e t l o c k w i t h
power lead cable through
mounting plate slot hole.
For assembling the mounting
plate and the electromagnet
lock into the groove, please
m a k e t h e m a r k o n t h e
mounting plate and the mark
on the electromagnet lock
itself to be a straight line for
alignment. Either aligning
from left side or from right
side is feasible.
Slide the electromagnetic
lock to fit with the mounting
plate as the drawing. Once
t h e c o r r e c t p o s i t i o n i s
encountered, use the Allen
Wrench to fasten the fixing
screws through the bottom of
the electromagnet lock into
the mounting plate.
A f t e r t h e e l e c t r o m a g n e t
firmly assembled with the
m o u n t i n g p l a t e , u s e t h e
screws to fasten the lock on
the site permanently.
&
Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y
