Chapter 2 Introduction to This Motherboard

Chapter 2 Introduction to This Motherboard

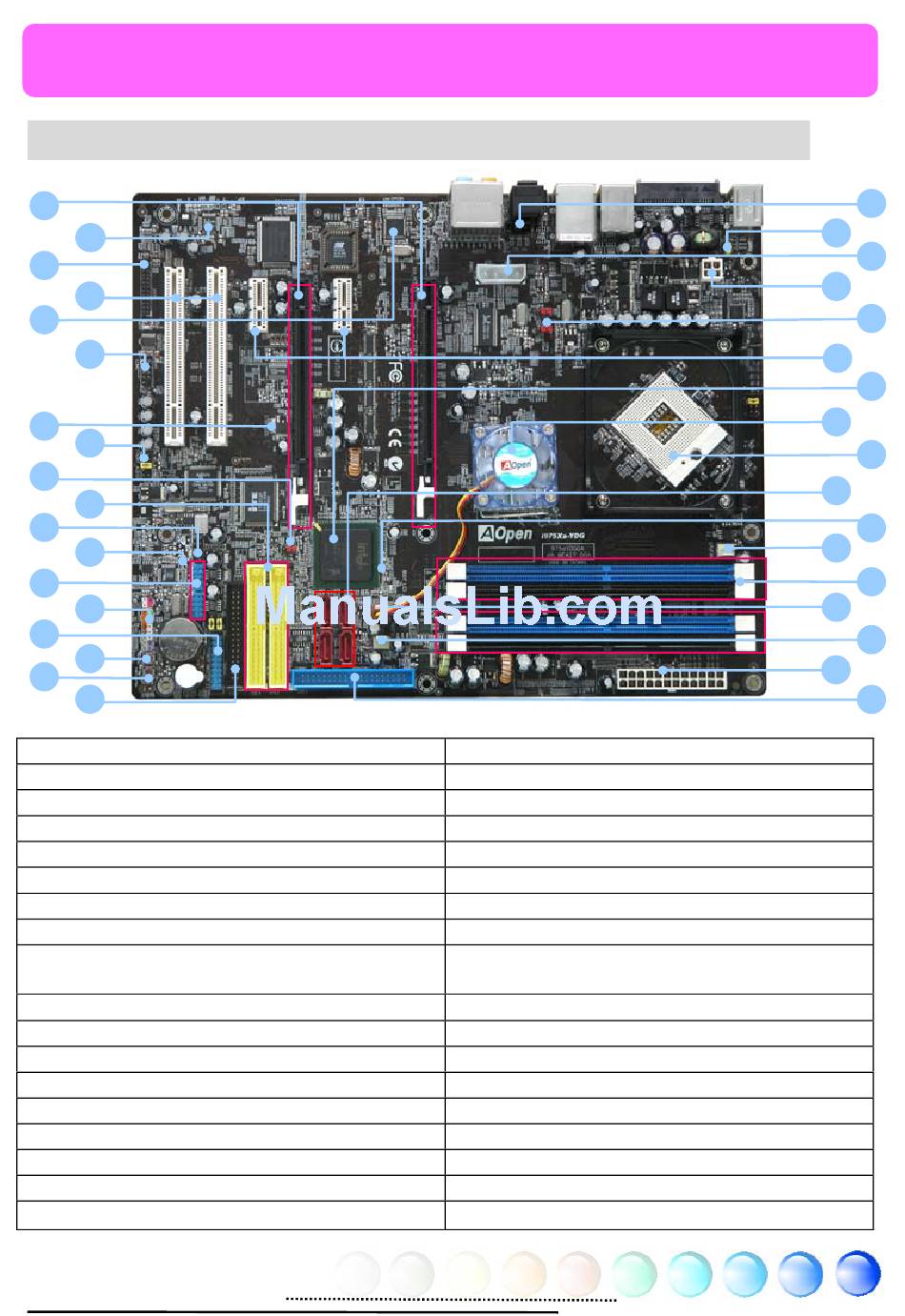

2.1 How does your motherboard look like?

18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1. CD_IN Connector
2. JP28 PS2 KB/Mouse Wakeup Jumper
3. 1x4 Peripheral Connector
4. 4-pin 12V ATX Power Connector
5. J4, J5 Front Side Bus Frequency Jumper
6. PCI Expressx1 Slot x 2
7. Intel ICH7 Chipset
8. Intel 975X Chipset
9. 479-pin CPU Socket supporting Intel Yonah
Core Duo / Solo Processors
10. Serial ATA II connector x 4
11. Boot LED
12. CPU FAN connector
13. 240-pin DIMM x 4 support DDR II 667MHz
14. System FAN1 Connector
15. Power FAN connector
16. 24-pin ATX power connector
17. ATA100 IDE connector
18. PCI Expressx16 Graphics Slot x 2
19. Realtek HDA CODEC
20. Printer Connector
21. 32-bit PCI Expansion Slot x 2
22. Marvell Gigabit LAN Chip
23. COM connector
24. Stand By LED
25. Front Audio Connector
26. JP14 CMOS Data Clear Jumper
27. ATA133 IDE connector x 2
28. IEEE 1394 Connector
29. Power Master II Ready LED
30. USB 2.0 Connector x 2
31. Front Panel Connector
32. Power Master II Connector
33. Reset Switch Connector
34. Power Switch Connector
35. FDD Connector
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
